Description
Price: $18.99
(as of Sep 05, 2024 05:13:14 UTC – Details)
MGN12(MR12) linear guide 200mm with Black MGN12H carriage block. There are 2 red rubber stoppers on the ends of the rail in case the carriage falls off the rail, please remove them after assembling the rail on your machine if necessary. Packing list: 1 * MGN12 linear rail guide 200mm length 1 * MGN12H black carriage block(been installed on the rail) 2 * steel balls(for backup)

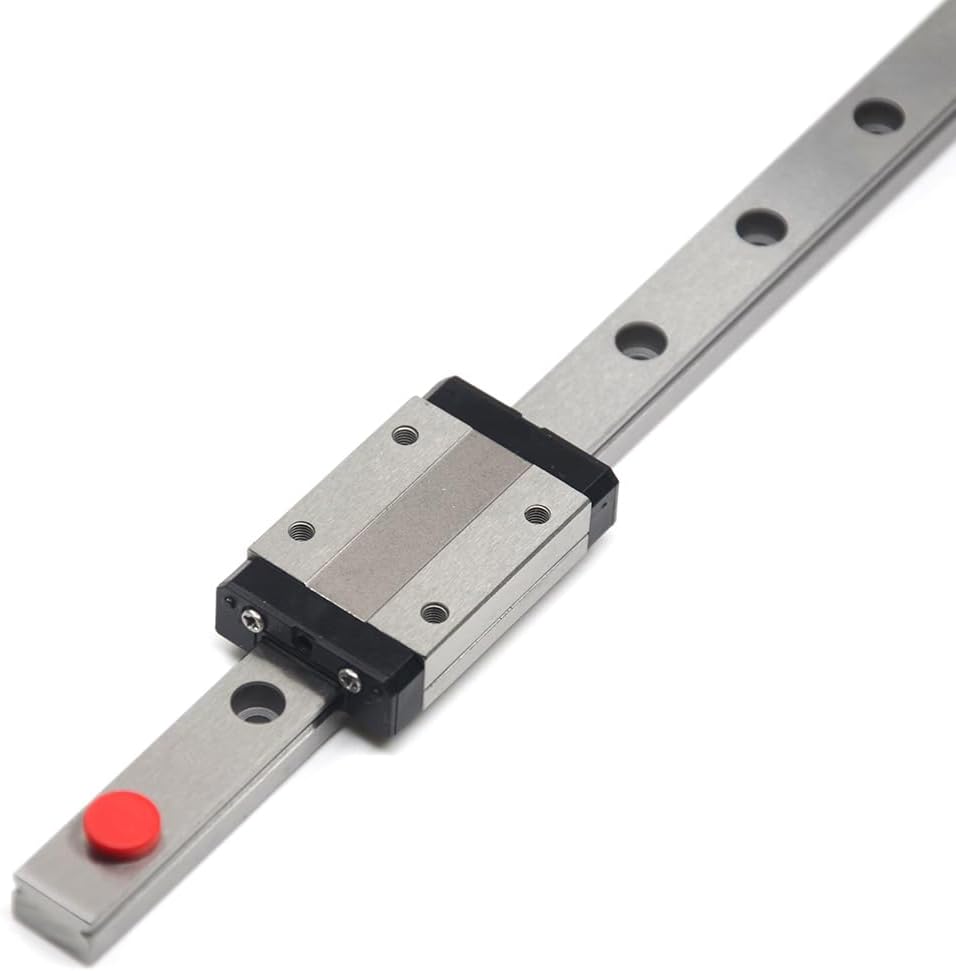

200mm MGN12 linear rail guide with Black MGN12H block
There are 2 red rubber stoppers to keep the block on the rail

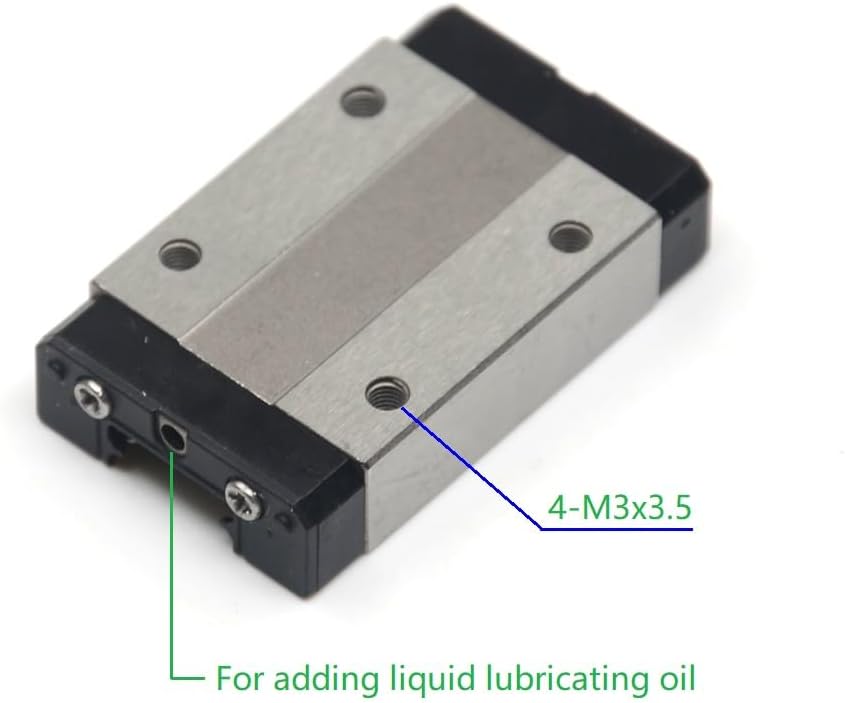

Threaded holes of the block: 4-M3*3.5; center distance of the holes: 20*20mm

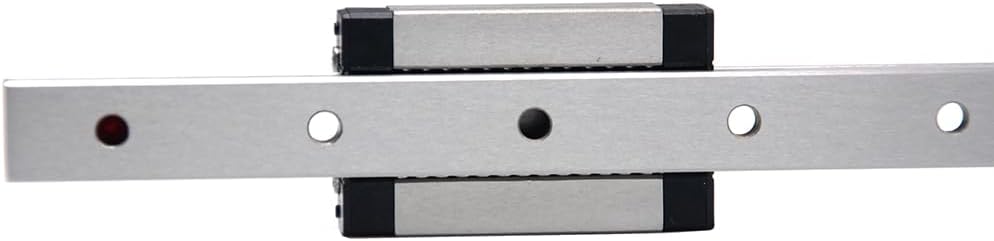

There are 8 holes on the rail for fixing the rail to the machine with M3 nut and screw, and it is suggested to use T nut M3 if you fix it to 20 series EU Al-profile

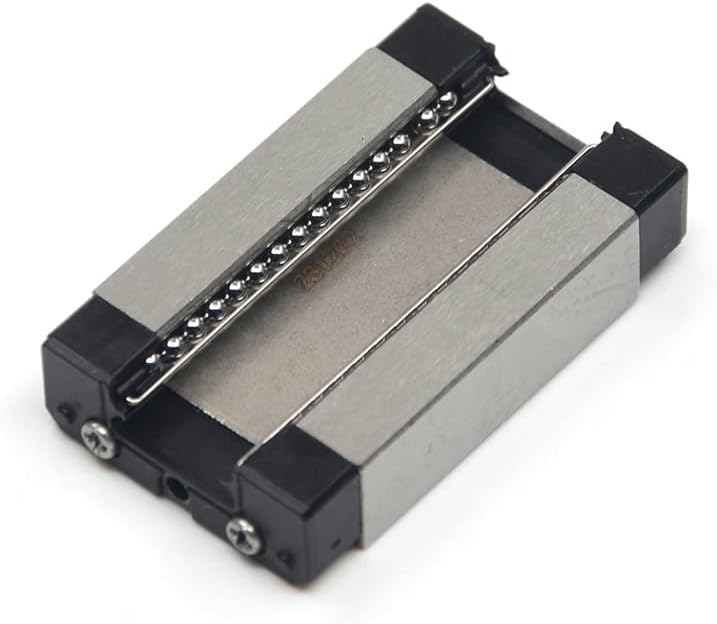

Come with 2 spare balls in the package for backup
