Description
Price: $51.99
(as of Aug 17, 2024 14:55:15 UTC – Details)
Specifications:
Brand: Mssoomm
Material: High Quality Carbon Steel (C45#)
Hardness: 58-64 HRC
Surface Hard-thickness: 0.8 – 2.5mm
Surface Roughness: 0.8S – 1.6S
Straightness: Below 5μm/100mm
Surface Chrome Thickness: 15um-20um
Surface Finish Quality: Ra 0.8
Color: Silver

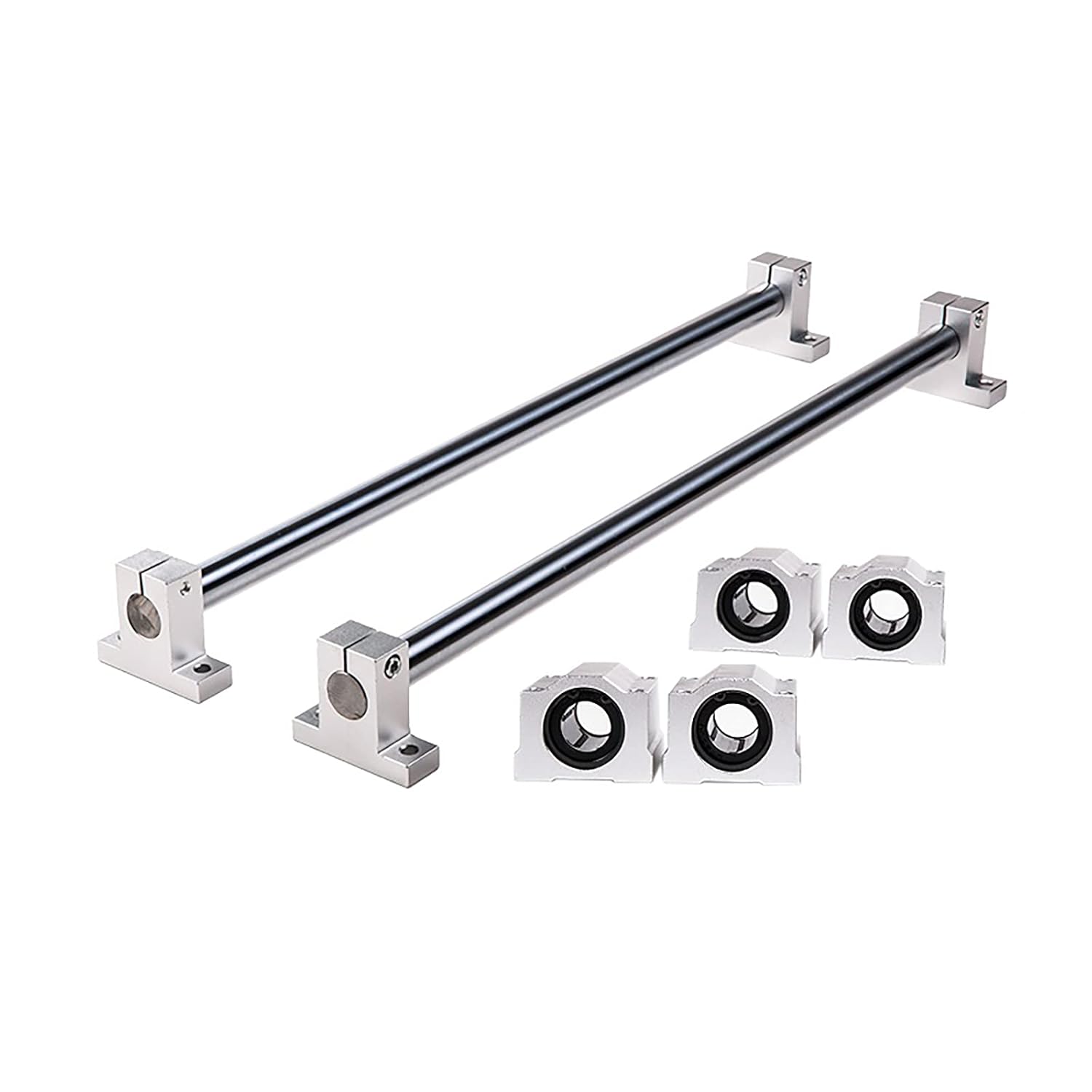

This item includes:
2pcs 12mm x 400mm Linear Rail Shaft Rod

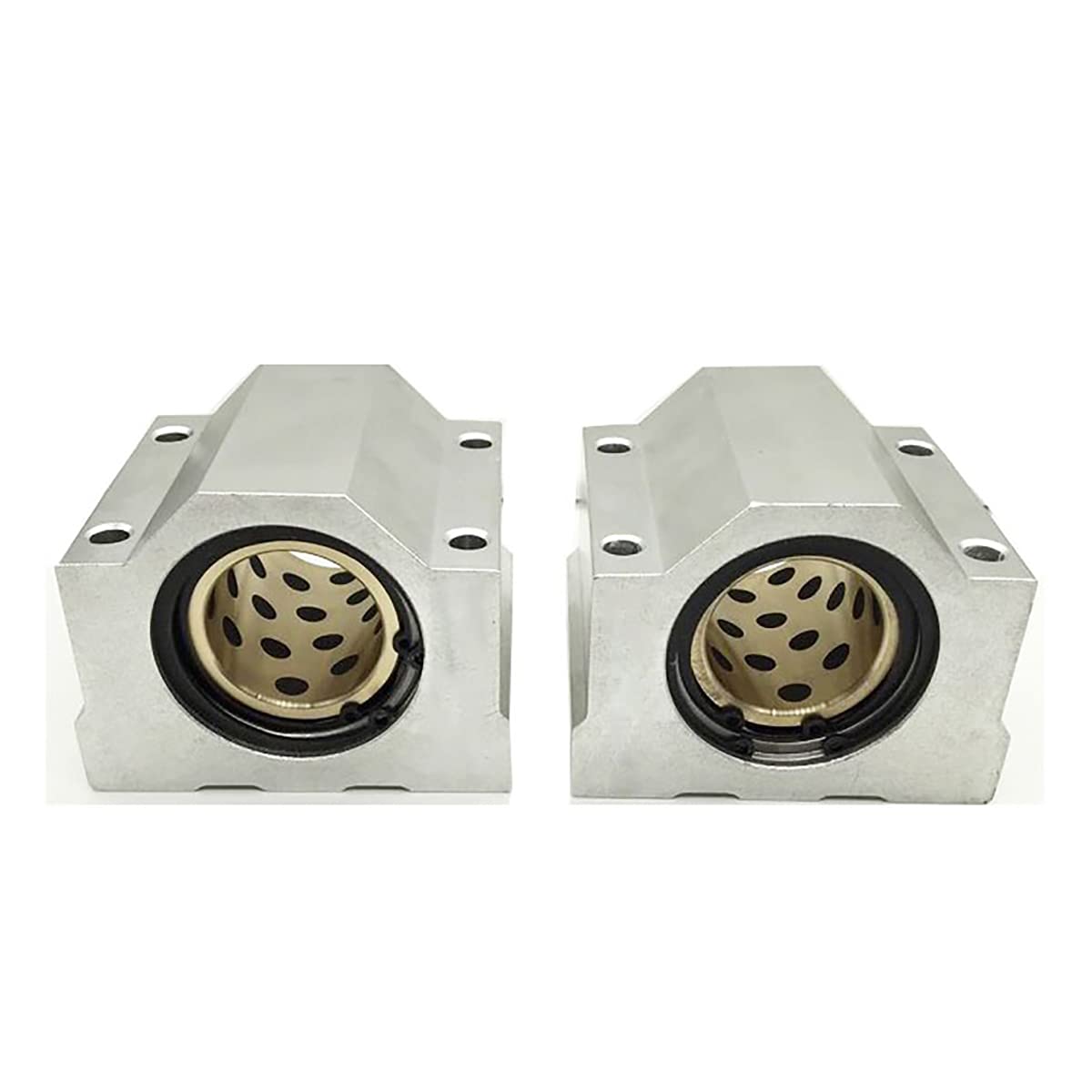

4pcs SCS12UU Bearing Block

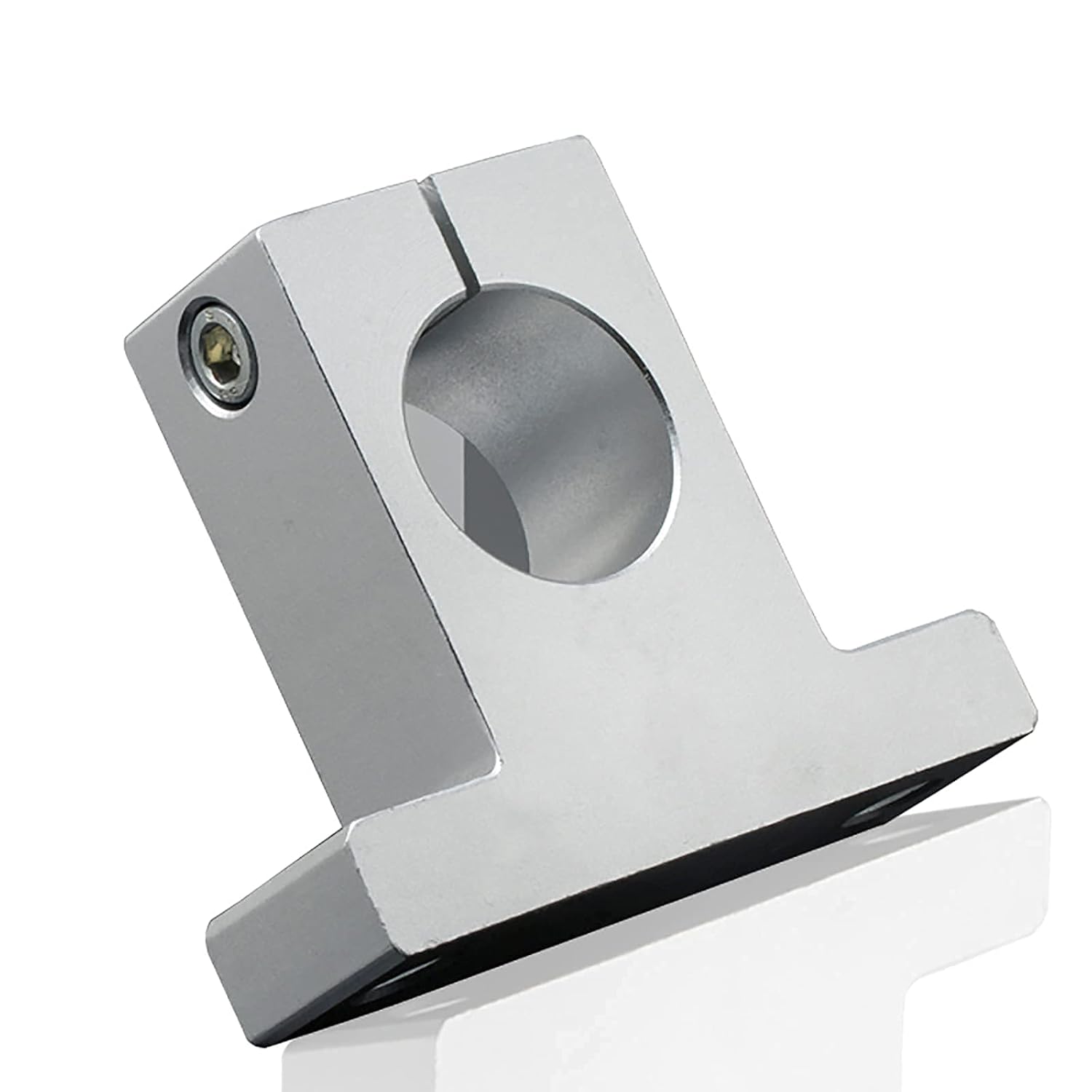

4pcs SK12 Fixed Support
Lead Time: If this item is not FBA, the lead time is 7-10 Business Days except for for Chinese National Day holiday and Spring Festival
Please Note:
– We can offer the linear motion rail shaft rod in any length, pls contact us.

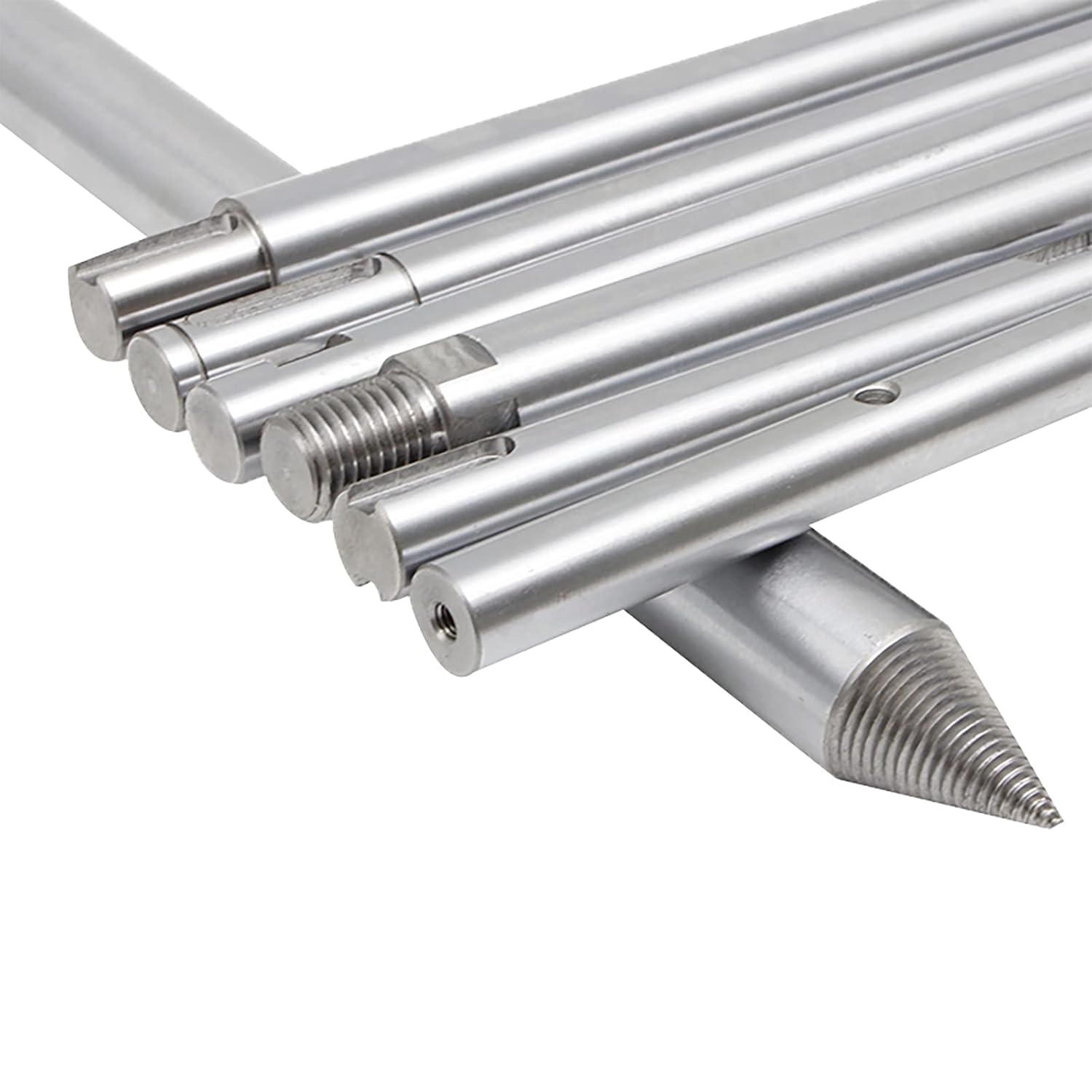

– We can process the end of the rail as you need, some examples you can see the image 8
Package Dimensions : 16.18 x 1.93 x 1.77 inches; 2.62 Pounds
Item model number : MS-GZTZ-D12-L400
Date First Available : June 17, 2021
Manufacturer : Mssoomm
ASIN : B097DCYMC1
Linear rail set kit includes 2pcs 12mm 15.75 inch / 400mm chrome plated linear shaft rod + 4Pcs fixed shaft support SK12 + 4Pcs pillar block bearings SCS12UU
Linear motion bearing kit are made of carbon steel, linear Bearings made of GCr15 bearing steel with aluminum alloy housing. The case hardness could be reach to 58-64 HRC. Durable and corrosion-resistant.
Widely applied in CNC, 3D printer, automatic machinery, injection molding machine, engraving machine, etc. especially in bearing purpose
Perfect combination of main shaft rod rail and aluminum alloy support, which nicely stabilizes the original rail. Industrial-grade standard bearing block, with high precision linear bearing inside
We can customize the linear rail, including the length and end processing, with differert slider block to choose which showed in the image, please tell us if you need. We provide full range of different diameter of the linear rail shaft rod: 5, 6, 8, 10, 12, 13, 14, 16, 20, 25, 30, 35, 40, 50mm and so on.
