Description
Price: $7.99
(as of Jul 26, 2024 03:13:13 UTC – Details)
Description:
Stepper motor can converts pulse signals into angular displacement or linear displacement. It is the main executive element in modern digital program control systems.

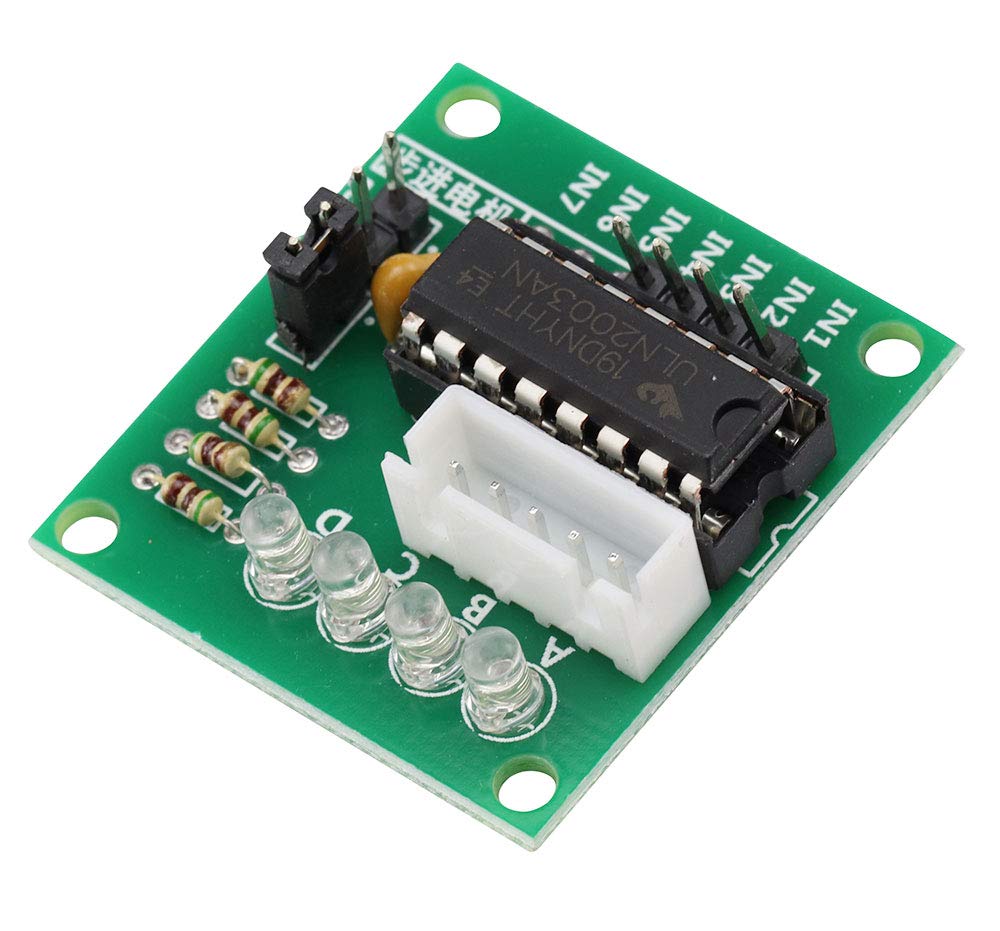

The ULN2003 module is often used to drive a small five-wire four-phase motor, and there’s A,B,C,D light diodes indicate the working state of the four-phase stepper motor. Equipped with a standard interface of the stepper motor,can directly plugged in and out.
5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase , support the development board，With convenient use, direct docking.
Widely application: It is suitable for various platforms such as 51、avr、arm Compatible with Arduino and the needs of robot design and development.
Main Parameters:
1. Rated voltage: DC 5V
2. Insulation resistance: >10M Ω (500V)
3. Dielectric strength: 600V AC/1mA/1s
4. Step angle: 5.625×1/64
5. DC resistance: 200 Ω ± 7% (25C)
6. Reduction ratio: 1/64
7.Insulation grade: A
8. No load frequency extraction: >600Hz
9. No load frequency pull-out: >1000Hz
10. Traction torque: > 34.3mN. m (120Hz)
11. Return torque: > 34.3mN. m
12. Temperature rise: 40K (120Hz)

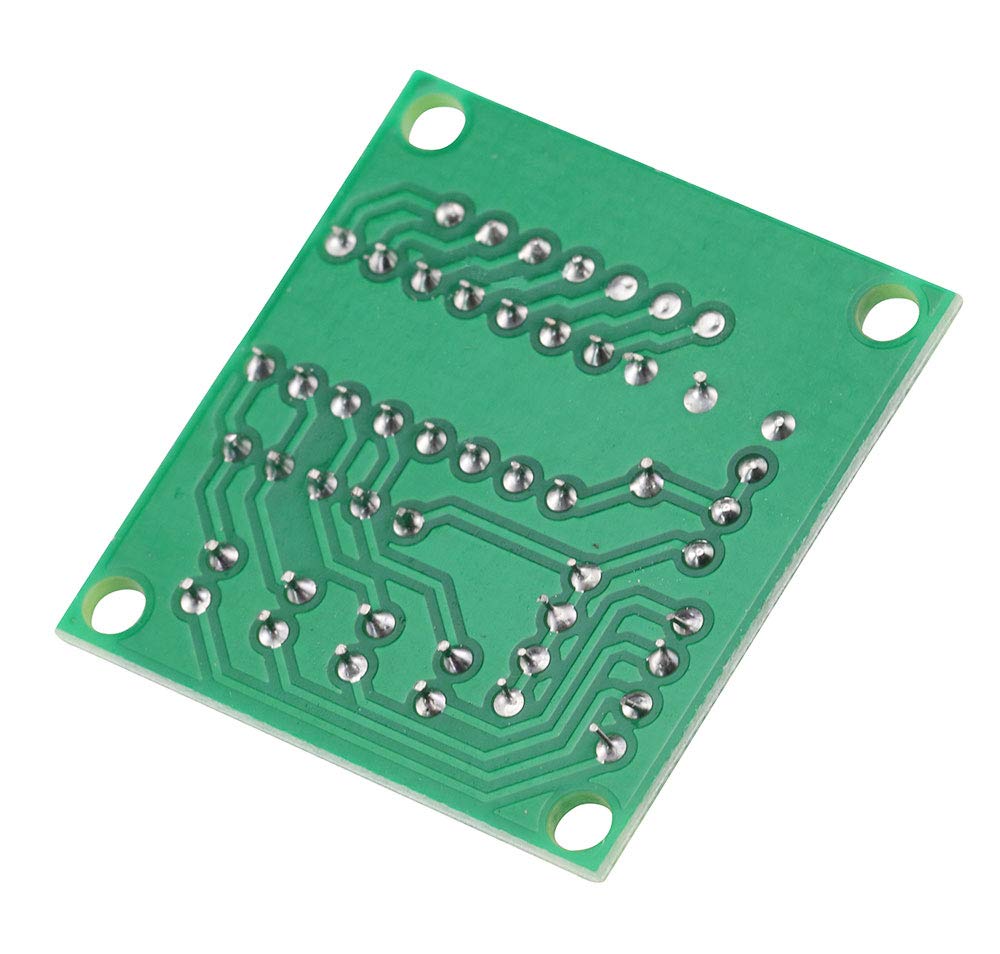

ULN2003 Drive Module Board Size(inch): 1.37 x 1.18 x 0.6 inches

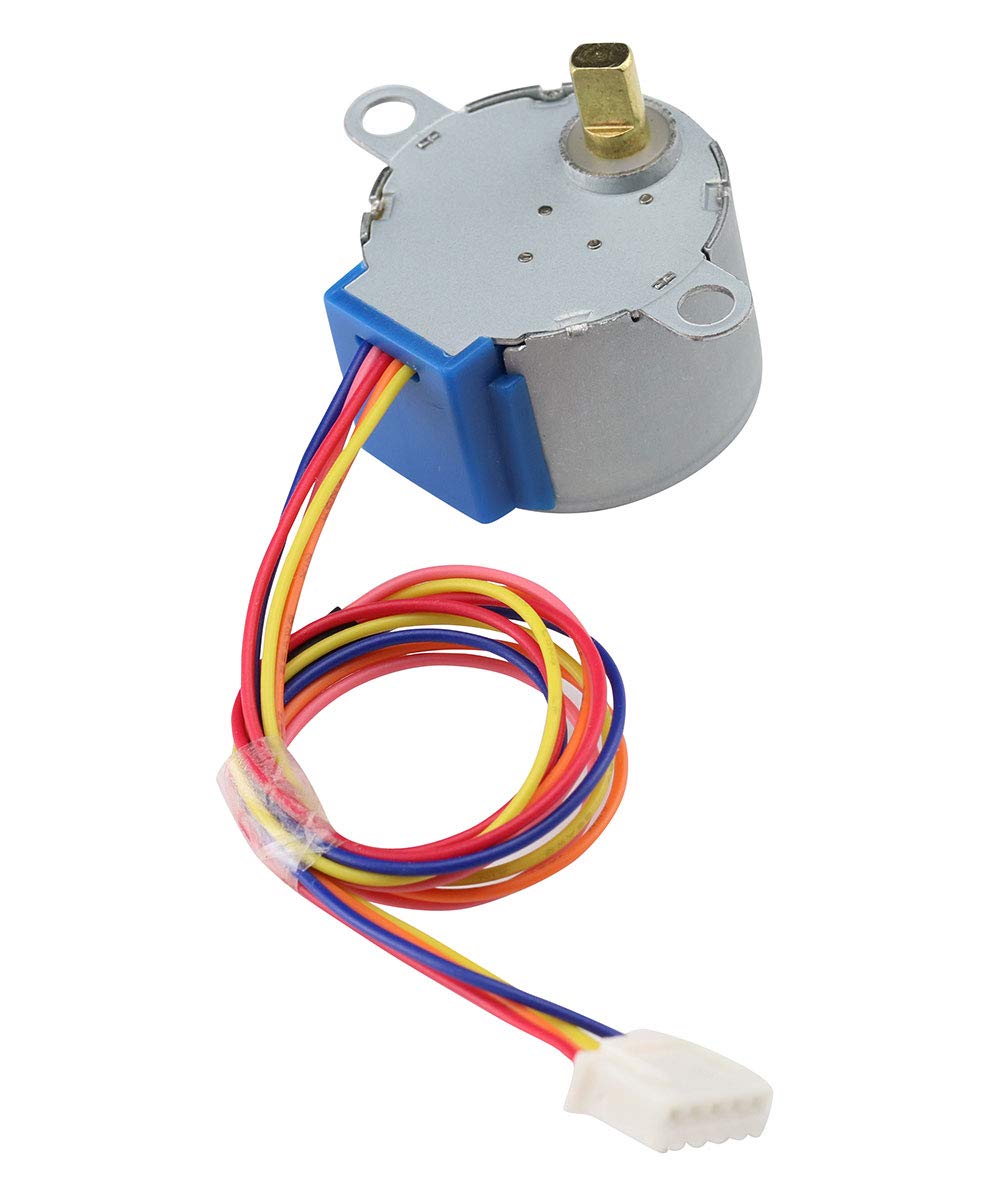

28BYJ-48 Stepper Motor diameter: 1.06 inches
28BYJ-48 Stepper Motor lines: 9.45 inches
Package includes:
3 x ULN2003 stepper motor drive board module
3 x 12V28BYJ-48 stepper motor
Package Dimensions : 5.59 x 3.54 x 1.1 inches; 4.66 ounces
Date First Available : October 27, 2023
Manufacturer : VKLSVAN
ASIN : B0CLYCM1CP
Stepper motor can converts pulse signals into angular displacement or linear displacement. It is the main executive element in modern digital program control systems.
The ULN2003 module is often used to drive a small five-wire four-phase motor, and there’s A,B,C,D light diodes indicate the working state of the four-phase stepper motor. Equipped with a standard interface of the stepper motor,can directly plugged in and out.
5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase , support the development board，With convenient use, direct docking
Widely application: It is suitable for various platforms such as 51、avr、arm Compatible with Arduino and the needs of robot design and development.
Package included:3PCS Uln2003 Stepper Motor+ 3PCS 28BYJ-48 Driver Board
