Description
Price: $28.99
(as of Sep 07, 2024 08:55:19 UTC – Details)

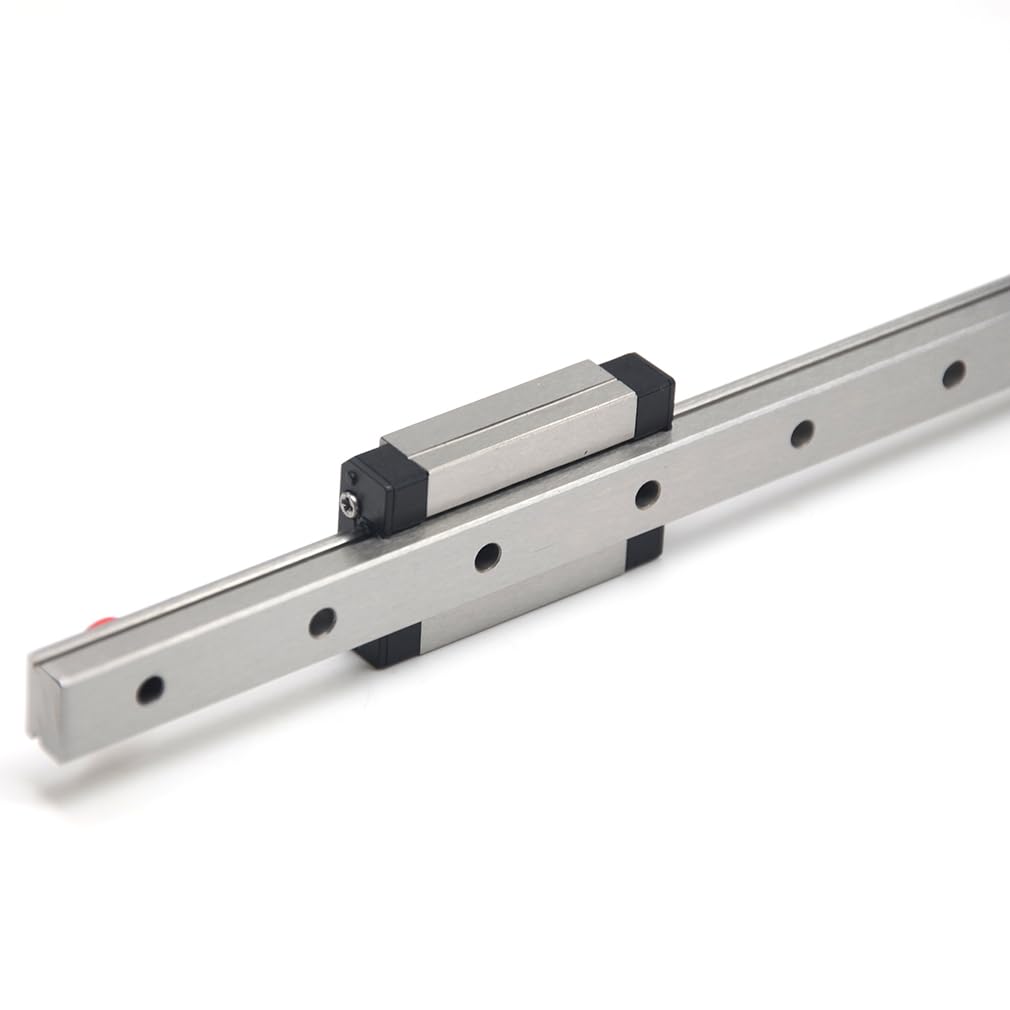

Packing list: 1 * Stainless steel 300mm MGN12 linear rail, 1 * Stainless steel MGN12H carriage block(installed on the rail)
Package Dimensions : 12.6 x 1.65 x 1.65 inches; 10.24 ounces
Date First Available : December 18, 2023
Manufacturer : ReliaBot
ASIN : B0CQK4G665

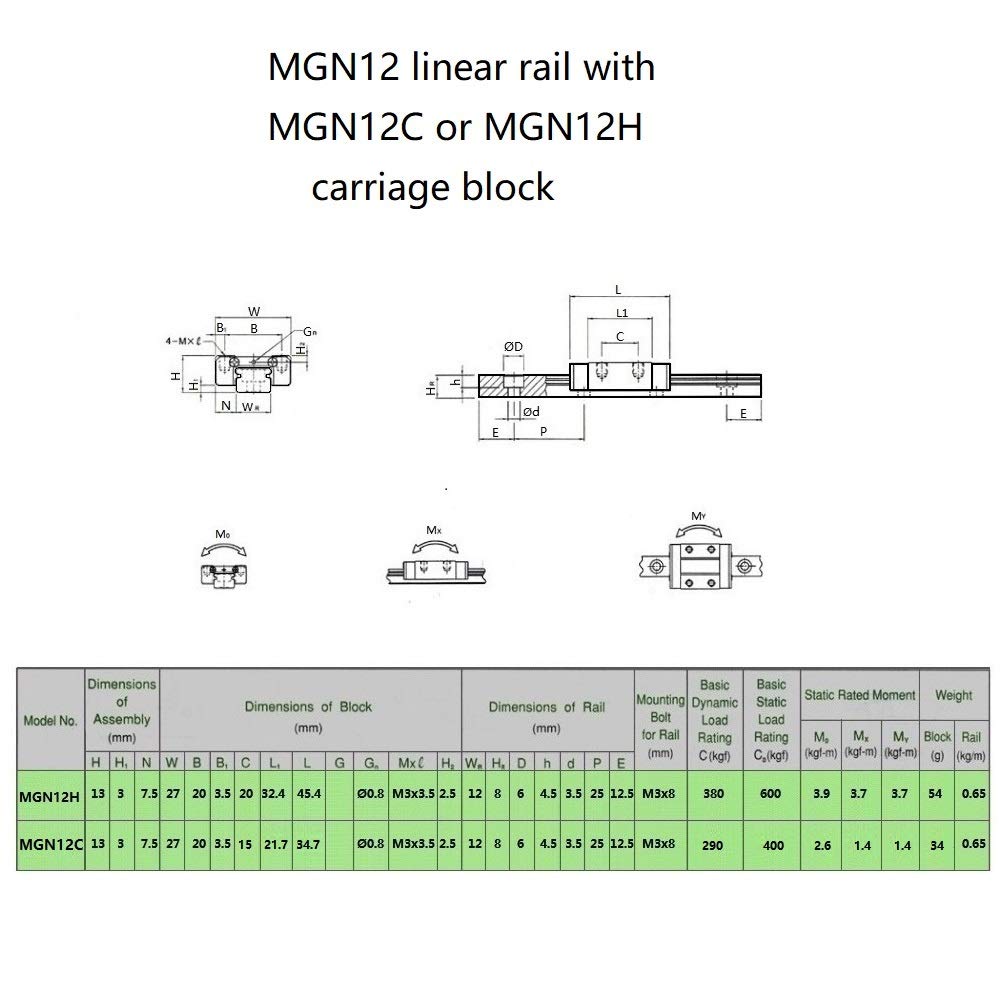

Rail guide length: 300 mm; Carriage block: MGN12H (45.7*27*10mm)
The material of the rail and block is stainless steel 440C, compared with bearing steel, it can meet higher requirements.

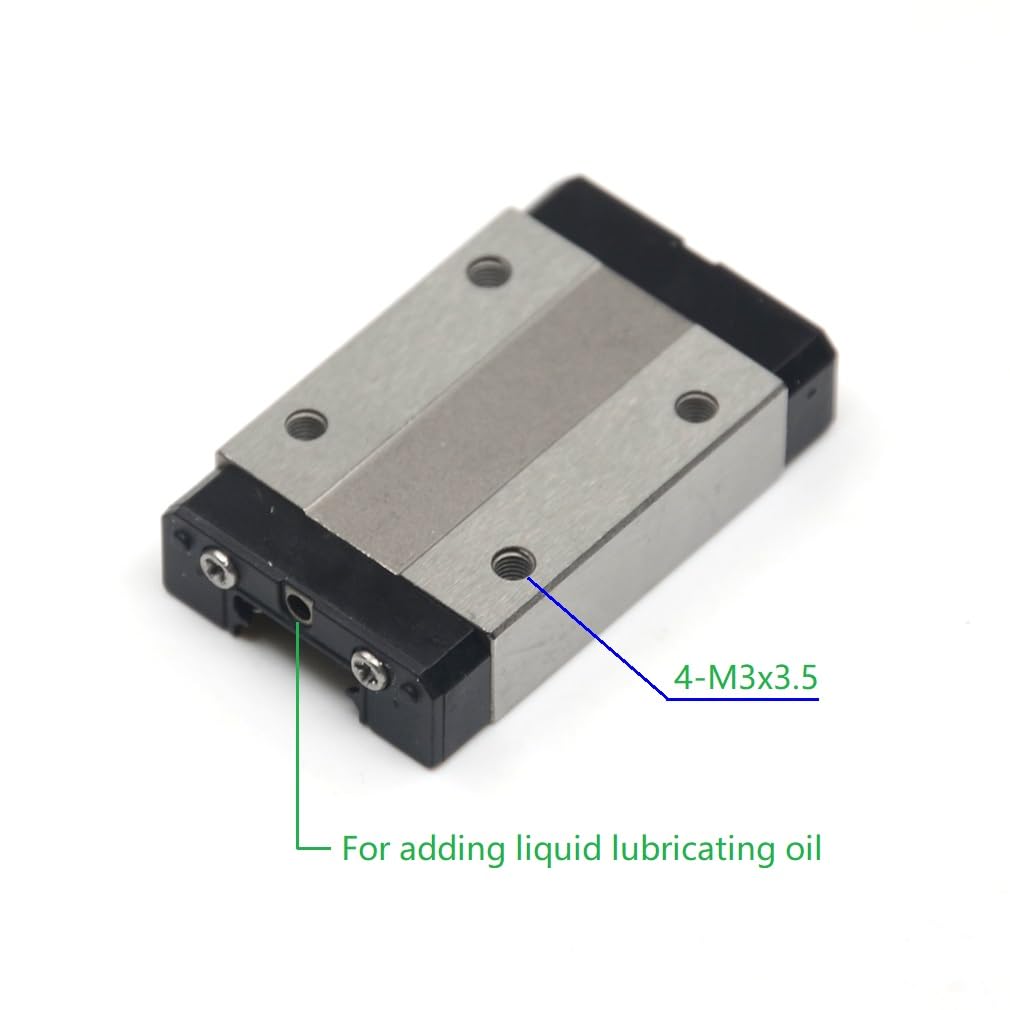

Threaded holes of MGN12H block: 4-M3*3.5; center distance of the holes: 20*20mm
The distance of the holes on the rail is 25mm. It is suggested to use T nut M3 if you fix it to 20 series EU Al-profile

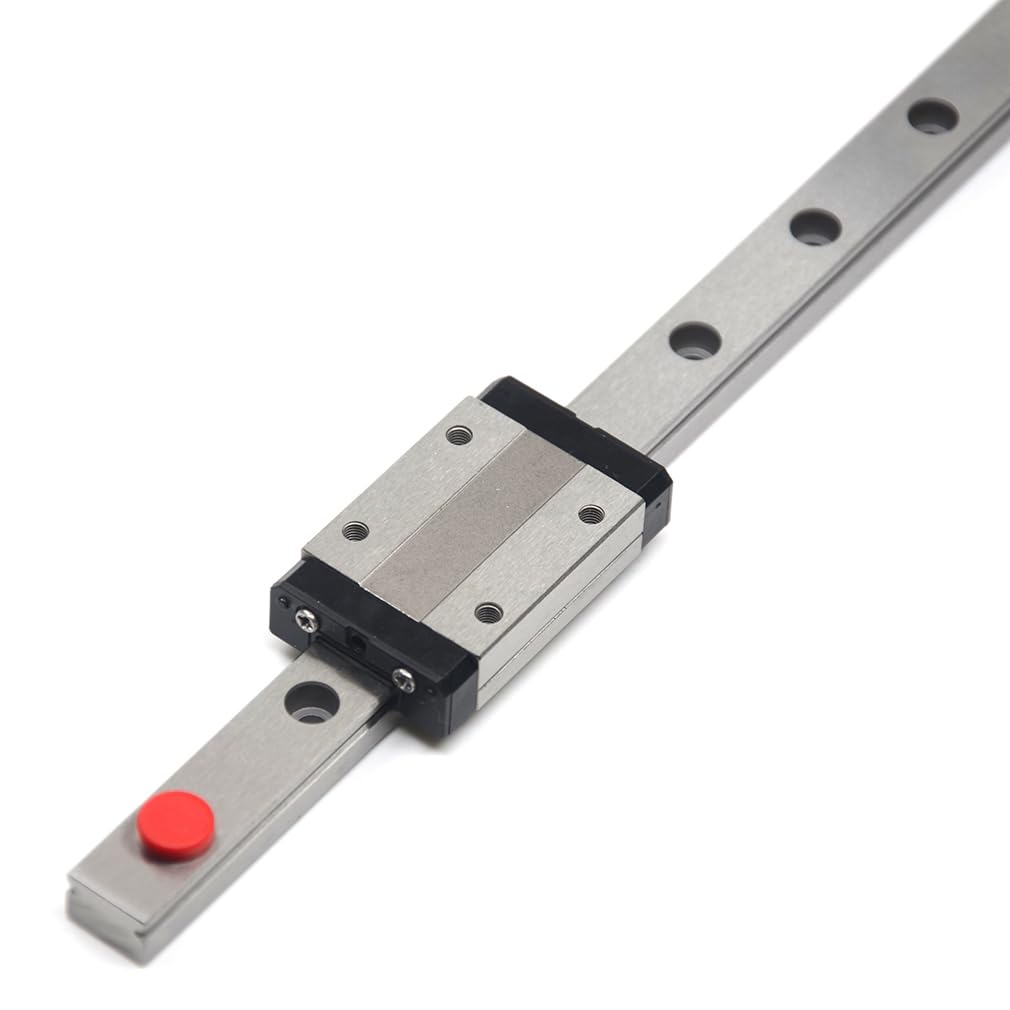

There are 2 rubber/plastic stoppers on the ends of the rail in case of the block falling off the rail.
