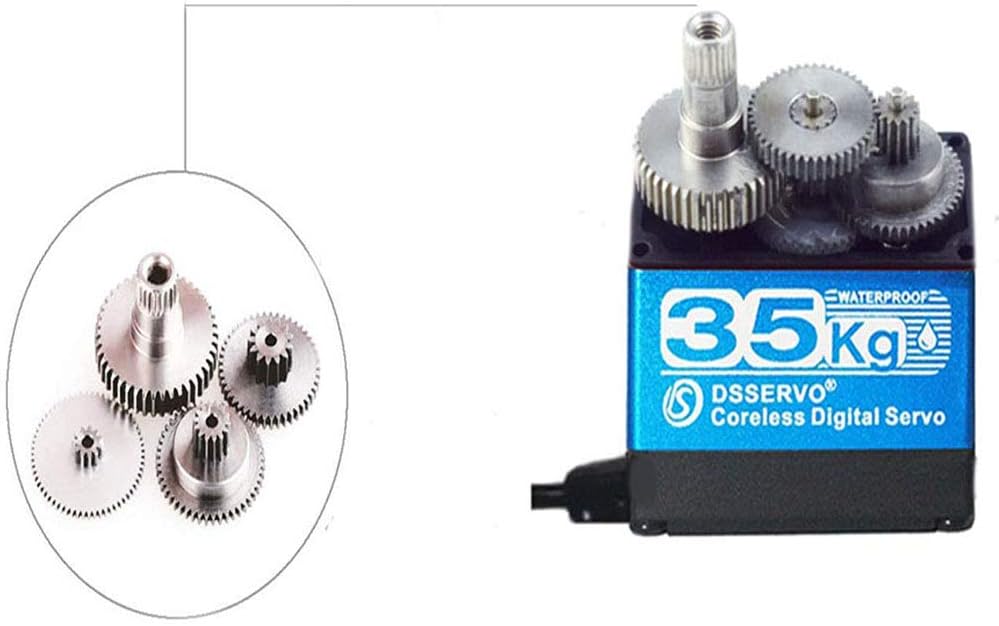

35kg high Torque Coreless Motor servo Metal Gear Digital and Stainless Steel Gear servo arduino servo for Robotic DIY,RC car (Control Angle 180°)

Description

Price: $28.99
(as of Jul 27, 2024 05:13:12 UTC – Details)

Buy On Amazon

Operating voltage range: 5-7.4V Operating speed (at no load) : 0.13 sec/60 degree @5.0V
Operating speed (at no load): 0.12 sec/60 degree @6.0V
Operating speed (at no load): 0.11 sec/60 degree @ 7.4V
Stall torque (at locked): 29kg/cm @5.0V
Stall torque (at locked): 32kg/cm @6.0V
Stall torque (at locked) : 35kg/cm @7.4V
Stall current (at locked): 1.9A @5.0V
Stall current (at locked): 2.1 [email protected]
Stall current (at locked): [email protected]
Item:DS3235 35KG Coreless Stainless Steel Gear Waterproof Digital Servo
Operating Voltage: 5 ~ 7.4 DC Volts
Dead brand: 3μs / 2 μs
Weight: 60 g (2.12 oz)
Motor Type: Coreless Motor
Gear Type: Copper & Aluminum / Stainless Steel & Aluminum
Working frequence: 50-333Hz
Size: 40 x 20 x 38.5 mm ( 1.58 x 0.79 x 1.50 in)
Features:
– High performance digital standard servo
– High-precision metal gears （Stainless steel gear）with hard anodizing
– CNC aluminium middle Shell
– Dual ball bearings
Package Included:

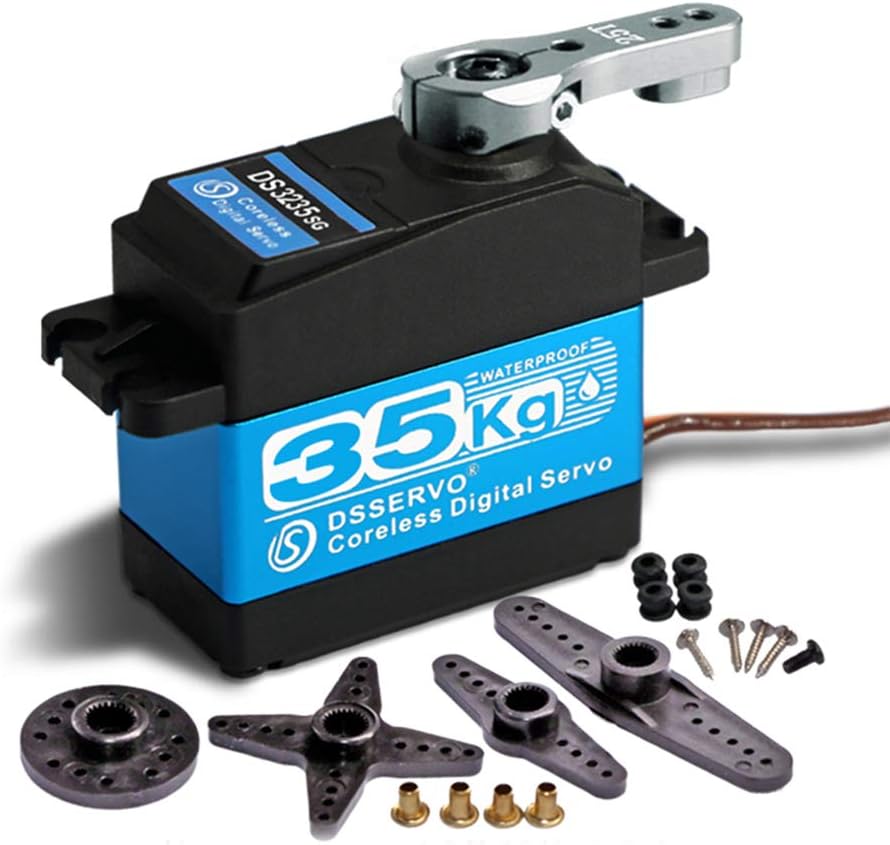

1 x DS3235 35KG Coreless Stainless Steel Gear Waterproof Digital Servo
1 x 25T Adjustable metal servo arm
a set of accessories
We aslo have:
▶35KG Coreless servo 270°,ASIN: B07S9XZYN2
▶25KG Control Angle 180°, ASIN: B07GLMDJQ7
▶25KG Control Angle 270°, ASIN: B07GLNTXML
▶20KG Control Angle 270°, ASIN: B01MU7TQV8
▶20KG Control Angle 270°, ASIN: B01N0XZOZU
▶20kg Control Angle 180°(PRO Version), ASIN: B07KRMJTH5
▶20kg Control Angle 270°(PRO Version), ASIN: B07KRX4K3Z
▶60kg Control Angle 180°, ASIN: B07Q3Z4SLS
▶60kg Control Angle 270°, ASIN: B07K48FQ1N

DS3235 35KG Coreless Stainless Steel Gear Waterproof Digital Servo
High reliability、good stability、strong adaptability, Low noise、small vibration、smooth operation、long life
Copper & Aluminum / Stainless Steel & Aluminum
High performance digital standard servo,High-precision metal gears （Stainless steel gear）with hard anodizing
CNC aluminium middle Shell,Dual ball bearings
