Description
Price: $17.99 - $13.59
(as of Jul 17, 2024 08:13:13 UTC – Details)

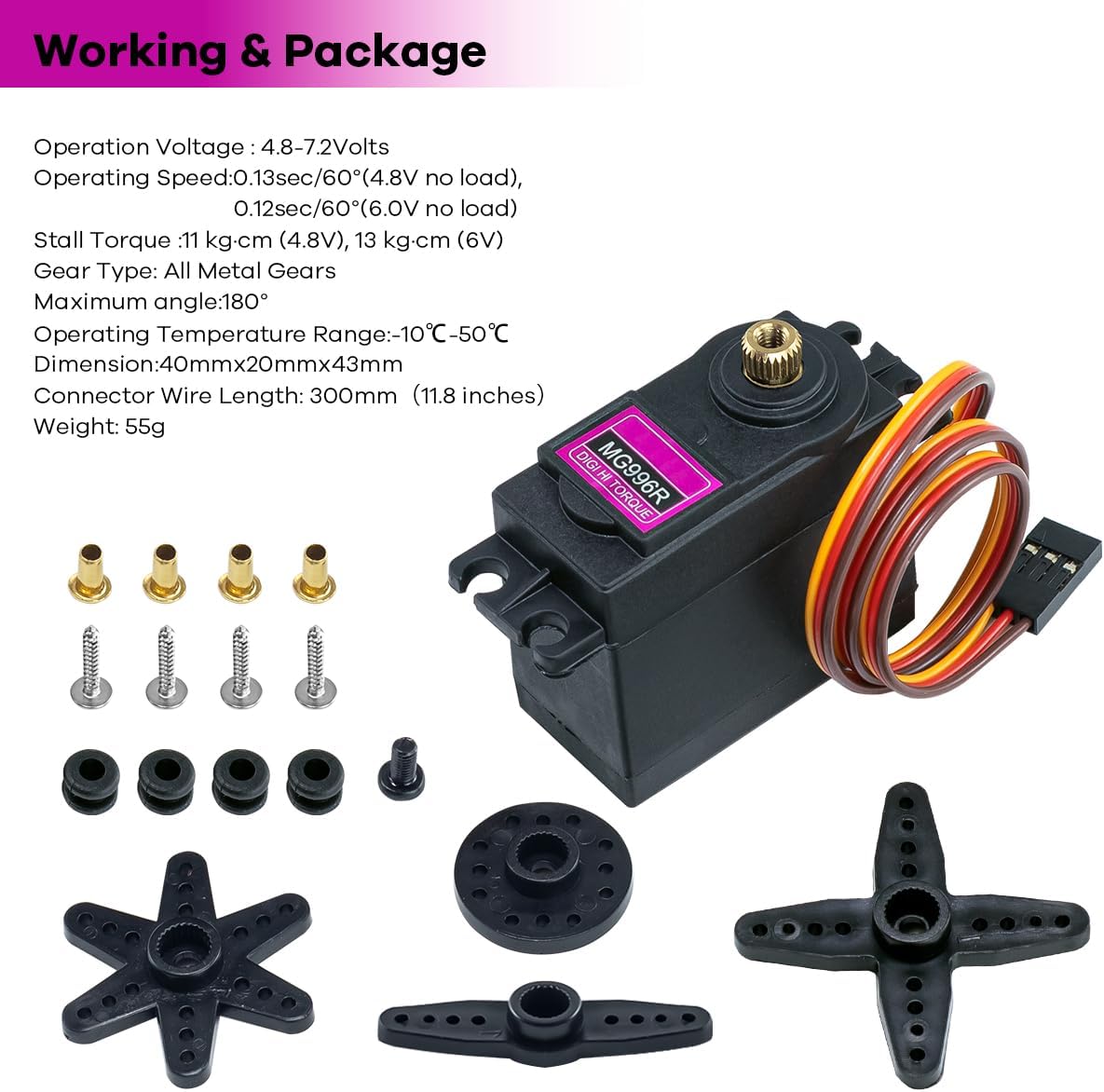

Specification:
Dimensions: 40mmx20mmx43mm
Gear: full metal gears
Operating Voltage: 4.8-7.2V
Stall torque: 11 kg·cm @ 4.8V , 13 kg·cm @ 6V
Operating Speed: 0.13sec/60°(4.8V no load), 0.12sec/60°(6.0V no load)
Running current: 220±20mA(4.8V no load), 250±20mA(6.0V no load)
Control System: Change the pulse width
Amplifier Type: Analog controller
Operating temperature: -10℃-50℃
Dead band width: ≤5 μ sec
Rotation angle: 180 degrees
Plug type: JR, FUTABA universal
Wire length: 300mm(11.8 inches)

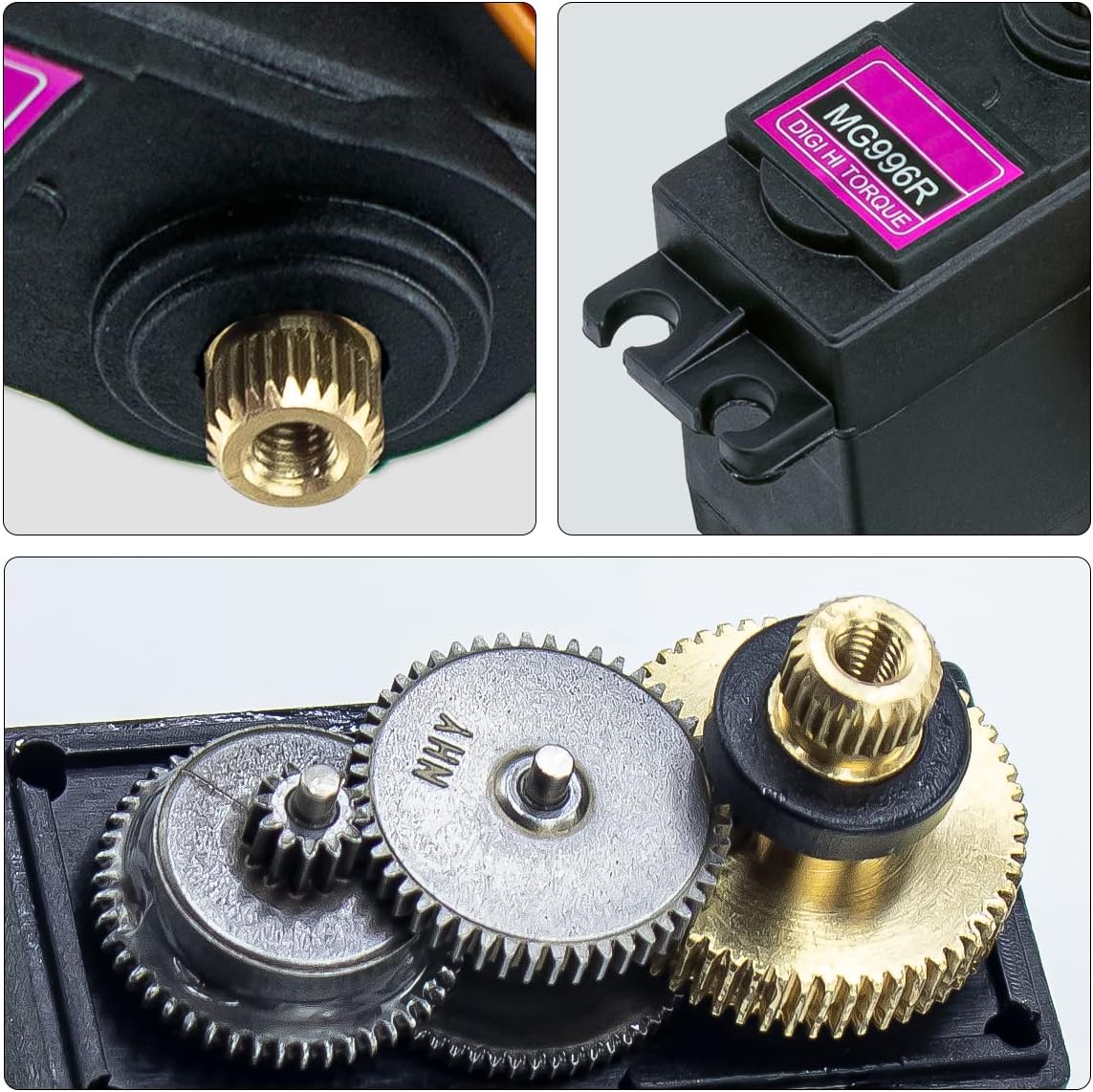

Structure: metal sawtooth, coreless motor, double ball bearing

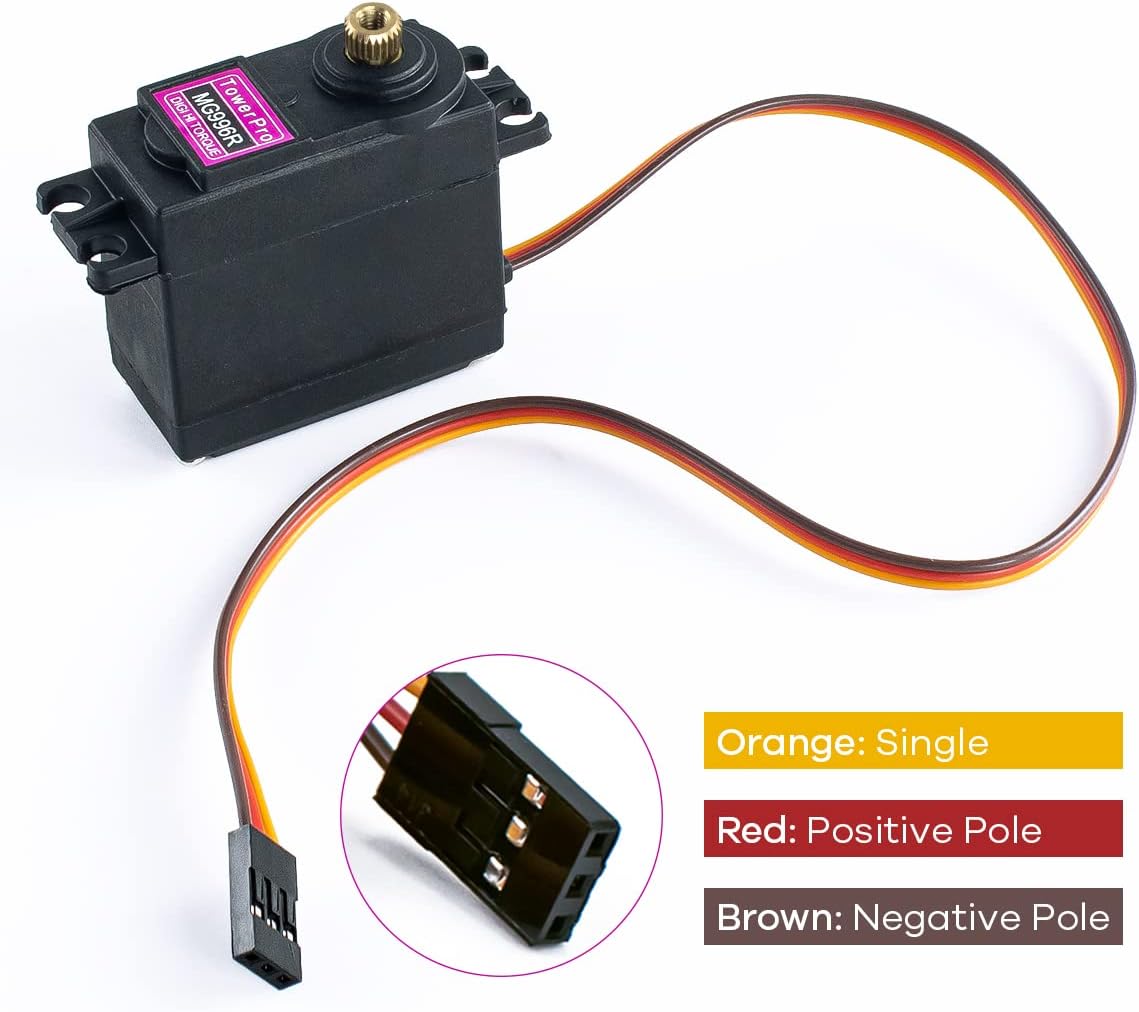

Wiring: orange – Signal wire, Red – Positive, Brown – Negative
Scope of application:
Biped robot, mechanical arm, remote control boat, suitable for 50-90 methanol fixed-wing aircraft and 26-50cc gasoline fixed-wing aircraft and other models.
Package include:

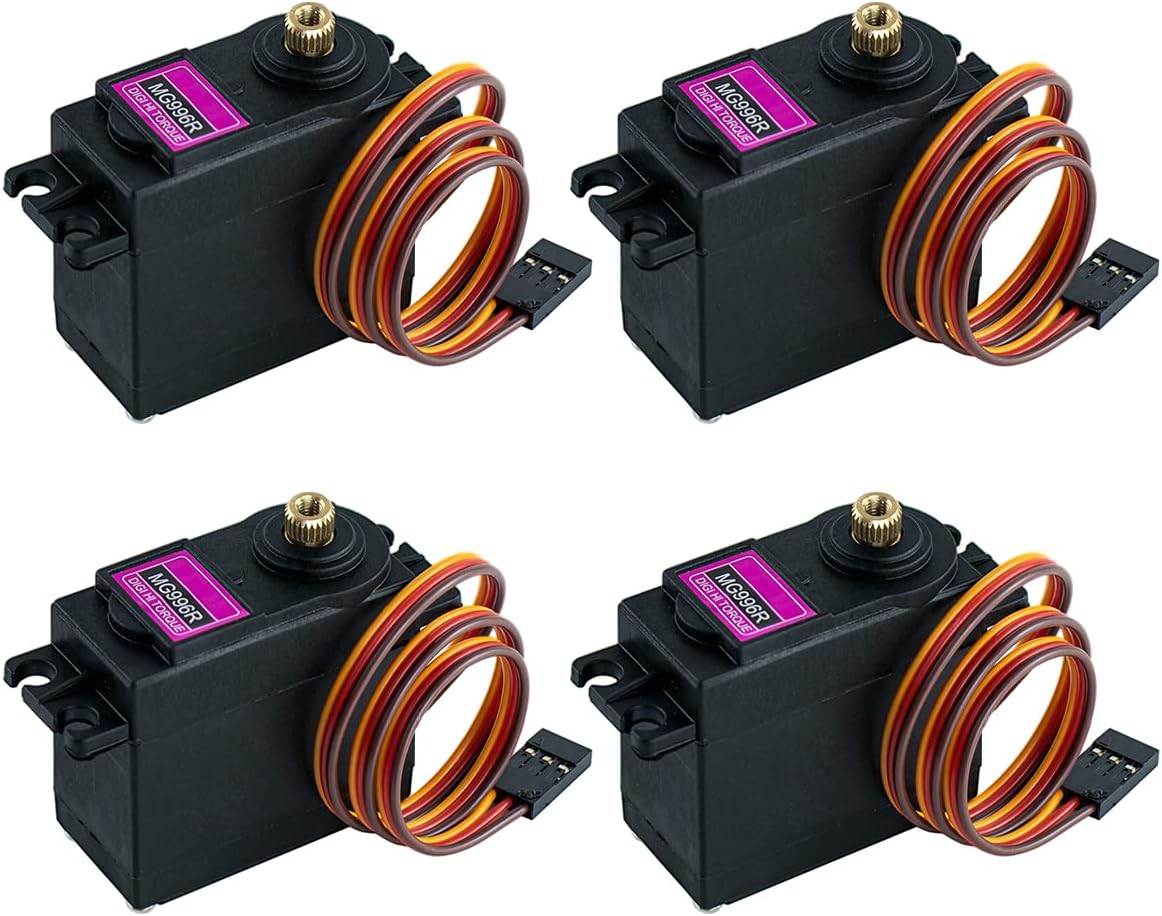

4 x MG996R(with parts)
The MG996R servo motor offers an increase in speed, tension and precision over the SG90 and MG90S micro servo motors. This high-speed standard servo motor can rotate 180 degrees (90 in each direction).
MG996R is compatible with most standard receiver connectors, suitable for Futaba, Hitec, Sanwa, GWS, etc. It is a digital standard servo with excellent performance.
MG996R servo torque is 4.8V 11 kg·cm, 6V 13 kg·cm. Operating speed: 4.8V no-load 0.13s/60 degrees; 6.0V no-load 0.12s/60 degrees. Recommended voltage: 5V, current use: 3A.

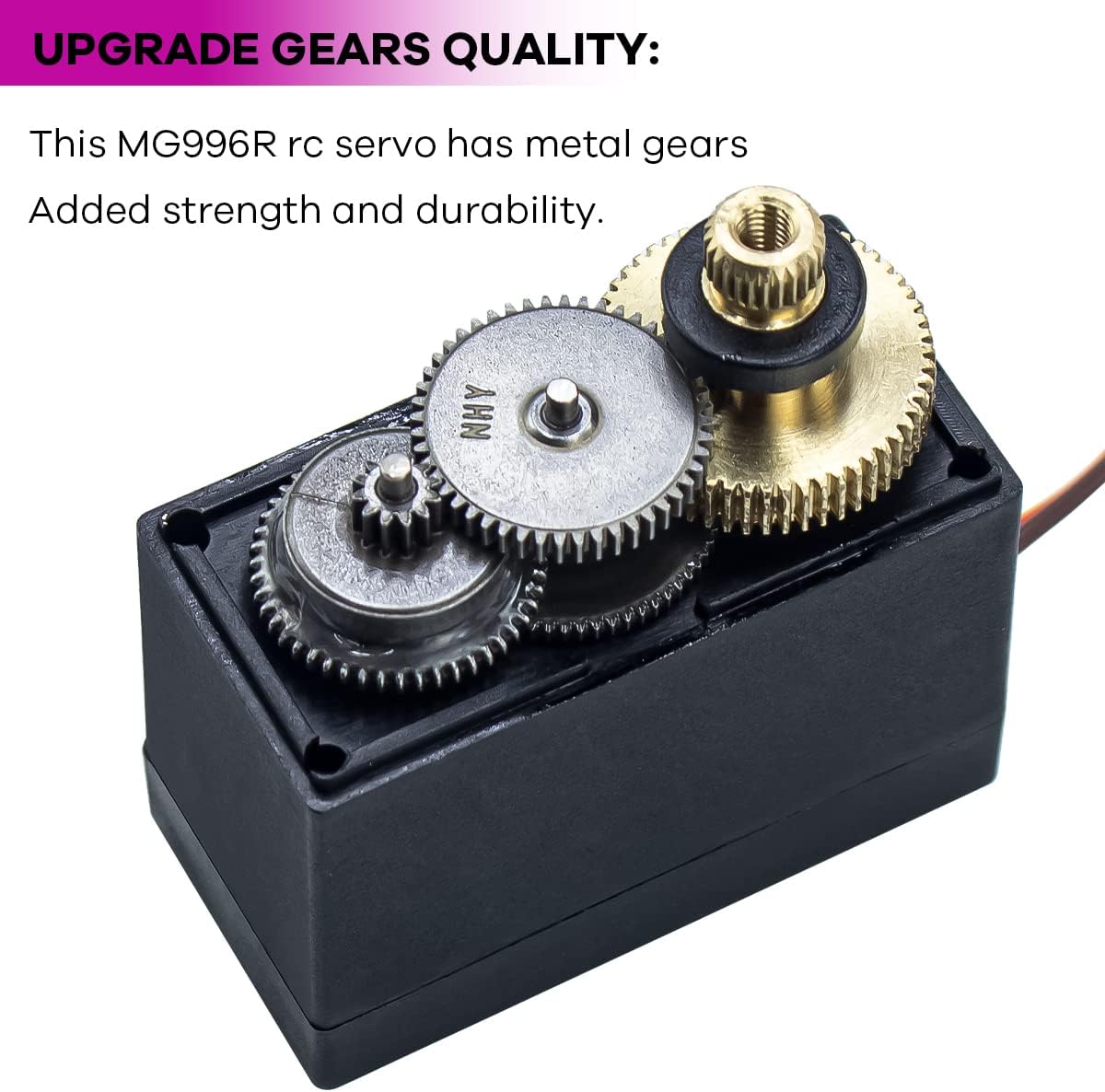

Stable anti-vibration coreless motor, metal gear, longer service life. External adapter power supply, cable length: about 30CM. Wiring: orange: signal wire, red: positive pole, brown: negative pole.
Widely used in biped robots, mechanical arms, remote control boats, suitable for 50-90 methanol fixed-wing aircraft and 26-50cc gasoline fixed-wing aircraft and other models.
