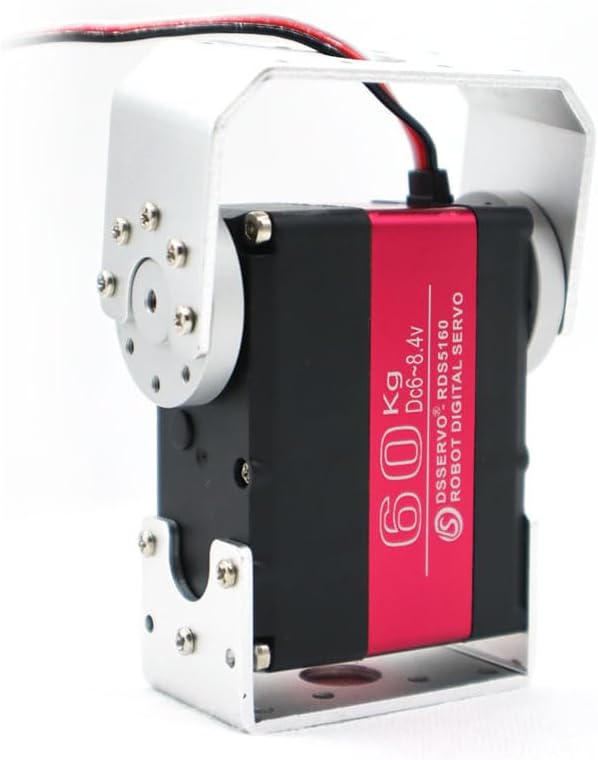

60KG Robot Servo Motor High Torque Stainless Steel Gear Waterproof Digital Steering Large Servos with Mount Brackets

Description

Price: $38.57
(as of Aug 15, 2024 22:55:16 UTC – Details)

Buy On Amazon

Electrical Specification：
Operating voltage range: 6-8.4 Volts
Operating speed at no load ( 6V ): 0.17 sec/60°
Operating speed at no load ( 7.4V ): 0.15 sec/60°
Operating speed at no load ( 8.4V ): 0.13 sec/60°
Stall torque at locked ( 6V ): 58kg.cm(805.4oz-in)
Stall torque at locked ( 7.4V ): 65kg.cm(902.6oz-in)
Stall torque at locked ( 8.4V ): 70kg.cm(972oz-in)
Stall current at locked ( 6V ): 4.1A
Stall current at locked ( 7.4V ): 5.4 A
Stall current at locked ( 8.4V ): 6.5A
Idle current at stopped (6/7.4/8.4V): 4/5/6mA

Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500μsec
Neutral position: 1500μsec
Running degree: 270° (when 500-2500μsec)
Dead band width: 3μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (When 1500-2500μsec)

Product Specification:
Motor Type：3-pole(s)
Gear Type: Steel Gear
Spline:18T
Gear ratio: 279
Bearing：Double Bearing
Connector Wire: 17.7in (450mm)

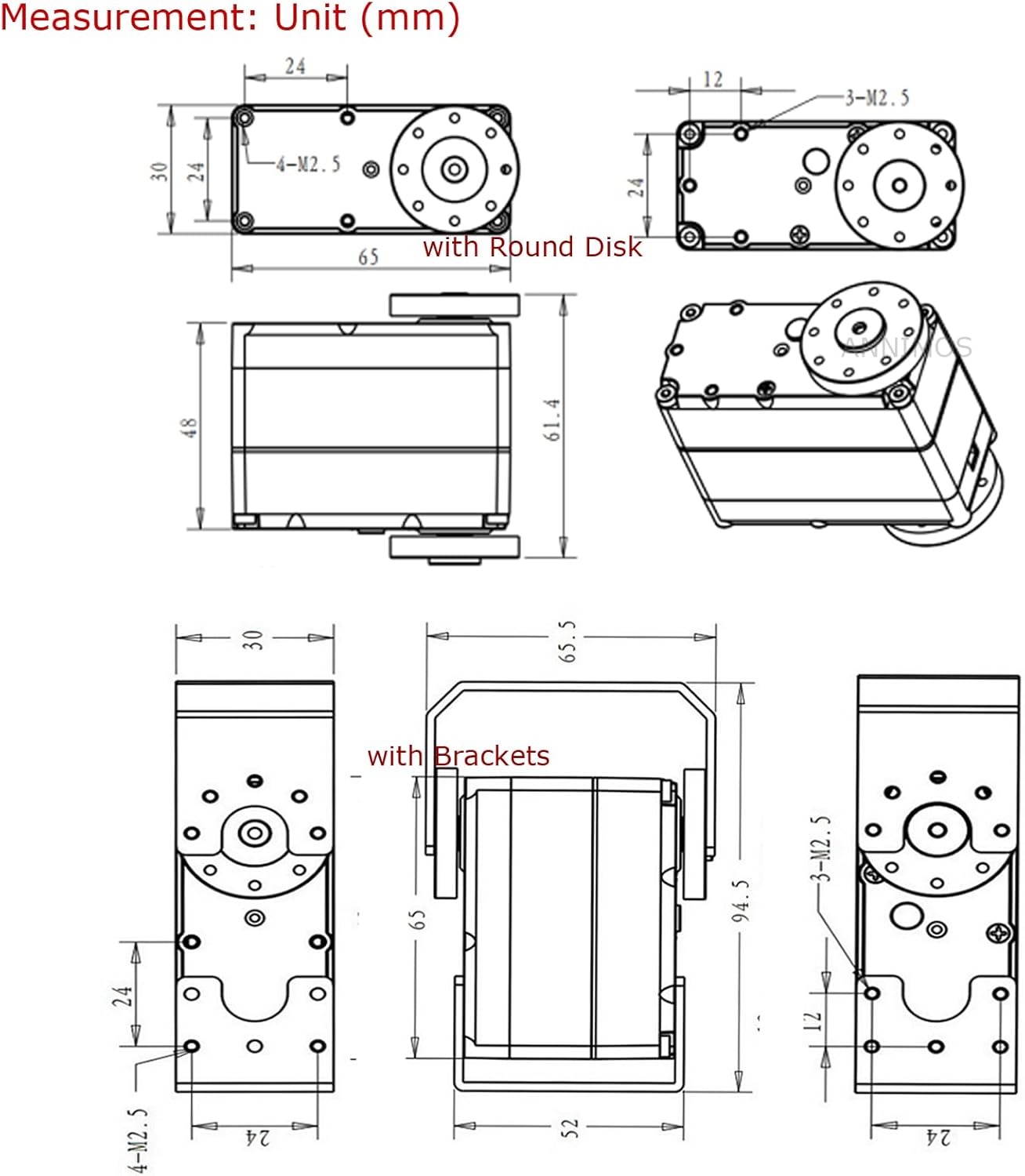

Size: 2.55*1.18*1.88inch（65* 30 * 48mm）
Weight: 5.75oz (163g)
CE /RoHs: Yes

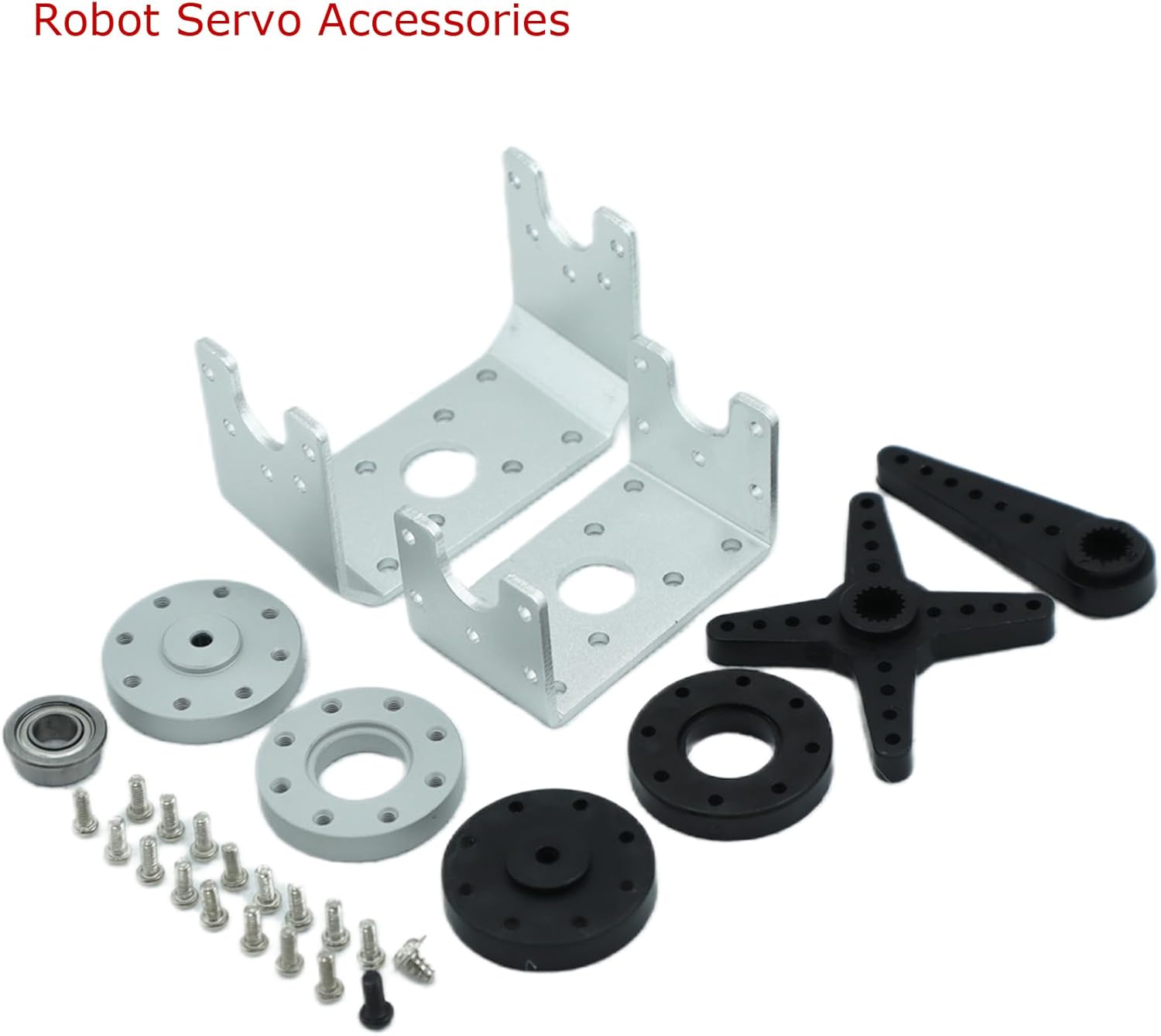

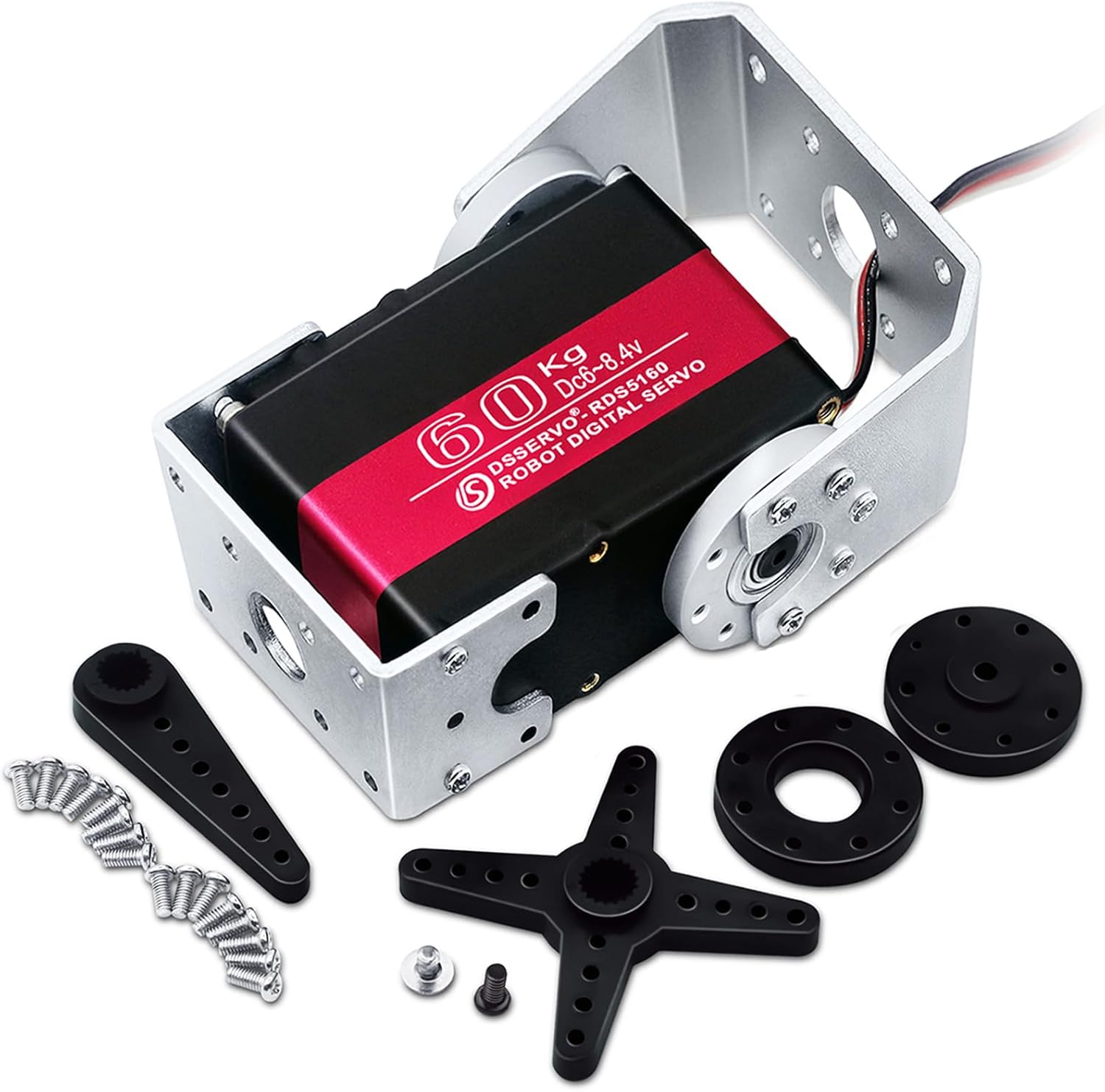

Packing List:
1 x RDS5160SG 60kg Robot Servo (270°)
2 x U-Shaped Aluminum Holders
2 x Aluminum Circle Discs
One Set of Plastic Accessories (As Shown on The Picture)

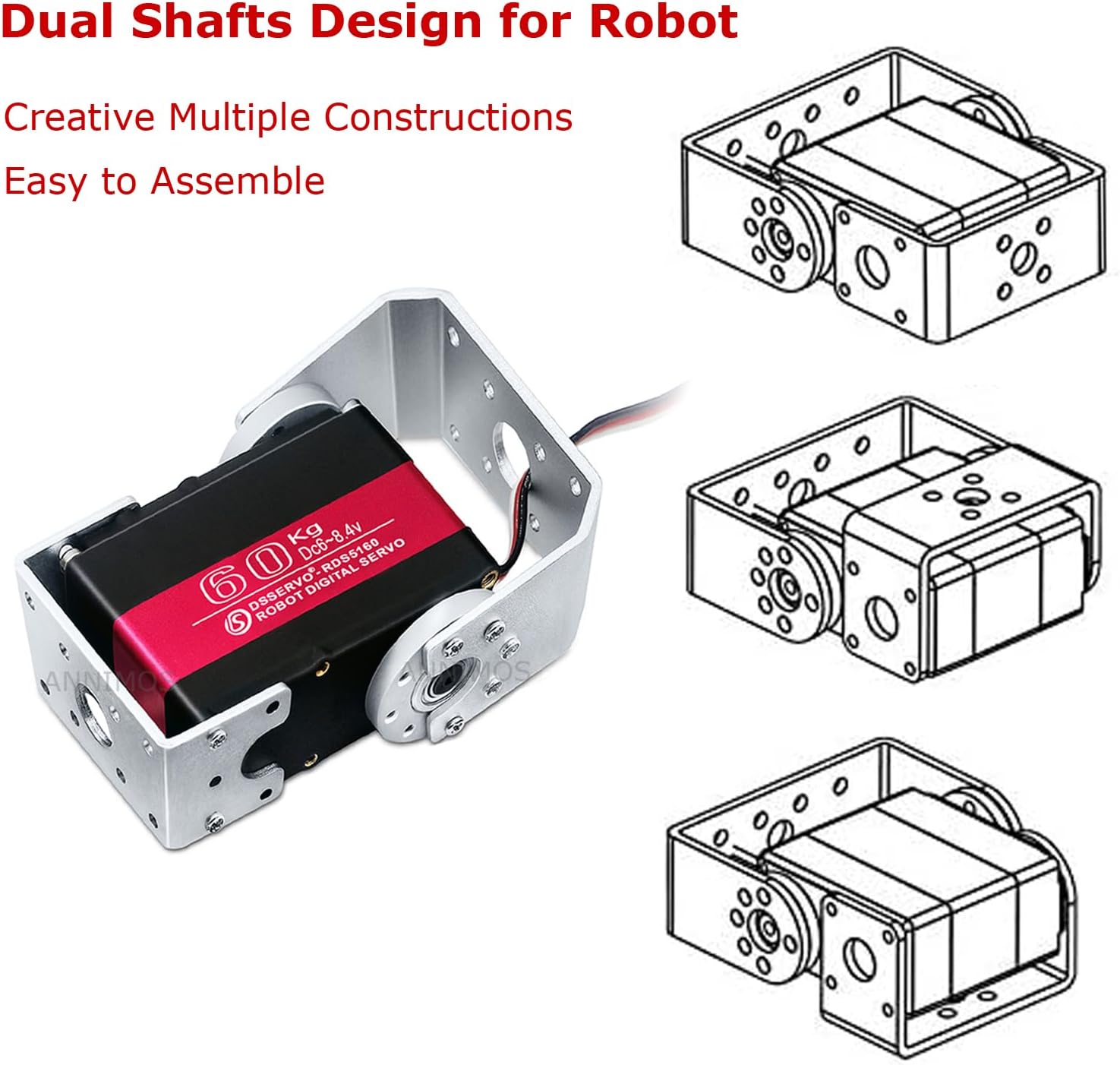

【Widely Used】: RDS5160SG 60kg Full Metal Gear Servo Suitable for Robotic Arm/Industry, Humanoid, Bipedal and Multipedal Robots, as well as PTZ Monitoring Equipment, Remote-Controlled Vehicles etc.
【Great Heavy-Duty Servo】: Amazing Torque & Fast Performance, Perfect for Industry and Robot Arms, Maximum Torque Can Up to 70kg.cm(972oz-in),Speed 0.11sec/60°: @8.4V

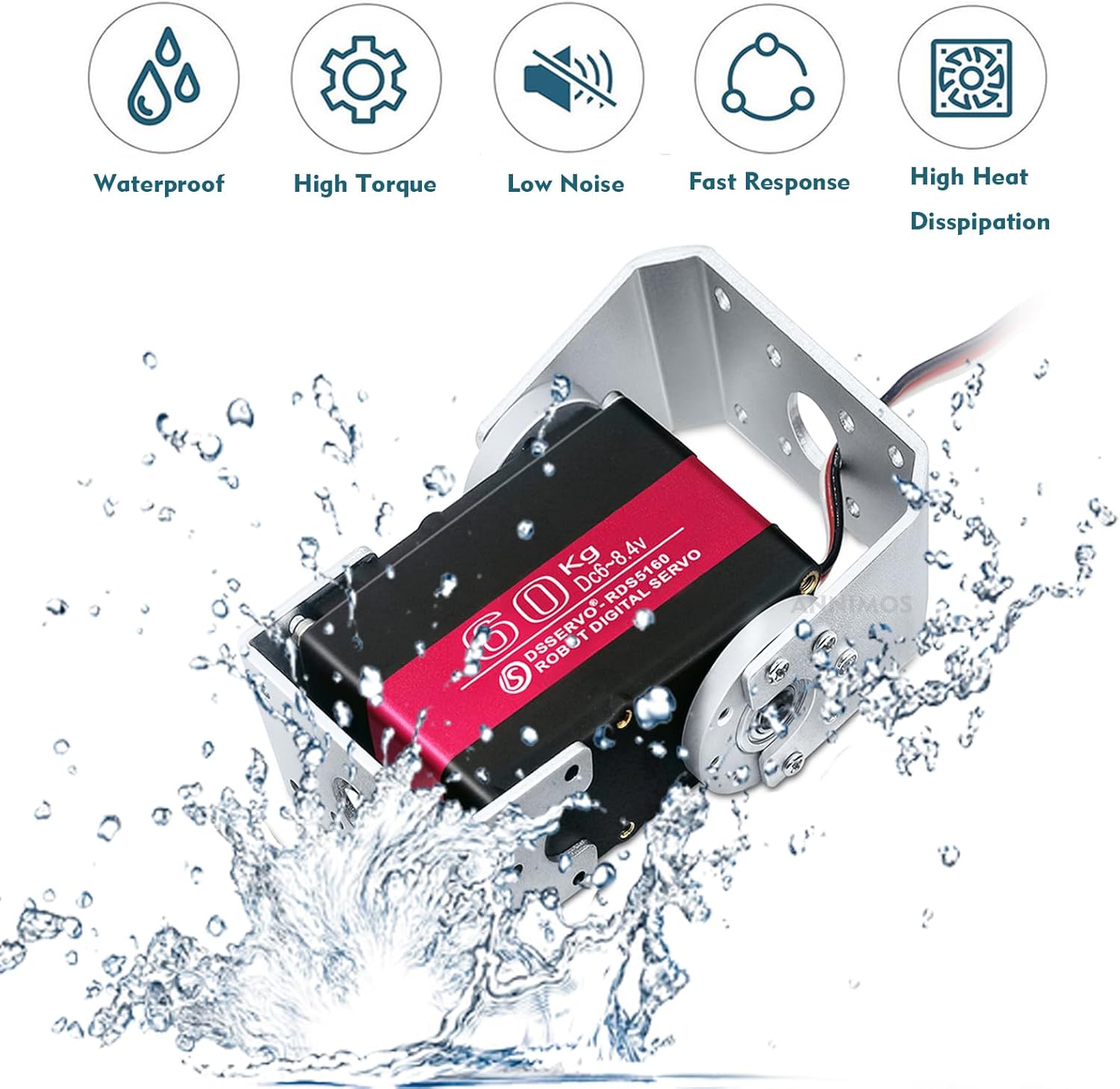

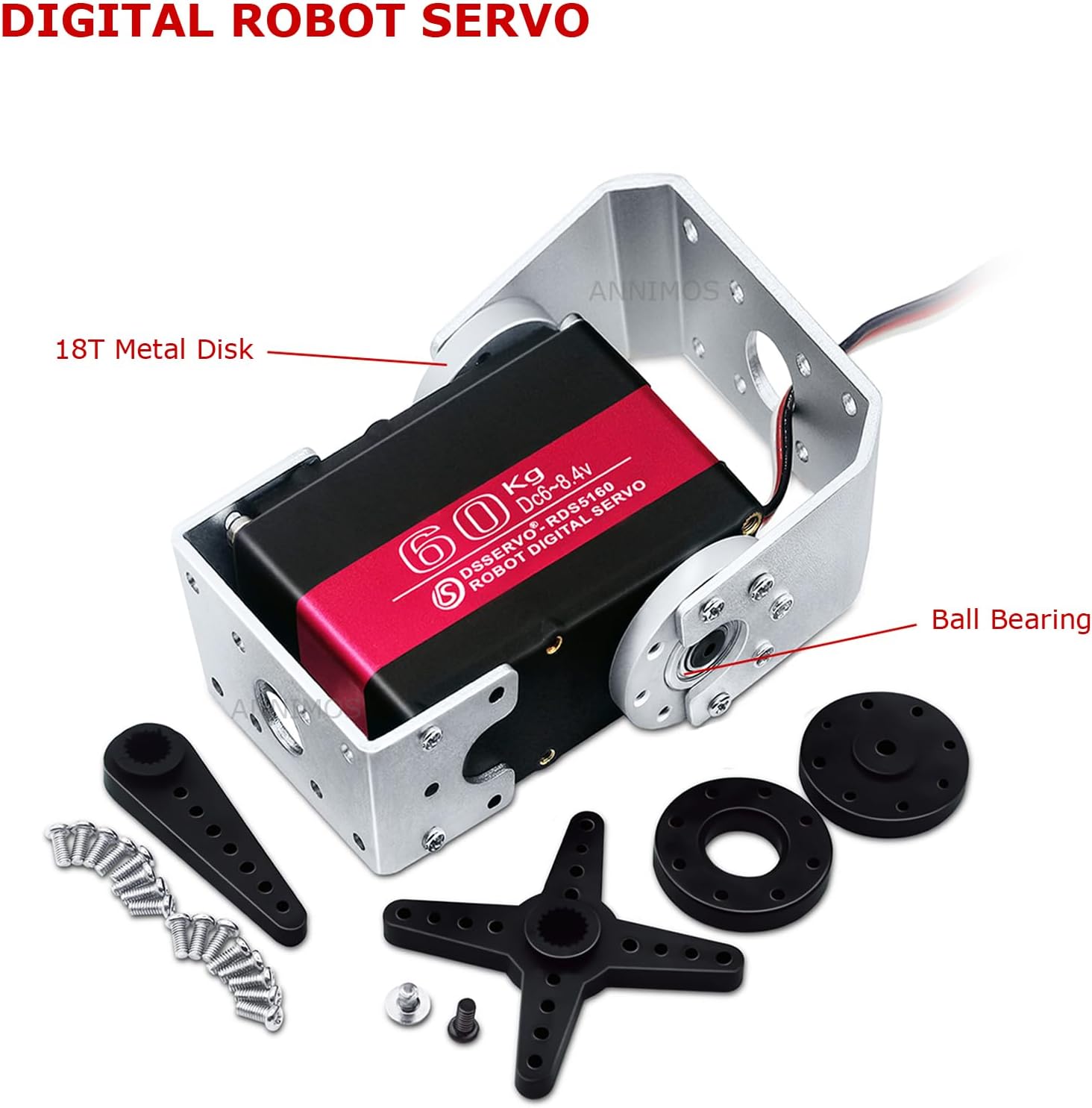

【Reliable Quality】: Equipped with High-precision Steel Gear and Potentiometers , High-resolution Digital Chip, Waterproof Rubber Seals Screws, Made of First-grade Material and CNC Aluminum Middle Shell Ensure Stable Performance and Long Working Life.
【Best Upgrade for your RC Rigs】: Durable, Responsive, Strong Anti-interference Ability, Low Noise, Fast Heat Dissipation. Precision Control, Angle Range from 0 to 270 Degrees. Can be Rotated within 360 Degrees when Power Off. Power Wire is longer Enough Up to 45mm. Free U Brackets & Accessories.
【Satisfied Customer Service】: We Are Specialized in Developing and Manufacturing Robot & RC Servo, We Offer Value Price for Bulk Order. If Any Problem with Your Servo or Anything We Can Help, Please Do Not Hesitate to Contact with Us, We Will Try Our Best to Solve it Efficiently.
