Description
Price: $499.00 - $399.00
(as of Sep 06, 2024 08:55:15 UTC – Details)
Product Description
FAQs:
Q1: Is it suitable for CNC beginners?
A: For CNC Hobbyists, this machine is a better choice. The perfect function and rigidity of the machine allow you to understand the new world of CNC. It is worth noting that we only provide machine control software, and there is a certain learning curve for how to generate personalized G-code, which requires you to spend time learning, but Youtube has a lot of relevant knowledge.
Q2: Does this CNC Router Machine support laser engraving/cutting?
A: The control board has a reserved 24V 3Pin laser interface, and an additional laser module is required to realize laser engraving/cutting.
Q3: Is it possible to engrave/cut metal, such as 6061 aluminum and copper/brass?
A: Aluminum and brass can be engraved. In general, use 300W/500W spindle to engrave aluminum, it is recommended that depth of cut≤0.5mm and Feed rate≤300mm/min. If the spindle is upgraded to trimmer router, it is recommended that depth of cut≤5mm,Feed rate≤300mm/min.
Q4: What can this hobby CNC Router Machine be used for?
A: Design your ideas on the software, and use the machine to engrave on wood, such as wooden kitchen utensils, handicrafts, toys, models, signs, etc. Can also be used to engrave/cut aluminum and plastic parts, PCB design, etc.
Q5: What if this CNC Router Machine breaks down or the parts are damaged?
A: Email and provide relevant information, we will give you a satisfactory answer within 24 hours.
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.2 out of 5 stars
72
4.2 out of 5 stars
72
5.0 out of 5 stars
3
Price
$399.00$399.00 $649.00$649.00 $1,299.00$1,299.00
Structure Material
All Aluminum All Aluminum All Aluminum
Work Area (XYZ)
287x196x73mm 287x300x73mm 400x300x130mm
Overall Dimensions
480x430x380mm 501x596x412mm 680x630x520mm
Drive System
MGN15 Linear Guides(XZ), 12mm Optical Axis(Y)+T8 Lead screw MGN15 Linear Guides+T8 Lead screw HG15 Linear Guides +1204 Ball Screw
Stepper Motor/ Max Speed
Nema17, 42N.cm/2000mm/min Nema17, 65N.cm/ 2000mm/min Nema23, 120N.cm/ 3000mm/min
Spindle
300W 300W 500W
Support WiFi
x x
✓
Customizable Macro Button
x x
✓
Support Laser/65mm Spindle Clamp
✓
✓
✓
XYZ Limit Switches/E-Stop/Z-probe
✓
✓
✓
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
5.0 out of 5 stars
5
4.8 out of 5 stars
23
—
4.8 out of 5 stars
5
4.0 out of 5 stars
9
4.7 out of 5 stars
4
Price
$179.00$179.00
— $34.99$34.99 $16.99$16.99
—
—
What’s this for
Y-axis stroke can be upgraded to 300mm, add Y-axis linear guide It can be used to upgrade the trimming machine with a diameter of 65mm or the 800w spindle 1/8″ shank, can be used for engraving and cutting wood, acrylic and other materials 300*180*12mm, suitable for 3020-EVO and other 3018 series CNC Routers Φ65mm Air Cooled for Metal 1/8″ shank, can be used for engraving and cutting wood, acrylic and other materials

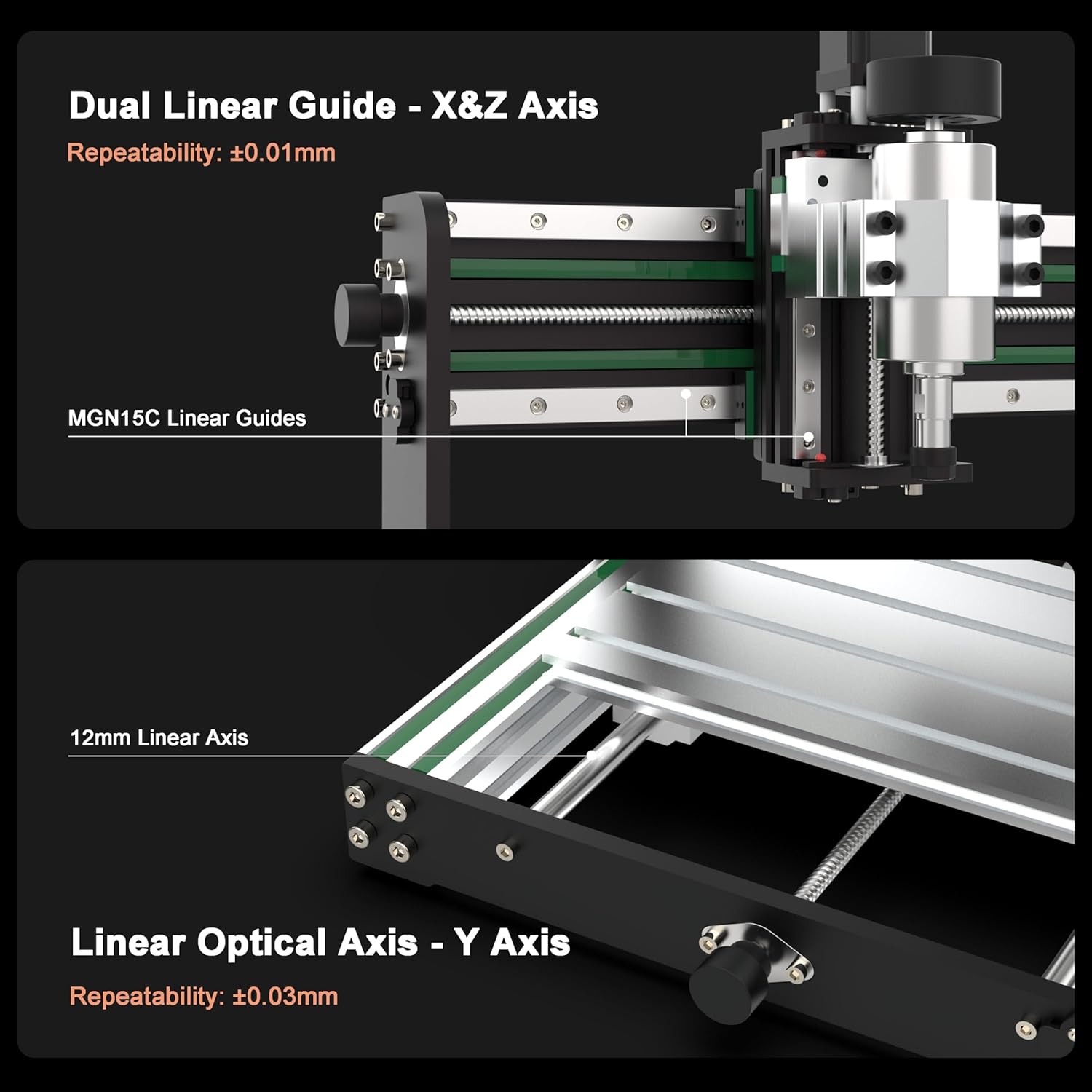

【High Precision & Low Noise】The CNC Machine’s X-axis & Z-axis feature dual steel linear guide rails, ensuring stability and preventing tilting and shaking. The Anti-Backlash Nut Block of 3020-Evo offers high precision, zero repeatability, and adjustable gaps, eliminating hysteresis and metal friction noise between the copper nut & screw rod.
【Rigid & Durable All-metal Structure】3020-Evo CNC Router features an all-metal structure, with a 20*100mm aluminum profile for X-axis and 40*40mm for Y-axis. Equipped with a 300w spindle, it can easily cut/engrave 6061 aluminum sheet (0.5mm depth per pass) or 5mm aluminum sheet and 0.5mm steel sheet with the upgraded 65mm router.

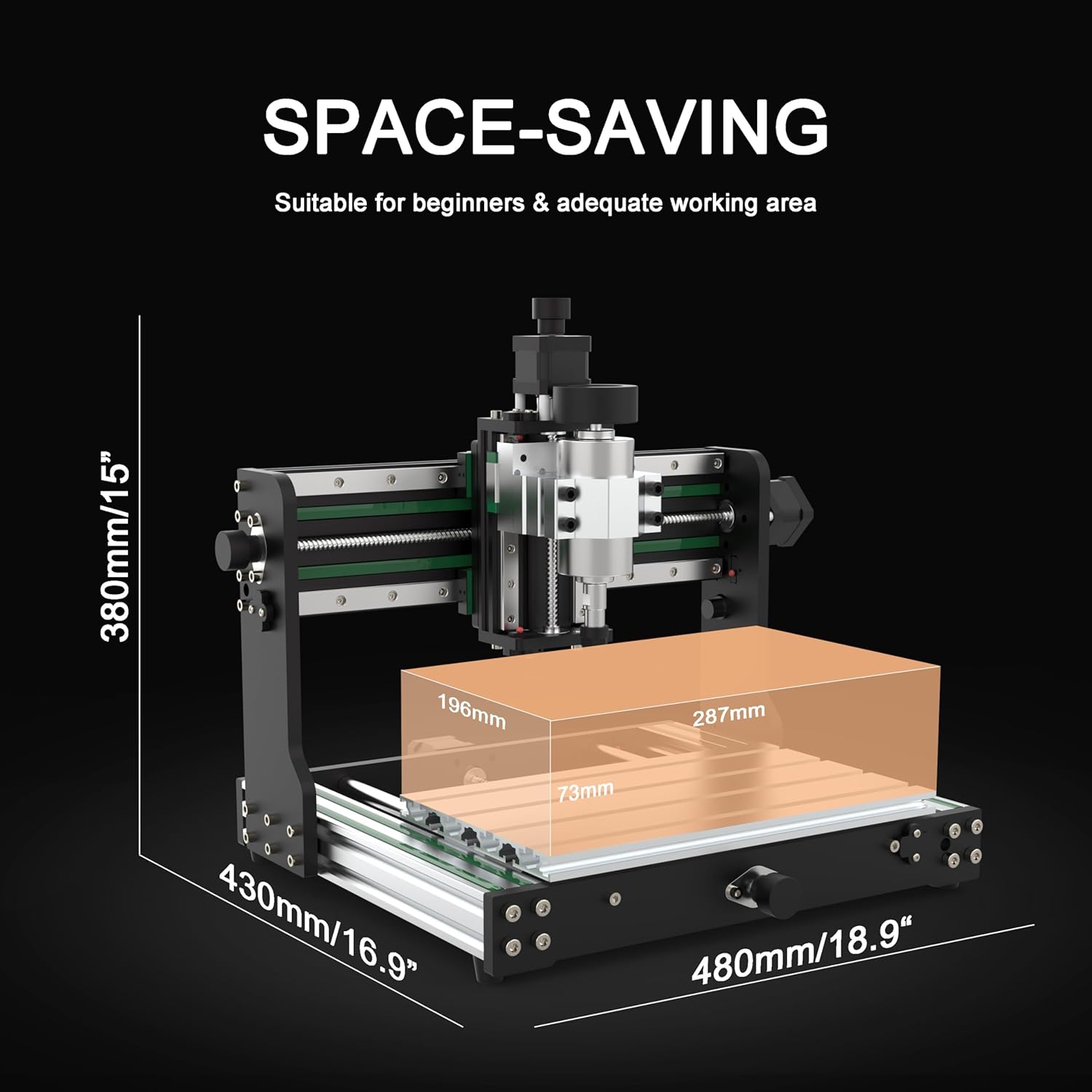

【Complete Functions in Appropriate Size】With an effective stroke of 287*196*73mm, the CNC router is ideal for most aluminum and wood projects with XYZ axis limit switches, home, emergency stop switches, Z-probe, and ER11-1/8″ collet, which is perfect for CNC beginners.
【Compatible & Expandable】The control board is based on Grbl opensource design, supporting Grbl related software like UGS, Candle, Lightburn, Fusion360, Windows, Linux, and Mac OS. CNC router is expandable with offline control and laser module, which is not included.
【Easy Assembly & Great Support】With pre-assembled main parts and clear cable management. Assembly videos and paper user manuals are provided. Contact us for any queries, and our support team will respond within 24 hours.
