Cable Gland Electrical Conduit Fittings, NPT 1/2″ Liquid Tight Connector 9PCS, Excellent Anti Pull Protection For Wires, Widely Used For Wire Splicing And Cable Fixation

Description

Price: $18.78 - $12.78
(as of Sep 26, 2024 11:13:13 UTC – Details)

Buy On Amazon

Product Description

Product Introduction:

Cable gland can be used together with circular wires. When they are suitable, they form a beautiful and tight seal, have strong waterproof properties, used in low-voltage electrical projects. They have good grip and can keep out most weather conditions.Clamping Jaws And Rubber Gaskets: Clamping jaws have a wide range of movement, allowing for tight grip on cables while maintaining good sealing to prevent moisture from affecting outdoor electronic devices. Whenever a storm strikes, thick rubber gaskets can help you avoid the need to check for water leaks at the connections and avoid short circuits.

Specifications:

IP Level: IP 68

Materials: Nylon PA66

Features: waterproof, insulated, easy to install

Model number：NPT 1/4

Range: 3 mm-6.5 mmQuantity: 12pcs

Model number：NPT 3/8

Range: 4 mm-8 mmQuantity：10pcs

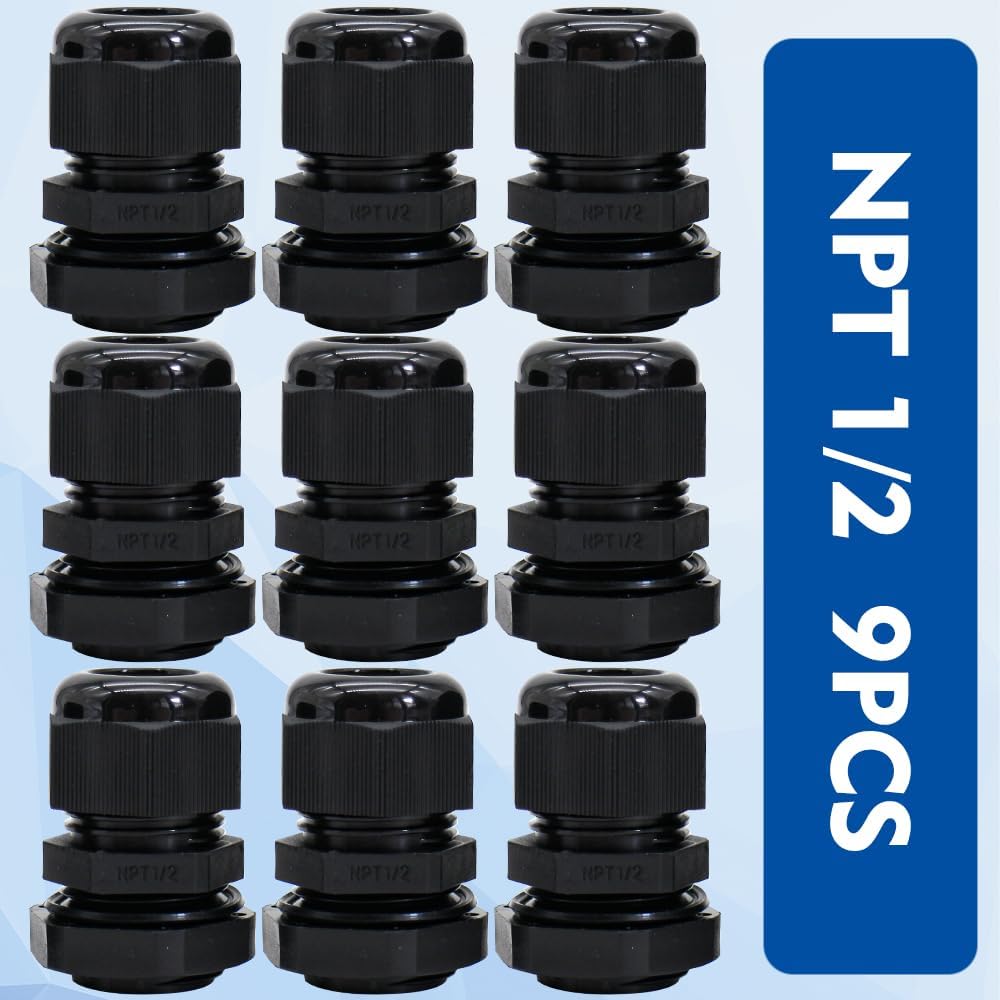

Model number：NPT 1/2

Range: 6 mm-12mmQuantity：9pcs

Model number：NPT3/4

Range: 13 mm-18 mmQuantity：5pcs

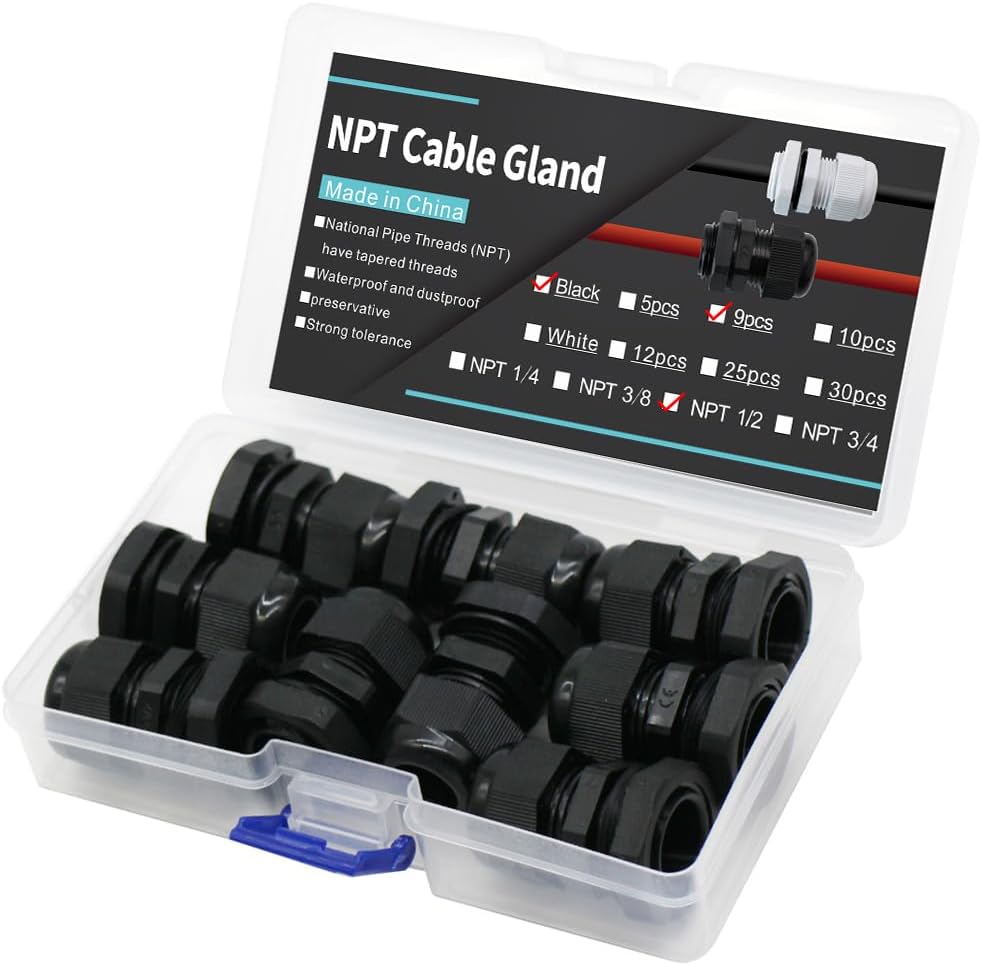

[Specification]: 9PCS x NPT 1/2″ Color: Black, Cable connector diameter range: 6 mm-12 mm, with a rubber clamped and a rubber washer on the connector, good fit, good surface treatment, packaged in a reusable plastic box.
[Application]: Suitable for outdoor electrical work, waterproof irrigation, protection of wire cores and cable sheaths. Made of non-conductive plastic, it has good strength, is waterproof, and has good heat insulation performance.
[Easy To Use]: Easy to install, and flipping down can effectively fit the opening tightly around the cable. They protect the wiring harness by fixing the wires and preventing them from being cut.
[Kind Suggestion]: During installation, you can check whether the gland seal has sufficient compression force by: a) pulling the cable (should not move), b) removing the gland nut, and there should be slight indentations in the sheath of the clamping area. Excessive compression may crush the sheath/wire, while insufficient compression may cause water ingress. In addition, during installation, make sure to push the seal into the connector body and then screw on the nut.
[Attention]: When excessively tightening the upper part, it may cause the rubber ring to show a tendency to fall off. Ensure that there is sufficient space on both sides of the joint to avoid twisting or damaging the wires passing through it. Only one cable or pipe passing through the gland can they be completely waterproof, and the gap between multiple cables cannot be fully sealed.
