Product Description
Digital Clamp Meter MK06

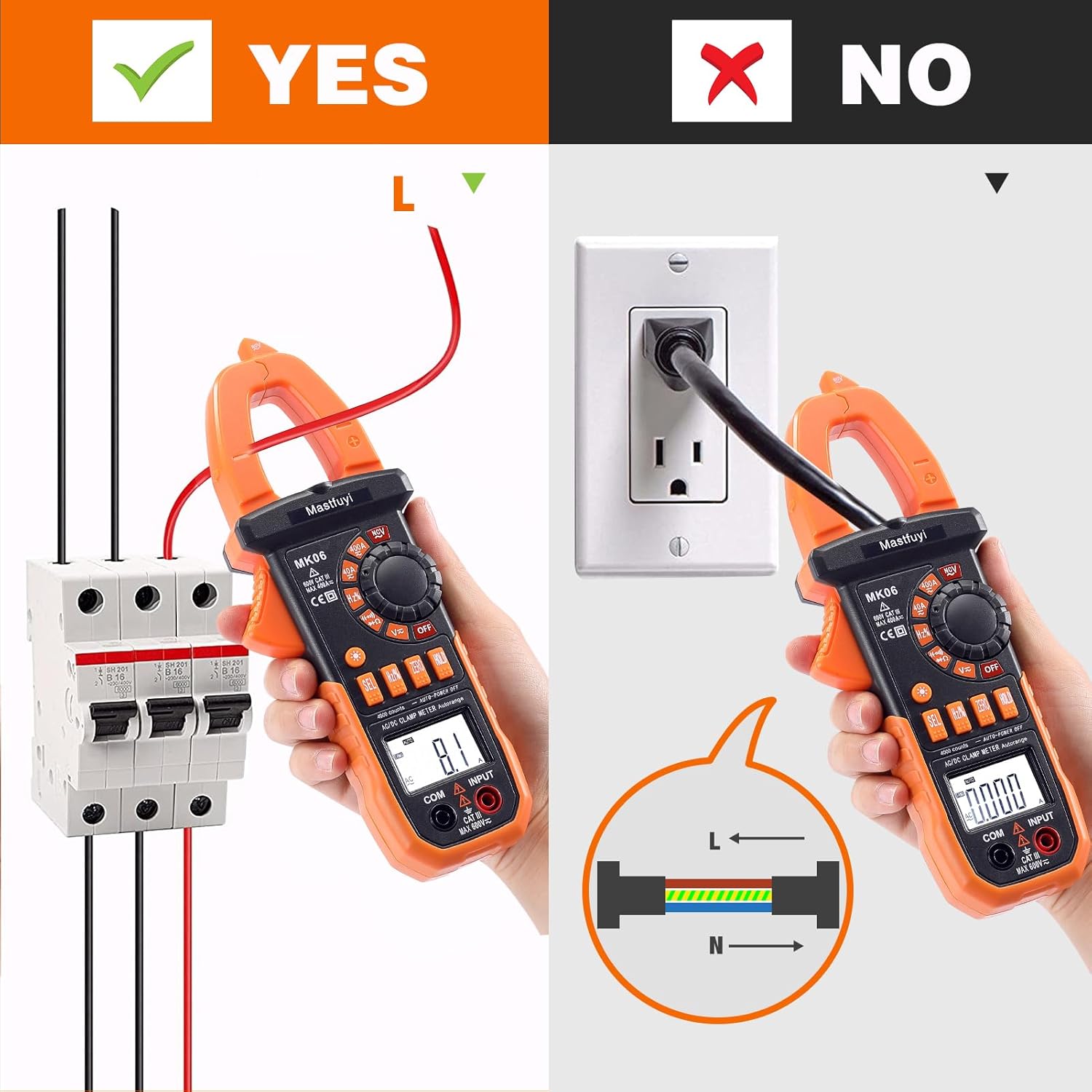

Full protection function, anti high voltage ignition circuit design, streamline design, 1.5V battery drive, AC / DC current, automatic shutdown, highlight backlight, NCV test, secondary insulation body, low voltage display, data retention and other functionsTo measure the current you need to clamp the meter around one of the wires and not the whole power cord. The power cord contains two wires carrying current and ground wire. The current in two wires always flows in opposite directions, so the magnetic fields from two wires canceling each other, therefore the meter reads 0 A.Grasp the individual current conductor to be measured and close the current clamp again. The measured conductor must be placed in the center of the clamp, otherwise, additional errors will occur.
Specifications
DC Voltage: 400 m V/4 V/40V/400V ± (0.8% rdg + 2 dgt), 600V ± (1.0% rdg + 2 dgt)AC Voltage: 4V/40V/400V/600V ± (1.2% rdg + 10dgt)DC Current: 40A/400A ± (3.0% rdg + 6 dgt)AC Current: 40A/400A ± (3.0% rdg + 6 dgt) Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ ± (1.2% rdg + 2 dgt), 40MΩ ± (2.0% rdg + 5 dgt) Capacitance: 40nF/400nF/4uF/40uF/400uF/4mF ± (3.0% rdg + 10dgt) Frequency: 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz ± (1.0% rdg + 3 dgt) Duty-Cycle: 0.1%-99.99% ± (3.0% rdg + 3 dgt) Maximum Display Value : 3999 counts Maximum allowable voltage between measuring terminal and earth: 600V DC or 600V AC RMS.Display: 3 / 4-digit LCD display Overrange indication: ol Input polarity indication: the “one” sign is automatically displayed.Safety class: IEC61010-1, IEC61010-2-03, CAT Ⅲ 600V
Multi-Function Button
One-click switching to accurately measure resistance, capacitance, diode, and continuity. Easy to use in factory, laboratory, home.
“SEL” Button
Press the “SEL” button to switch the corresponding auxiliary function between the different measurement functions.
LCD display
Low power indicationAuto power off indicationDiode testContinuity checkData holdMeasured singal unitsDC singal measurementNegative polarityAC singal measurementMeasured result display
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.4 out of 5 stars
361
4.5 out of 5 stars
77
4.5 out of 5 stars
77
4.5 out of 5 stars
39
4.5 out of 5 stars
455
4.5 out of 5 stars
282
Price
$29.99$29.99 $19.99$19.99 $39.99$39.99 $29.99$29.99 $15.59$15.59
—
Maximum Display
4000 Counts 6000 Counts 6000 Counts 6000 Counts 2000 Counts 2000 Counts
AC/DC Voltage
✓
✓
✓
✓
✓
✓
AC Current
40A/400A 60A/200A 60A/200A 6A/10A 200μA/2000μA/20mA/200mA/10A 200μA/2000μA/20mA/200mA/2A/10A
DC Current
40A/400A ✘ 200A 6A/10A 200μA/2000μA/20mA/200mA/10A 200μA/2000μA/20mA/200mA/2A/10A
Resistance(Ω)
✓
✓
✓
✓
✓
✓
NCV
✓
✓
✓
✓
✓
✓
Capacitance(F)
✓
✓
✓
✓
✘ ✘
Temperature
✘
✓
✓
✓
✘ ✘
Frequency(Hz)
✓
✓
✓
✓
✓
✘
Auto-Ranging
✓
✓
✓
✓
✓
✓
Package Dimensions : 9.41 x 4.45 x 2.24 inches; 1.15 Pounds
Date First Available : November 18, 2021
Manufacturer : Mastfuyi
ASIN : B0CR7GKSLC
Country of Origin : China

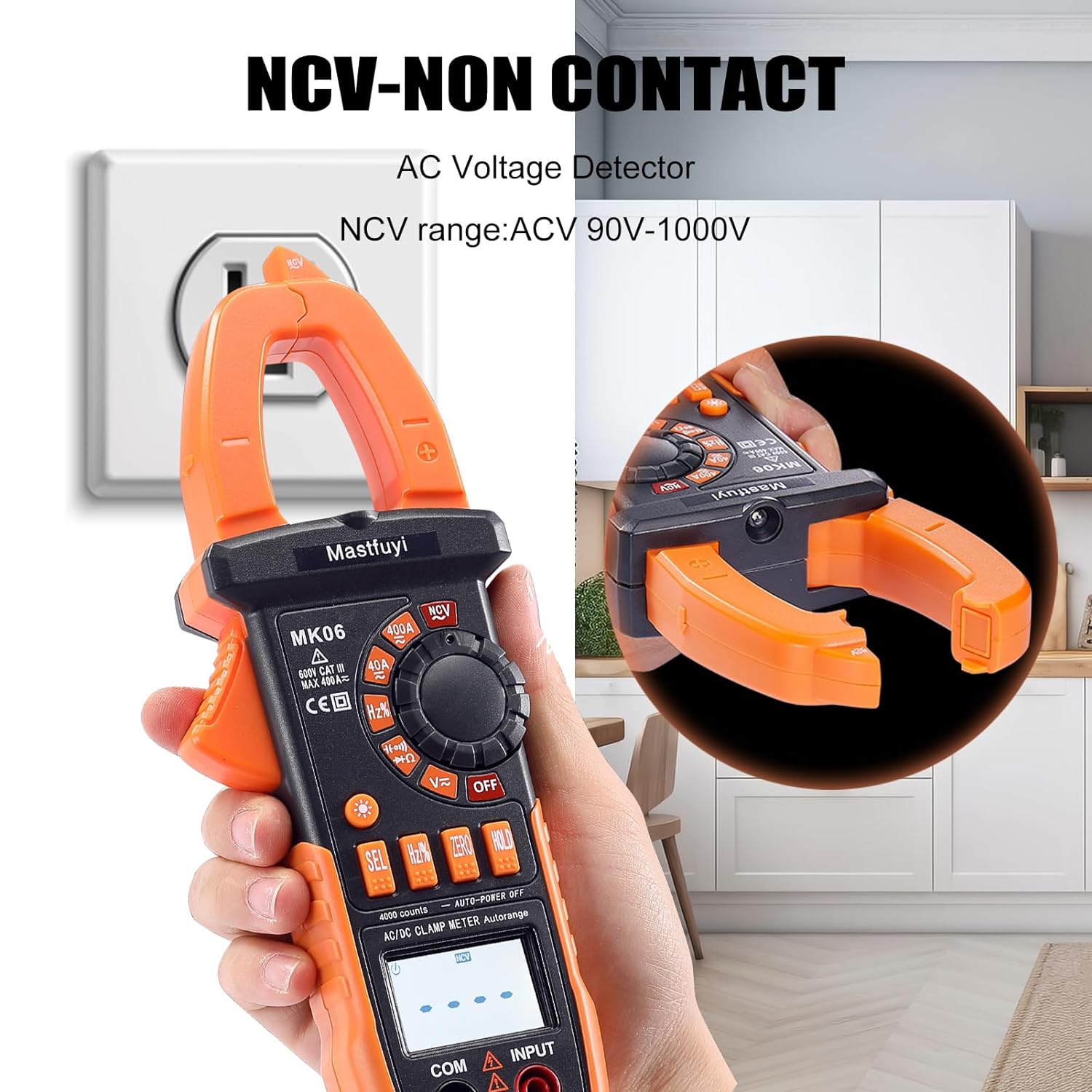

▲【Non-Contact Voltage Detection/NCV】 : When AC voltage is detected, a visible LED lights up and emits a beep; The multimeter’s flashlight will only glow when the current is being tested

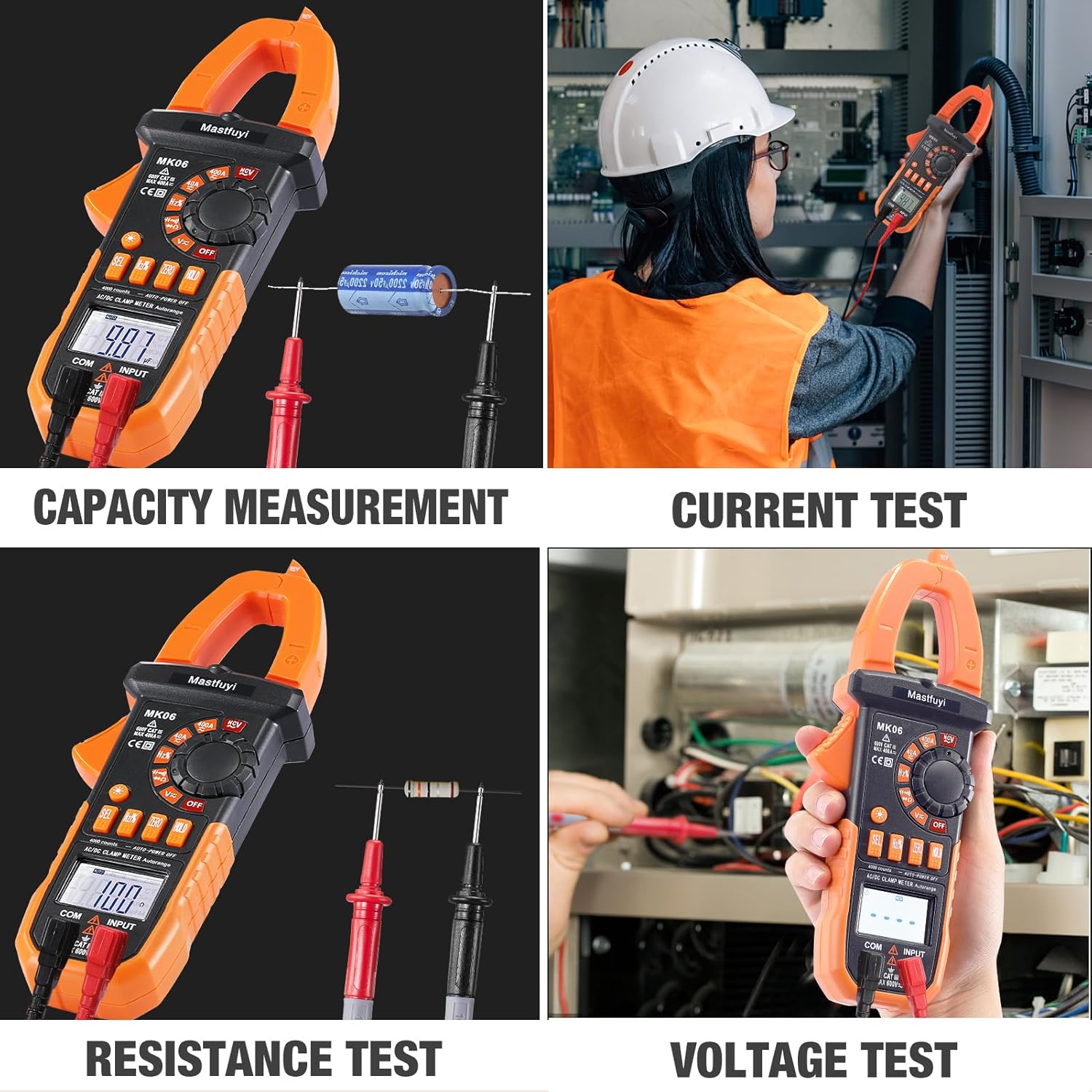

▲【Fast and Accurate AC / DC Ampere Clamp Meter】 : utomatic clamp multimeter, can measure AC / DC current, AC / DC voltage, resistance, capacitance, continuity, duty-cycle, diode and frequency (Hz); A perfect troubleshooting tool that will help you solve electrical problems in the car or at home quickly and safely
▲【Versatile and Easy to Read】 : a large, high-resolution LCD with large backlighting ensures better visibility in dark work areas
▲【Overload Protection】 : Overload protection and double insulation protection prevent electric shocks and protect users from hazardous areas
▲【Automatic Sleep Mode】 : After 30 minutes of inactivity, it automatically switches to sleep mode to save energy
▲【The “Return to Zero” Function】 : reduces data errors affected by the earth’s magnetic field and helps you get more accurate measurements
▲【Fixed with Free Additional Test Lead】 : Free battery and test lead, everything packed in a case, direct use; The test lead is easy to grasp; The design is ergonomic and portable, ideal for professionals or new users
▲【Low Power Indicator】 : When the clamp meter is in a low battery state, the LCD display of the clamp meter will display a low battery symbol to remind you to replace the battery
▲【24-Month Warranty】 : We provide 24 months unconditional warranty and lifetime after-sales service

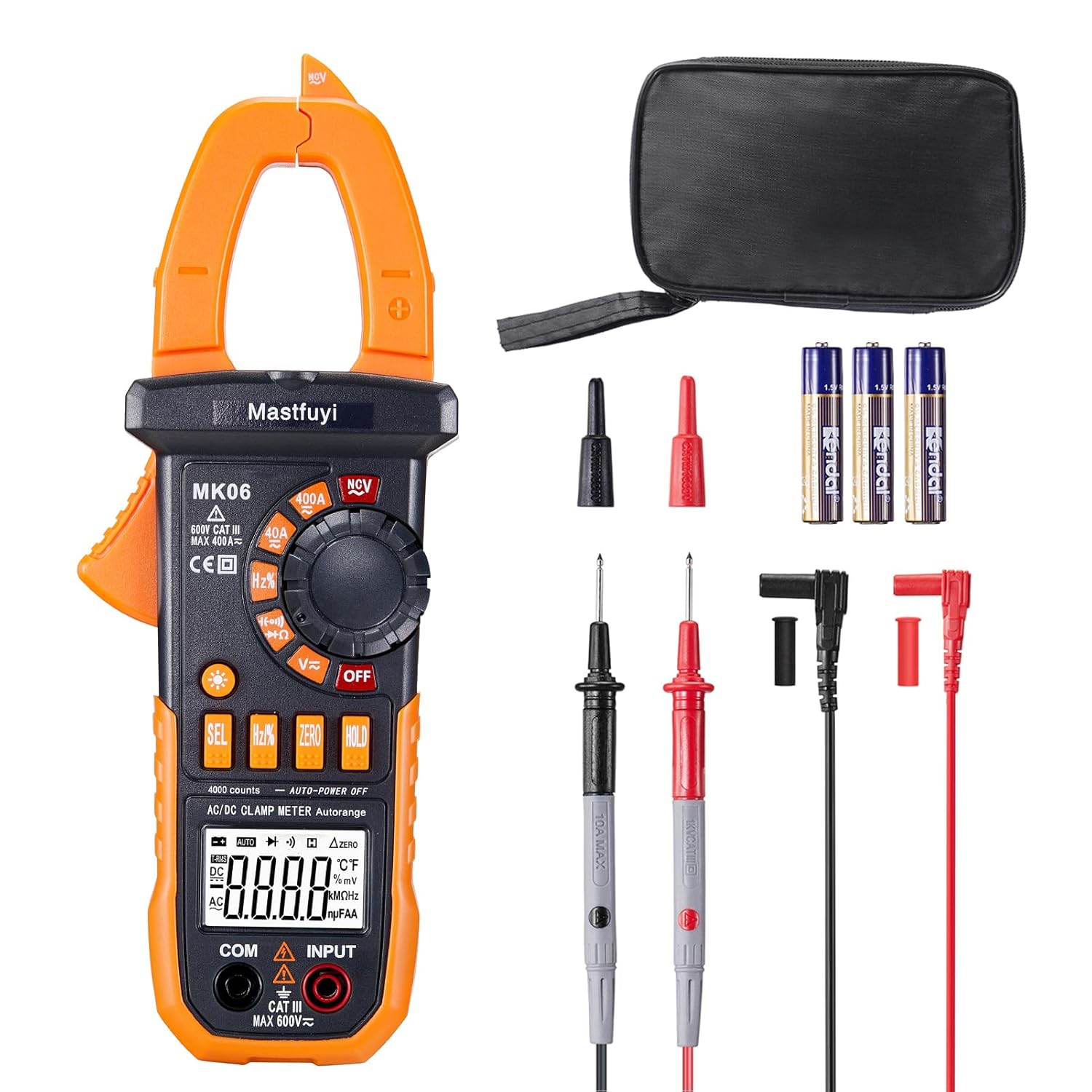

▲【Package Content】 : 1 x Digital Clamp Meter, 2 x Test Leads, 3 x 1.5V AAA Batteries, 1 x Carrying Bag, 1 x User Manual
