CNBTR Horizontal 8mm Dia Linear Motion Ball Bearing Slide Bushing &200mm Linear Shaft Optical Axis with Rod Rail Support Set

Description

Price: $20.99 - $19.99
(as of Jul 28, 2024 19:55:15 UTC – Details)

Buy On Amazon

Product Description

Features:

1.Widely used for digital 3D coordinate measuring equipment such as precision equipment or special machinery industry
2.Suitalbe for kinds of electronic equipment/guide bar, drive shaft, and pillar.
3.Smooth moving, low friction, high rigidity and long working life.
4.They are good abrasion resistance, not easy to rust, high precision and good strength.

Specifications of Steel Linear Shaft Optical Axis :

Material: bearing steel, GCr15
Surface hard-thickness: 0.8u to 3mm
Hardness: HRC602
Outer diameter: 8mm or 0.31inch
Length: 200mm or 7.87inch
Color: silver
Weight: 160g

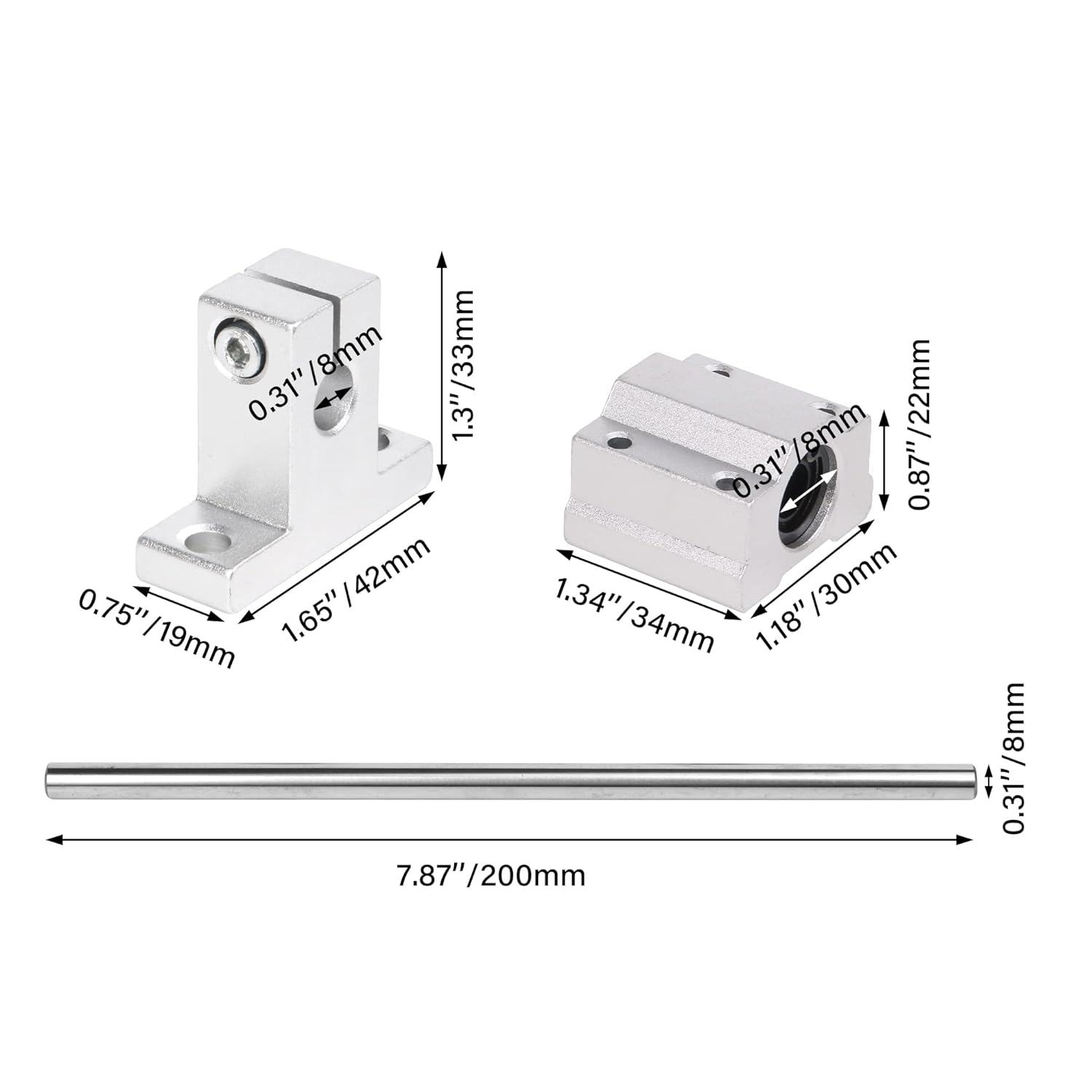

Specification of Linear Rail Support Guide Shaft Bearing :

Material:Aluminum
Color:Silver
Product Size:42 x 32 x 11mm/1.65 x 1.26 x 0.43″
Inside Diameter:8mm/0.31″(Applicable to the optical axis diameter 8mm)
Pacakge Size:45 x 35 x 30mm/1.77 x 1.38 x 1.18″
Weight:54g

Specification of Linear Ball Bearing:

Model: SC8UU
Material:Steel
Color:Silver
Inner Diameter: 8mm/0.315″
Length: 34.5mm/1.36″
Weight: 210g

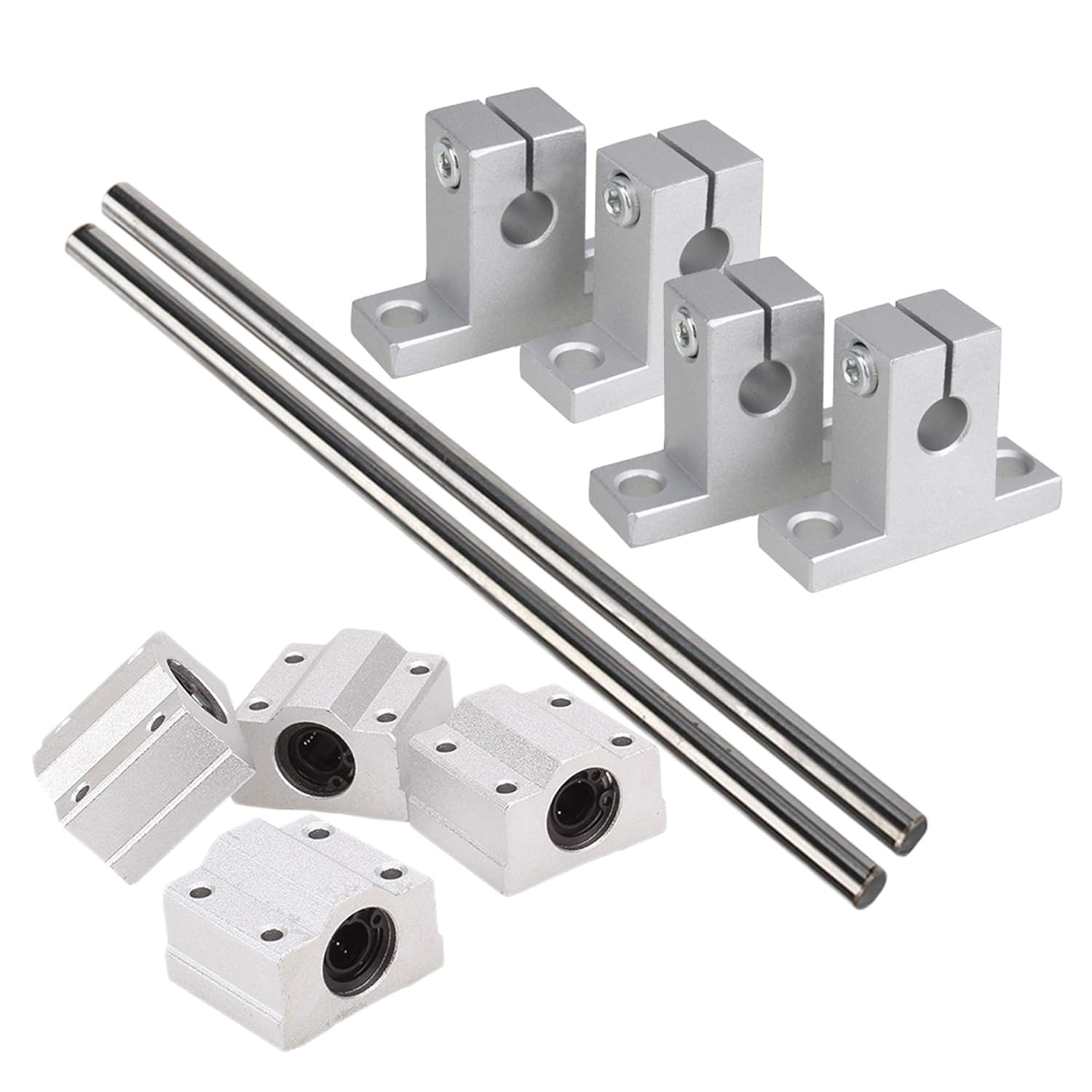

Package include:

4 pcs 8×34.5mm Steel Linear Motion Ball Bearing
4 pcs 42x32x11mm Aluminum Rail Support Guide
2 pcs 8x200mm Steel Linear Shaft Optical Axis

Is Discontinued By Manufacturer ‏ : ‎ No
Package Dimensions ‏ : ‎ 8.35 x 3.62 x 1.34 inches; 5.64 ounces
Date First Available ‏ : ‎ August 18, 2016
Manufacturer ‏ : ‎ yqltd
ASIN ‏ : ‎ B01KL7I65W

They are good abrasion resistance,high precision and good strength. But if you have any question about the item, please feel free to contact the CNBTR Service, we will try our best to give you a satisfactory answer.
Widely used for digital 3D coordinate measuring equipment such as precision equipment or special machinery industry
Suitable for kinds of electronic equipment/guide bar, drive shaft, and pillar
Bearing Pillow Block have a certain bearing capacity, can hold in ordinary precision rack, strong adaptability.
They are good abrasion resistance, high precision and good strength.
