Product Description
Product Details
Sturdy Screw Housing
Screw gasket design, add a flat washer, effectively prevent the screw off. Automatically assure the quality, safe & convenient.
Lubricated Metal Gear
Inside the fuselage using powder metallurgy technology, pure metal gear, life is more durable.
All Metal Material
Motor design inside and outside of pure metal, greatly improve the service life of the product, when working with a little metal friction voice, it is a normal phenomenon.
Creative Tips for your life
Furniture and Home
In daily life uses, linear actuators can serve to adjust massage chair, TV lift, table lift, electric sofa, electric treadmill, car electric tailgate etc.
Hospitals and Healthcare
Linear actuators are used for moving and adjusting applications: patient shifter, electric wheelchair, electric nursing bed, esthetic dental chair etc.
Industrial and Construction
Actuators are widely used in industrial machinery such as engineering vehicle, electric lifting platform, CNC machine tool, Manipulator etc.
Agricultural Machinery
Linear actuators also apply to many automatic agricultural machineries: sprayers, lawn mowers, tractors, cultivators, harvesters etc.
How to install the actuator?
1.Prepare to connect the two wires of the actuator to a 12 volt battery
2.Red wire to the positive terminal and Black wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.
3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch.
4.Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.
5.The actuator has pre-installed inner limit switch, it cannot be adjustable.
How to protect your actuator? Please use the 12V DC power adapter. The actual load does not exceed the rated load. All the actuators have duty cycle, they are unable to work all the time without stop. The actuator is not completely waterproof, please do not directly immerse in water.
Add to Cart
Add to Cart
Customer Reviews
4.4 out of 5 stars
1,281
3.6 out of 5 stars
26
4.4 out of 5 stars
297

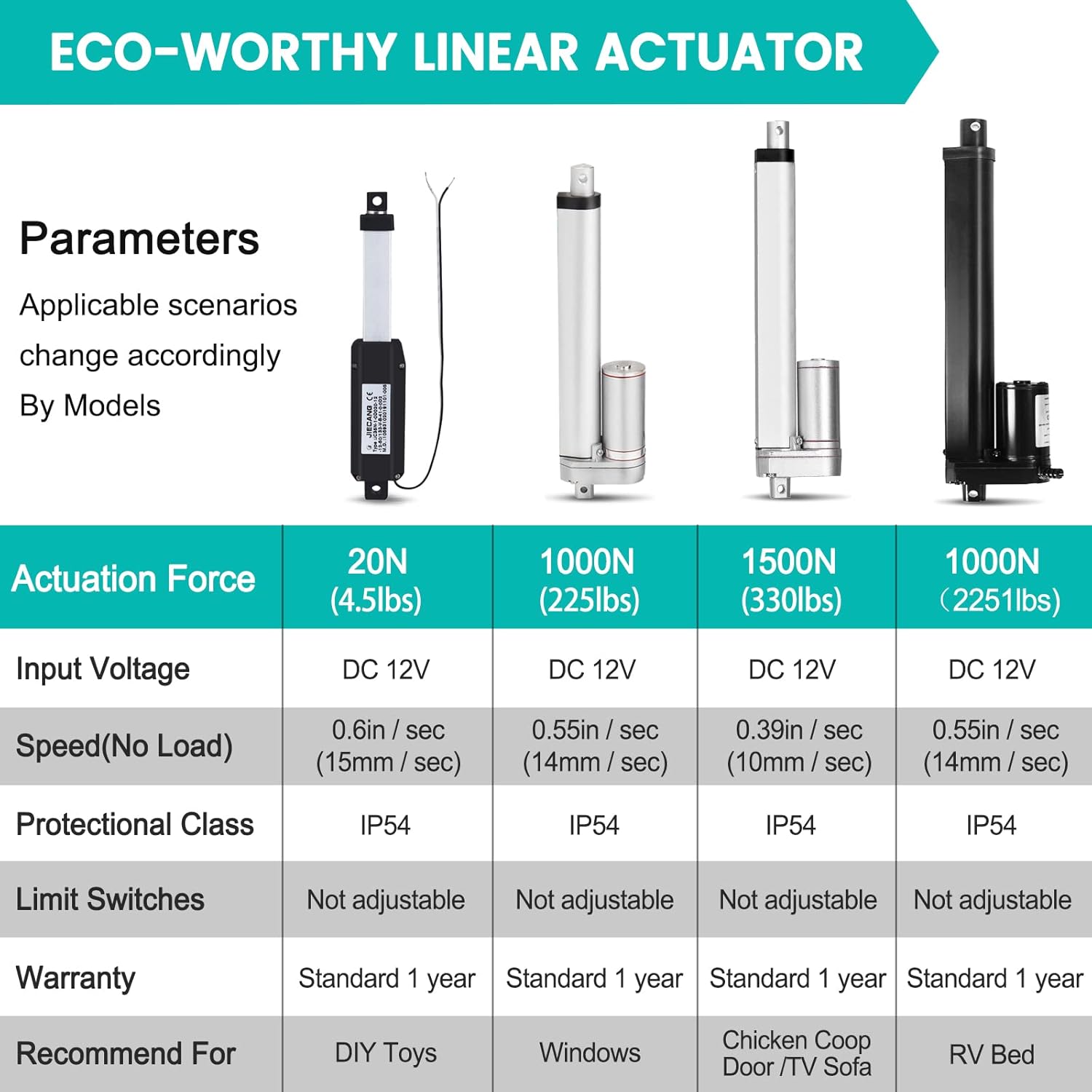

Price
$42.99$42.99
— $32.99$32.99
Power Input
DC 12V DC 12V DC 12V
Power Output
– DC 12V DC 12V

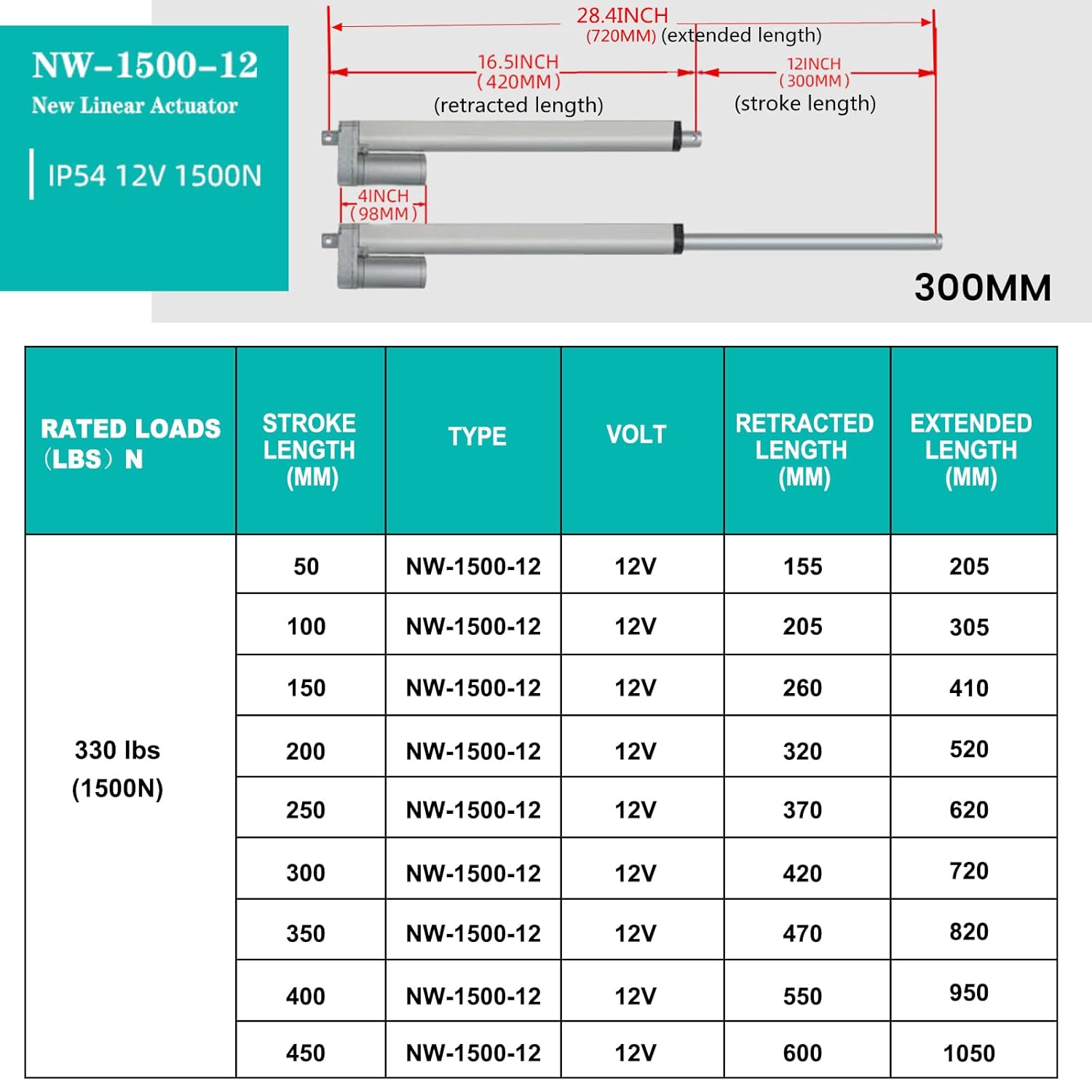

Retracted Length
260mm – –
Extended Length
410mm – –
Installation Method
Screw-in/Wiring Wiring Wiring
Is Discontinued By Manufacturer : No
Package Dimensions : 17.4 x 7.8 x 2.24 inches; 3.33 Pounds
Item model number : AM-TGF12V300-T-1
Date First Available : September 16, 2014
Manufacturer : ECO-WORTHY
ASIN : B00NM8H5SW
✔Heavy Duty – The alloy-steel shaft accompanied by metal gears allows it to push and pull up to 330 lbs.It will be great to use the actuator with our controller, which helps to control your actuactor to Forward & Reverse.
✔Features – Aluminum alloy housing, IP54 rated protection sealed against dust, water, and corrosion suitable for outdoors use. Internal limit switch, automatically switch off when it reaches in case of the motor idling.
✔Quiet & Comfortable – move at 10mm/s, silent and stable, make sound lower than 50db, suit for hospital and massage. Built-in safety lock, stop at any position in the stroke.
✔Safe – over current protection, overload protection, over-voltage protection, over-discharge protection, short circuit protection, shock protection.
✔Professional Team – ECO-WORTHY has manufactured linear actuators for years, through multiple technical testings, CE certificate. We have a professional and experienced technicians team to service you within 24 hours.
