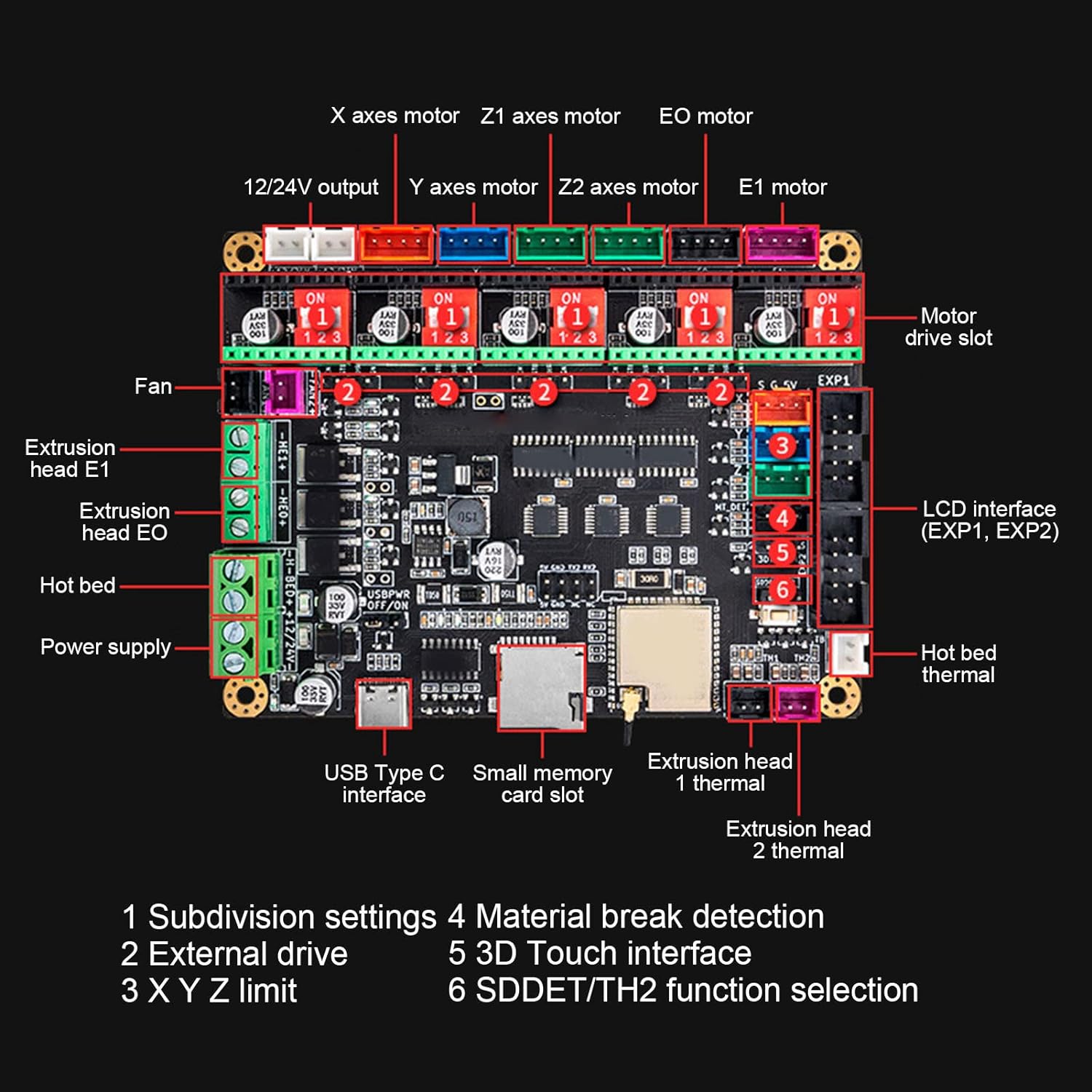

ESP32 3D Printer Motherboard 32 Bit Control Board Kit 3D Printer Controllers Control Board Additive Manufacturing Products Accessories

Description

Price: $23.97
(as of Jul 27, 2024 03:55:14 UTC – Details)

Buy On Amazon

Specification:
Item Type: ESP32 3D Printer Motherboard
MCU: ESP32 WROOM 32U
MCU Frequency: 240MHz
Flash: 8192K
: 520Kb

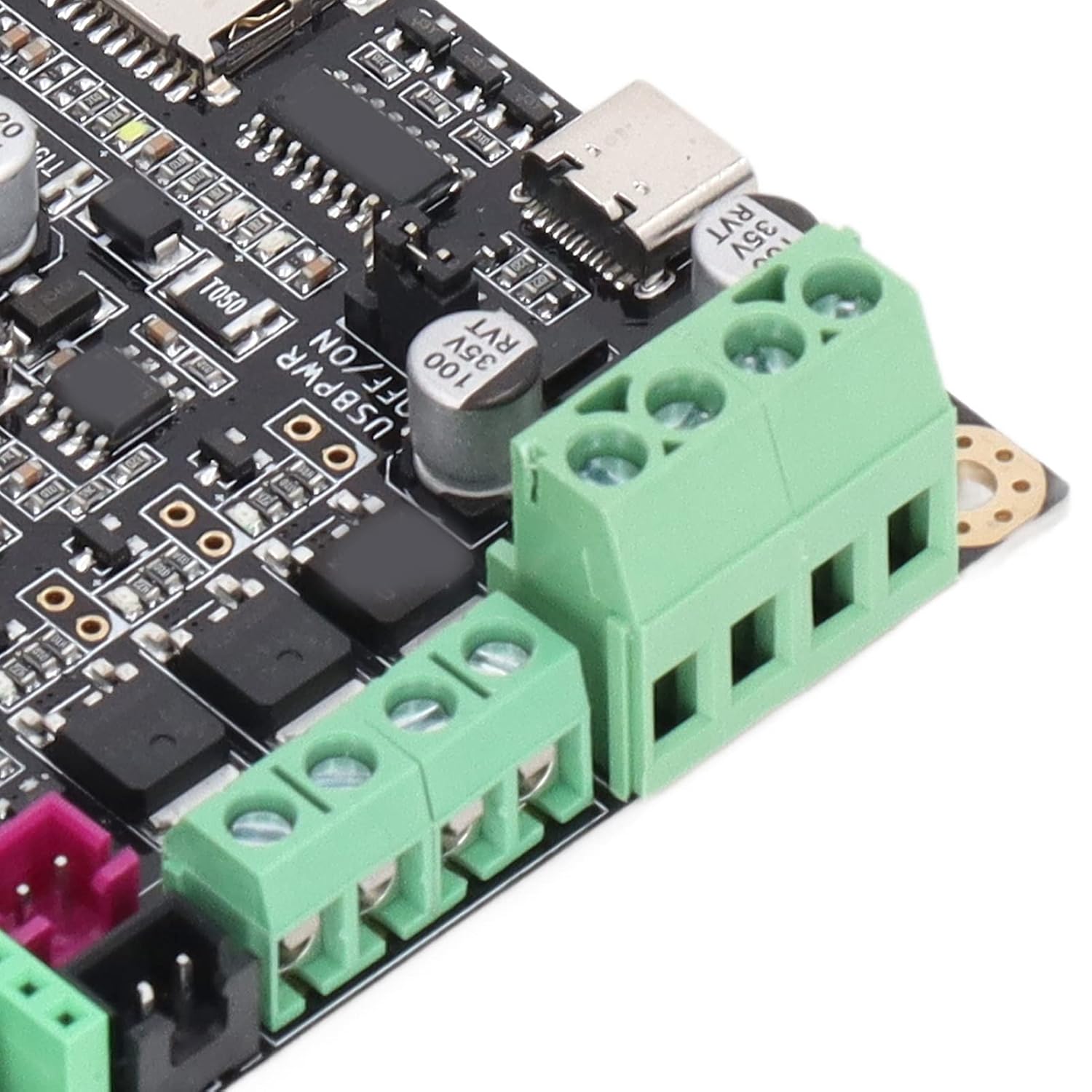

Power Input: DC12-24V<20A
Heating Head, Hot Bed: 2 Heating heads, 1 hot bed

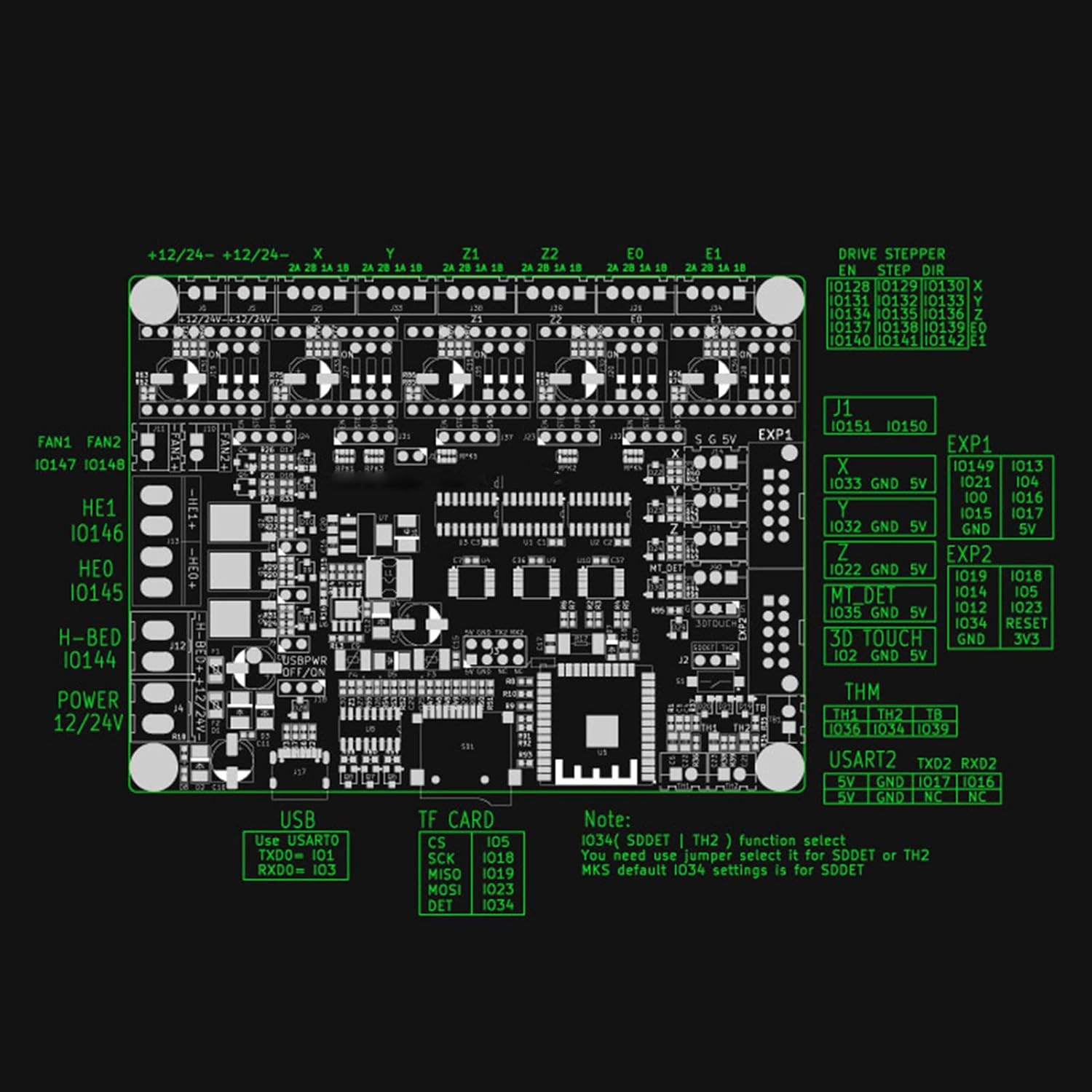

Temperature Measurement: 3NTC100K: TH1, TB, TH2 (requires jumper selection)
Controllable Fans: 2 Way controllable fans
Motor Interface: 5 Axes drive, 6 motor interfaces (double Z axes parallel output)
Drive Mode: STEP or DIR standard mode
Drive : Pin out the , support external

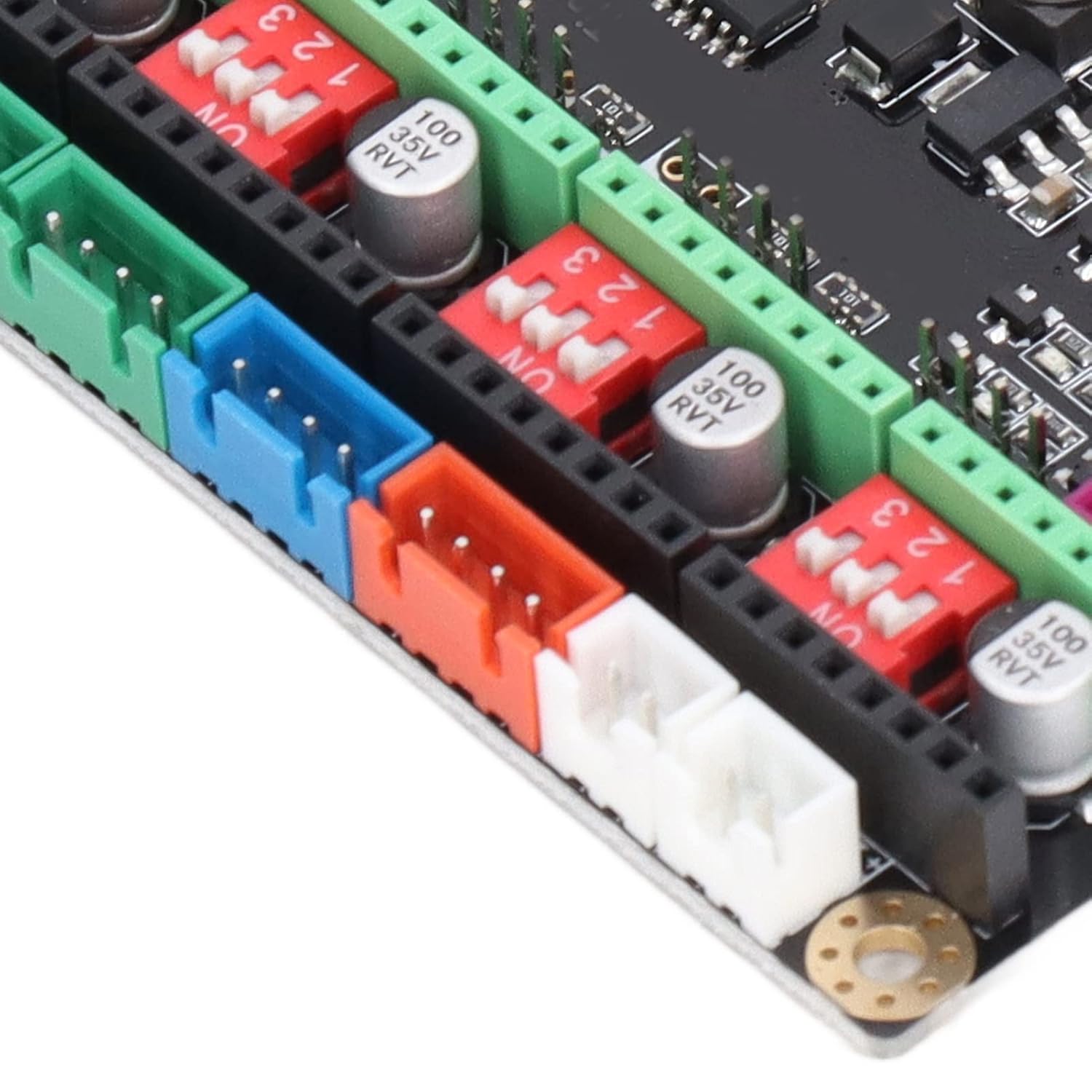

Subdivision Settings: DIP switch to set subdivision

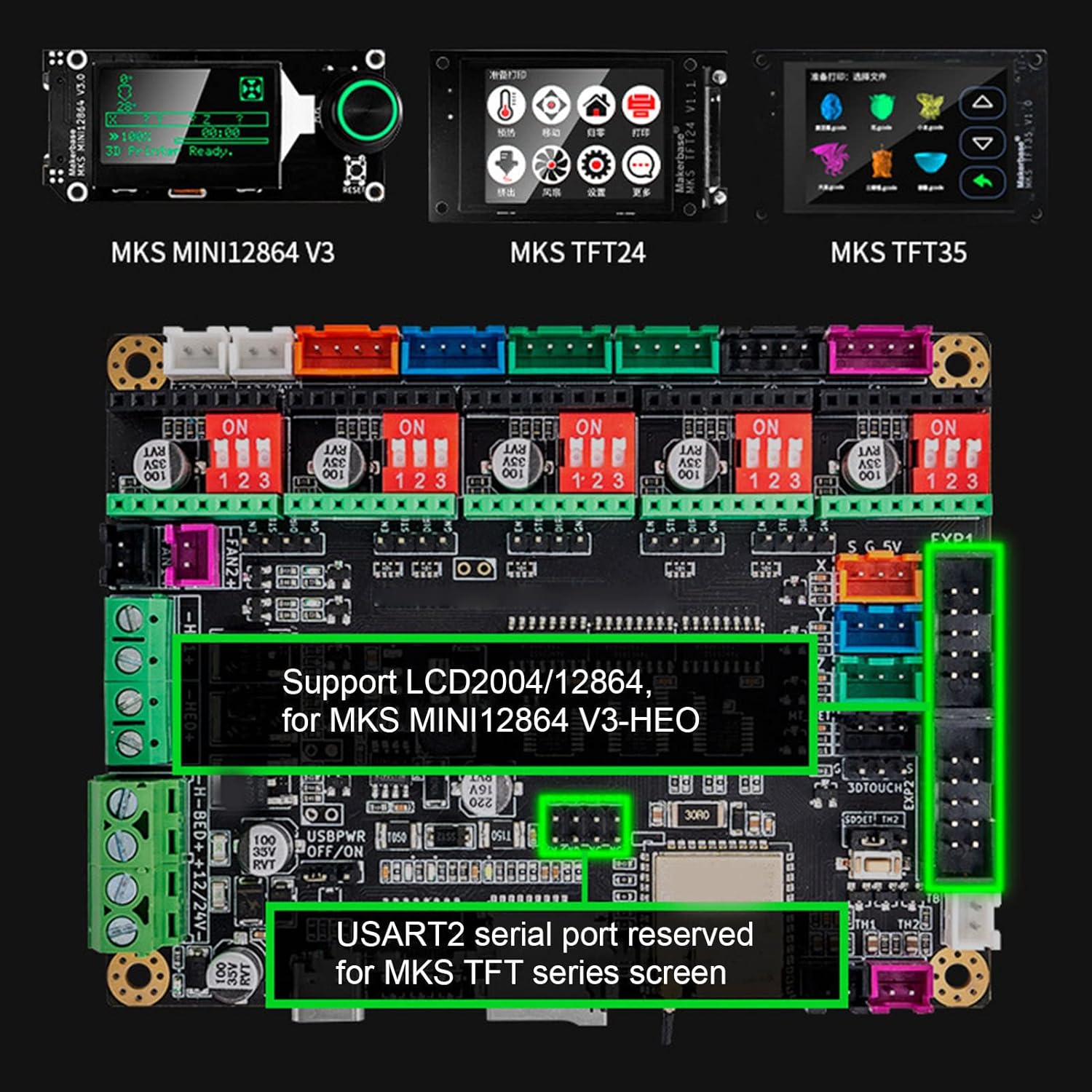

LCD Interface: Support ordinary LCD2004, 12864; support for MKS MINI12864V3
Serial Port: Reserved serial port 2, support for MKSTFT series serial port screen

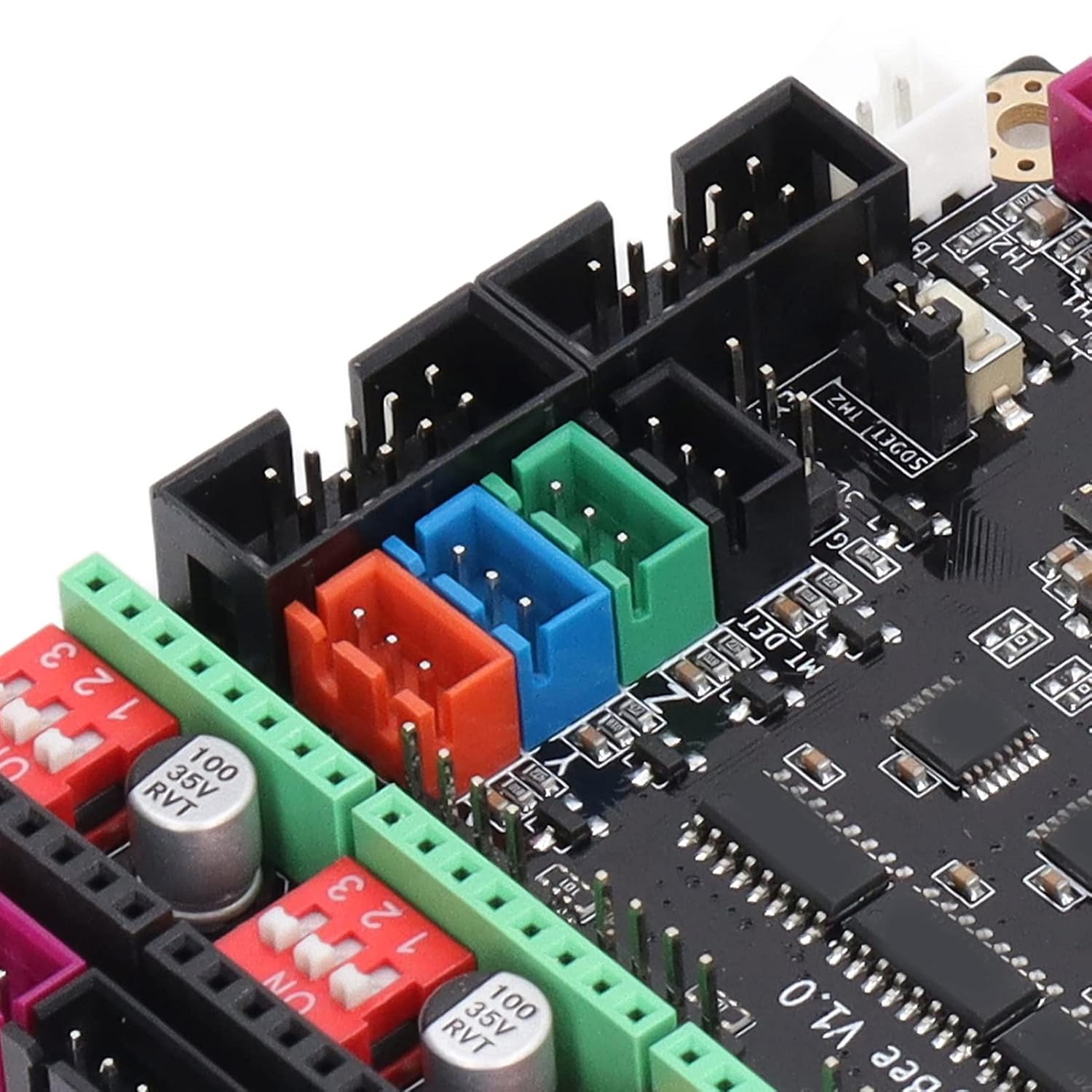

Limit: X, YZ, MT DET
3D TOUCH: Support
Power : Non reverse polarity and power spike
Firmware: For Marlin2.0.x
Firmware Update Method: Online download USB

Package List:

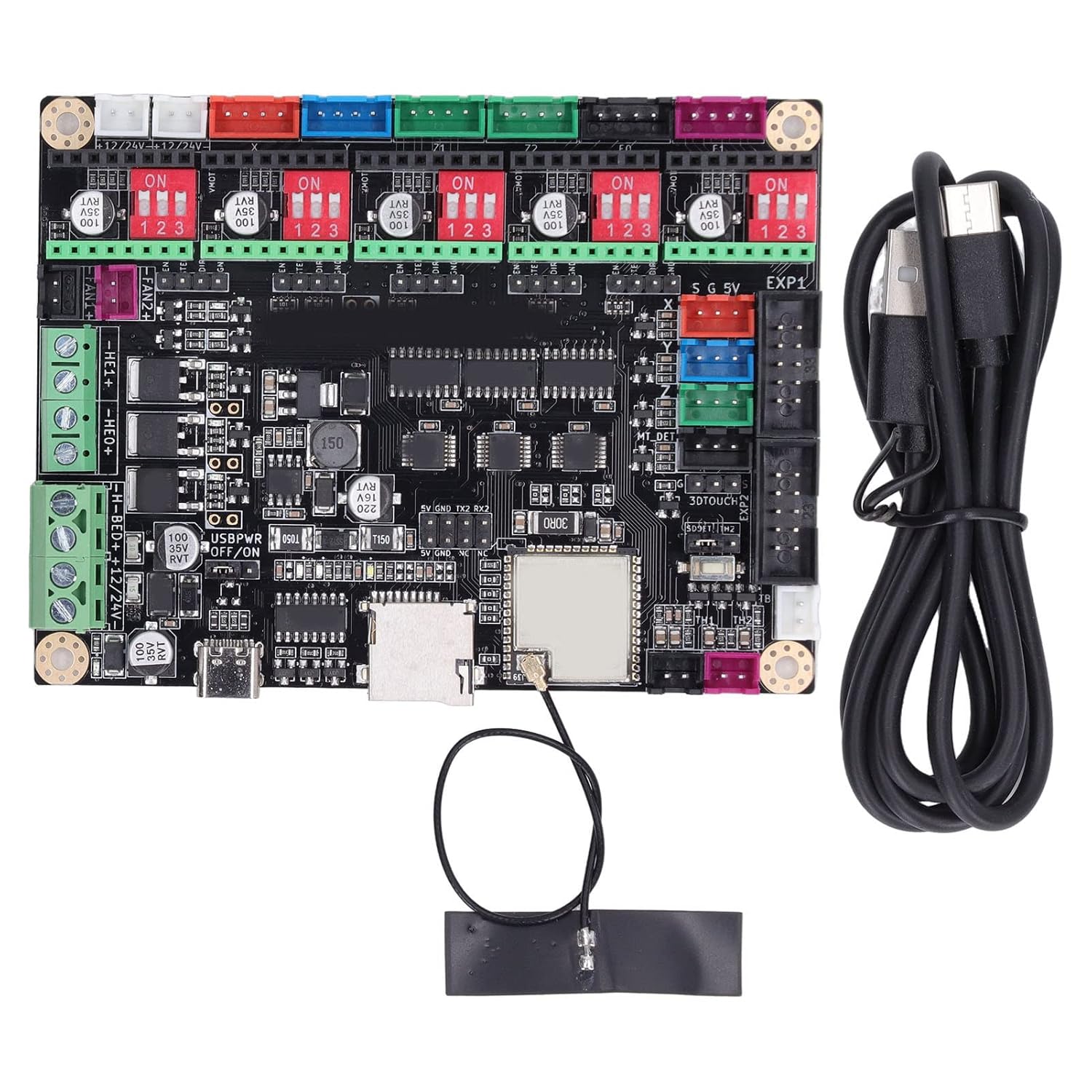

1 x ESP32 3D Printer Motherboard
1 x USB Cable A C Type C(1 meter)

Note:
MOS drive circuit, limit input, and temperature measurement circuit add Schottky diode to reduce damage to IO from external spikes.

Package Dimensions ‏ : ‎ 5.91 x 3.94 x 1.57 inches
Item model number ‏ : ‎ Hilitandam543tfi7c
Date First Available ‏ : ‎ December 23, 2023
Manufacturer ‏ : ‎ Hilitand
ASIN ‏ : ‎ B0C4Q61ZBB
Country of Origin ‏ : ‎ China

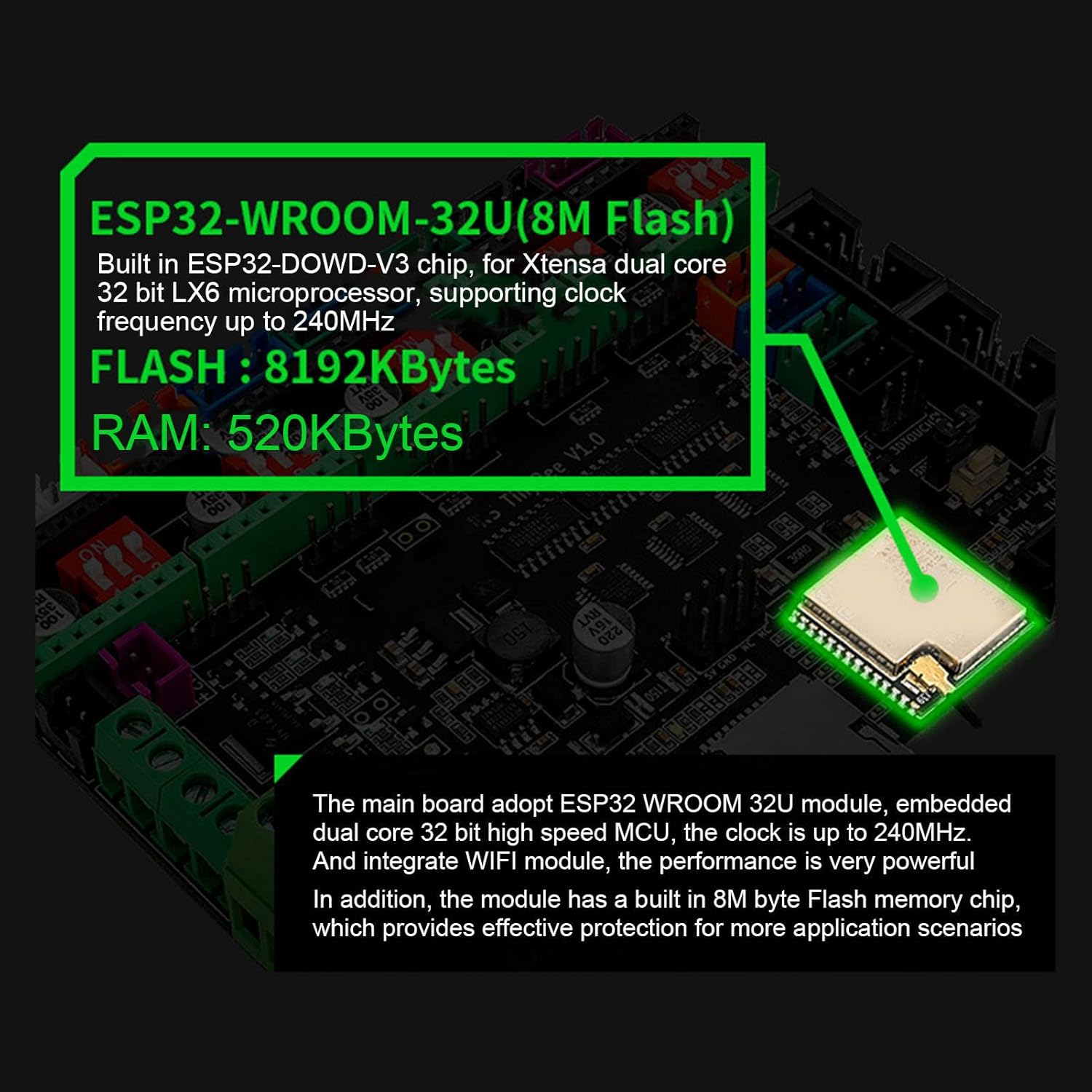

POWERFUL AND VERSATILE: The main board adopt ESP32 WROOM 32U module, embedded dual core 32 bit high speed MCU, the clock is up to 240MHz. And integrate , Bluetooth module, update firmware through USB, can connect and web page to control printing.
32 BIT MICROPROCESSOR: Built in ESP32 DOWD V3 chip, for Xtensa dual core 32 bit LX6 microprocessor, supporting clock frequency up to 240MHz.
SUPPORT VARIOUS SCREEN: This is a 3D printer main control board with onboard ESP32 , supports for Marlin2.0 firmware, in addition to ordinary LCD2004, 12864 screen, also supports for MKS MINI12864V3, and for MKSTFT serial screen.
POWERFUL PERFORMANCE: The motherboard adopts ESP32 WROOM 32U module, embedded dual-core 32-bit high-speed MCU, clock up to 240MHz. It integrates upgrades firmware through USB, and can connect to and web page to control printing.
BACK EMF : VEXP has designed a circuit for the back EMF generated by the stepper motor, which greatly reduces the damage to the motor driver.
