ESP32 3D Printer Motherboard , 3D Printer Motherboard 3D Printer Motherboard 32 Bit 32 Bit Control Board Additive Manufacturing Products Accessories

Description

Price: $23.94
(as of Jul 21, 2024 17:13:20 UTC – Details)

Buy On Amazon

1. SUPPORT VARIOUS SCREEN: This is a 3D printer main control board with onboard ESP32 wifi, supports for Marlin2.0 firmware, in addition to ordinary LCD2004, 12864 screen, also supports for MKS MINI12864V3, and for MKSTFT serial screen
2. 32 BIT MICROPROCESSOR: Built in ESP32 DOWD V3 chip, for Xtensa dual core 32 bit LX6 microprocessor, supporting clock frequency up to 240MHz
3. POWERFUL AND VERSATILE: The main board adopt ESP32 WROOM 32U module, embedded dual core 32 bit high speed MCU, the clock is up to 240MHz. And integrate WIFI, Bluetooth module, update firmware through USB, can connect WIFI and web page to control printing. The performance is very powerful
4. 8M BYTE CHIP: In addition, the module has a built in 8M byte Flash memory chip, which provides effective for more application scenarios

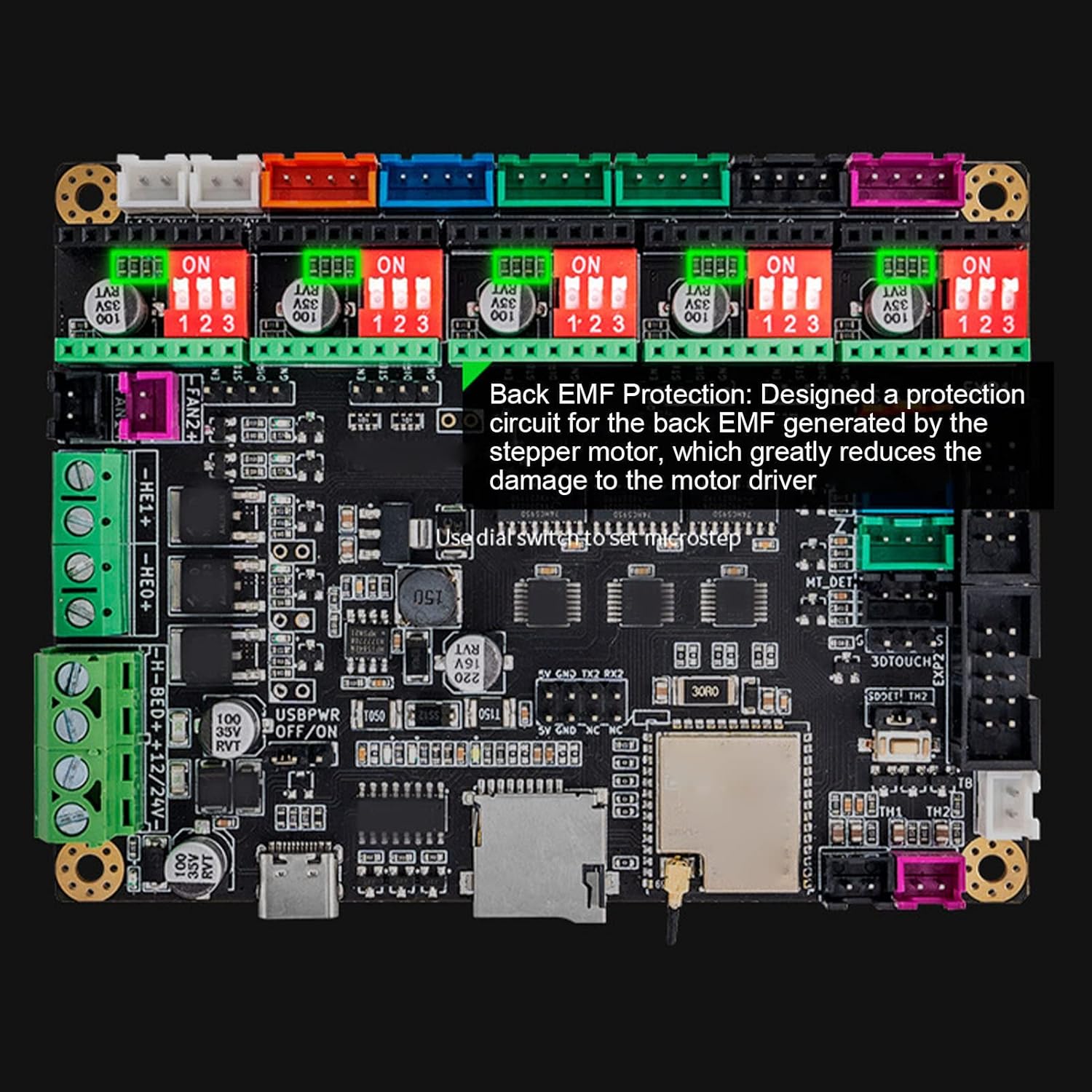

5. BACK EMF : VEXP has designed a circuit for the back EMF generated by the stepper motor, which greatly reduces the damage to the motor driver

Spec:
Item Type: ESP32 3D Printer Motherboard
MCU: ESP32 WROOM 32U
MCU Frequency: 240MHz
Flash: 8192K
: 520Kb
Power Input: DC12-24VHeating Head, Hot Bed: 2 Heating heads, 1 hot bed
Temperature Measurement: 3NTC100K: TH1, TB, TH2 (requires jumper selection)
Controllable Fans: 2 Way controllable fans
Motor Interface: 5 Axes drive, 6 motor interfaces (double Z axes parallel output)
Drive Mode: STEP or DIR standard mode
Drive : Pin out the , support external
Subdivision Settings: DIP switch to set subdivision
LCD Interface: Support ordinary LCD2004, 12864; support for MKS MINI12864V3
Serial Port: Reserved serial port 2, support for MKSTFT series serial port screen
Limit: X, YZ, MT DET
3D TOUCH: Support
Power : Non reverse polarity and power spike
Firmware: For Marlin2.0.x
Firmware Update Method: Online download USB

Package List:
1 x ESP32
32 BIT MICROPROCESSOR: Built in ESP32 DOWD V3 chip, for Xtensa dual core 32 bit LX6 microprocessor, supporting clock frequency up to 240MHz
POWERFUL AND VERSATILE: The main board adopt ESP32 WROOM 32U module, embedded dual core 32 bit high speed MCU, the clock is up to 240MHz. And integrate WIFI, Bluetooth module, update firmware through USB, can connect WIFI and web page to control printing. The performance is very powerful
SUPPORT VARIOUS SCREEN: This is a 3D printer main control board with onboard ESP32 wifi, supports for Marlin2.0 firmware, in addition to ordinary LCD2004, 12864 screen, also supports for MKS MINI12864V3, and for MKSTFT serial screen
BACK EMF : VEXP has designed a circuit for the back EMF generated by the stepper motor, which greatly reduces the damage to the motor driver
8M BYTE CHIP: In addition, the module has a built in 8M byte Flash memory chip, which provides effective for more application scenarios
