ESP32 3D Printer Motherboard 3D Printer Motherboard Printer Motherboard 32 Bit Control Board Additive Manufacturing Products Accessories

Description

Price: $24.14
(as of Jul 15, 2024 02:13:23 UTC – Details)

Buy On Amazon

Specification:
Item Type: ESP32 3D Printer Motherboard
MCU: ESP32 WROOM 32U
MCU Frequency: 240MHz
Flash: 8192K
RAM: 520Kb

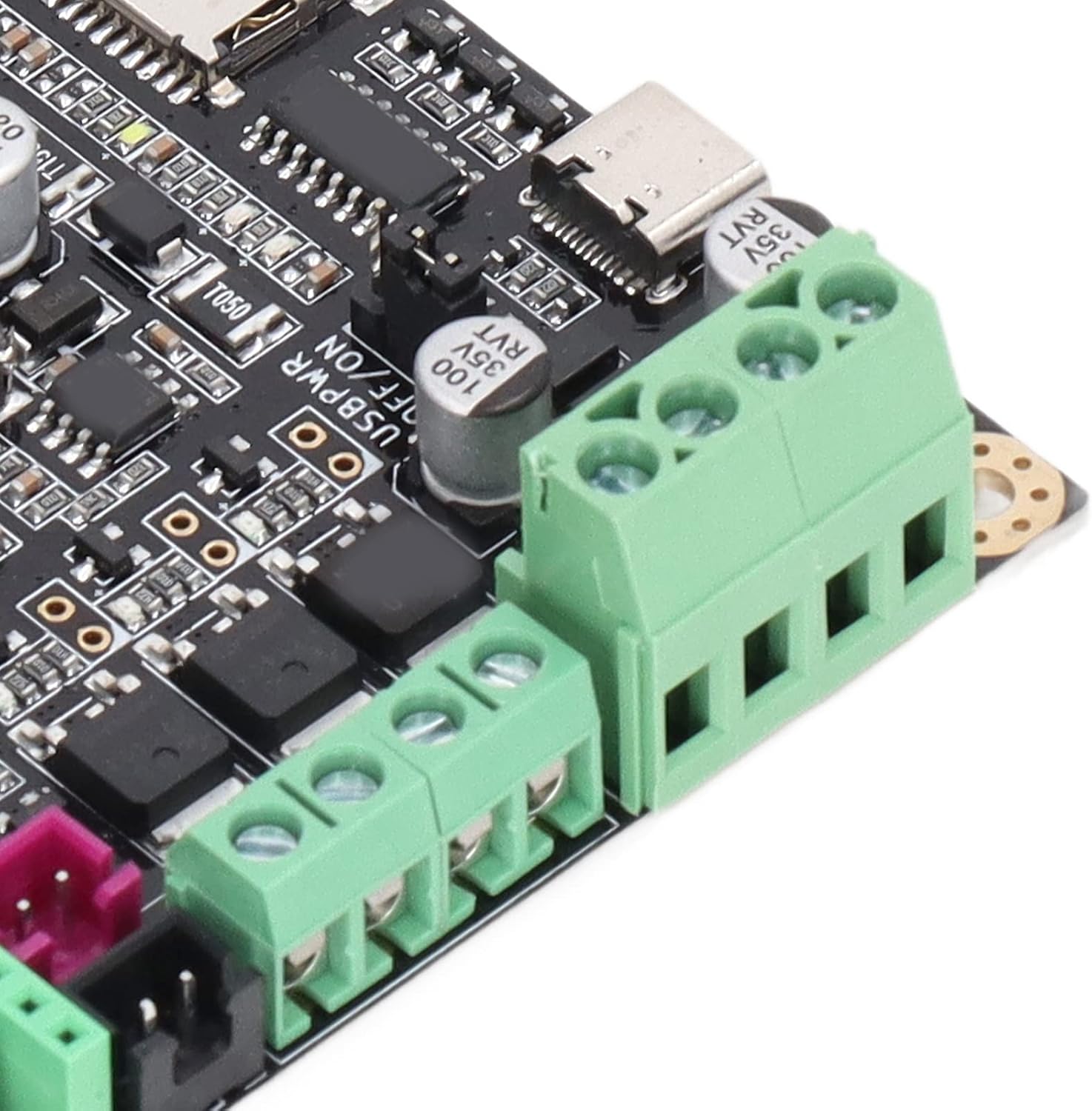

Power Input: DC12-24VHeating Head, Hot Bed: 2 Heating heads, 1 hot bed
Temperature Measurement: 3NTC100K: TH1, TB, TH2 (requires jumper selection)
Controllable Fans: 2 Way controllable fans

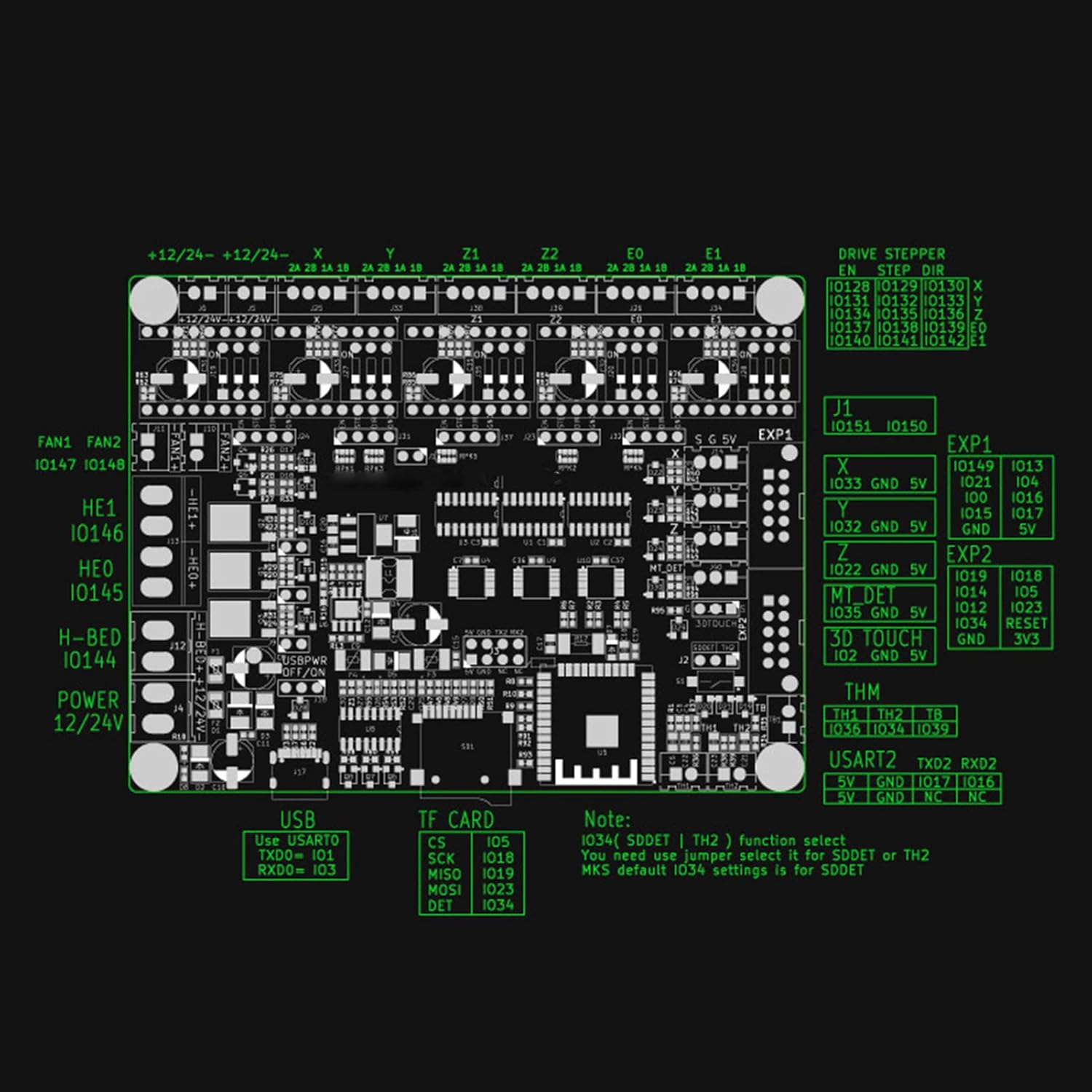

Motor Interface: 5 Axes drive, 6 motor interfaces (double Z axes parallel output)
Drive Mode: STEP or DIR standard mode
Drive : Pin out the , support external

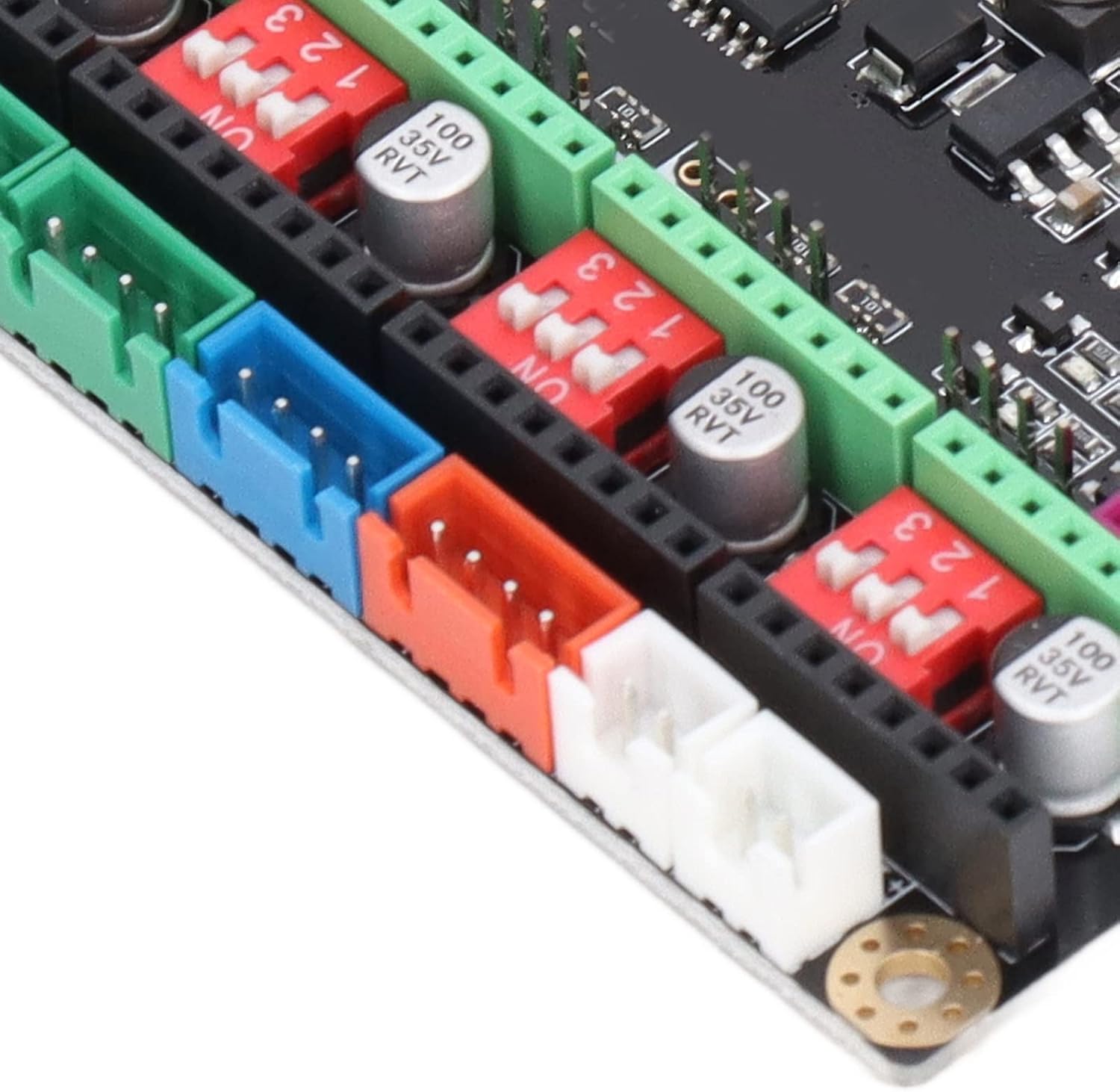

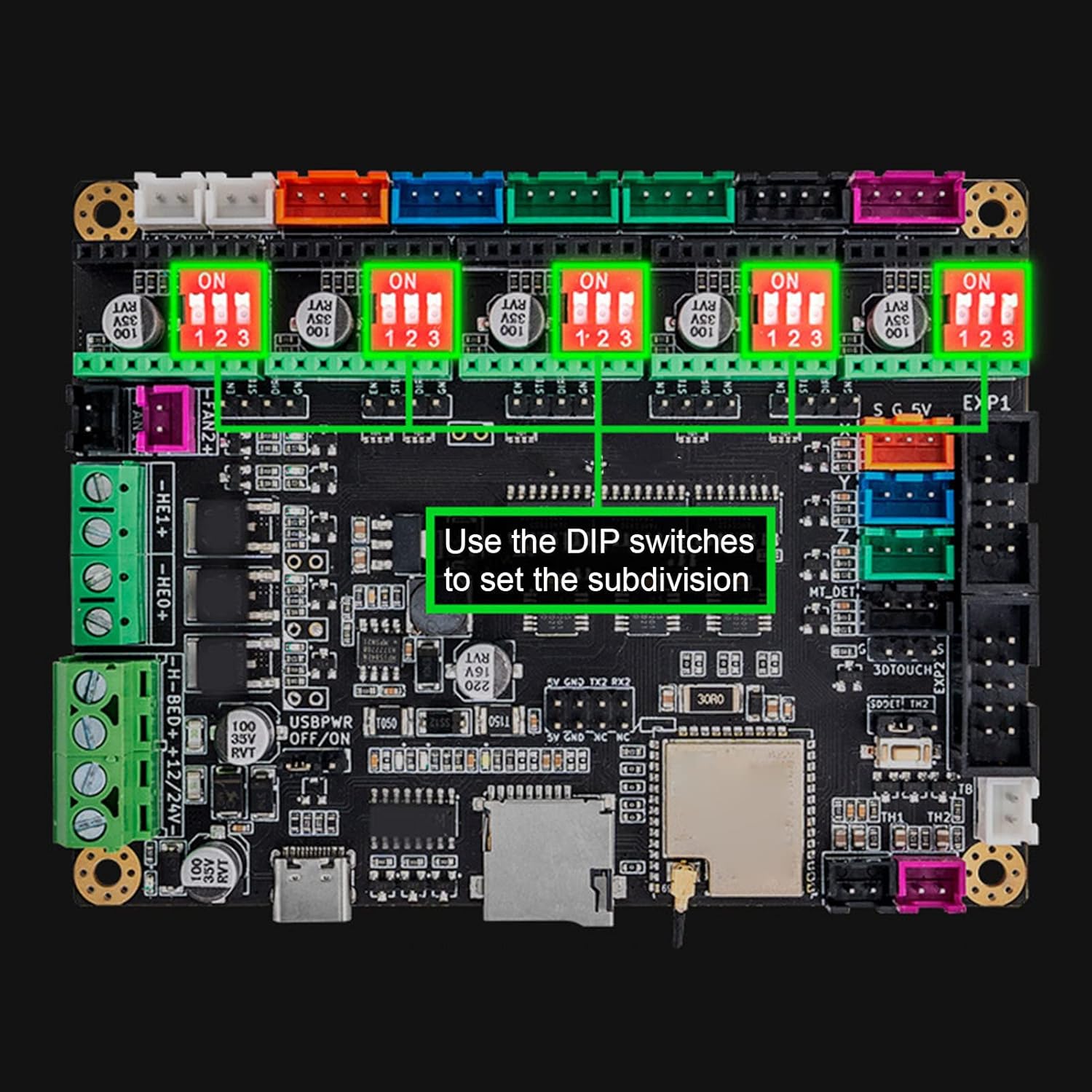

Subdivision Settings: DIP switch to set subdivision

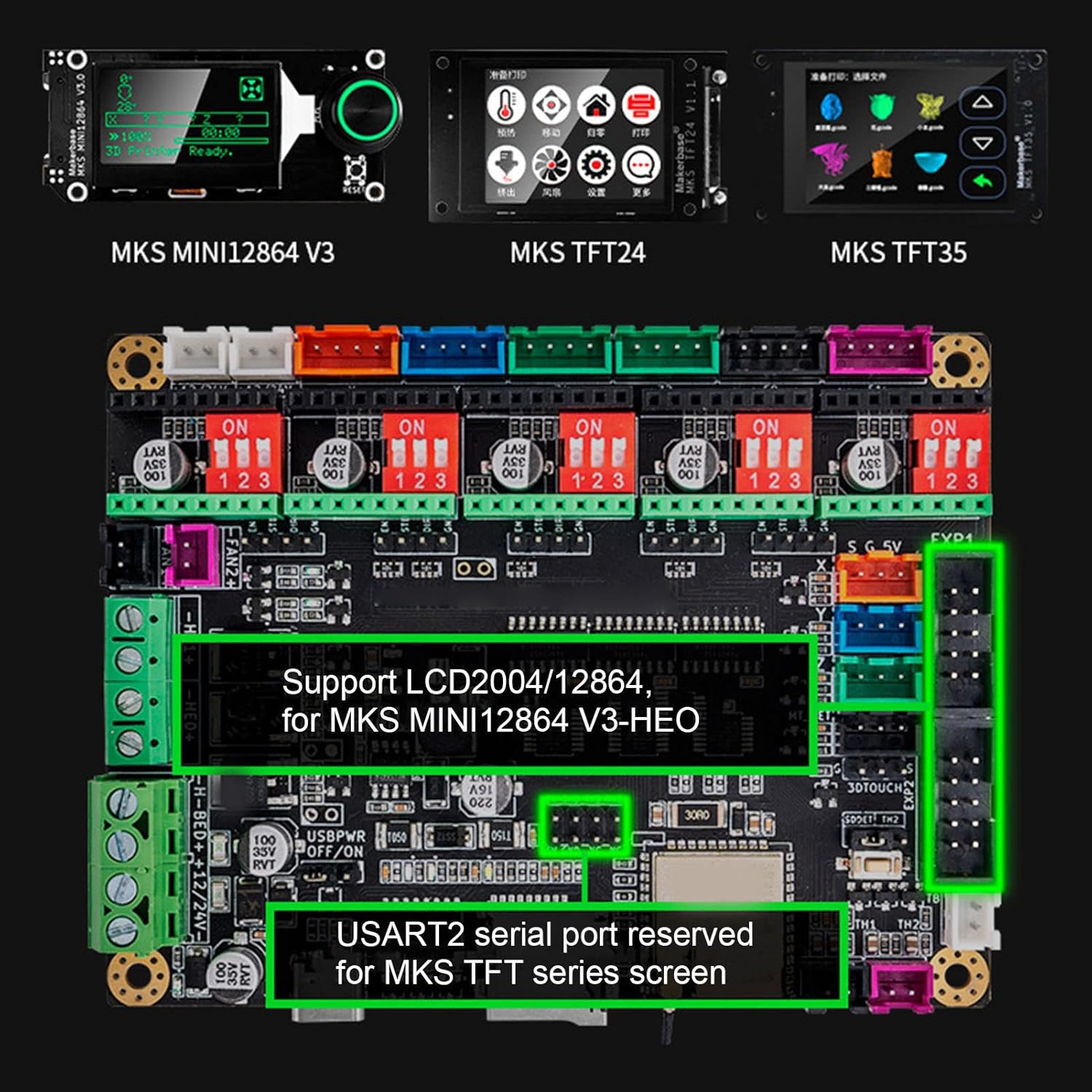

LCD Interface: Support ordinary LCD2004, 12864; support for MKS MINI12864V3
Serial Port: Reserved serial port 2, support for MKSTFT series serial port screen

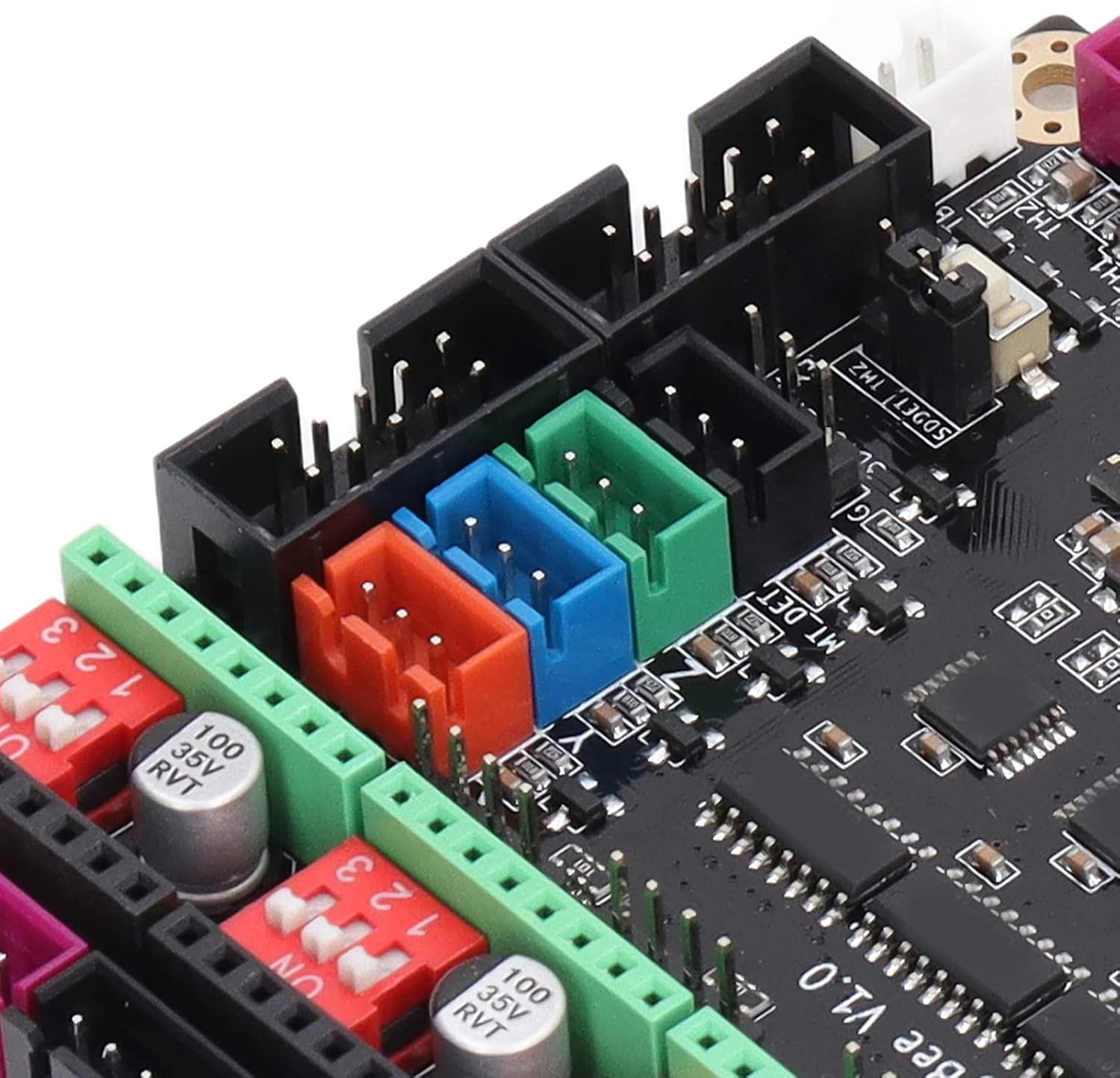

Limit: X, YZ, MT DET
3D TOUCH: Support

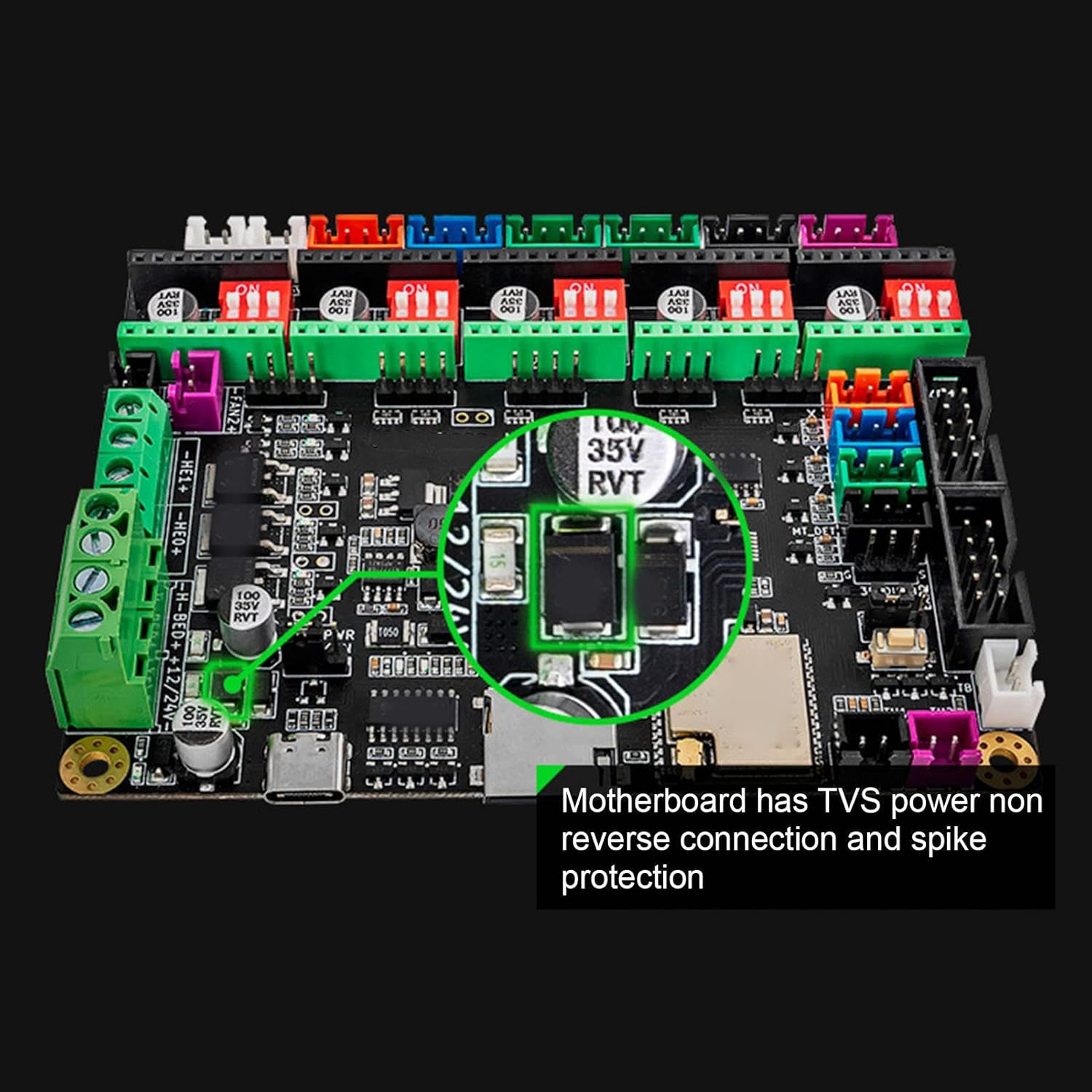

Power : Non reverse polarity and power spike
Firmware: For Marlin2.0.x
Firmware Update Method: Online download USB

Package List:
1 x ESP32 3D Printer Motherboard
1 x USB Cable A C Type C(1 meter)

Note:
MOS drive circuit, limit input, and temperature measurement circuit add Schottky diode to reduce damage to IO from external spikes.

BACK EMF : VEXP has designed a circuit for the back EMF generated by the stepper motor, which greatly reduces the damage to the motor driver

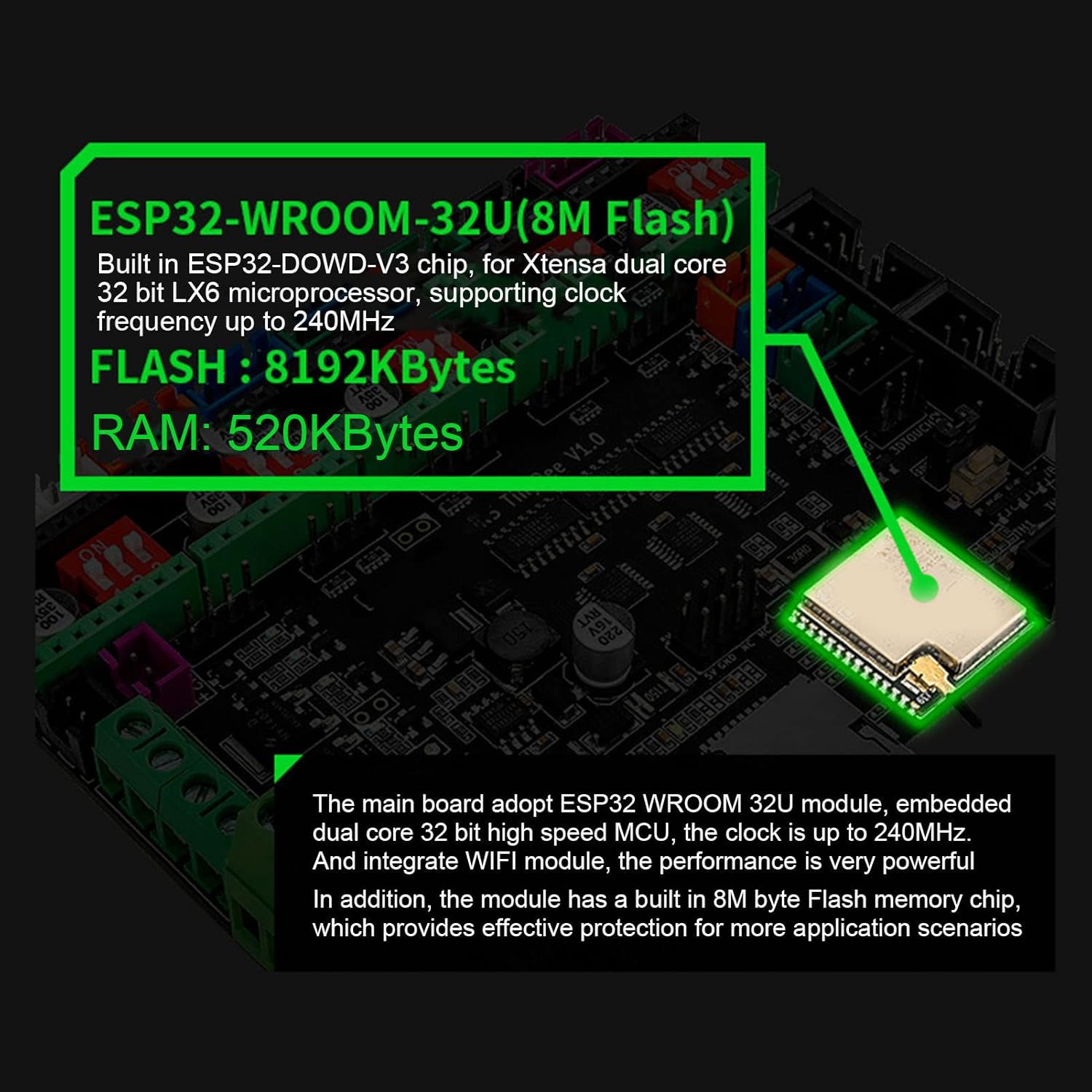

32 BIT MICROPROCESSOR: Built in ESP32 DOWD V3 chip, for Xtensa dual core 32 bit LX6 microprocessor, supporting clock frequency up to 240MHz
SUPPORT VARIOUS SCREEN: This is a 3D printer main control board with onboard ESP32 , supports for Marlin2.0 firmware, in addition to ordinary LCD2004, 12864 screen, also supports for MKS MINI12864V3, and for MKSTFT serial screen
POWERFUL AND VERSATILE: The main board adopt ESP32 WROOM 32U module, embedded dual core 32 bit high speed MCU, the clock is up to 240MHz. And integrate , module, update firmware through USB, can connect and web page to control printing. The performance is very powerful
8M BYTE CHIP: In addition, the module has a built in 8M byte Flash memory chip, which provides effective for more application scenarios
