Product Description
Product Specifications

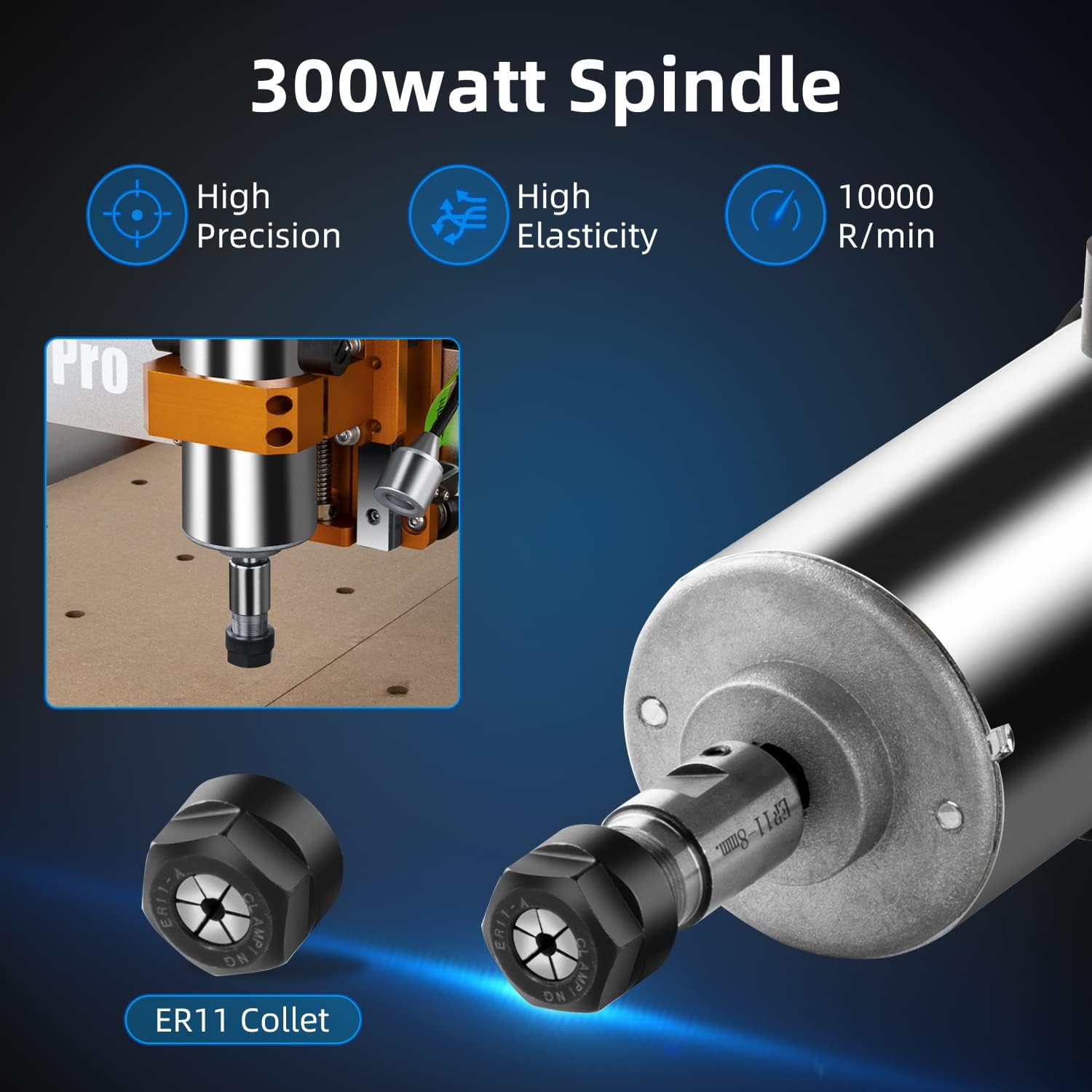

Spindle Diameter 52mm Spindle Motor Power 300 watt Rotational Speed 0-10000RPM Output Voltage DC 48V Input Voltage AC 110V/220V (Adjustable; default setting is 110V) Applicable Machines FoxAlien 3018-SE V2, Masuter 4040, Masuter Pro CNC machines.
Compatible with ER11 Collet
A 1/8″ (3.175mm) ER11 collet is included.Compatible with 1/4″ (6.35mm) ER11 collet. (Sold separately)

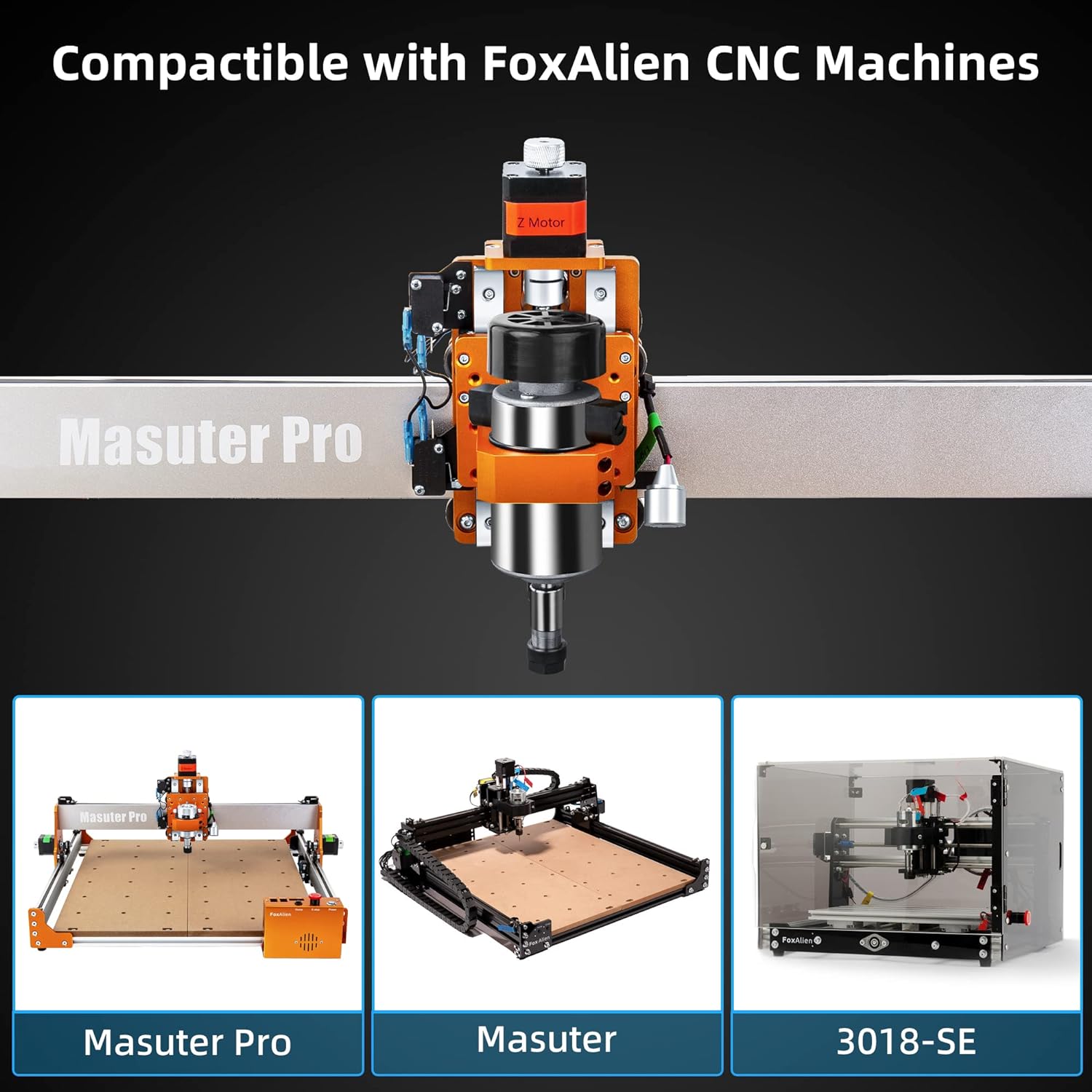

Applications on FoxAlien CNC Machines
Fully compatible with FoxAlien 3018-SE V2, Masuter 40040 and Masuter Pro CNC router machines.For other brands of machine, it requires spindle holder in 52mm diameter.

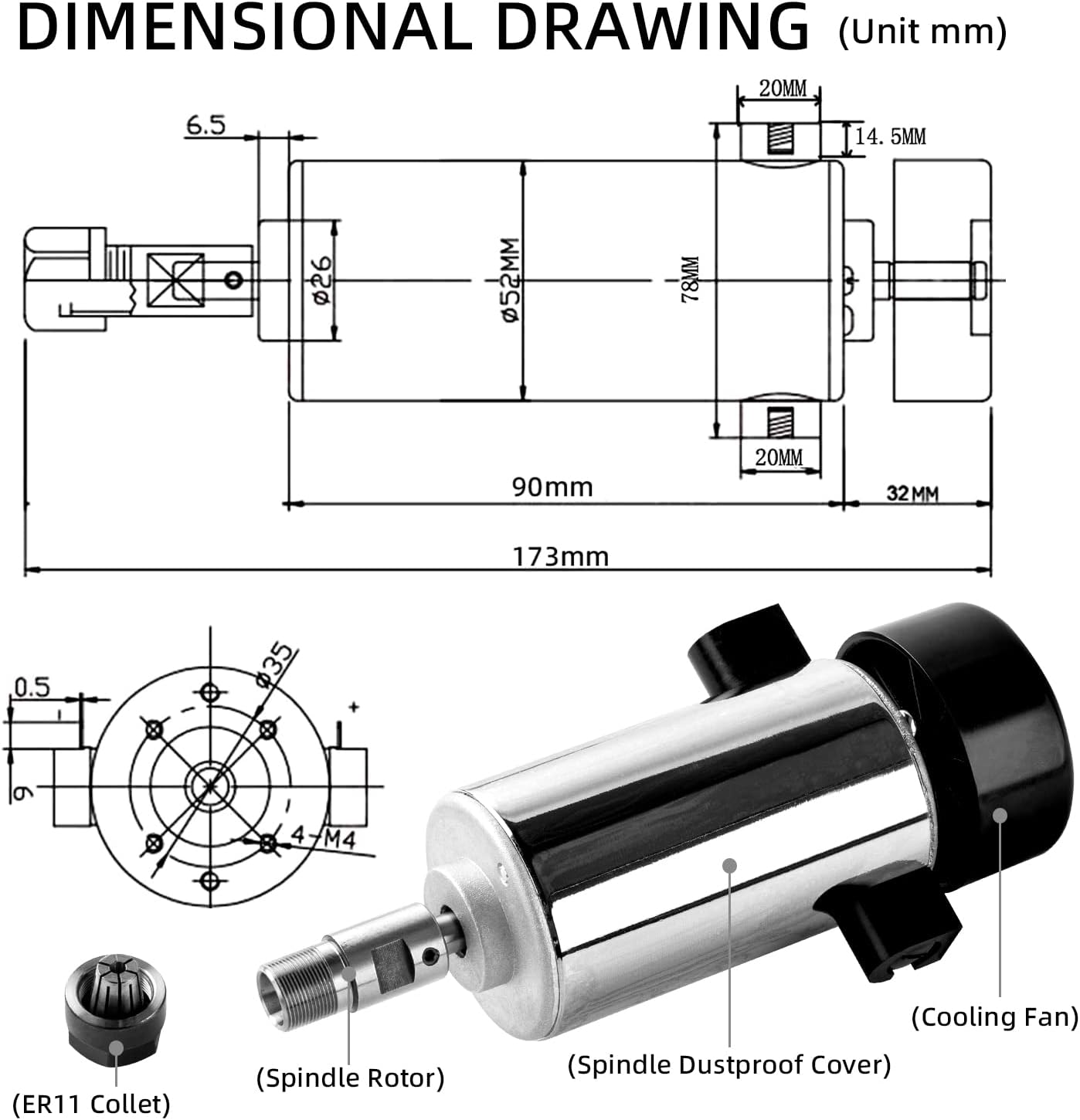

Diagram
ER11 Collet
Wide Applications
Diagram

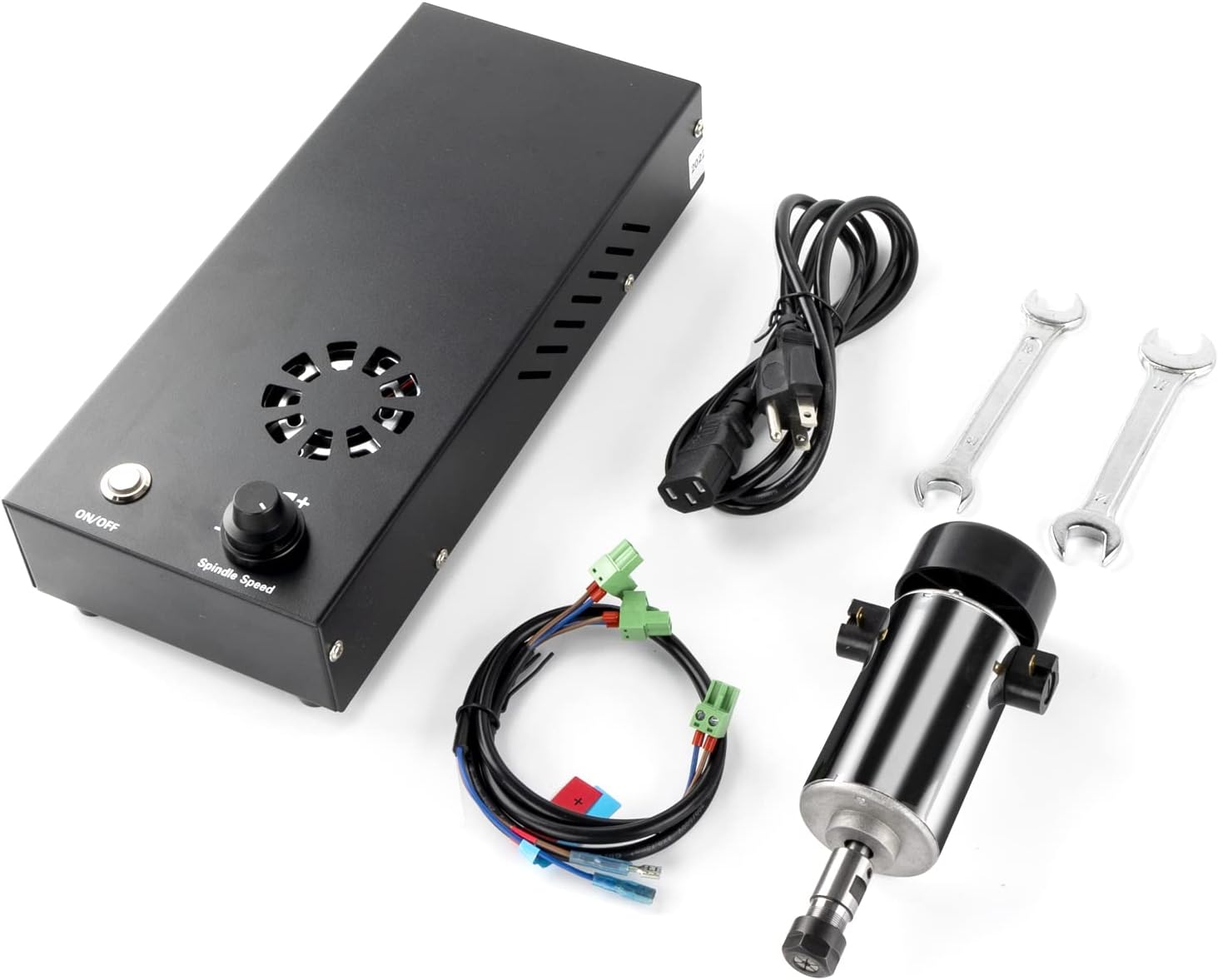

Package List
1x Power supply box1x 300w spindle2x Wires1x Power cord2x Wrench1x User instruction
Add to Cart
Add to Cart
Customer Reviews
4.1 out of 5 stars
322
—
4.1 out of 5 stars
217
3.8 out of 5 stars
161
4.0 out of 5 stars
37
Price
$649.00$649.00
— $899.00$899.00
—
—
Active Working Area
15.75” x 15.75” x 2.36” 15.75” x 14.96” x 2.16” 15.75” x 15.75” x 2.16” 11″x 6.18″x 1.3″ 11.4″ x8.6″ x2.7″
Spindle Power
60W 60W 300W 60W 300W
Stepper Motor
NEMA17 NEMA17 NEMA23 NEMA17 NEMA17
This upgrade kit is designed for FoxAlien Mastuer Pro, Masuter 4040, and 3018-SE V2 CNC router machines. The 300W spindle can directly fit into the spindle clamp of 3018-SE V2. No need to interchange other clamp.

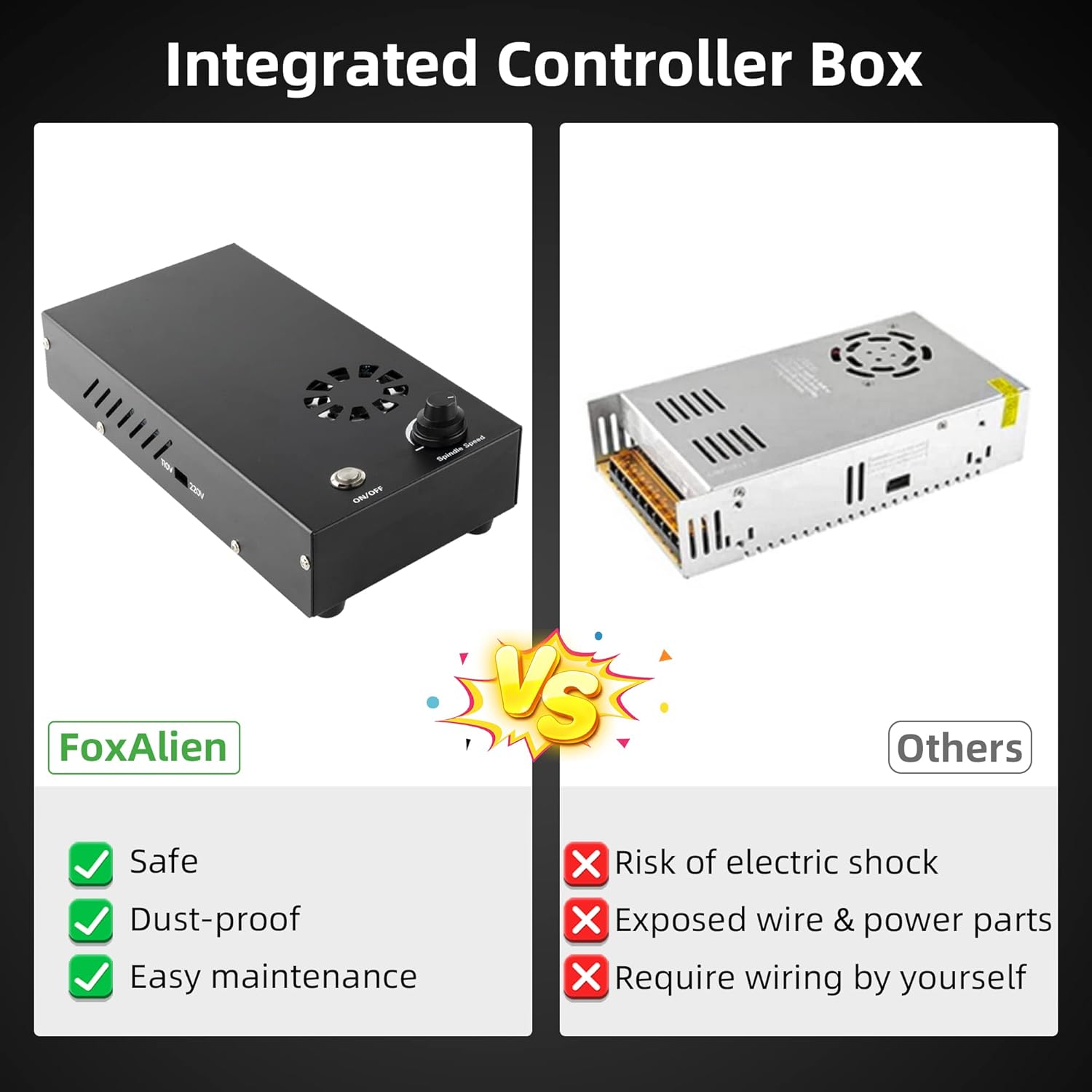

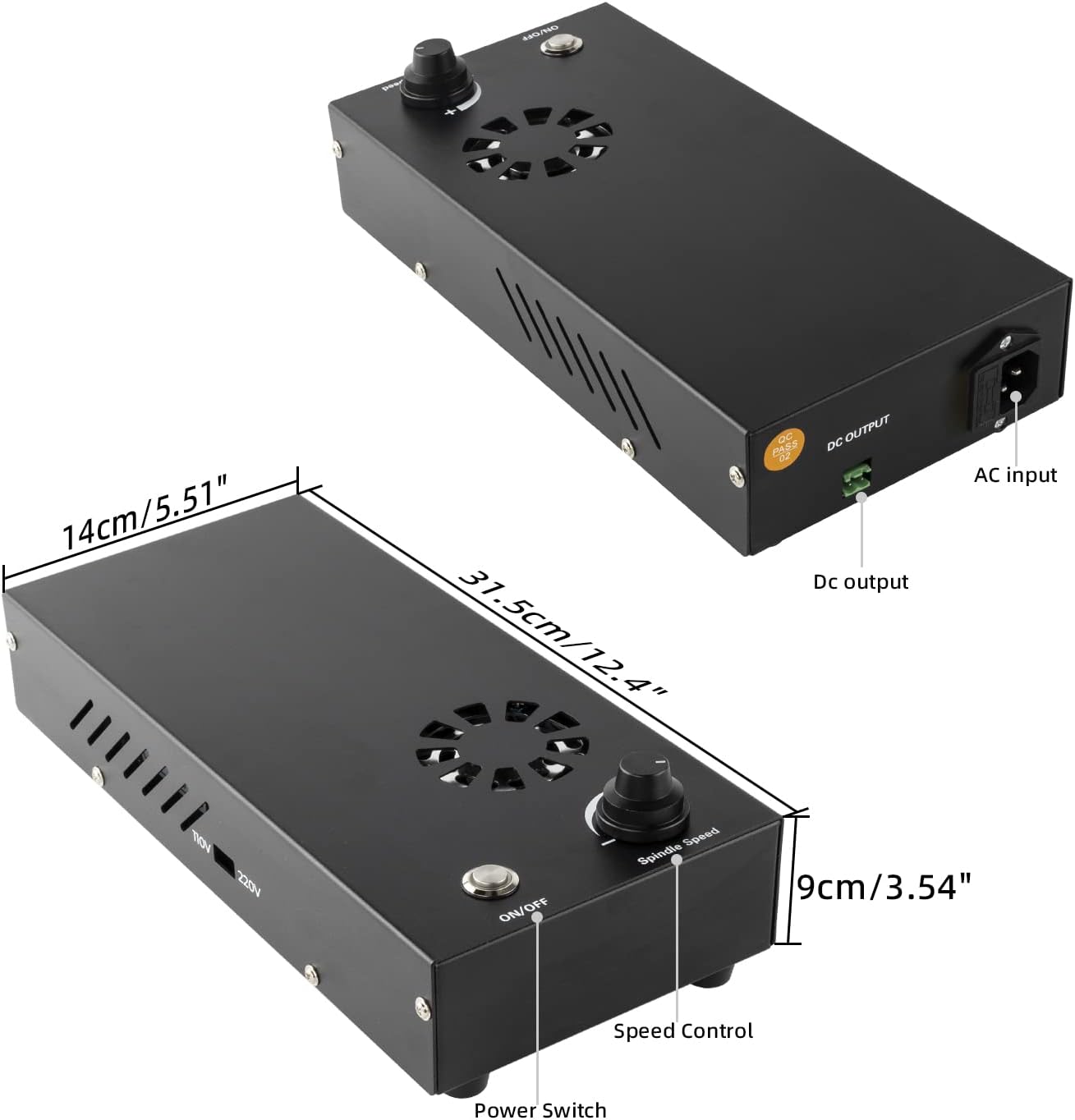

The default input voltage is 110V. The power supply output is 48V. The power supply is integrated into a control box, which is safer and easier to clean. (If you need to use in 220V, pls contact us).
It has a power switch and speed adjust button for convenient operation. Spindle speed can be adjusted manually.
300W spindle can handle hard material more easily such as aluminum and copper. It also improves working efficiency.
It comes with a 1/8” ER11 collet in the spindle.
