G-Penny 1.5KW ER11 65mm 110V/220vAC Air Cooled Spindle Motor 4pcs Bearings 24000rpm Wood Working Spindle Motor (220, Volts (AC))

Description

Price: $136.24
(as of Aug 24, 2024 08:55:12 UTC – Details)

Buy On Amazon

Product Description

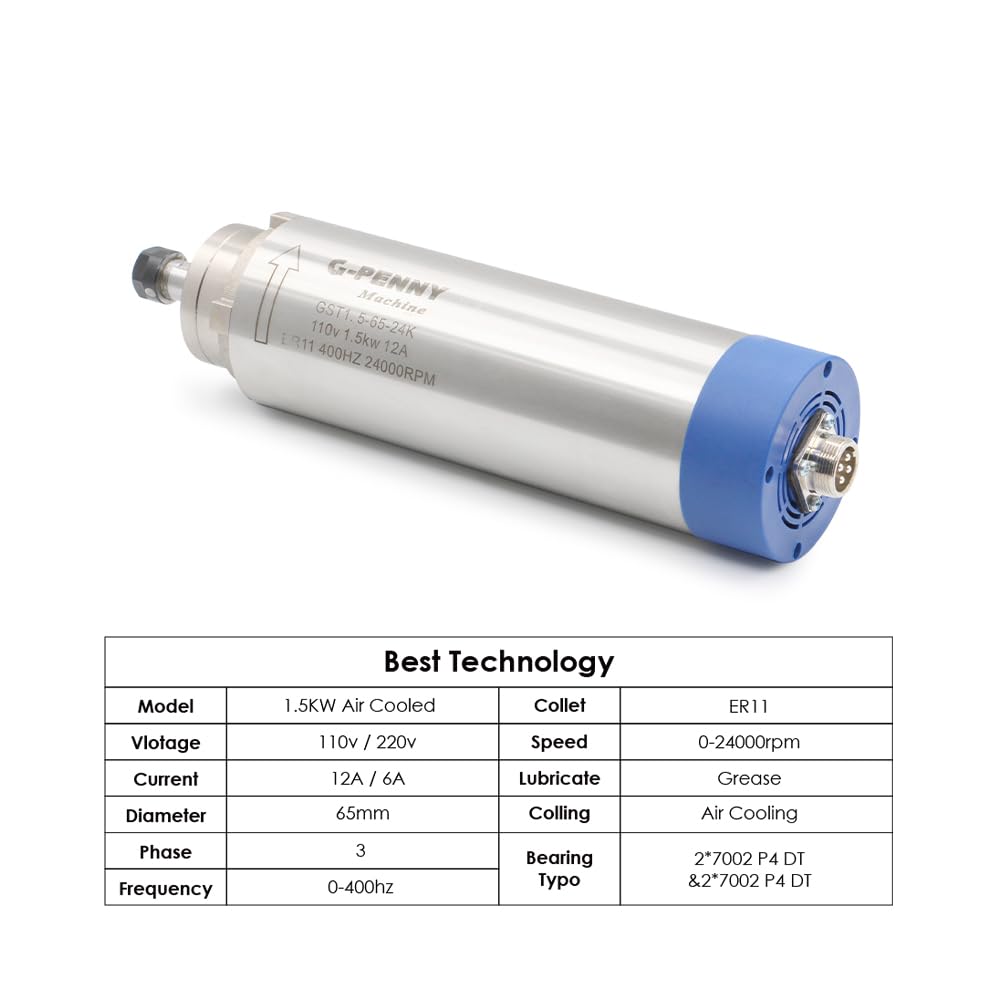

Basic parameter:

Size:65 x 204mm ( Body diameter:65mm; Length:204mm)Cooling:Air coolingPower Interface:Optional H17-4 pins waterproof air plug. The air plug marked “1 “,”2″,” 3″,” 4″, “1 “,”2 “,”3” were connected to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle “4” connecting to GND,promised personal safety!!)Power:1.5kw (1HP=0.735kw)Voltage:110/220vACCurrent:12A/6AFrequency:0-400HzSpeed:0-24000rpmRunout Off:0.01mmBearing Type:2X7002C P4 DT and 2X7002C P4 DTFull sealed angular contact bearingsClip Knifediameter: 7mm,6.35mm,6mm,5mm,4mm,3.175mm,3mm,2mm,1mmGrease Lubrication

P4 fully sealed angular contact bearings ,2×7002 P4 DT &2×7002 P4 DT,increase spindle life .

Longer length make the torque bigger,more powerful.

Carefull assembly make the spindle more precisional.

Precision 0.01mm.Coaxial degree less than 0.0025mm

Shipment within 4 days,promise the delivery time.

We are the spindle manufacturer,we offer only best quality and best price to you.

Pay attention: The spindle size is 65 x 204mm mm, bigger torque.

The voice of the spindle is very low,almost no vibration.

Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter’s specifications and parameter settings need match spindles parameter.(Because of high-speed grease inside the bearing state will change,when you get the spindle, maybe the noise sounds not normal.Please run it 30 minutes or even more, the noise will be normal.) Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply. During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned. Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.

Package Dimensions ‏ : ‎ 15.55 x 7.8 x 7.32 inches; 7.98 Pounds
Item model number ‏ : ‎ 1.5KW ER11 D65 220V
Date First Available ‏ : ‎ December 8, 2023
Manufacturer ‏ : ‎ G-PENNY Machine
ASIN ‏ : ‎ B0CPSWP3X4
Country of Origin ‏ : ‎ China

AC 110v/220v Spindle Motor ( Must need connect to Inverter/VFD)

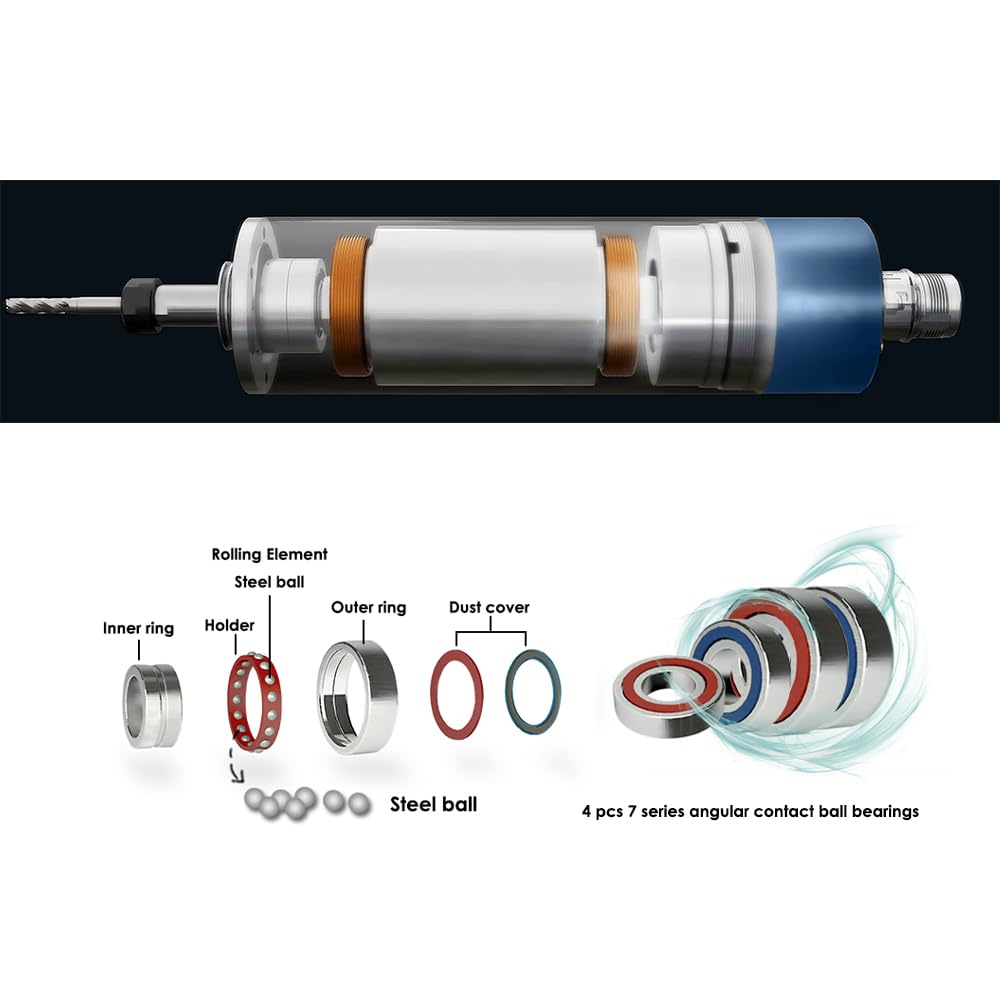

4 pcs 7 series angular contact bearings,extend the spindle using life

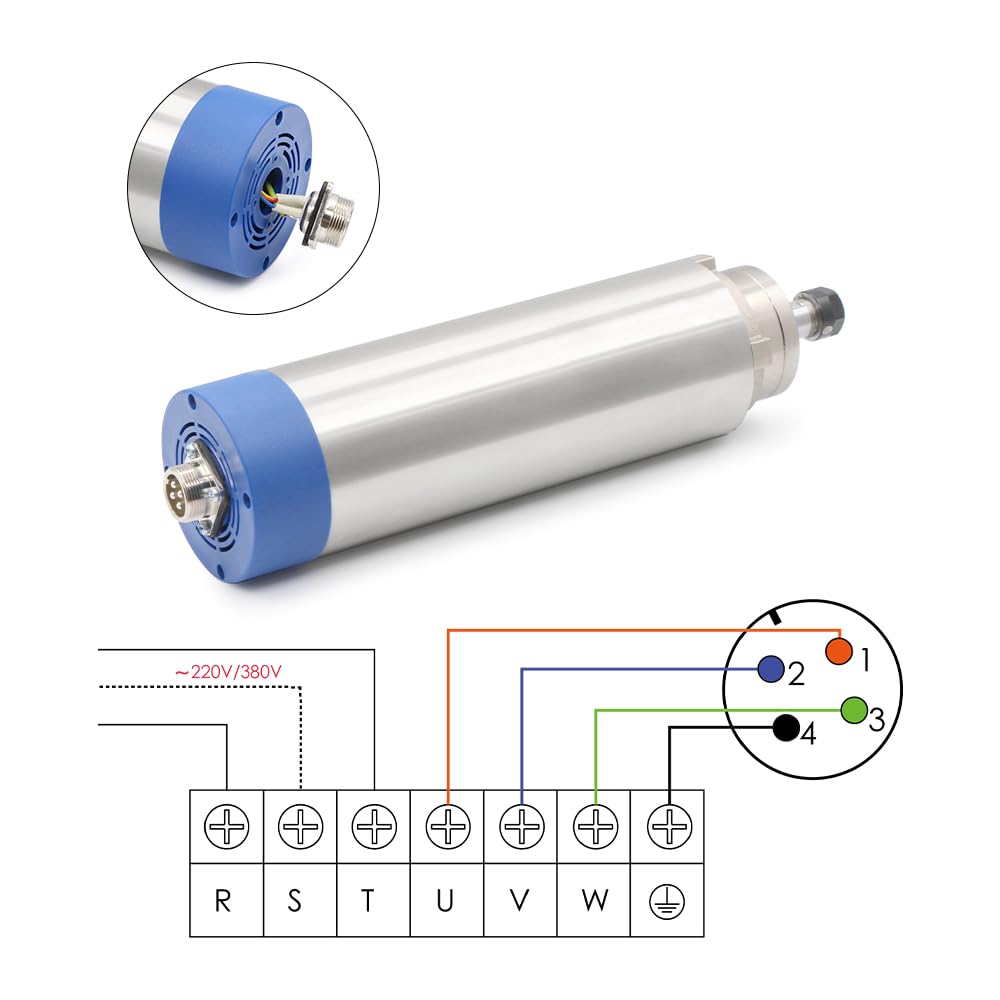

Spindle connec to GND, Pin-4 connect to inverter GND
Spindle 1-2-3 connect to Inverter U,V,W
Spindle weight 3.0kg
