Price: $888.00 - $599.00
(as of Aug 15, 2024 10:55:14 UTC – Details)
From the brand
Big News
Genmitsu APP & Wi-Fi module is now released! This user-friendly solution streamlines your workflow.
Wireless Control Kit
CNC Machine
CNC Machine
CNC Machine
CNC Upgrade Accessories
CNC Upgrade Accessories
Genmitsu Router Bits Database
Download the database and start your engraving easily. (Check at the Product Guide and Documents of the product page)
CNC Router Bits
Here at SainSmart we have been serving the maker community for years, starting in the early days with high-quality electronic parts and into today with our Genmitsu line of CNC mills for every experience level.
We love making, we are just a bit different than the people we make our products for. Our passion is making the best, most affordable tools available and getting them out to the maker community at large to do their thing!

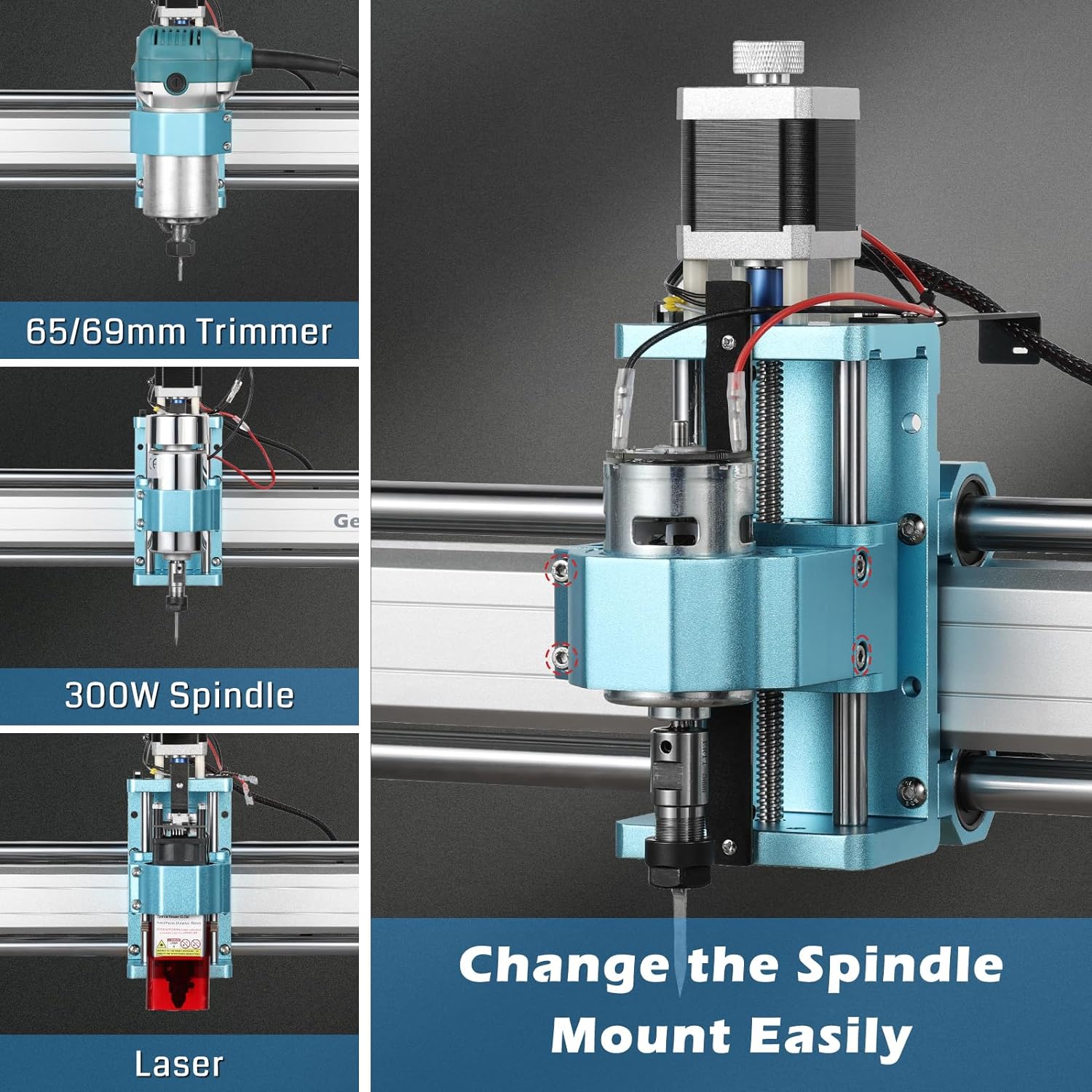

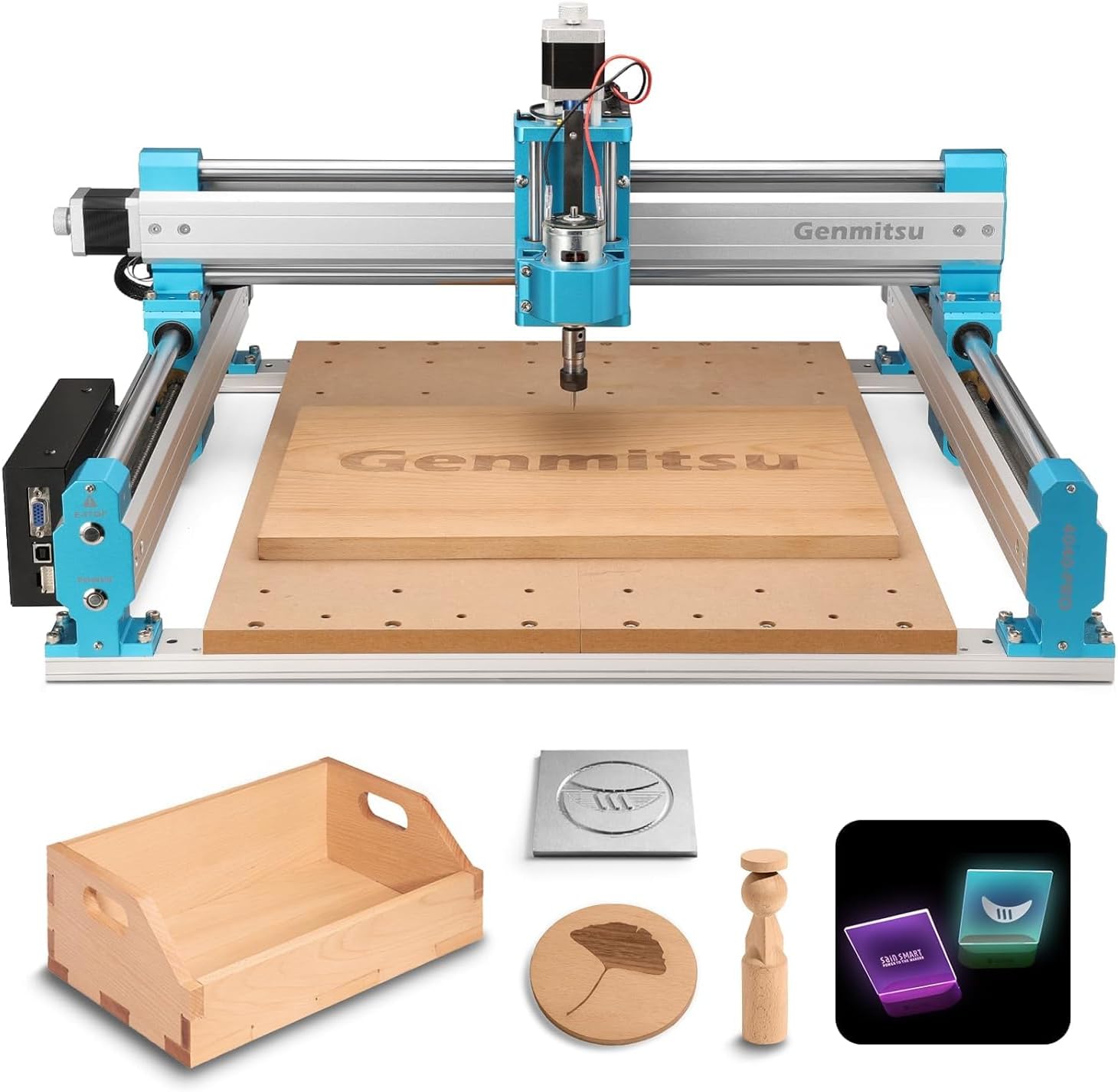

An effective working area of 15.7” x 15.7” x 3.1” is large enough for most daily wood carving projects. The redesigned Z-axis carriage makes swapping a spindle easier. Adding more screw holes on the non-all-in-one Z-axis carriage allows you to install the larger spindle higher for extra overfeed height.
New Steel HSS Frame – all new redesigned frame structure, each axis is composed of two 16mm Steel HSS linear tubes and a lead screw motion drive, dual Y axis rails, and all metal frame. This new high-rigidity structure ensures the stability and accuracy of the milling machine.

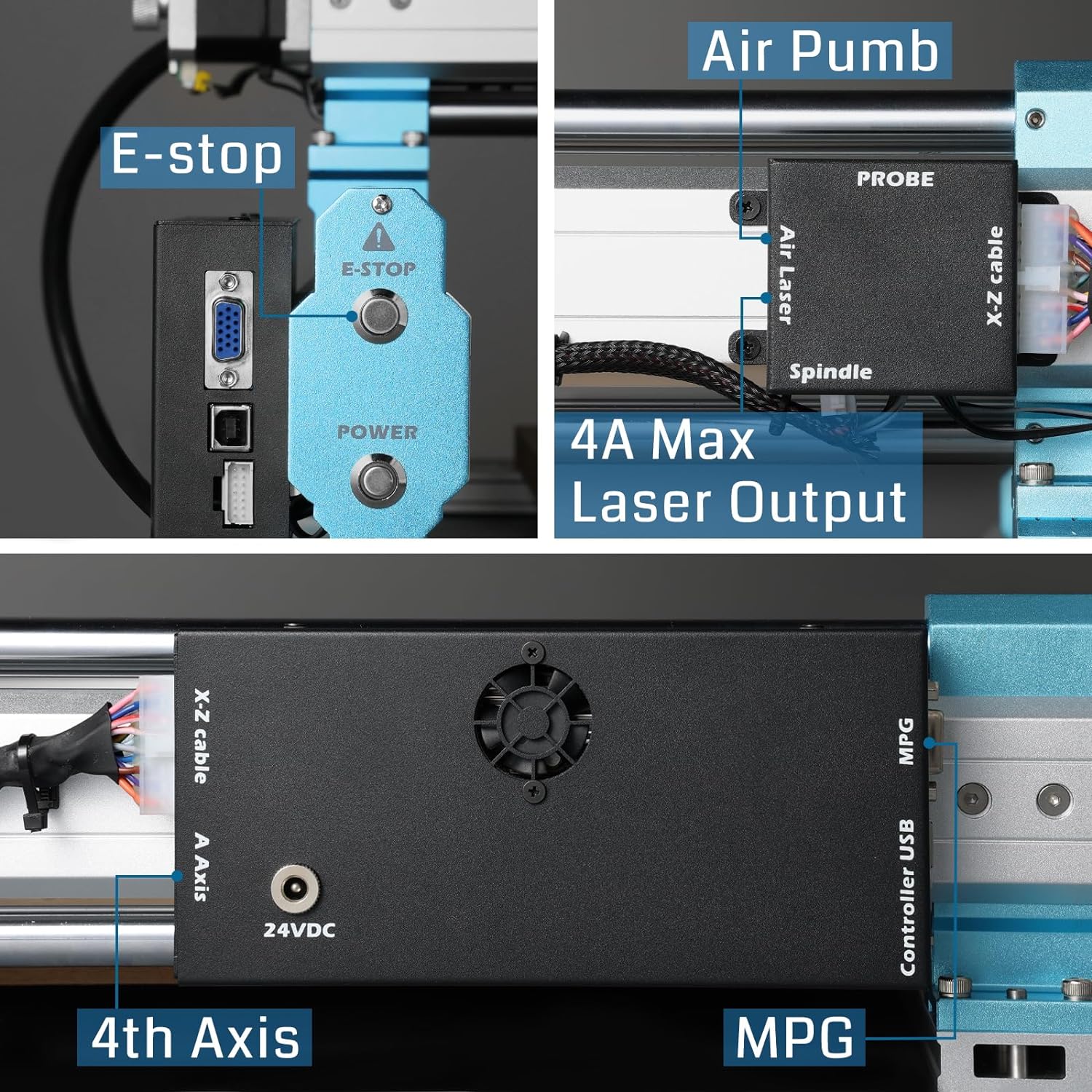

Still based on open-source Grbl v1.1, the 4040-PRO CNC router has stepped up to more powerful but silent Toshiba TB6S109 drivers with 32-bit chips. Upgrades include extended function ports like a Air Assistance Pump Port, and MPG Port.

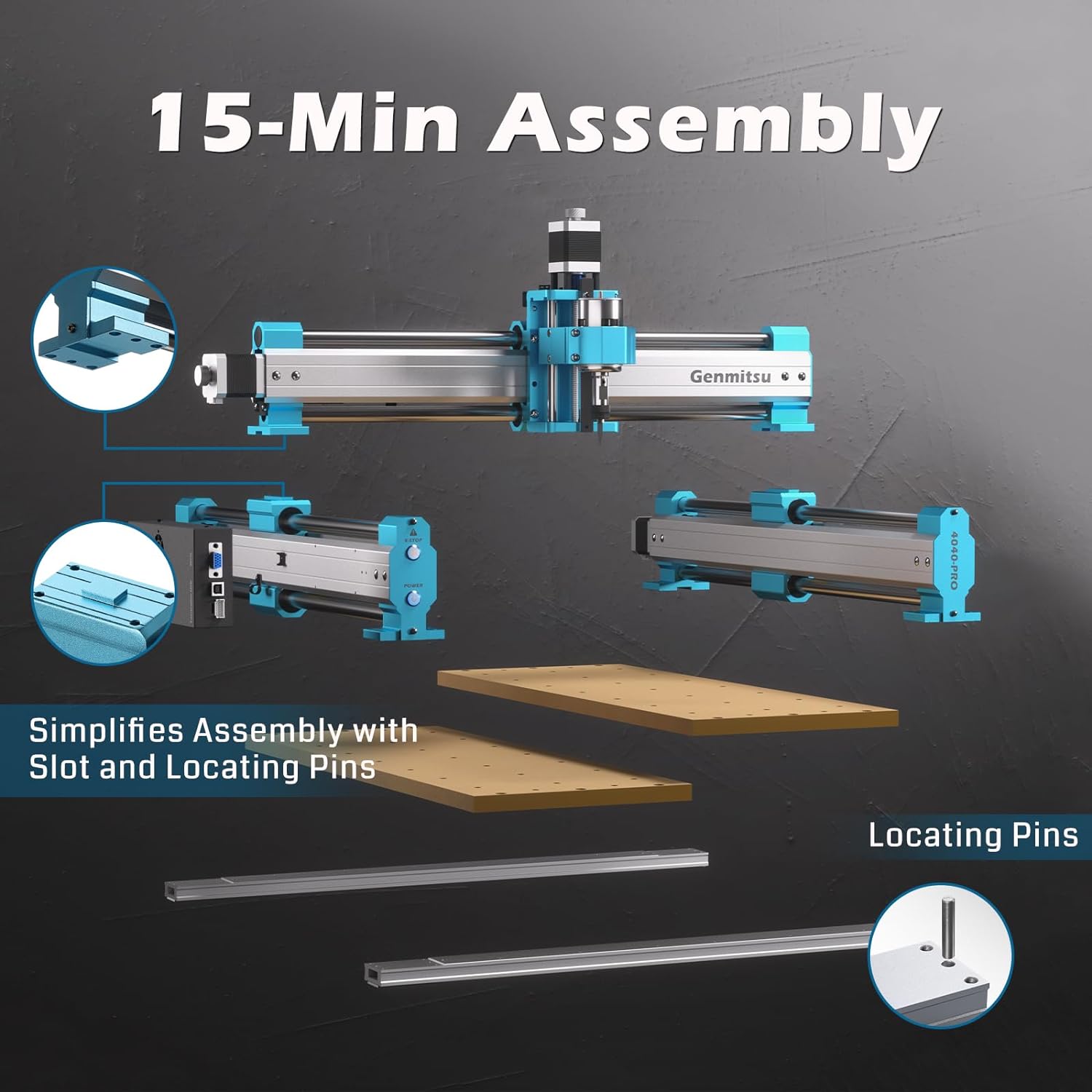

All main parts are pre-assembled and it just takes about 15 minutes to finish the whole machine assembly. The spoilboard is combined by two pieces of MDF boards. Each MDF board could be replaced individually. You don’t need to replace the whole spoilboard when a panel gets damaged.
The 4040-PRO CNC machine is supplied with 42mm and 52mm spindle mounts. The additional 65mm (B0BRZSY475), 69mm (B0BRZSVVK3) spindle mount, and other upgraded accessories are available to order. You can easily upgrade the machine according to your needs. If you get stuck, check out the SainSmart Resource Centre (see User Guide) or contact us with any questions you may have.

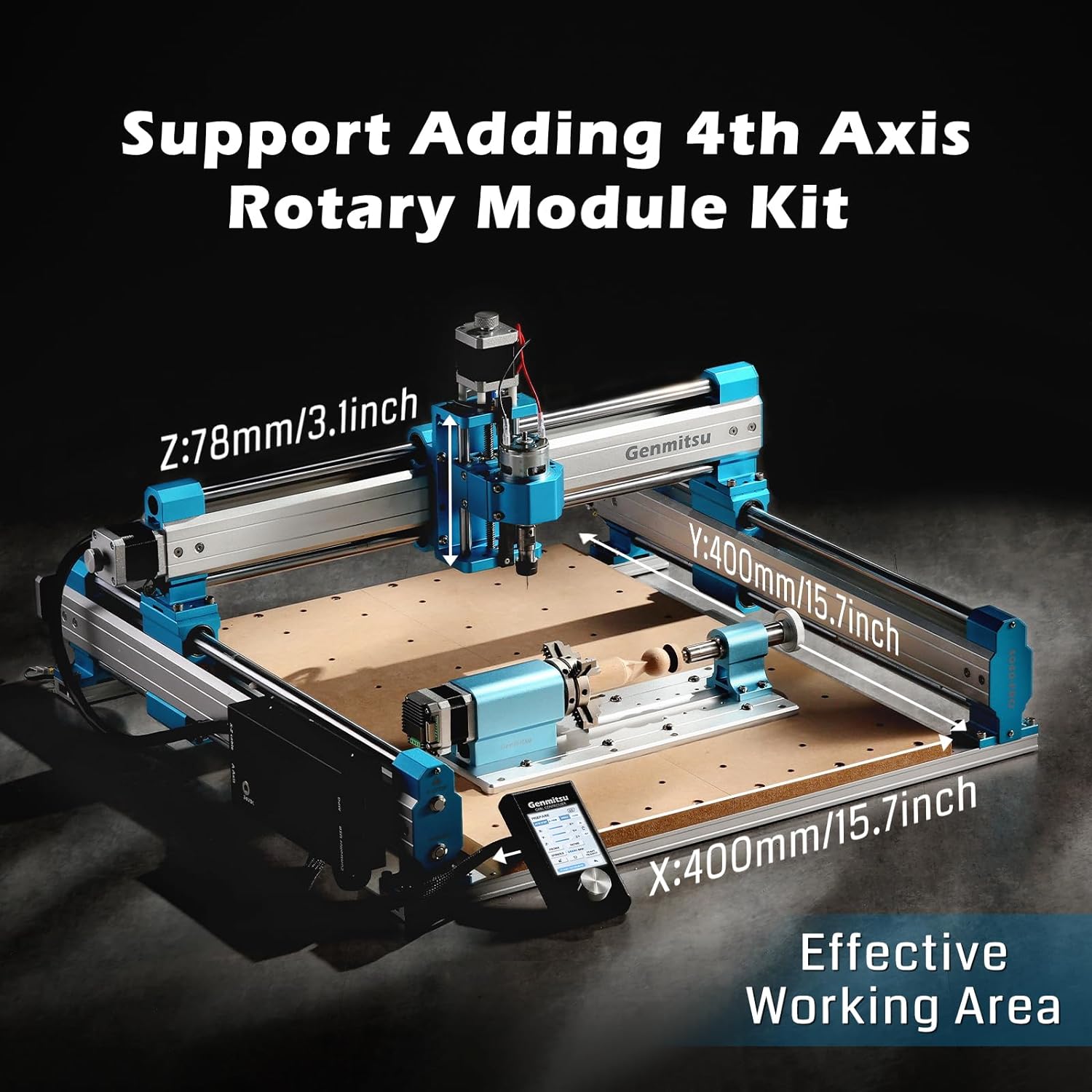

It supports adding the 4th-axis rotary module kit. The 4th-axis kit enables your 4040-PRO desktop CNC to carve from different angles and positions or with the right software full 3D rotary caving.
