Description
Price: $1,637.99
(as of Jul 09, 2024 01:13:16 UTC – Details)
Product Description
R8/MT3 Milling and Drilling Machine
Drilling and milling machine is a set of drilling, milling, boring, grinding as one of the machine tools.The drilling and milling machine table can be moved up and down, the spindle is arranged vertically,usually as a table top, and the head can be raised and lowered.
MT3/R8 Collet Set
With MT3 Collet Set
MT3 Milling machine is equipped with a set of MT3 collets set.
chuck × 8 (4-3, 5-4, 6-5, 8-7, 10-9,12-11,14-13,16-15)
wrench × 1
handle × 1

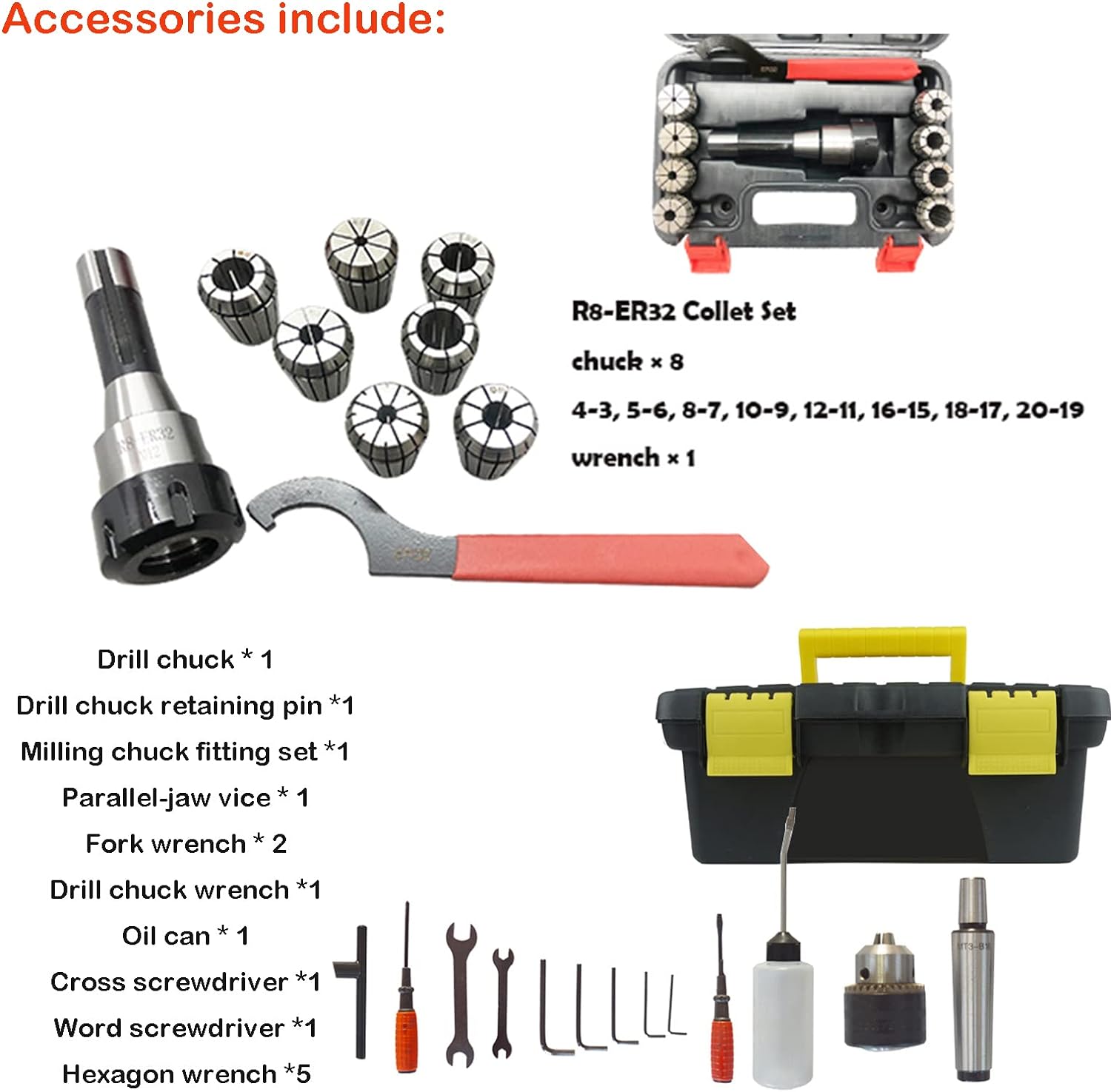

With R8 Collet Set
R8 Milling machine is equipped with a set of R8-ER32 Collet Set .
chuck × 8 (4-3, 5-6, 8-7, 10-9, 12-11, 16-15, 18-17, 20-19)
wrench × 1
handle × 1
Mini Milling Machine
Drilling machine refers to a machine and equipment that leaves cylindrical holes or holes in the object by means of rotary cutting or rotary extrusion with a harder and sharper tool than the object. Also known as drilling machines, drilling machines, drilling machines, through the hole machine and so on.Can process various non-ferrous metals such as titanium, stainless steel, 45 steel, iron, aluminum, copper, ect.And various soft materials such as wood and nylon.
Other Milling Machine Parameters
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
3.8 out of 5 stars
5
—
3.8 out of 5 stars
5
—
3.2 out of 5 stars
4
Price
$1,637.99$1,637.99
—
$1,595.00$1,595.00
—
$1,225.00$1,225.00
Motor power:
1100W brushless motor
1100W brushless motor
1300W brushless motor
1100W brushless motor
600W brushless motor
Spindle taper
R8
R8
R8
MT3
MT2
X axis stroke
18.9″(480mm)
18.9″(480mm)
18.9″(480mm)
18.9″(480mm)
8.66″(220mm)
Y axis stroke
6.9″(175mm)
6.9″(175mm)
6.9″(175mm)
6.9″(175mm)
6.3″(160mm)
Z axis stroke
11″(280mm)
11″(280mm)
11″(280mm)
11″(280mm)
8.3″(210mm)
Max. drilling diameter
0.9″(25mm)
0.9″(25mm)
1.1″(28mm)
0.9″(25mm)
0.63″(16mm)
Max. Face screening capacity
2.5″(63mm)
2.5″(63mm)
2.5″(63mm)
2.5″(63mm)
2.05″(52mm)
Max. vertical milling capacity
0.79″(20mm)
0.79″(20mm)
0.79″(20mm)
0.79″(20mm)
0.63″(16mm)
Table Size
27.5″×7.1″(700mm×180mm)
27.2″×7.1″(690mm×180mm)
27.5″×7.1″(700mm×180mm)
27.5″×7.1″(700mm×180mm)
19.7″×4.7″(500mm×120mm)
Range of spindle speeds:
20-2250rpm
20-2250rpm
20-2250rpm
20-2250rpm
50-2250rpm
T groove width:
0.47″(12mm)
0.47″(12mm)
0.47″(12mm)
0.47″(12mm)
0.39″(10mm)
Distance from spindle to table
13.8″(350mm)
13.8″(350mm)
13.8″(350mm)
13.8″(350mm)
8.27″(210mm)
MT3 /R8 Milling and Drilling Machine Details

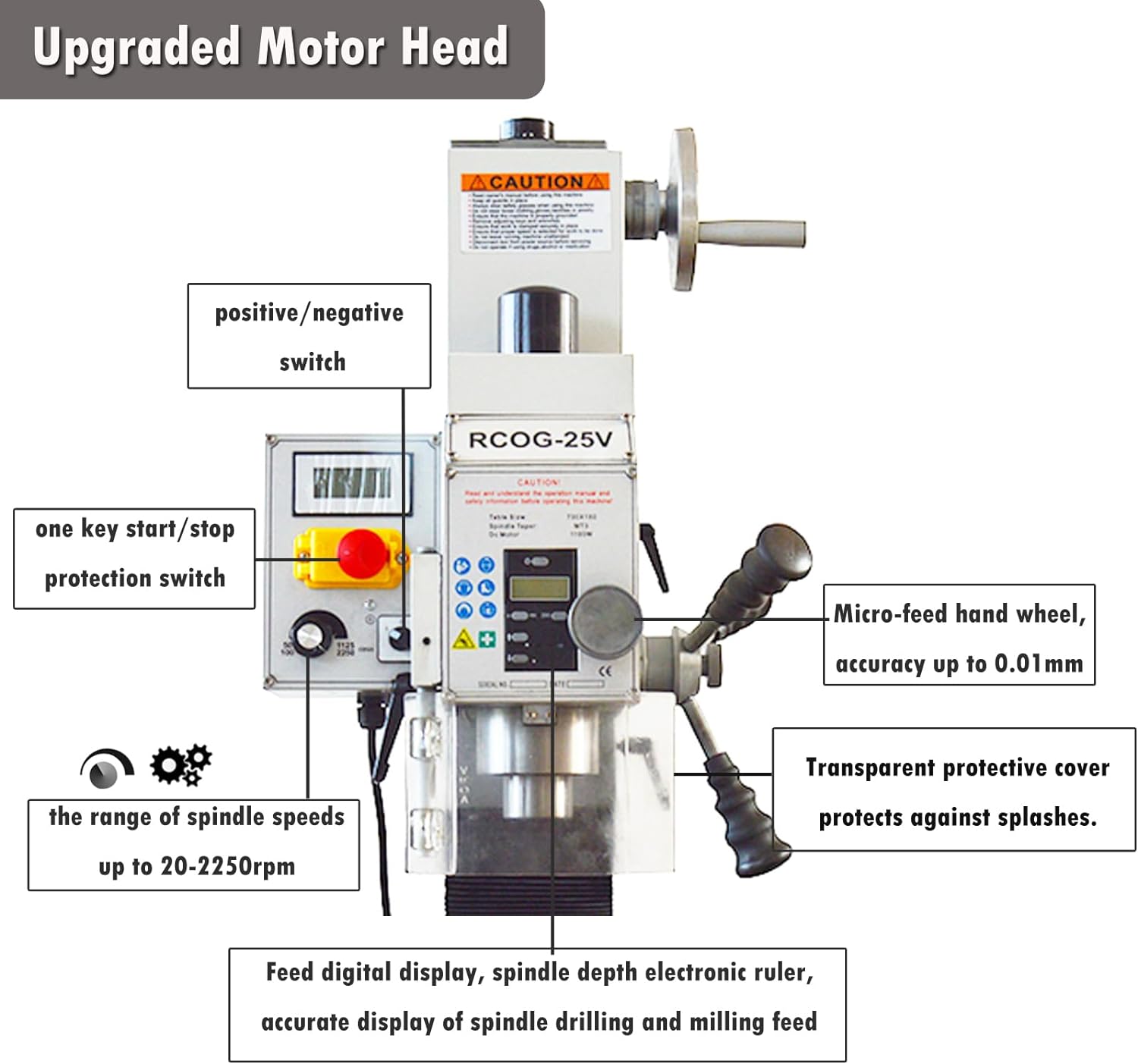

Safety Switch
One key start/stop protection switch and positive/negative switch. the spindle speed can be adjusted within the range of 50-2250rpm,easy to operate.
High Definition LCD
The rotating speed display and the drilling and milling depth display are all high-definition LCD screens, which are clearer and richer.
Milling Chuck
Machining table comes with a set of removable milling chuck, convenient clamping objects, while giving a set of MT3-ER32 Milling chuck accessories.
Spindle Feed Handle
Spindle micro feed locking handle which is convenient manual control of depth, release the hand can automatically return to the starting position.

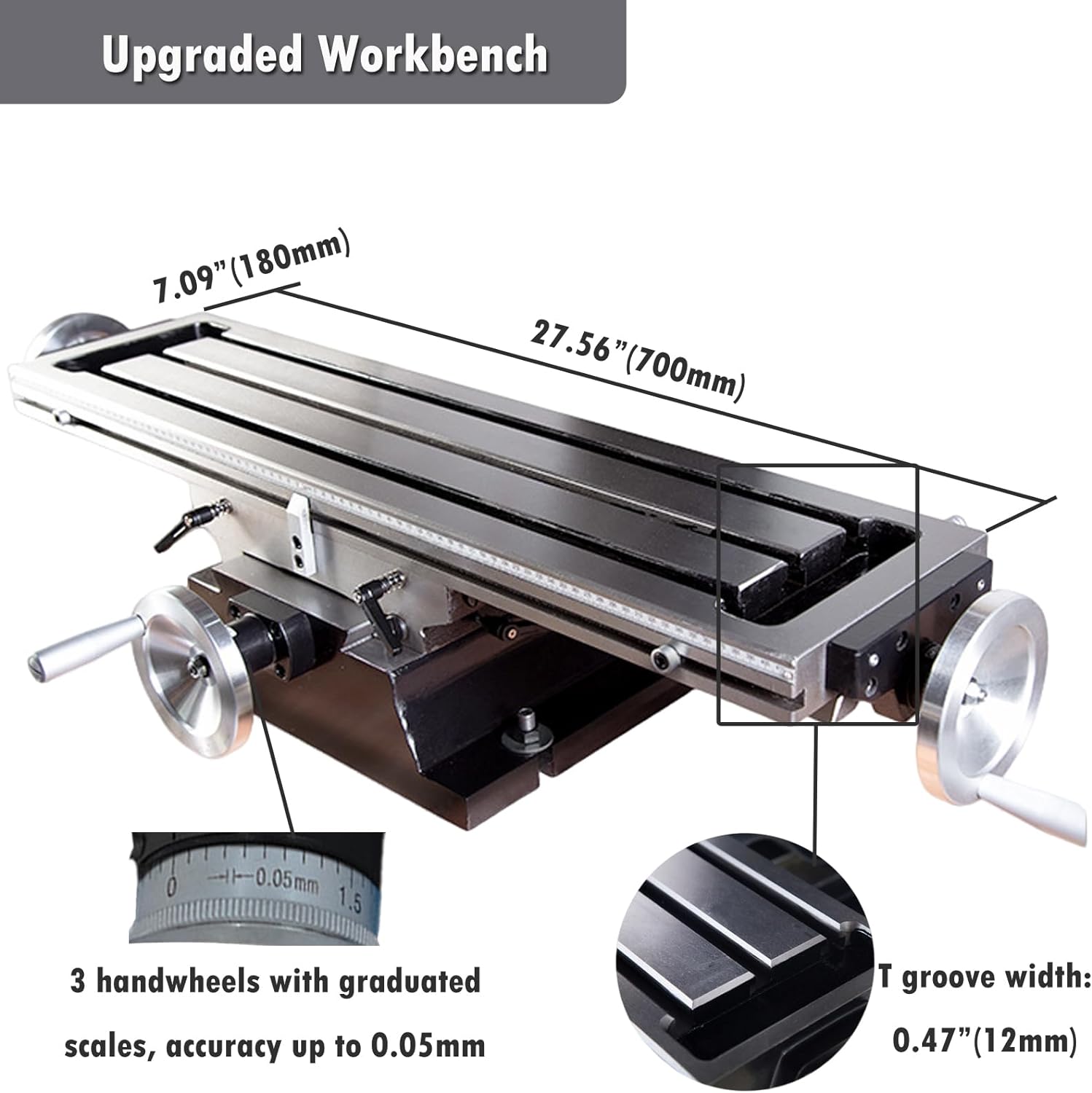

High Precision Table
Integeated cross worktable, width is widened, high precision positioning adjustment scale, can be moved from front to back.

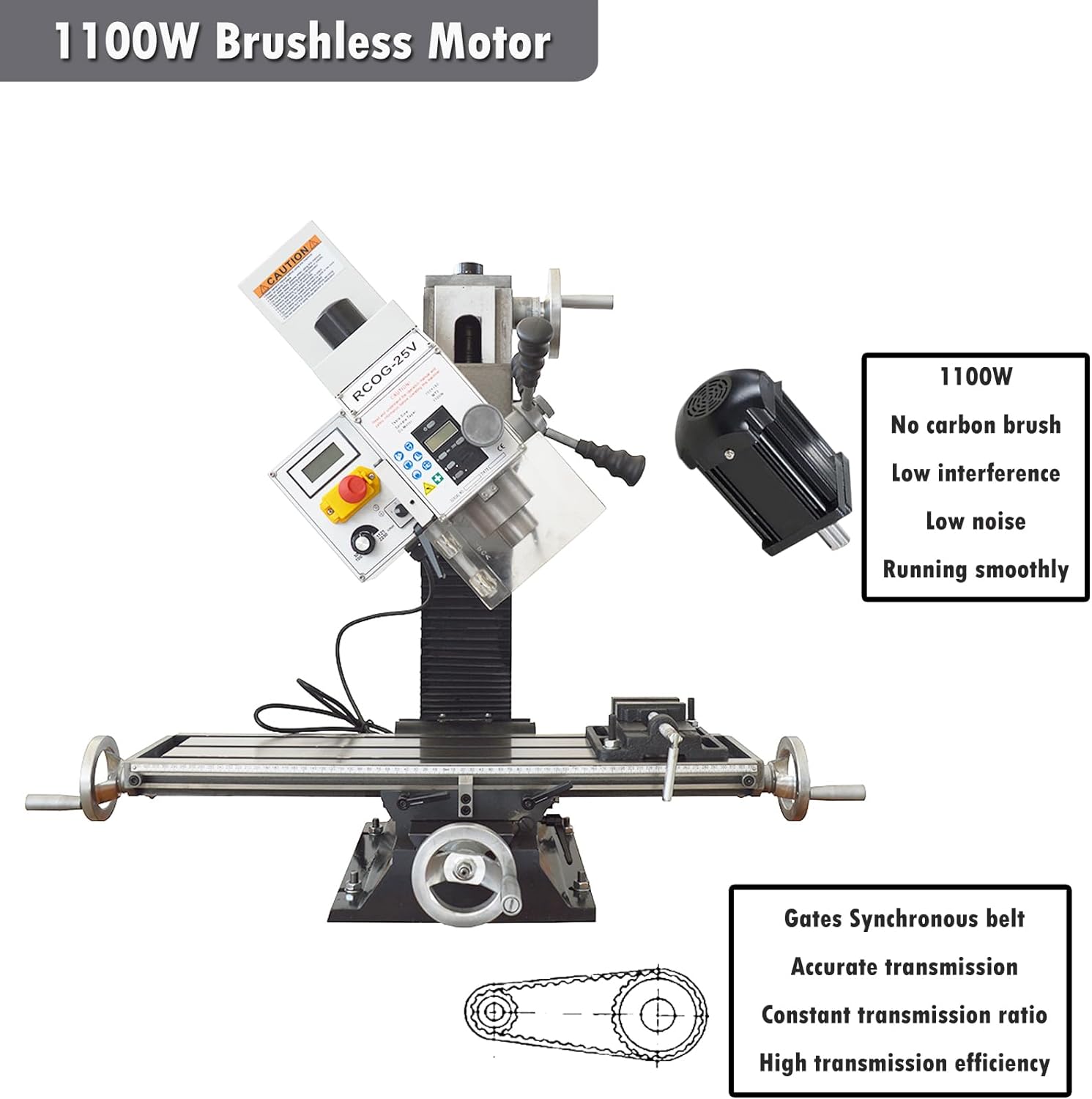

1100W Brushless Motor
High quality brushless motor with overload and overheating protection function, speed up to 2250RPM,low energy consumption, low noise.

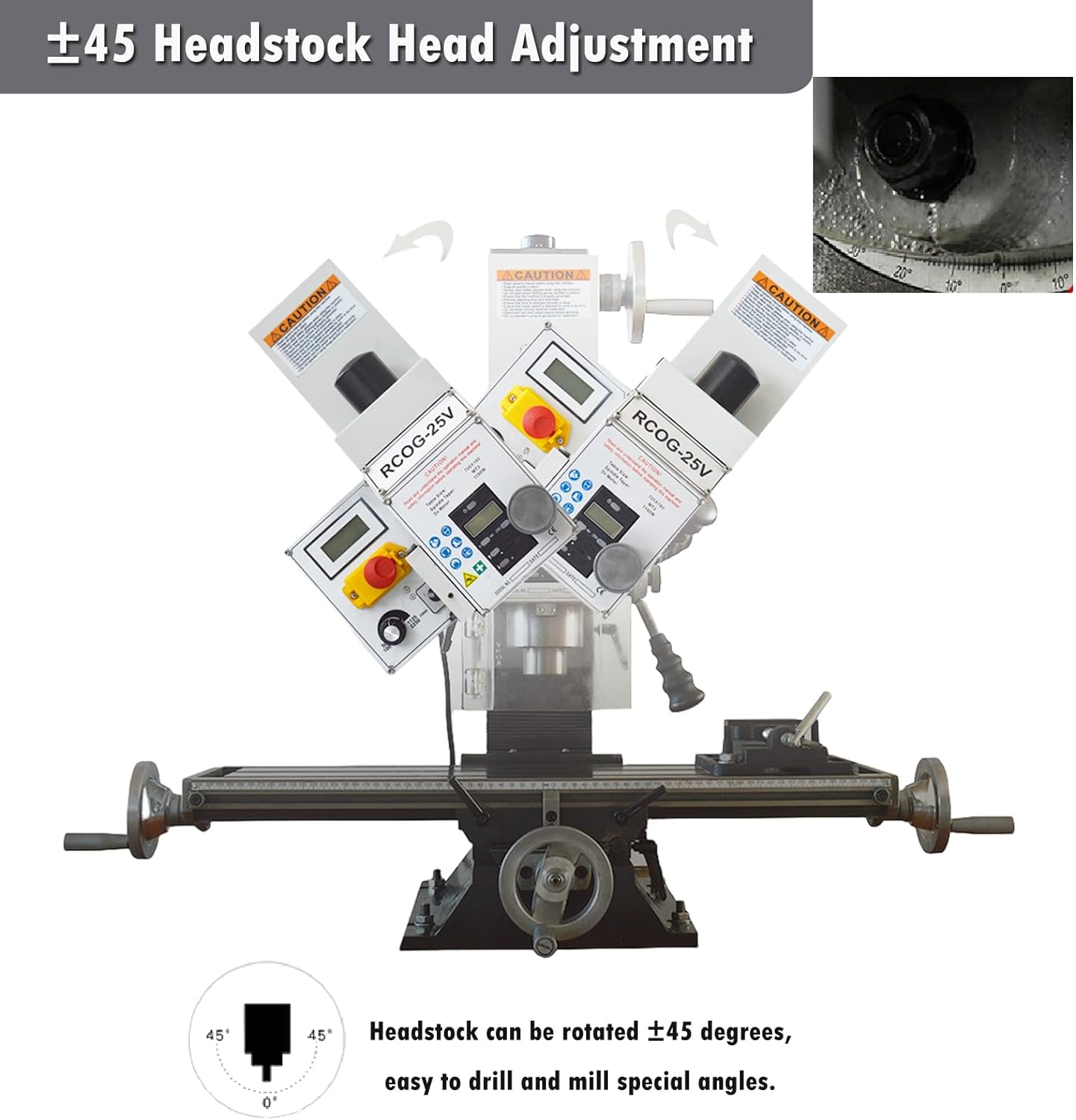

Machine Head Tilt
The head of the machine can be tilted to the left and right.The tilt angle range is up to 90° which is convenient for special angles.

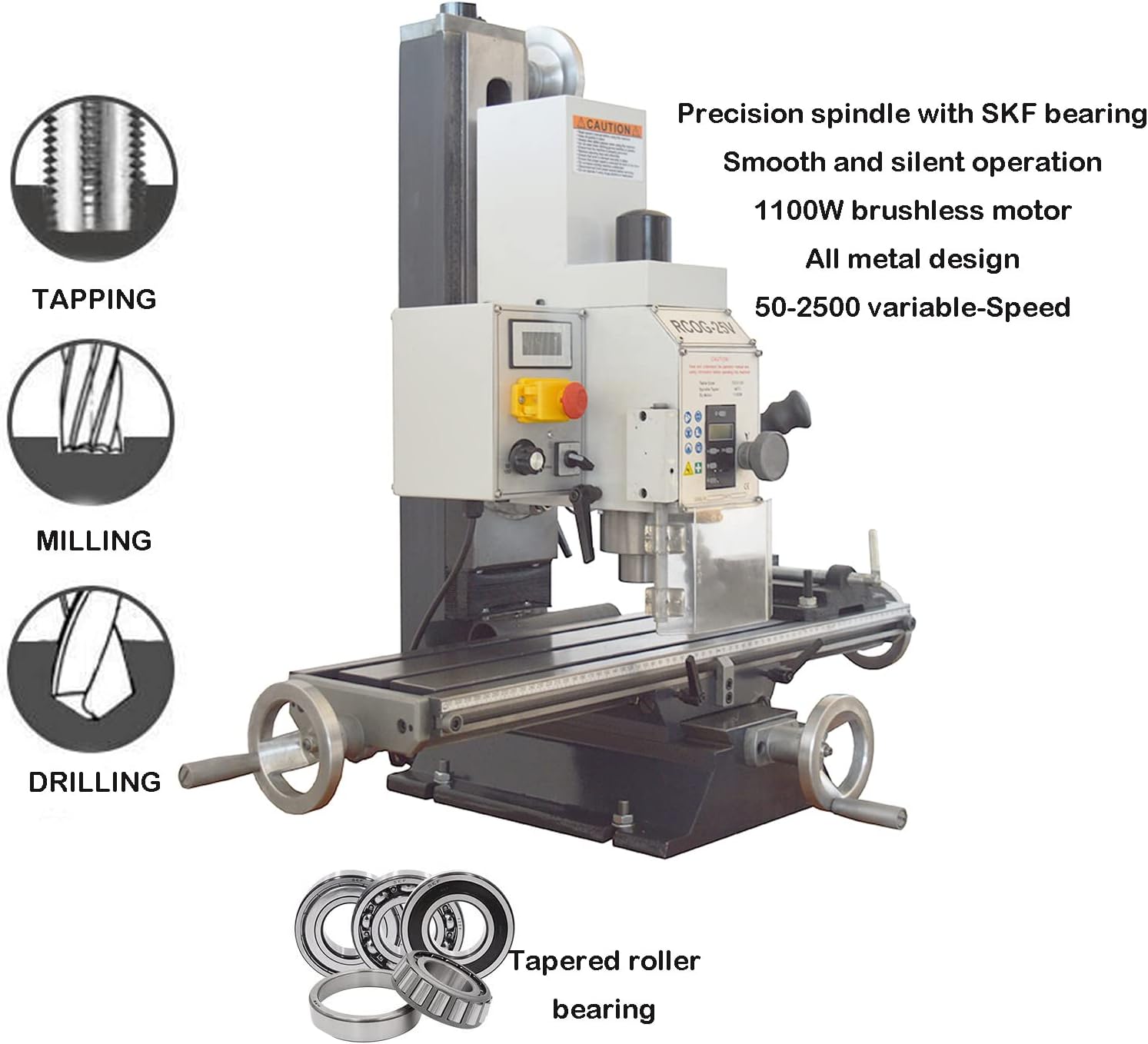

Wide Application
With drilling, milling groove, plane milling, chamfering and so on, suitable for all kinds of metals, wood and other materials fine processing.
Machinable Material
Can process various non-ferrous metals such as titanium, stainless steel. 45 steel, iron, aluminum,copper, etc.And various soft materials such as wood and nylon.

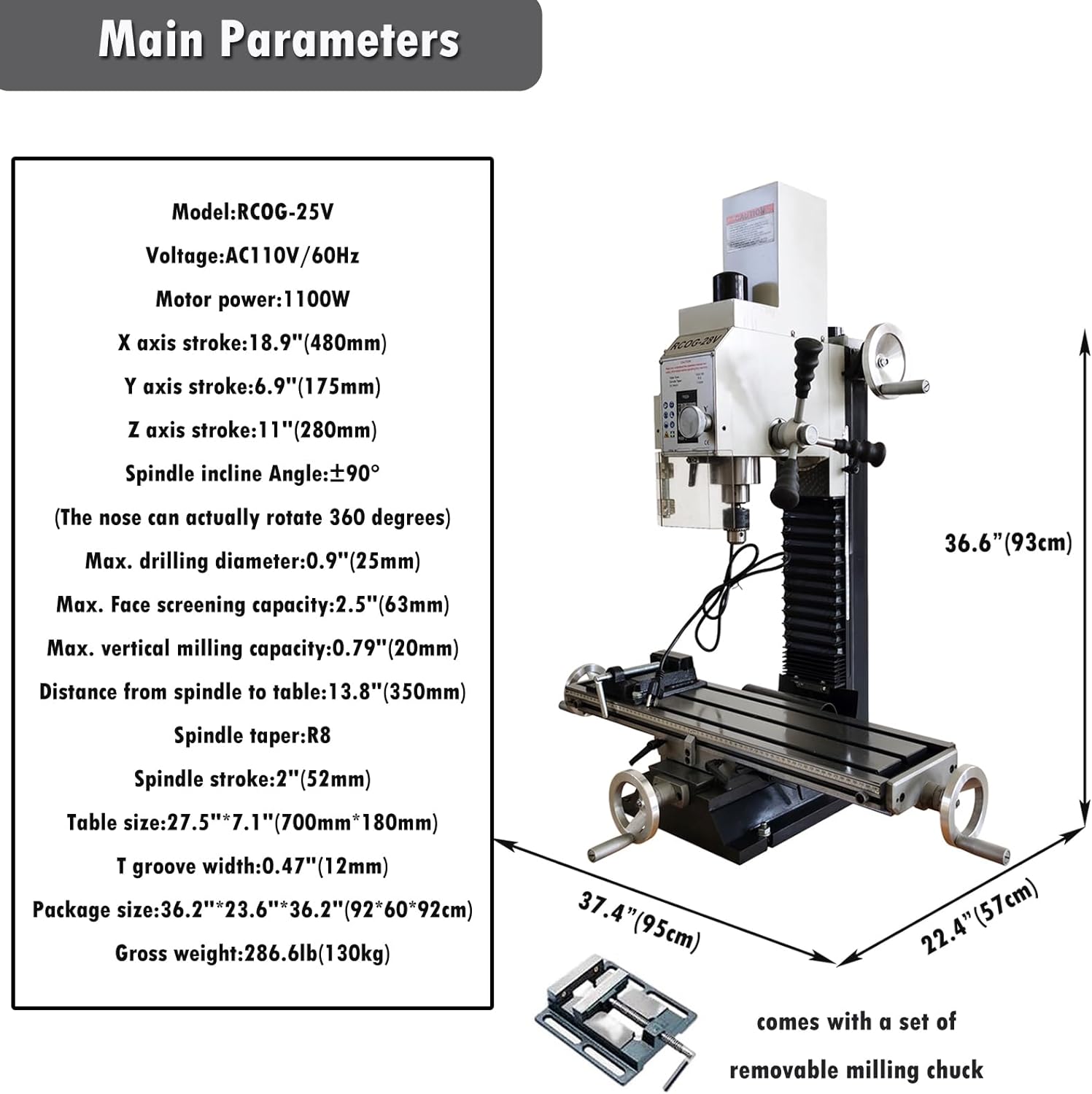

👨🔧【Main Parameter】Voltage:AC110V/60Hz,Motor power:1100 Brushless Motor，X-Y-Z axis stroke:18.9″(480mm)-18.9″(480mm)18.9″(480mm), Max. drilling diameter:0.9″(25mm), Distance from spindle to table:13.8″(350mm)
👨🔧【27.5″*7.1″ Table Size】The table size is 27.5″*7.1″(700mm*180mm).Spindle taper is 2″(52mm).Integrated cross worktable, width is widened, high precision positioning adjustment scale. can be moved from front to back, left and right, spray paint at the bottom.High precision positioning adjustment scale,which can be moved from front to back,left and right.

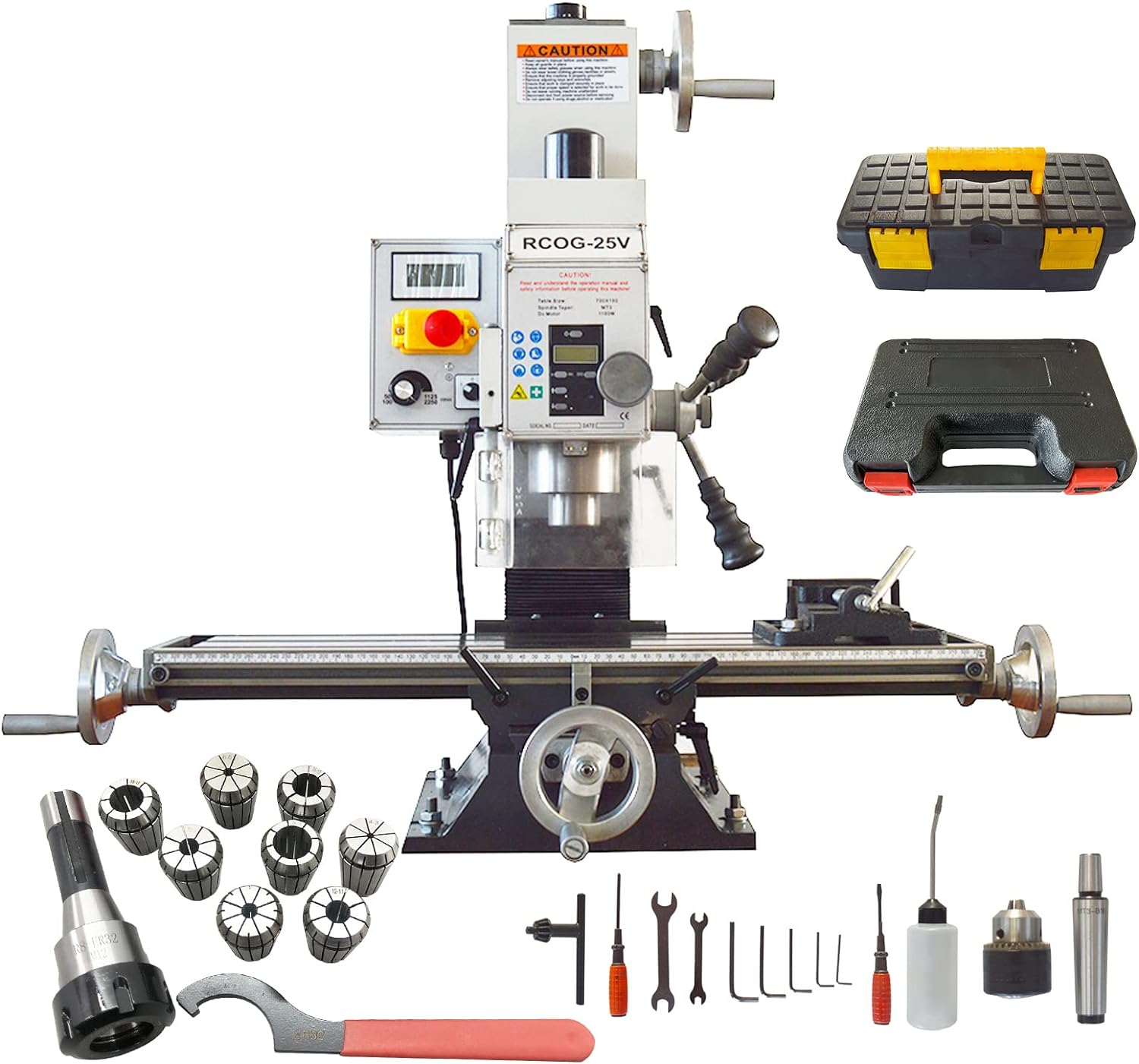

👨🔧【R8 Tapper Accessory】Benchtop mini milling drilling machine comes with a set of removable milling chuck and R8 tapper accessory,while giving a set of ER32 milling chuck accessories, without additional purchase.Package includes Benchtop mini milling drilling machine x1, Tool box x2, MT3-ER32 chucks set x1, Instruction x1, Hexagonal wrench x5, Fork wrench x2, Drill chuck x1, Drill chuck retaining pind x1, Plain Jaw Pliers x1, Screwdriver x2, Oil can x1.
👨🔧【Salient Advantage】The mill/drill machine have 1100W Brushless Motor, high definition LCD, bench clamp, spindle feed handle, high precision table and 90° adjustable machine head tilt.
👨🔧【Durable Construction】Benchtop metal lathe use all metal gears, metal shell, metal hand wheel without any plastic parts.High frequency quenching process and precision grinding of high quality cast iron bed.Suitable for all kinds of metal, wood and other materials fine processing, widely used in machinery manufacturing, woodworking, DIY and so on.
