Jeanoko DC 12V to 36V CNC Shield Expansion Board+4Pcs A4988 Stepper Motor Driver for Engraver 3D Printer Additive manufacturing products

Description

Price: $9.69
(as of Jul 07, 2024 07:13:18 UTC – Details)

Buy On Amazon

Specifications:

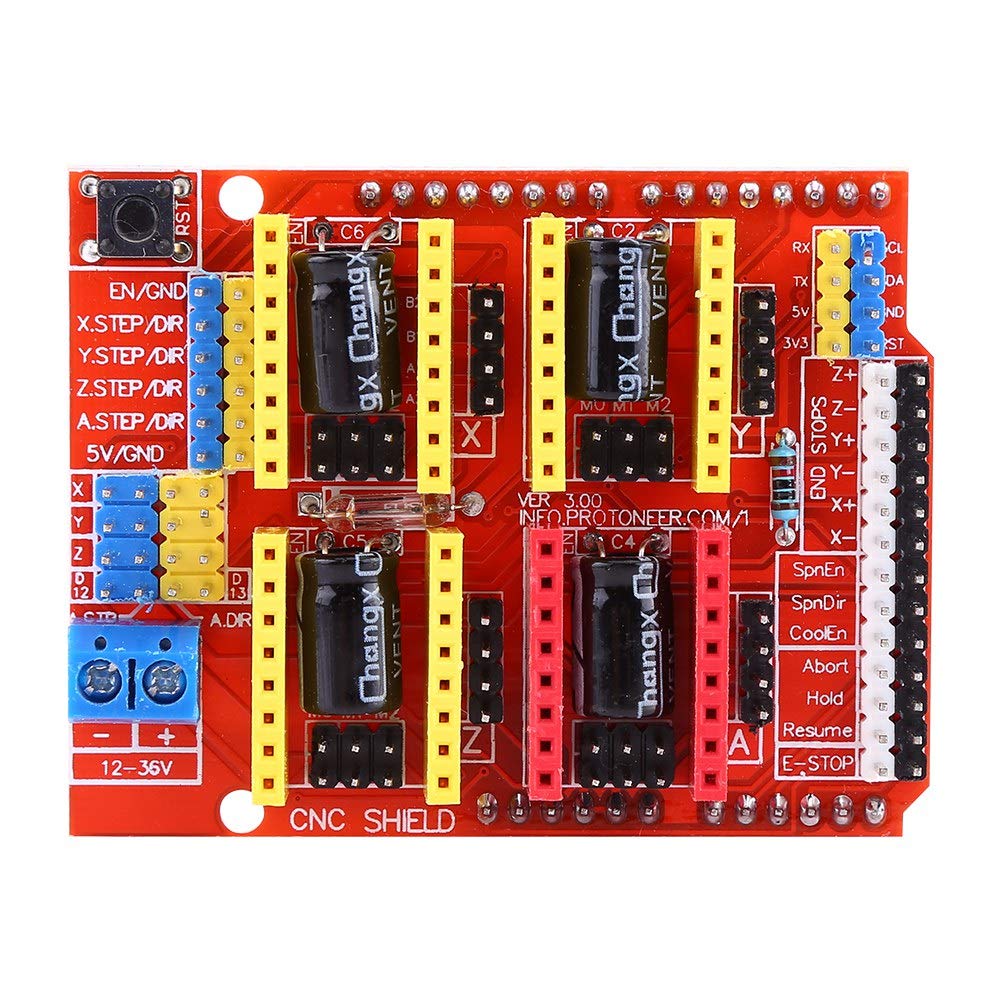

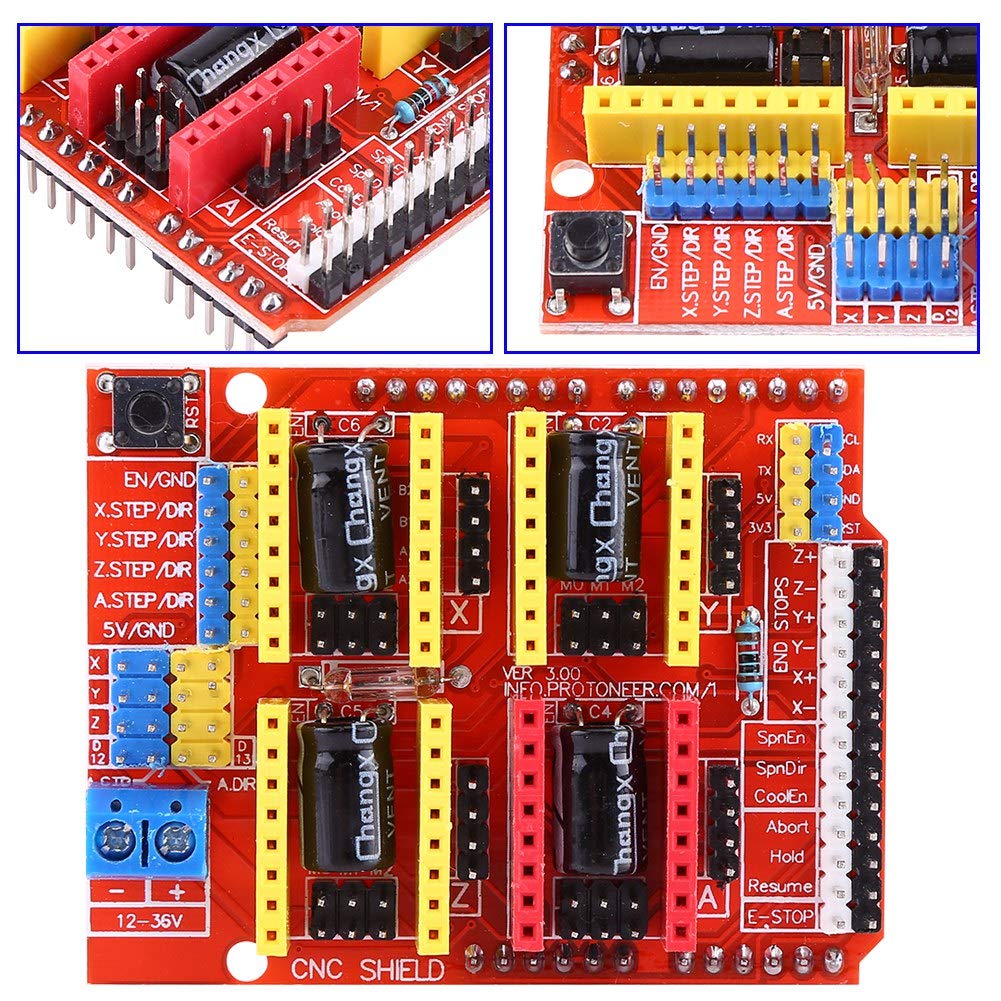

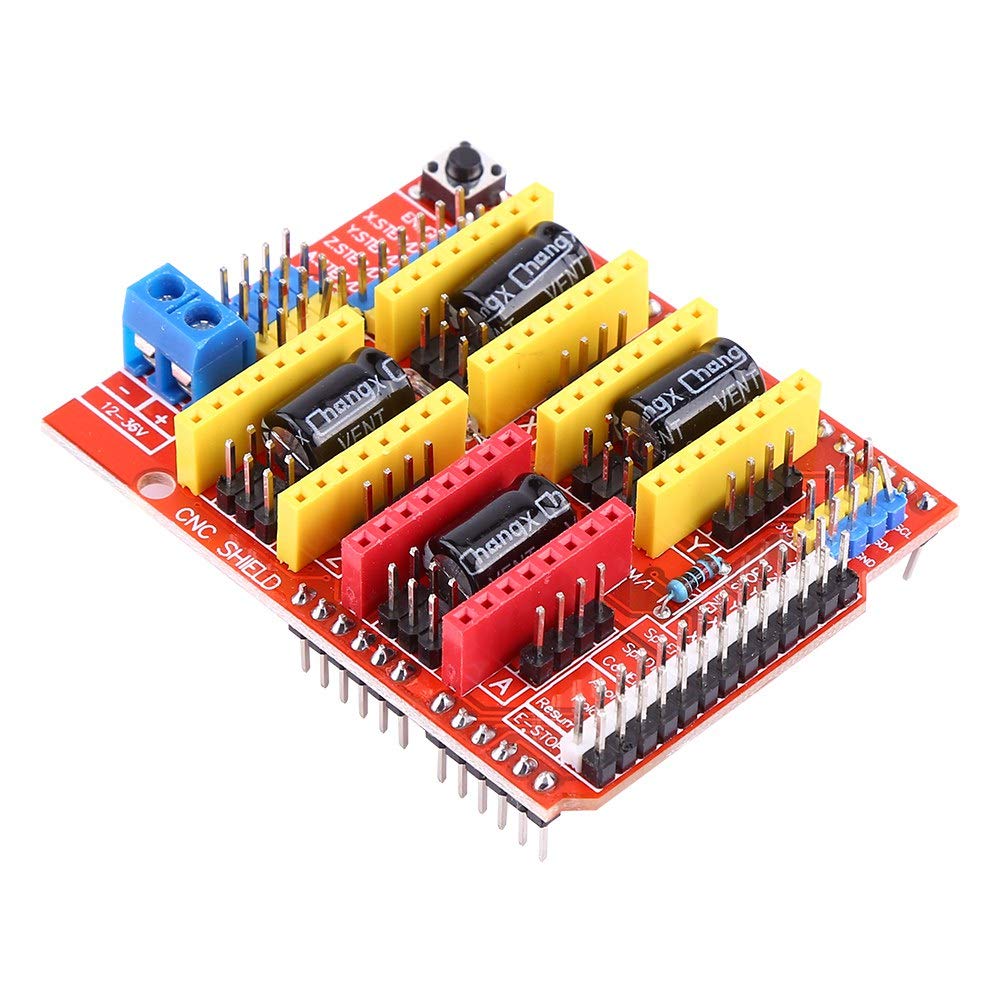

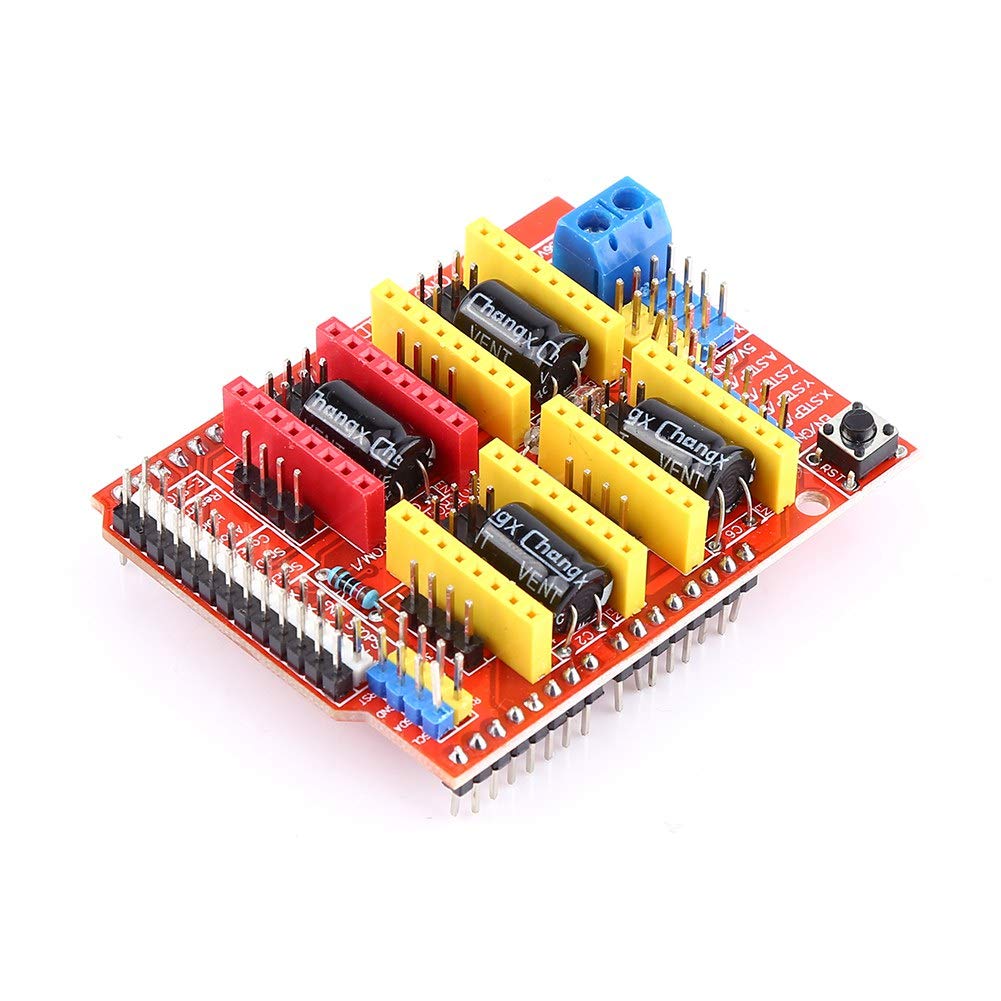

CNC Expansion Board:
Version: V3.0
Color: Red
Size: 68 x 53 x 18mm / 2.67 x 2.08 x 0.7″
Voltage: DC 12V to 36V (only DRV8825 driver can handle up to 36V, so please consider voltage for power supply)

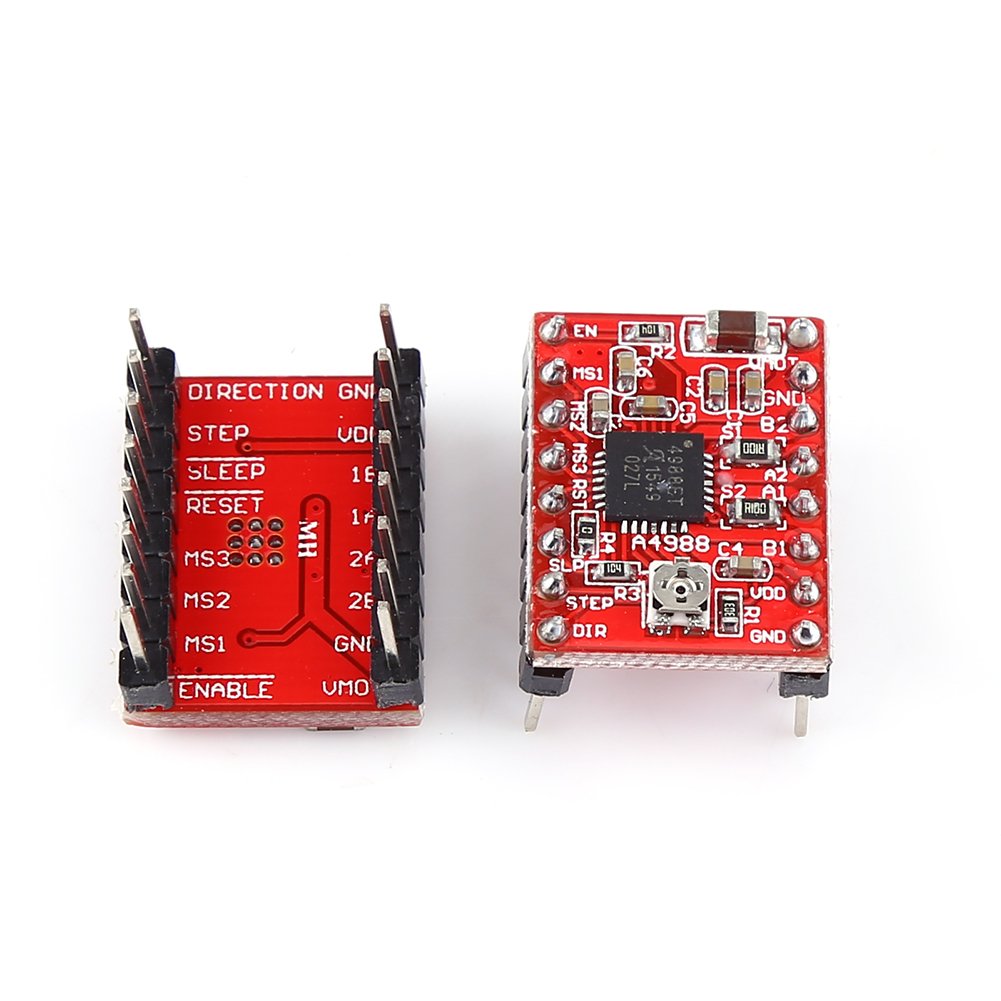

4pcs A4988 Driver:
Color: Red
Size: 20 x 15mm / 0.78 x 0.59″
Thermal Shutdown Circuit: Yes
Cross Current Protection: Yes
Ground Fault Protection: Yes
Short Circuit Protection: Yes
Compatible Logic Voltage: 3.3V and 5V
Five Step Modes: Full, 1/2, 1/4, 1/8 and 1/16
Mix with slow current attenuation model.
Internal UVLO and low RDS (on) output.
Automatic current attenuation mode Detection/Select.
Phase-in rectifier, low power consumption.
Warning: Connecting or disconnecting stepping motor while driver is powered on might damage driver.

4pcs Heat Sinks:
Size: 8 x 8mm / 0.31 x 0.31″
Color: White

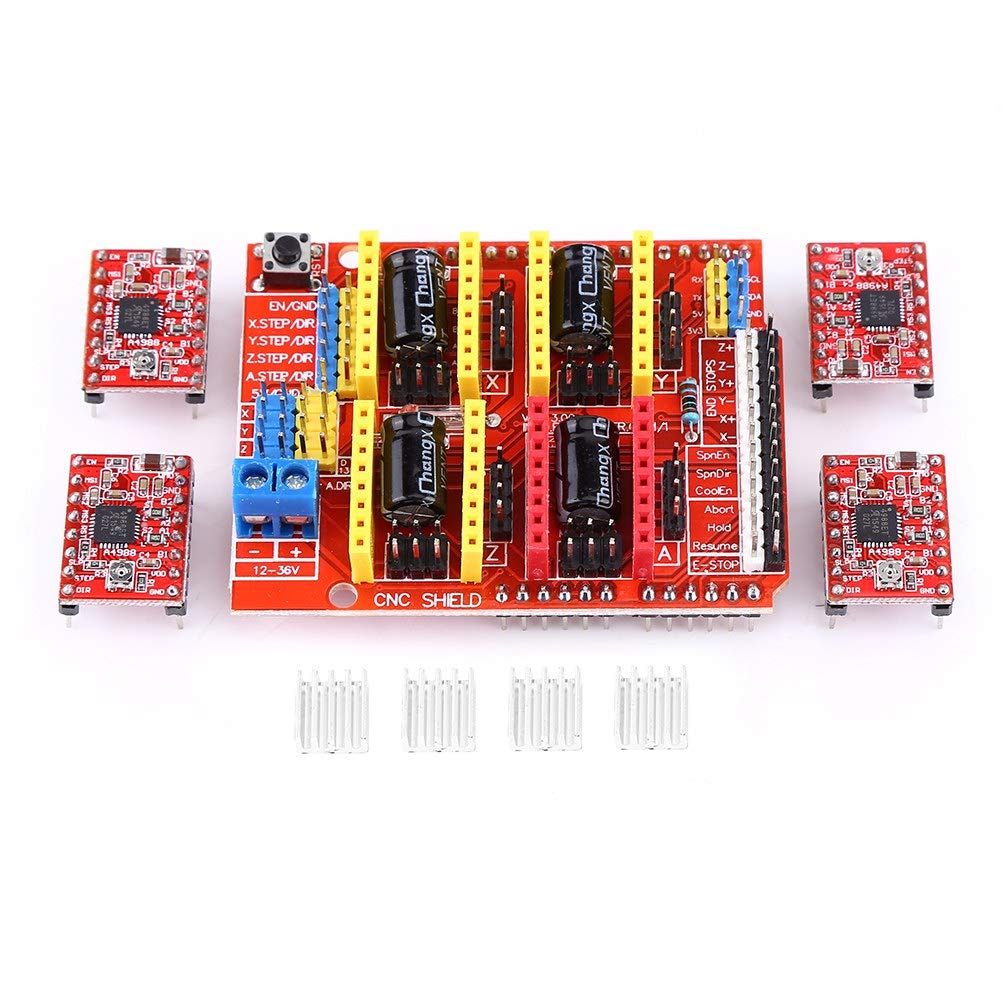

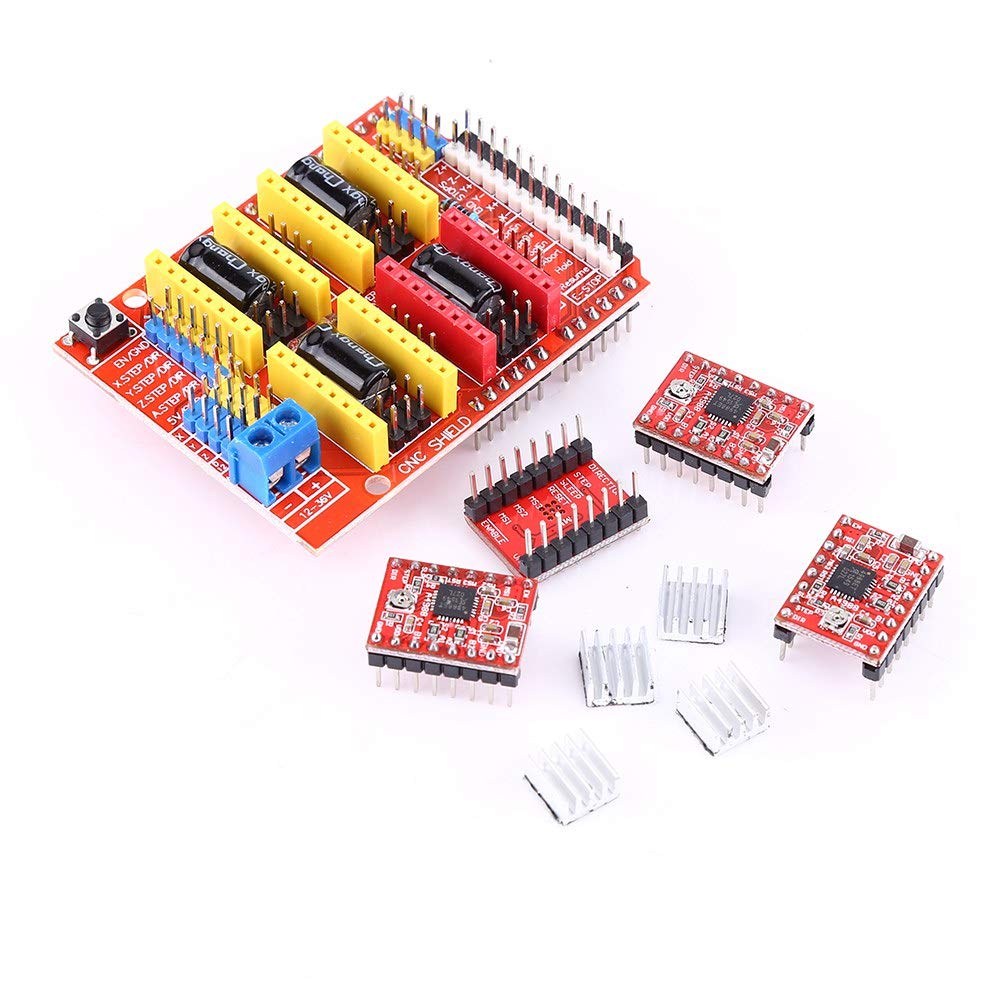

Package Includes:
1 x V3 Extension Board
4 x Drivers
4 x Heat Sinks

Product Dimensions ‏ : ‎ 0.39 x 0.39 x 0.39 inches; 1.83 ounces
Date First Available ‏ : ‎ December 23, 2023
Manufacturer ‏ : ‎ Jeanoko
ASIN ‏ : ‎ B09BW2FBBG

Compatible Versatility: This cnc shield is compatible with GRBL 0.8. Open-source firmware, converting G code command into stepping . This cnc shield with compact design, stepping motor can connect 4 pin connectors or be soldered.
Function Introduction: The cnc expansion board can be used for engraving machine or 3D printer driver.This cnc expansion board use removable A4988 or DRV8825 compatible stepping driver
Unique Design:This 3d printer kit with PWM spindle and direction pin, 4 shaft support (X, Y, Z, A – you can copy X, Y, Z or use pin D12 and D13 customize firmware perform complete shaft 4).The 3d printer kit is very convenient and efficient
Work Stable :he a4988 driver is made of high quality components and durable. Which is not easy to damage, reliable quality, high strength and long service life.The a4988 driver with strict quality control and quality assurance, high safety factor, can be used with peace of mind
Pass Strictly Tested : This v3.0 board has passed strictly test which test appearance, structure, product, packaging, quality, safety performance, material hazard indicators of the product .You can buy with confidence
