Description
Price: $8.69
(as of Aug 09, 2024 19:55:14 UTC – Details)
Product Description
Product Specifications
Color: Silver
Material: High Quality Carbon Steel (C45#)
Hardness: 55-60 HRC
Surface Hard-thickness: 0.8 – 2.5mm
Surface roughness: 0.8S – 1.6S
Straightness: Below 5μm/100mm
Surface Chrome thickness: 10um-20um
Surface Finish Quality: Ra 0.8
Package Included:
2 * Linear Rail Shaft
Multiple Choice – One Stop Shop
In order to meet customers’ different needs. Feyrinx have already expanded our linear rail rod from diam 6mm to diam 16mm, length from 150mm to 800mm. Over 30 different choices, there is always a size suit you.
linear rod shaft
High Quality Material
Adapting high-purity C45# carbon steel as raw materials, which ensure our products’ high brightness and hardness. Better material, better performance.

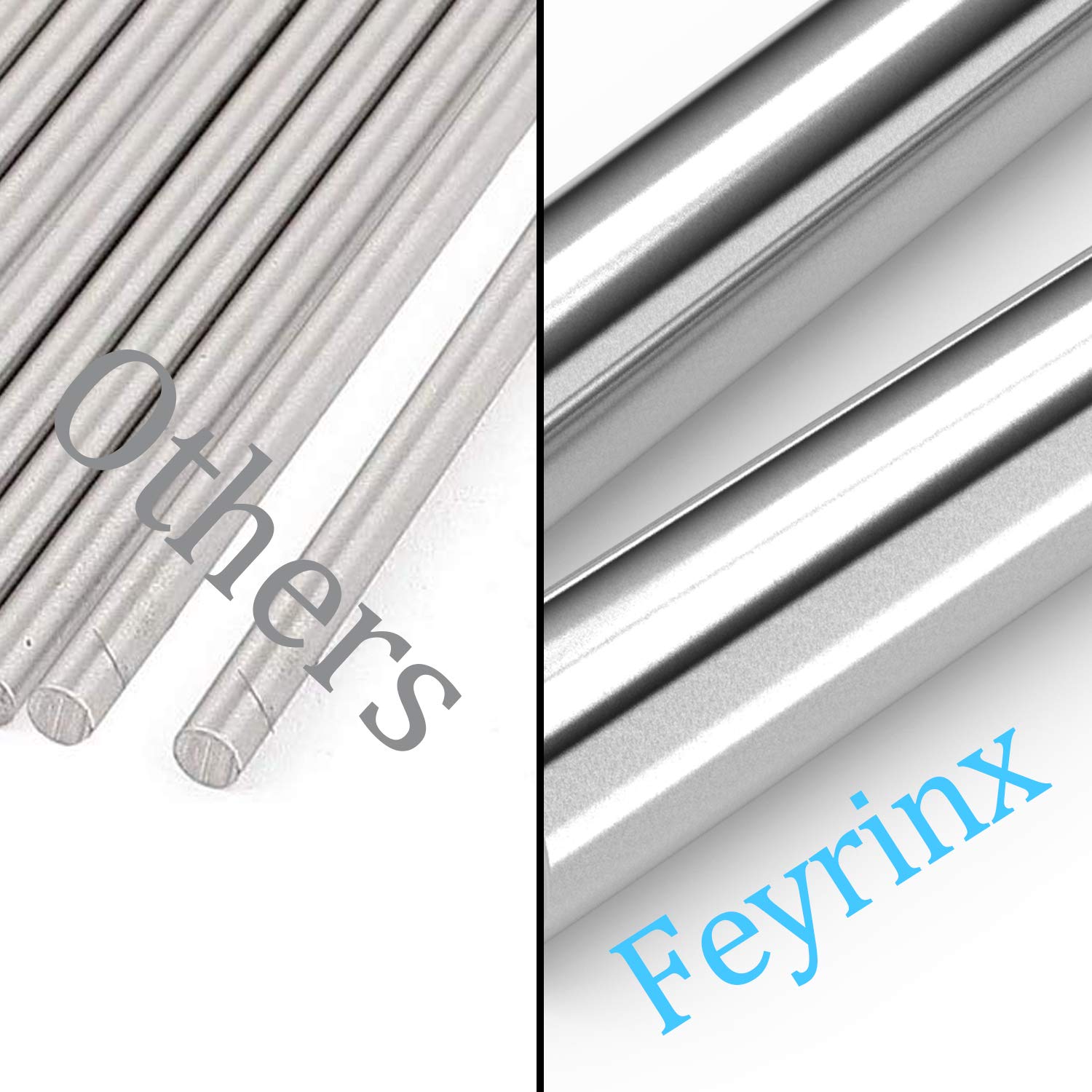

Bright Like Mirror & Anti-Corrosion
Feyrinx linear rails have been processed with advanced grinding machine technology, Chrome plated surface (10um-20um) make product look like mirror, protecting products from corrosion, making them more durable.
High Frequency Quenching
All the products have been processed with high frequency quenching technology, making products’ hardness could reach up to 55-60 HRC. High hardness ensure products’ long performance life.
Widely Applications
The linear rods are perfect for your DIY project, bearing system, linear motion system, widely used in the automation machinery such as 3D printer machine, wood machines, machine tools, bending machines, laser welding machines and other industrial machines.
Chamfering Process
All of our products have chamfers on both ends, processed by auto machine, both ends are processed almost the same. Chamfers make products have better performance in daily usage, easier for user to handle.
High-Precision Standard
Strict tolerance standard has been applied in manufacturing process. Ensuring every product is in the range of error, no matter the hardness, brightness, or the straightness etc.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.7 out of 5 stars
359
4.7 out of 5 stars
359
4.7 out of 5 stars
359
4.7 out of 5 stars
359
4.7 out of 5 stars
359
Price
$6.74$6.74 $7.19$7.19 $23.99$23.99 $21.99$21.99
—
Diameter
6mm 8mm 10mm 12mm 16mm
Package Quantity
2PCS 2PCS 2PCS 2PCS 2PCS
Lengths
400mm 400mm 700mm 600mm 400mm
Package Dimensions : 8.78 x 2.05 x 1.97 inches; 3.53 ounces
Item model number : FG006-200MM
Date First Available : December 17, 2020
Manufacturer : Feyrinx
ASIN : B08QV96RKK
👍HIGH HARDNESS: Adapting C45 high quality steel, high frequency quenching, surface chromium plating(10um-20um). The case hardness could be reach to 55-60 HRC. Durable and corrosion-resistant
👍EXTENSIVE APPLICATION: Widely applied in CNC, 3D printer, automatic machinery, injection molding machine, engraving machine, etc. especially in bearing purpose.

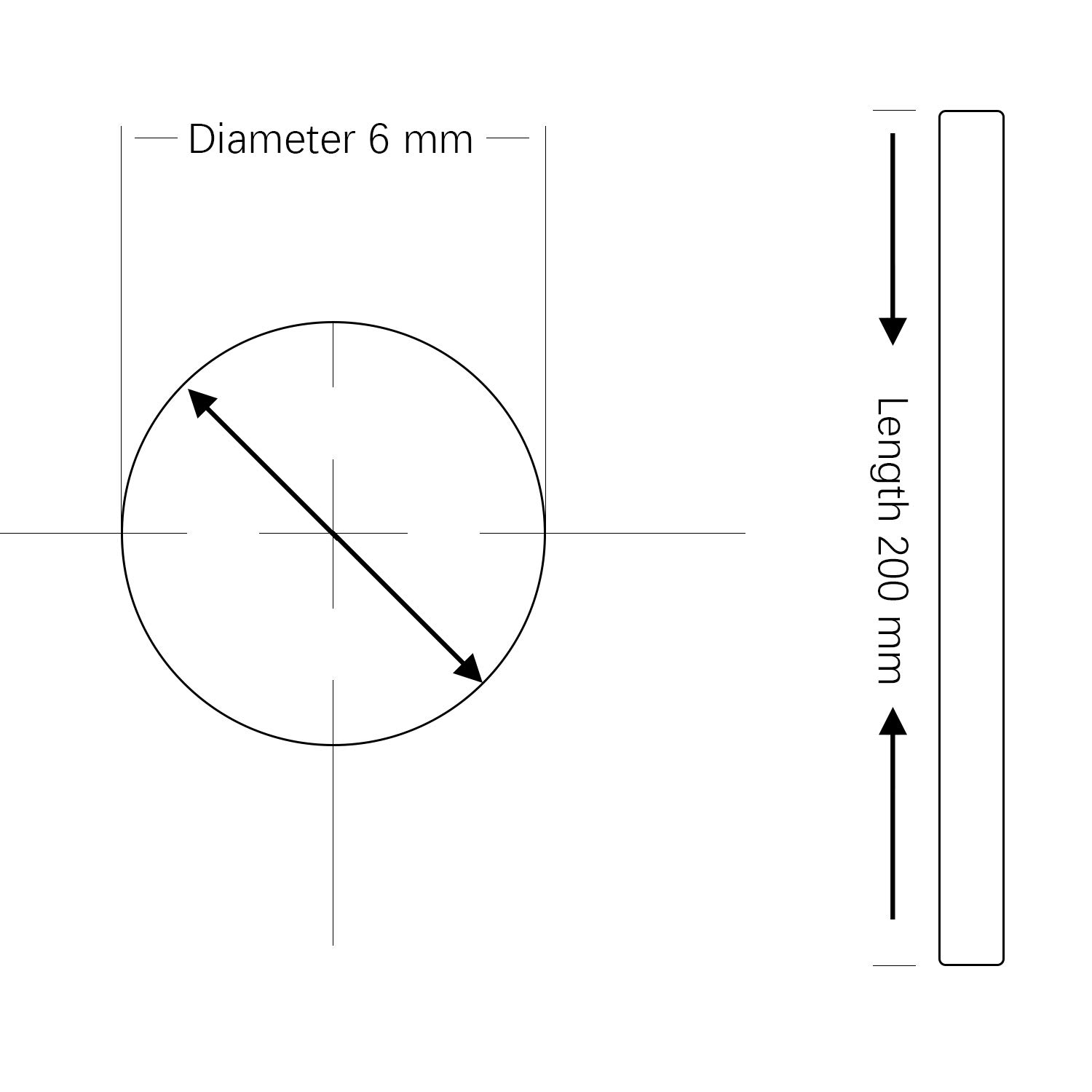

👍HIGH ACCURACY: Diameter 6mm, tolerance -0.005mm to -0.03mm ( 5.995mm – 5.97mm), length 200mm, tolerance ± 0.5mm ( 199.5mm – 200.5mm ).
EASY TO USE: Taking the role as round steel shaft with linear support blocks and closed type slide units, suitable for high speed, low noise and high precision equipment.
👍WHAT YOU GET: 2PCS 6mm x 200mm Linear Motion Shaft. 30-Days money back guarantee, 1-Year warranty, 24/7 friendly customer service.
