MEETOOT 2PCS Welding Machine Tool Soldering Iron Gun Nozzle Soldering Iron Tip Burning Wire Tester Smooth Soldering Tip Suitable for Lighting Equipment Low Voltage Appliance Electrical Instrument

Description

Price: $6.99
(as of Sep 15, 2024 05:13:16 UTC – Details)

Buy On Amazon

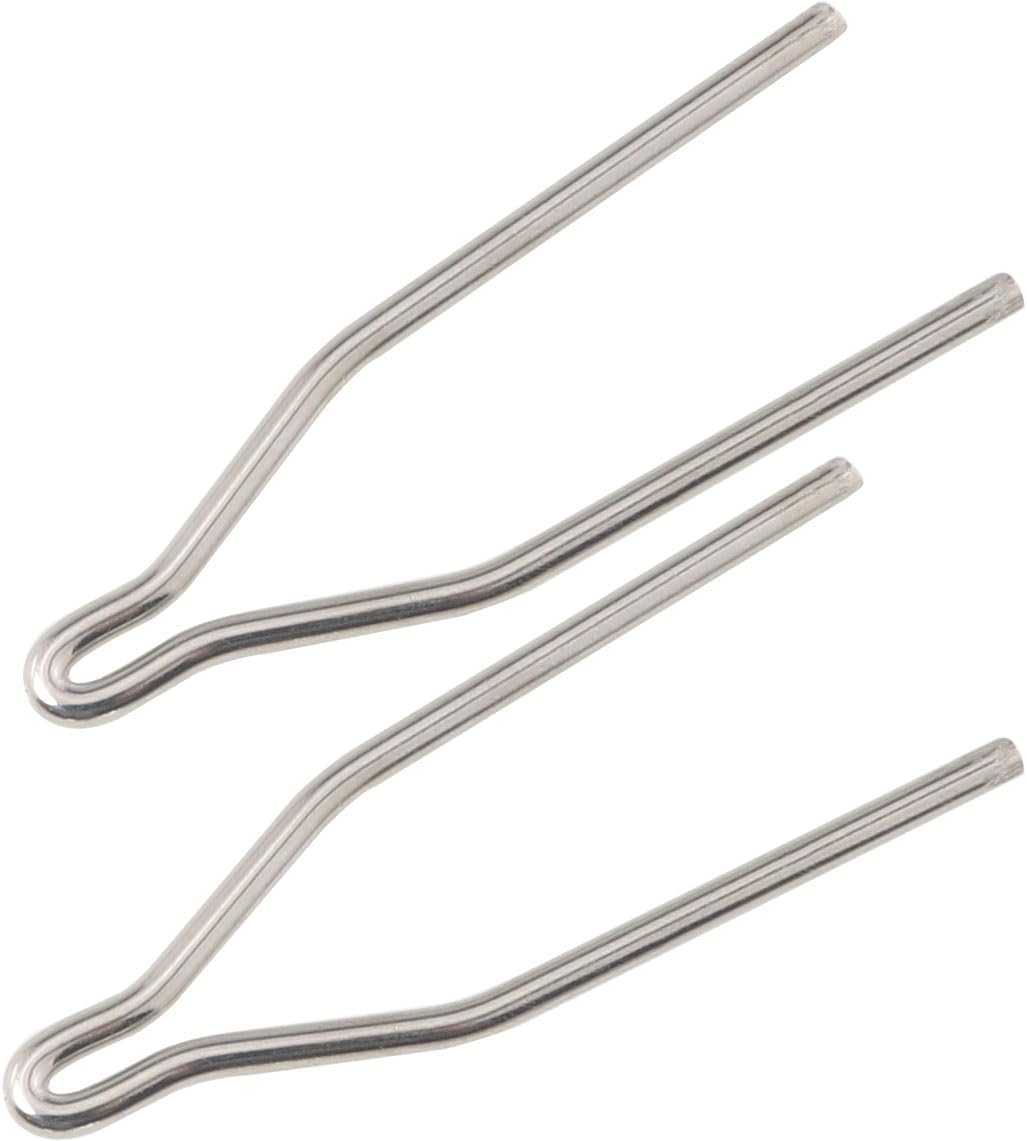

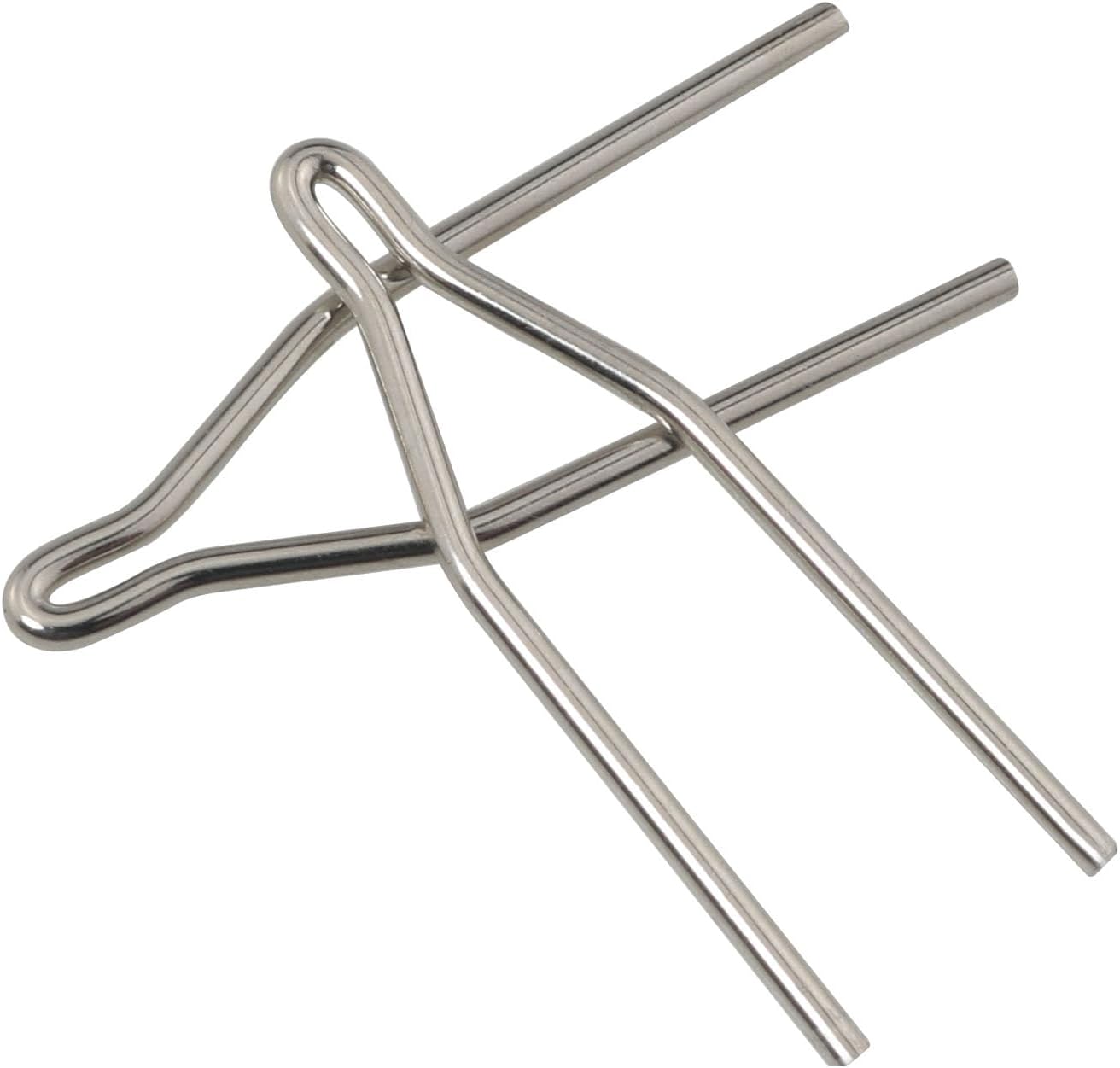

U-shaped heating wire, burning wire, burning wire U-shaped head, new burning wire tester.

Technical parameters:

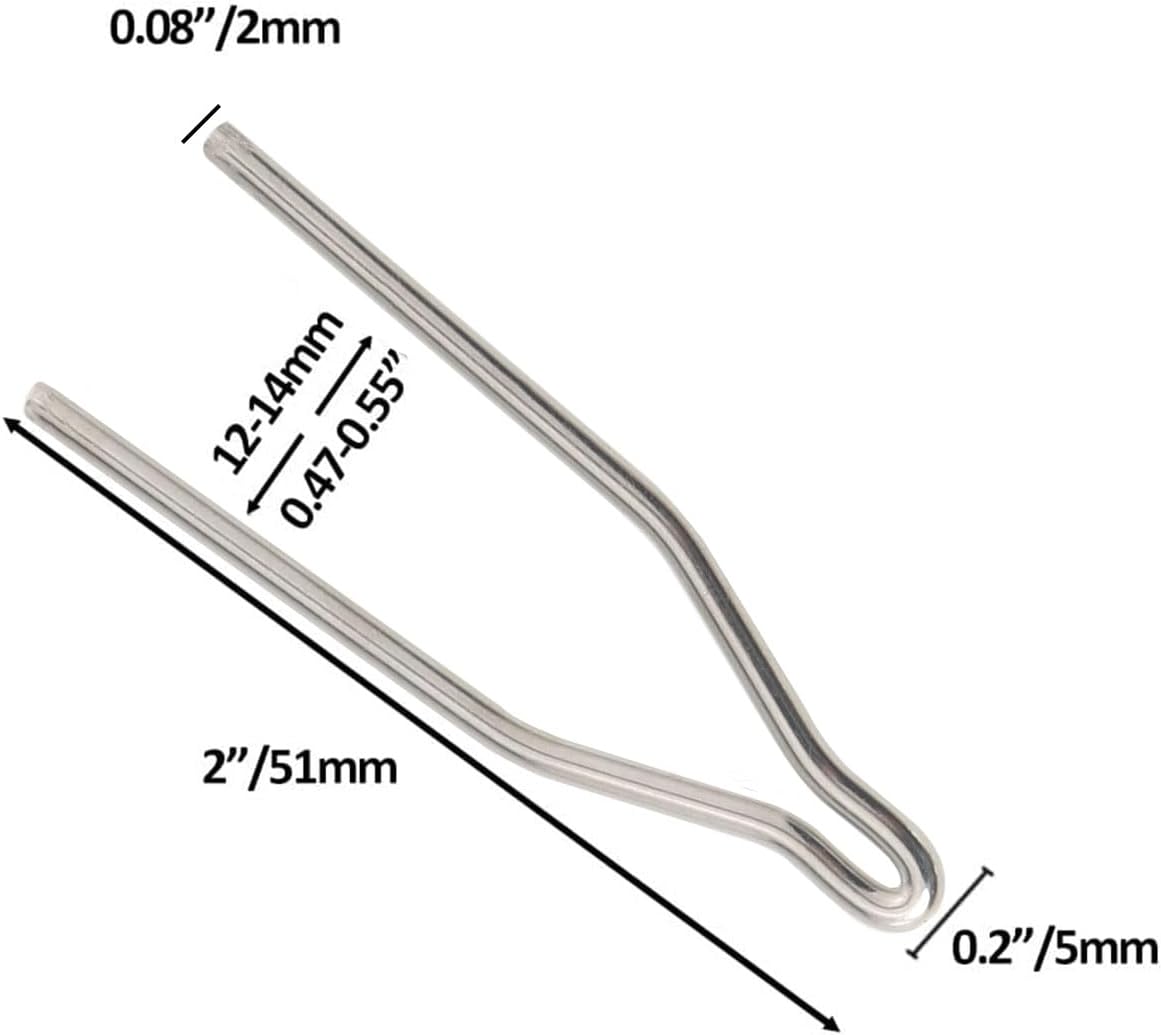

Diameter: 4mm ± 0.04mm

Material: imported Ni/Cr (80/20) alloy

Temperature measurement: 1100 degrees Celsius

U-shaped heating head replacement.U-shaped heating head obviously thin or corrosion is serious need to be replaced.

Replacement method is as follows:

Switch off the power.

Fold off the thermocouple to prevent damage.

Loosen the copper post screws and tap the U-shaped heating head with the end of a screwdriver to loosen it.

Hold the root of the U-shaped heating head with the pliers mouth and pry it out slowly, paying attention to the parallel symmetry of both sides.

Load the new U-shaped heating wire, press and fix it.

Check the 7mm limit and adjust the 7mm limit.
Product type: new U-shaped heating wire, burning wire, burning wire U-shaped head, new burning wire tester.
Material: imported Ni/Cr (80/20) alloy
U-shaped heating head replacement.U-shaped heating head obviously thin or corrosion is serious need to be replaced.
Specification: Diameter: 4mm ¡À 0.04mm, Ni/Cr (80/20) specialised standard rings. Temperature measurement: 1100 degrees Celsius
Scorch filament tester is suitable for the research, production and quality inspection of lighting equipment, low-voltage electrical appliances, electrical instruments, and other electrical and electronic products and their component parts.
