Product Description
Silent & Comfortable- Low noise design, make sound lower than 55 db, suit for hospital and massage. Electric pusher is power by 12V DC, 0.59 inch/sec running speed, quickly and steady movement.
Product Detail:
Stroke Length: 1.2”
Retracted Length = 83.9 mm( 3.3”)
Extended Length = 123.2 mm( 4.85”)
Rated Load: 64 N( 14.4 lbs)
Input Voltage: DC 12 V
Duty Circle: 10%
Standard Protection Class: IP 54
Electric linear actuators kit with 3 position rocker switch support agriculture by providing precise motion control and enabling the completion of processes.
Create a Remote Control for Agricultural Tool – Operators can use linear actuator opening & closing chute on broadcast spreader by press on rocker switch, instead of running back to the spreader to close it manually.
Stop at Position You Want – Press button “O” to turn off linear actuator motor power at anytime, to stop the actuator stock extend/stretch anywhere. Our linear actuator design with end-limit function, which means the pusher rod will automatically stop when the device reaches the end of stroke to protect motor. Much safe for long-term use.
Provide Fast Retracted & Extend – Electric linear actuator provide fast running speed move at 0.6 inch/s, flexible extend and retract on small space equipment. Great for robotic, toy and model, wing of cosplay hawk on comic exhibition or Halloween.
Compact Design for Small Space – Simply attach a Christmas decoration to the end of the rod using hot glue, double-sided tape, or some string and position the actuator in the tree. Attach actuator to controller and power supply. You can easy get automation Christmas tree. Stroke 1.2” Micro electric linear actuator with the main housing measuring only 3.7” (L) x 0.7” (W) x 0.7””(H) , small enough to hide among the Christmas tree branches or other tight space.
Please use the 12V DC power battery. If use smaller voltage, product can not work well, use bigger voltage maybe will damage to the product.Please keep mini actuator kit away from water, avoid short cut.Work well under 64N, Good solution for replacing a manual control for small and medium-sized loads push and pull.
Product Dimensions : 6 x 1 x 1 inches; 4.16 ounces
Date First Available : September 30, 2021
Manufacturer : USLICCX
ASIN : B09G9PK8Q4

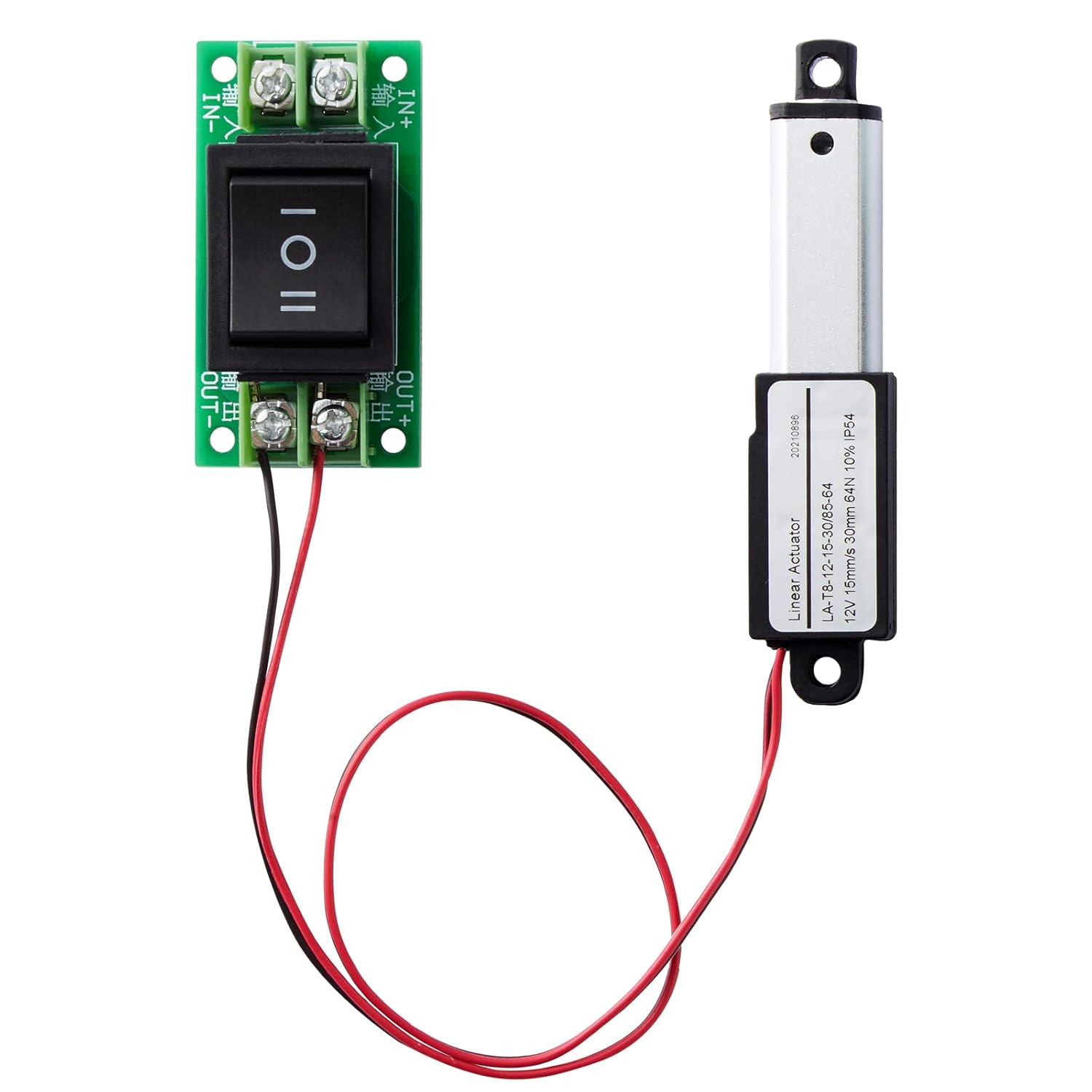

Linear Actuator With Rocker Switch Kit – 64N Small electric actuator powered by 12 volts DC are mini actuator which create motion in a straight line, suitable for small and medium-sized loads, with mounting brackets, rocker switches, you can easy mounting it and manually control the extend and retract of the push.

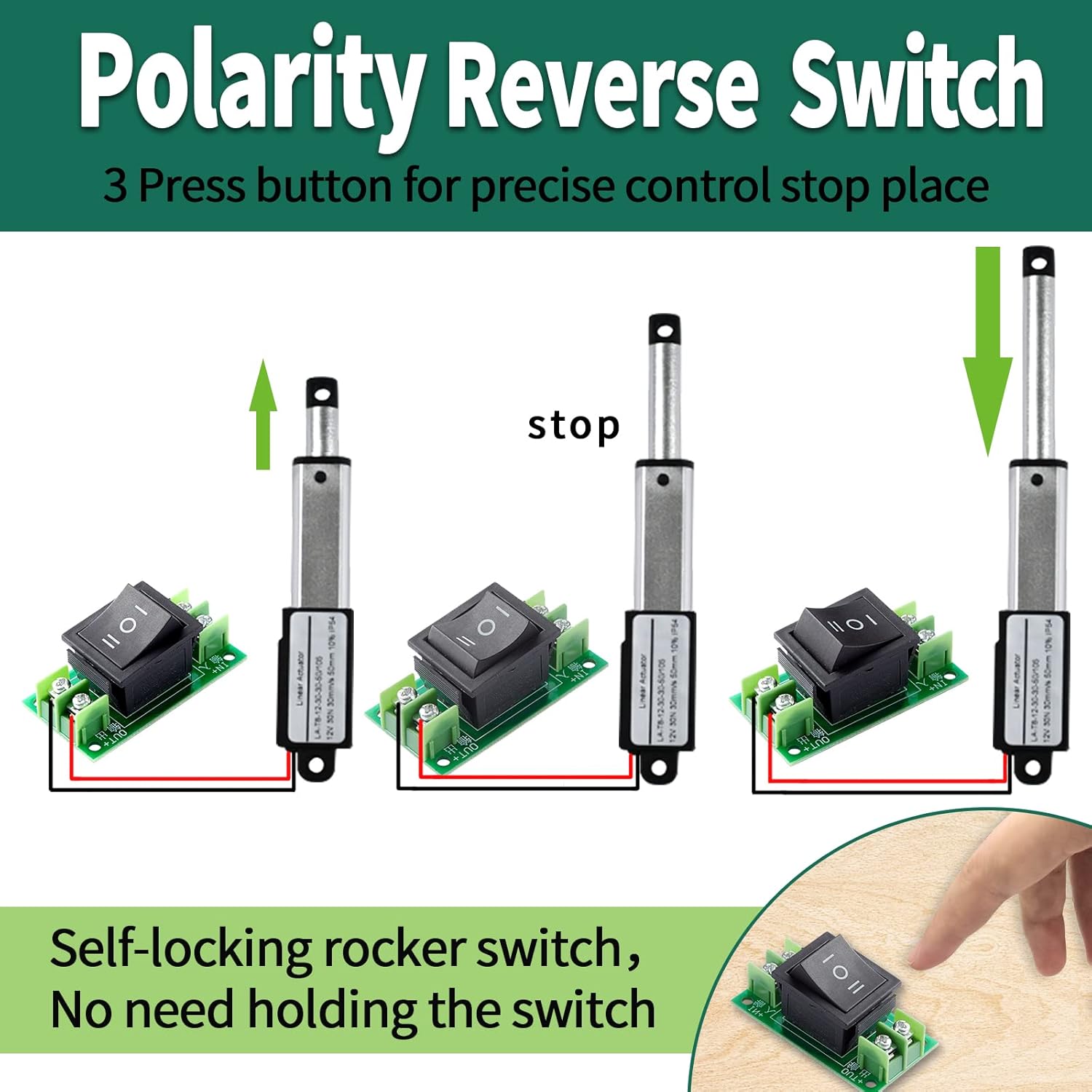

Hold On Position You Want – Reverse polarity rocker push switch with ON/Off/ON 3 operation press button, it will in locked state, compare with momentary switch, do not need you hold the switch button all the time. Press “Off” button you can turn off power to the motor and stop position as you wish, More flexible and secure when you close window or pigeon cage.
Strong and Durable Linear Actuator – Built-in high quality aluminum gear and over-voltage protect, well constructed for long-term use. It come with end limit switch that will automatically stop when the device reaches the end of stroke, Ensure the motor won’t burn out

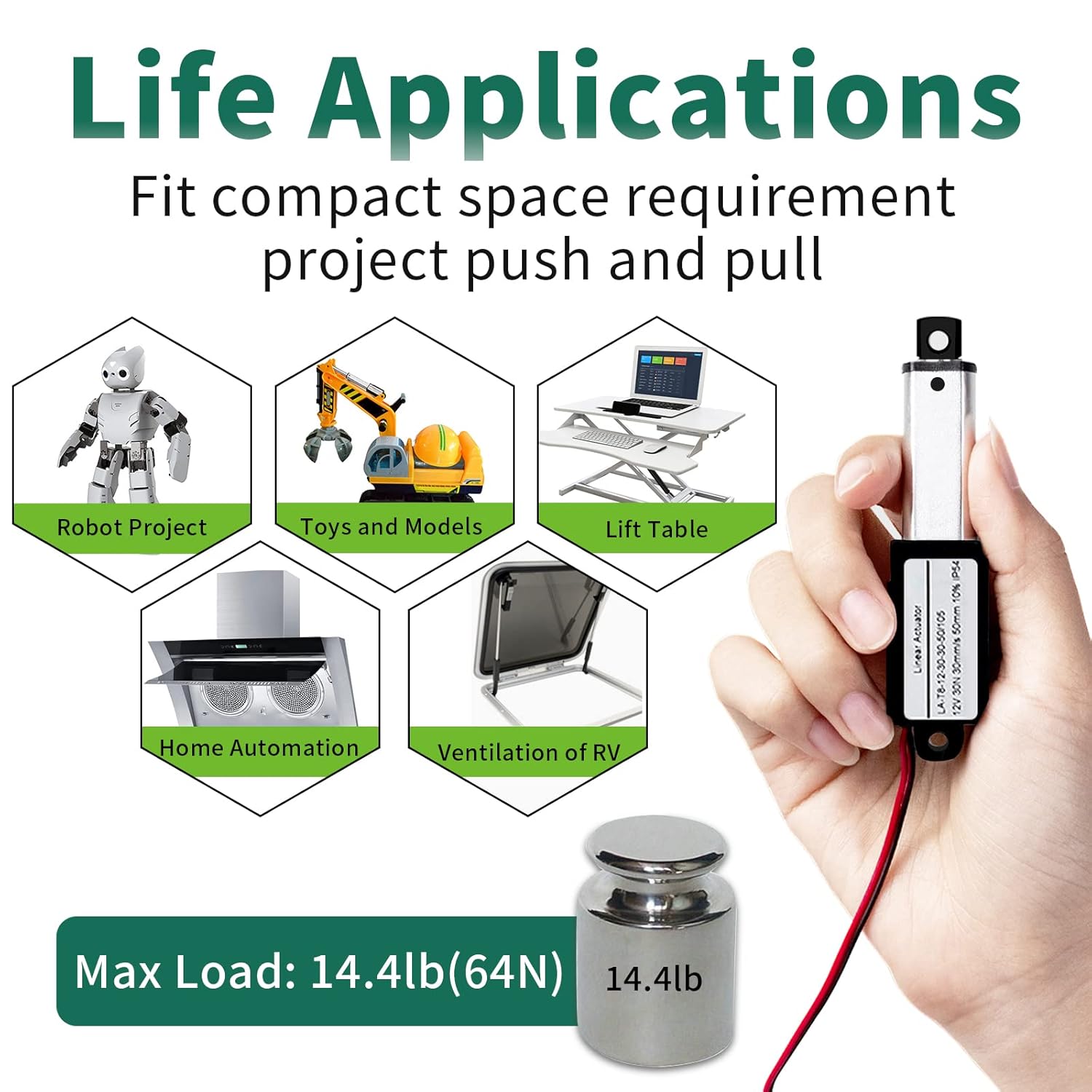

Multi-Applications – 2″ Stroke small linear actuators fit tight space requirement project, a great pushers used in applications such as agricultural machines and equipment, medical devices, home automation, cabinet door, robot’s gripper, deck chair, window opener, linear servo, solar tracker, extend and retract the cylinder
Easy to Mounting – Package come with 2pcs mounting bracket and rocker switch with copper clad laminate, make you convenient to installation. Just wire up the red wire to positive and black wire to negative, Press on switch to control your actuator, work like a charm!
