Mini 12V 1.2Inch Line Actuator,Speed 15mm/s, 60N/13.4LBS,Waterproof Linear Motion Actuator,with Remote Lever Switch,Mounting Bracket,Suitable for Micro Equipment,Cabinet (30mm)

Description

Price: $32.99
(as of Aug 15, 2024 09:13:15 UTC – Details)

Buy On Amazon

From the brand

SZAWINLI has been focusing on the development and promotion of recliner switches, recliner replacement parts and actuators.

Over the years, we have dared to innovate and strive for excellence, and have been serving customers with high-quality products and professional attitude.

Let every customer who uses SZAWINL I experience a more flexible, comfortable, safe and convenient life, is our driving force and direction of continuous progress.

Recliner Replacement Parts

Electric Recliner Switch

Linear actuator

USB adapter

Is Discontinued By Manufacturer ‏ : ‎ No
Package Dimensions ‏ : ‎ 8.26 x 1.96 x 1.57 inches; 4.32 ounces
Date First Available ‏ : ‎ November 16, 2023
Manufacturer ‏ : ‎ youlante
ASIN ‏ : ‎ B0CNGJ5HVC
Country of Origin ‏ : ‎ China

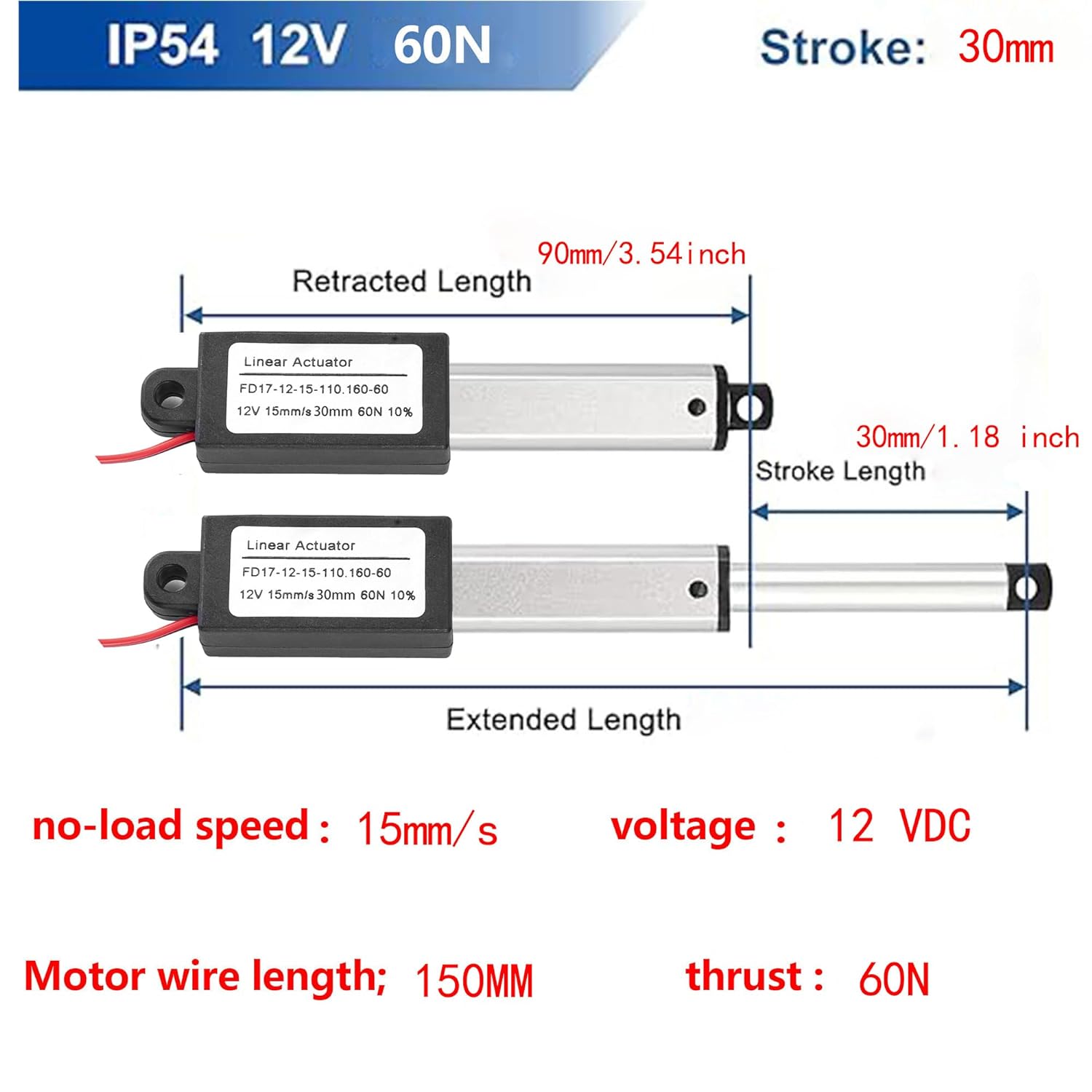

1.Parameter: Small linear actuator stroke length: 1.2 inches/30mm, maximum load capacity: 60N/13.4lbs,input voltage: 12VDC,IP54 protection level,low noise ≤ 50,ambient temperature:+5°C+40°C
2.Precision manufacturing: The mini electric linear actuator is made of high quality aluminum and both ends are made of metal materials,suitable for indoor and outdoor use.Not easy to rust,easy to operate and easy to use,Built in limit switch,can limit at any position and automatically stop at the top, with self locking function
3.Product features: Linear motion actuators have a compact structure,small size,light weight,reliable performance,stable operation,consistent push pull characteristics,and good environmental adaptability, And it has short-circuit protection,overload protection,and overvoltage protection
4.Multi-purpose: Flexible for various applications,such as TV elevator,electric massage chair,camera stand,medical chair,micro device,smart range hood,fan blade,cabinet,robot,pet door,factory/home automation,etc

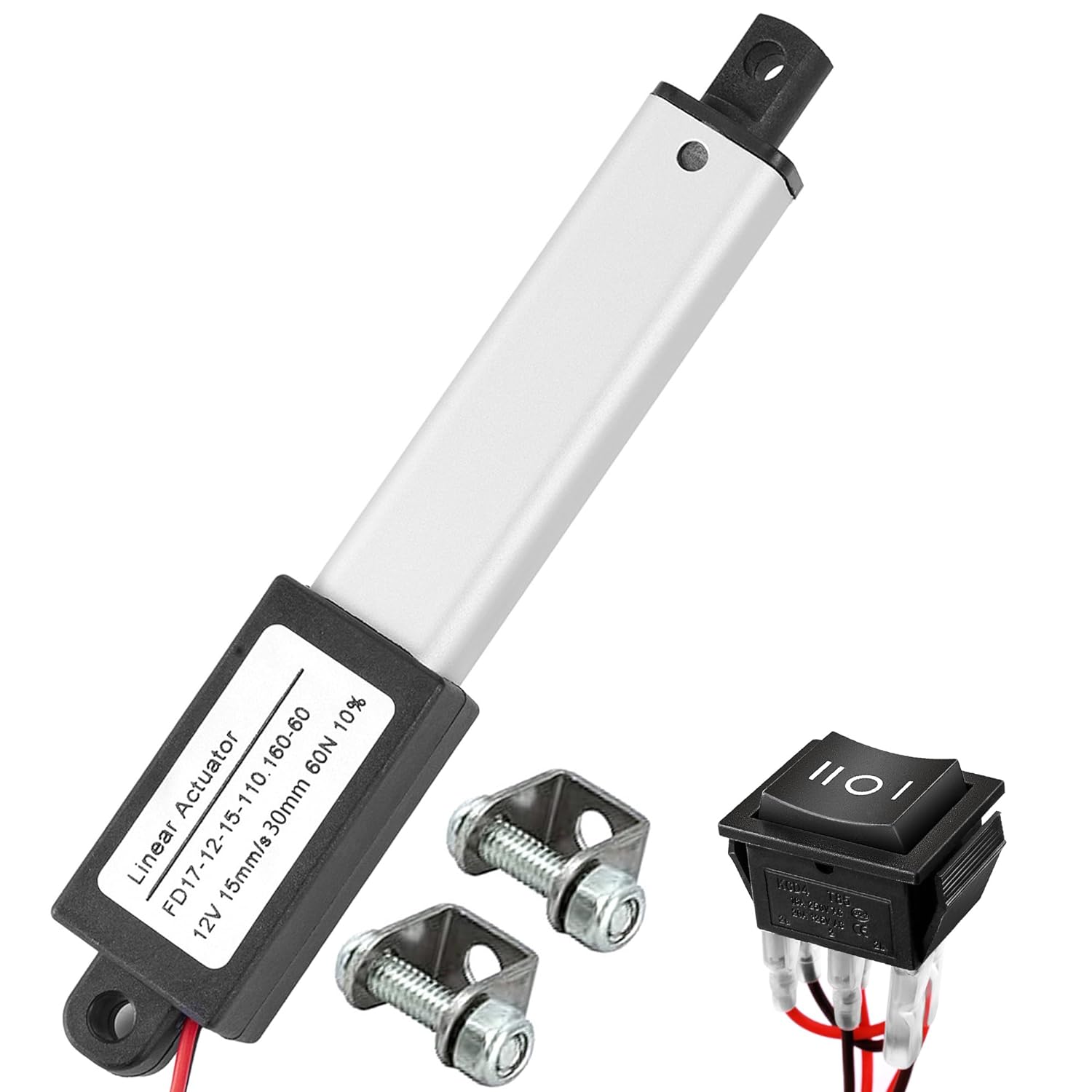

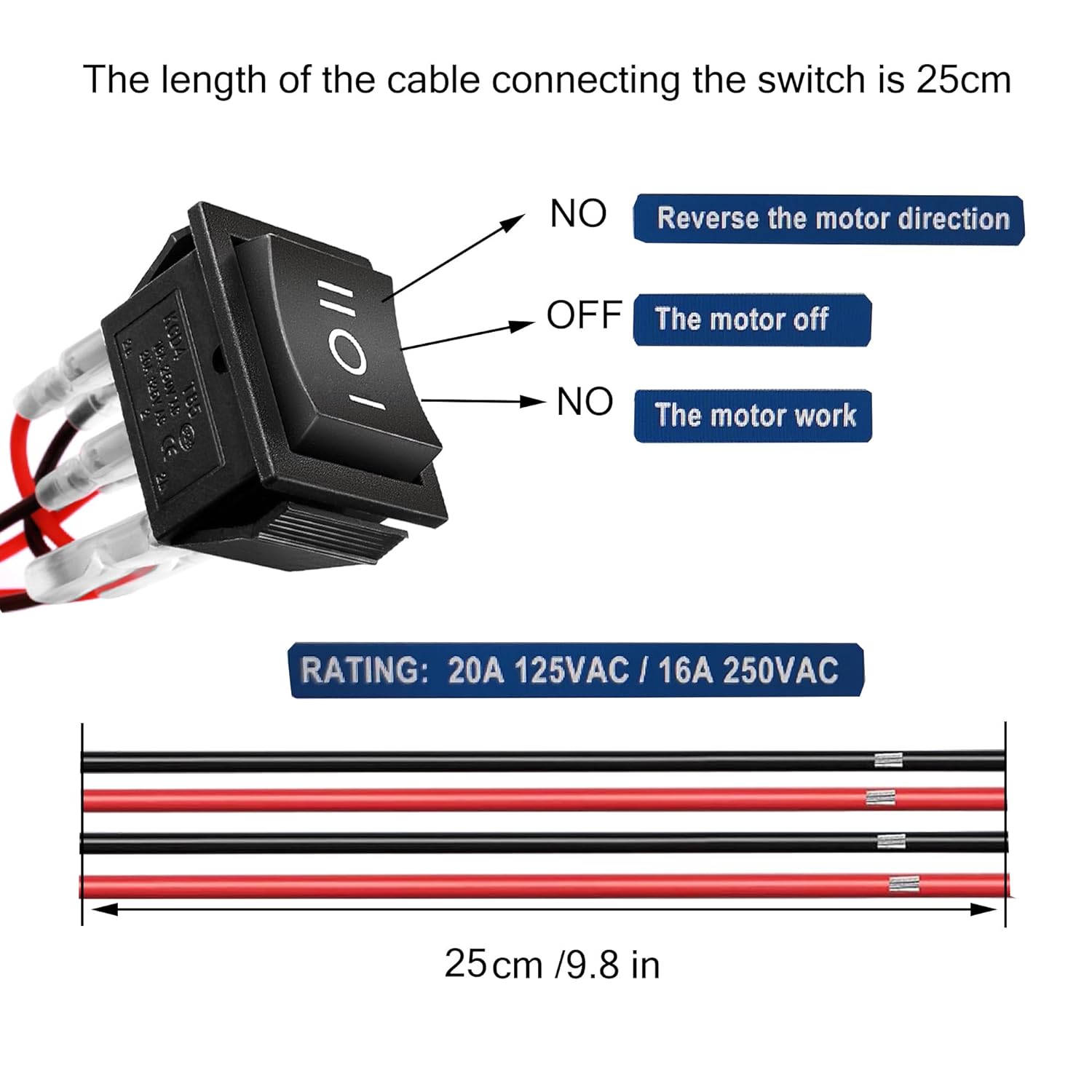

5.The product includes: a push rod, two mounting brackets and a switch with a wire length of 25cm,A reverse rocker with an ON/NO operating button pushes the switch,which moves only when the finger actively presses the down or up rocker switch. When the finger does not press the switch,the DC load will stop.20 amps,maximum voltage 250V to accommodate greater DC loads
