Description
Price: $128.29
(as of Jul 16, 2024 21:13:17 UTC – Details)
Product Description
Feature
Heavy-duty Cast Iron
Made of quality cast iron, which is anti-corrosion and rust resistance, more durable and ensures long service time.
T Groove Fixing Design
The compound table, with great hardness and stiffness, is high ground and not easy deformation. Three T-slots design can meet different force requirements.
2 Axis Movement
X-axis travel: 210 mm, Y-axis travel: 110 mm. You can adjust the optimal working position as you need.
Feature
Adjustable Handle

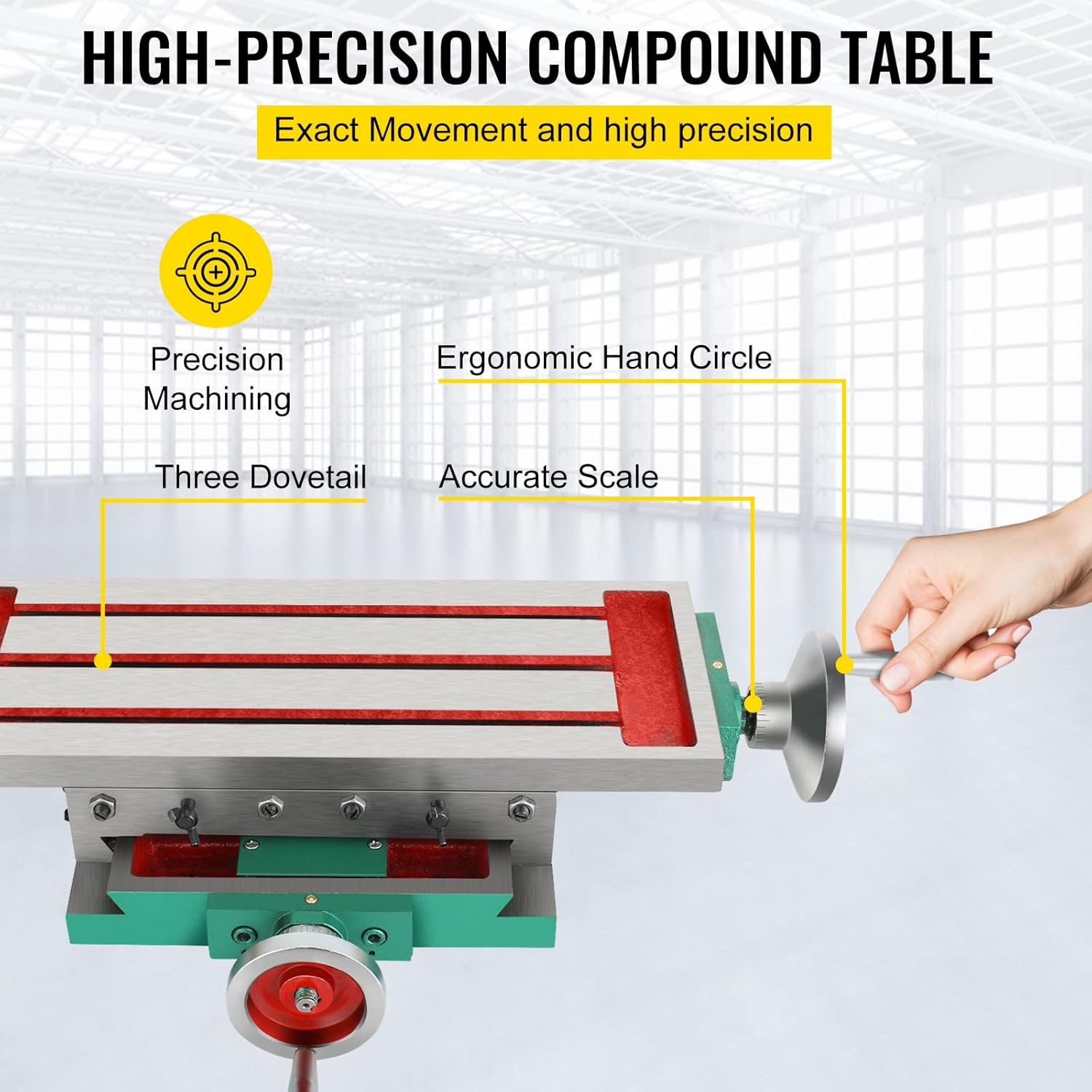

A metal handle with good texture is easy to adjust the directions. With a clear scale on it, it will be more accurate when in use.
Quality Bolts & Nuts
The drill press table will be more convenient to adjust the tightness of the worktable with a number of bolts and nuts.
Extensive Application

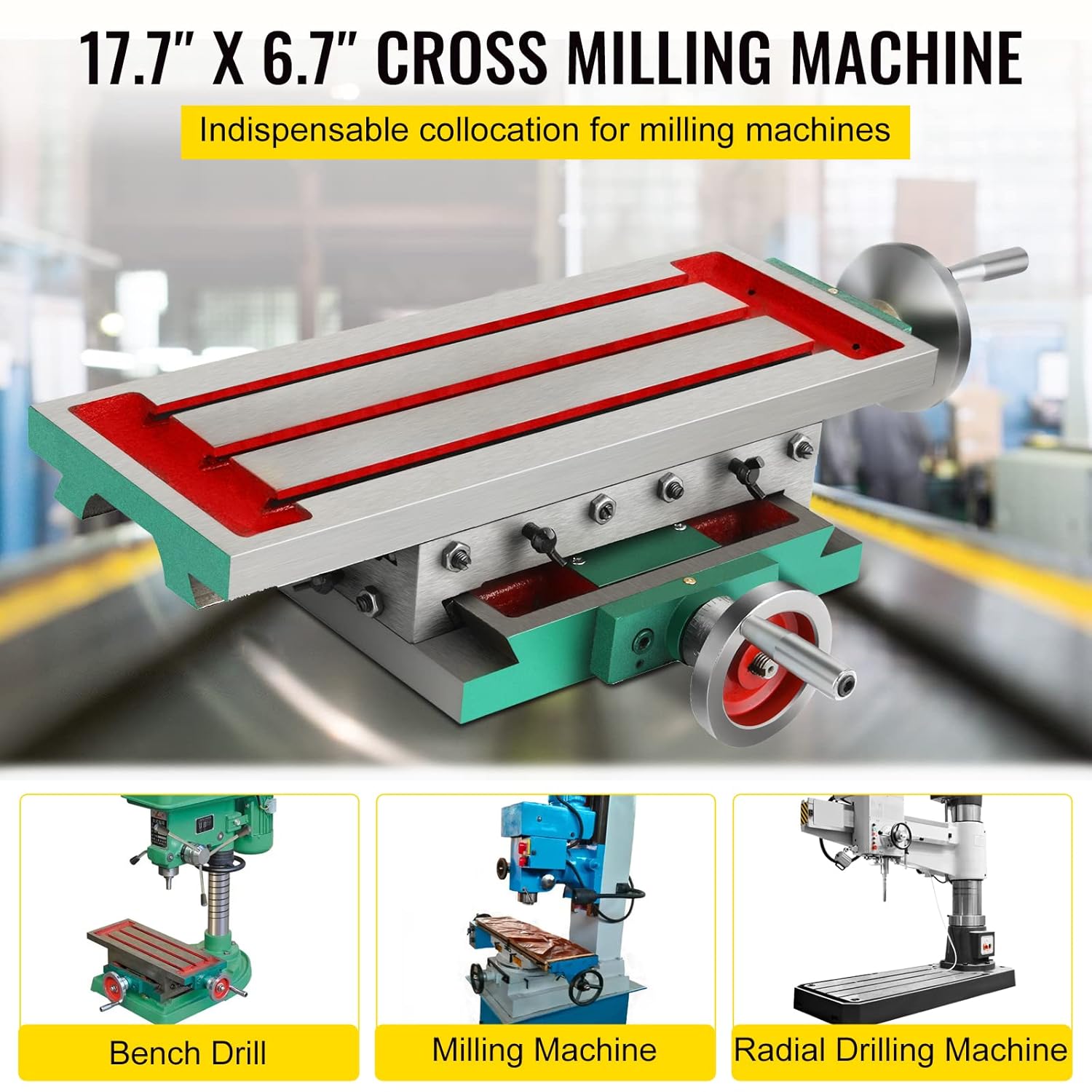

This milling working table can be used for most types of milling, drilling, and staging, ideal for all drill stands, drilling, and milling machines.
Specifications

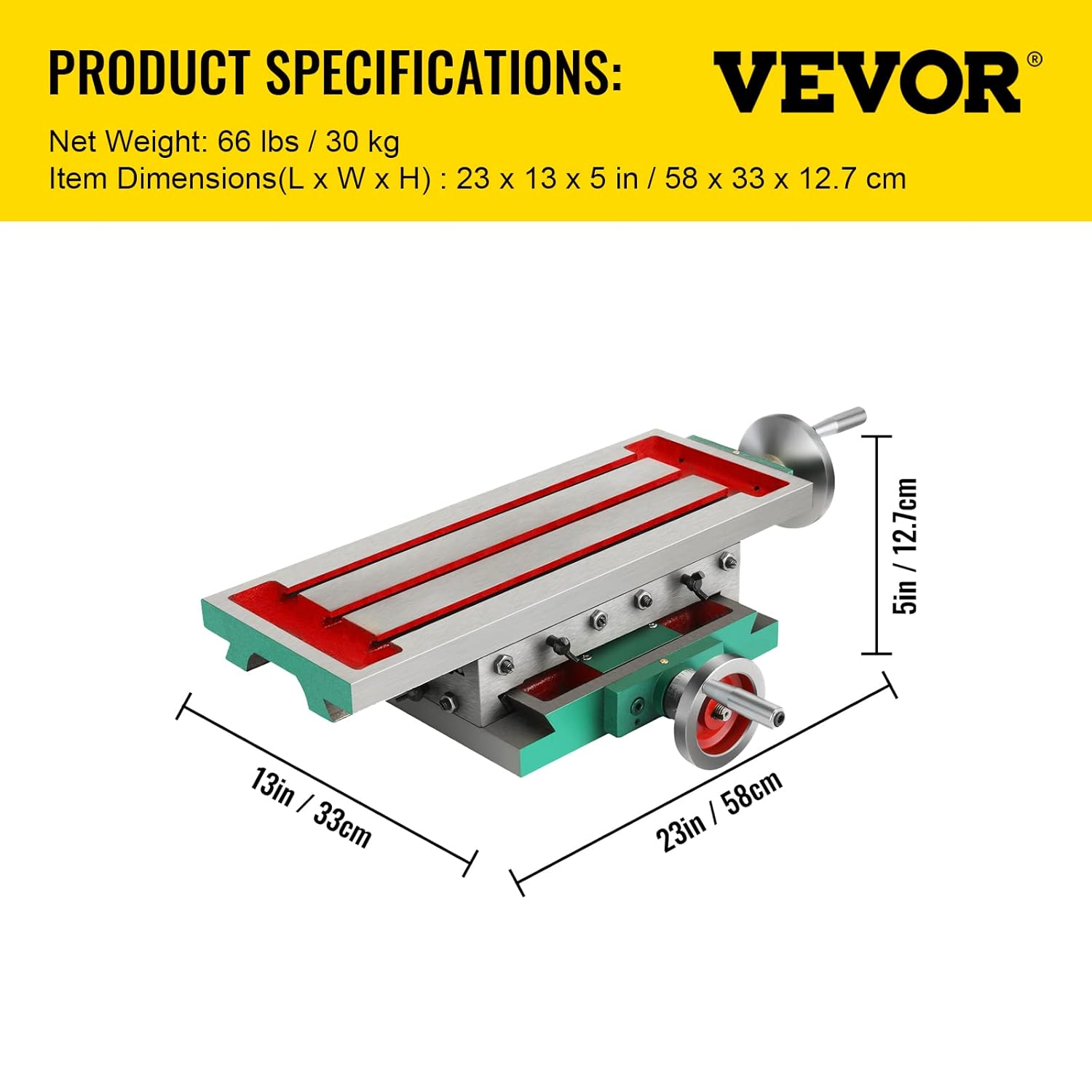

Worktable length: 17.7 in / 450 mmWorktable width: 6.7 in / 170 mmTransverse travel(X-Route): 8.3 in / 210 mmLongitudinal travel(Y-Route): 4.3 in / 110 mmMounting Hole Size (Transverse): 6.2 in / 15.7 cmMounting Hole Size (Longitudinal): 5.3 in / 13.5 cmChassis Size: 10 x 9 in / 26 x 23 cmNet Weight: 66 lbs / 30 kgItem Dimensions(L x W x H) : 23 x 13 x 5 in / 58 x 33 x 12.7 cm
Package Content
1 X Milling Support Table Worktable(450*170mm)
6.7 in / 170 mm Milling Machine Worktable

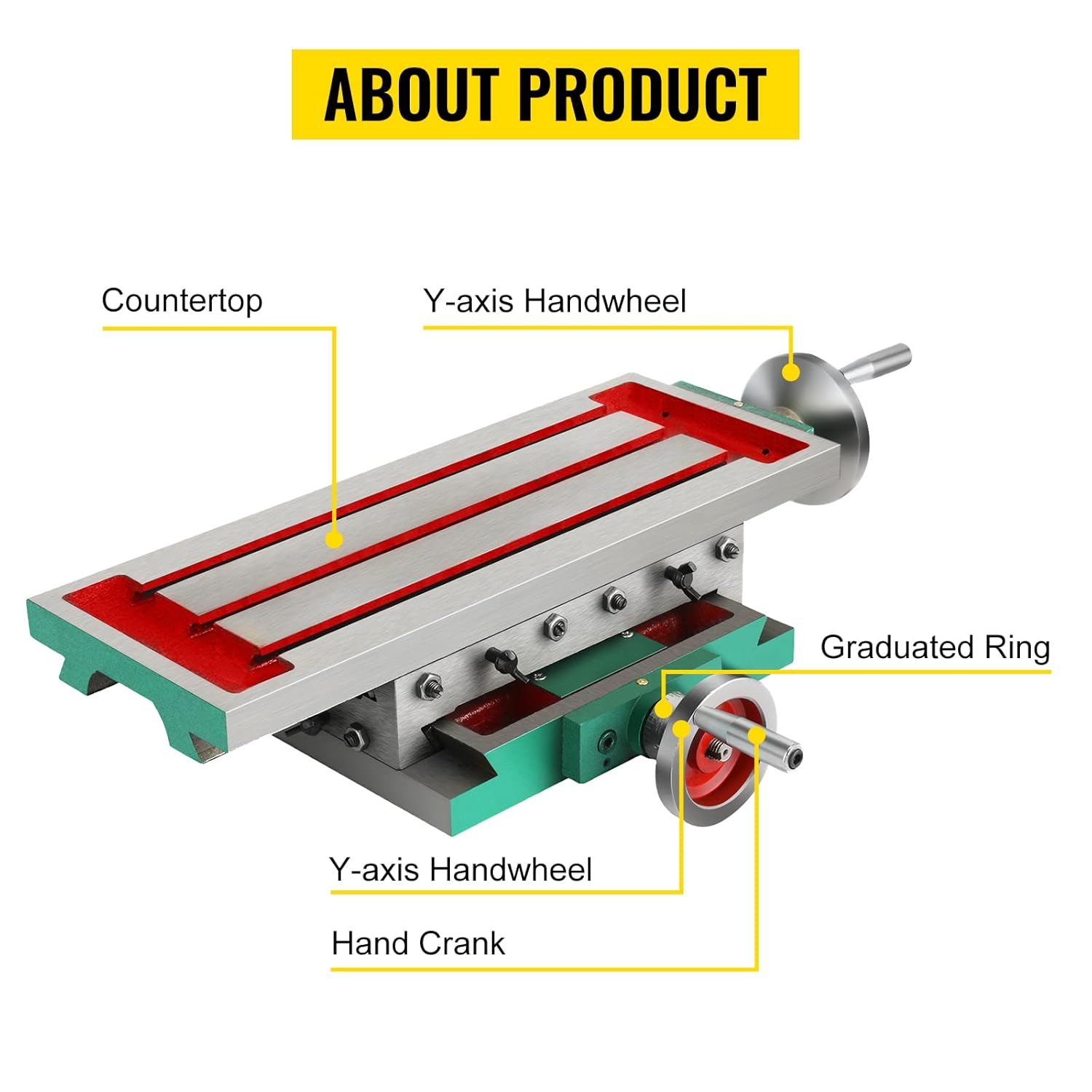

Large Worktable & Flexible Movement & High Precision
The two-axis workbench surface has three T-slots and provides dual-axis (lateral and cross) positioning via two handwheels for precise adjustments. Perfect for drilling grinding and milling operations.
Premium Quality Structure Highly Polishing & Stiffness Adjustment in X Y Direction Tightness Adjustment
Add to Cart
Add to Cart
Customer Reviews
3.8 out of 5 stars
262
3.7 out of 5 stars
88
Price
$128.29$128.29 $80.88$80.88
Worktable Dimensions
450 x 170 mm / 17.7 x 6.7 in 185.4 x 101.6 mm / 7.3 x 4 in
Transverse travel(X-Route)
210 mm / 8.3 in 81.3 mm / 3.2 in
Longitudinal travel(Y-Route):
110 mm / 4.3 in 35.6 mm / 1.4 in
Overall height
100 mm / 3.9 in 10.2 mm / 0.4 in
Item Weight
56.88 lbs / 25.8 kg 22.71 lbs / 10.3 kg
Package Dimensions
540 x 310 x 115 mm / 21.3 x 12.2 x 4.5 in 30 x 29 x 17 mm / 11.8 x 11.5 x 6.7 in
Is Discontinued By Manufacturer : No
Package Dimensions : 22.75 x 13.98 x 6.81 inches; 66.14 Pounds
Item model number : Milling Working Table
Date First Available : May 3, 2017
Manufacturer : VEVOR
ASIN : B0713YLS3K
Country of Origin : China

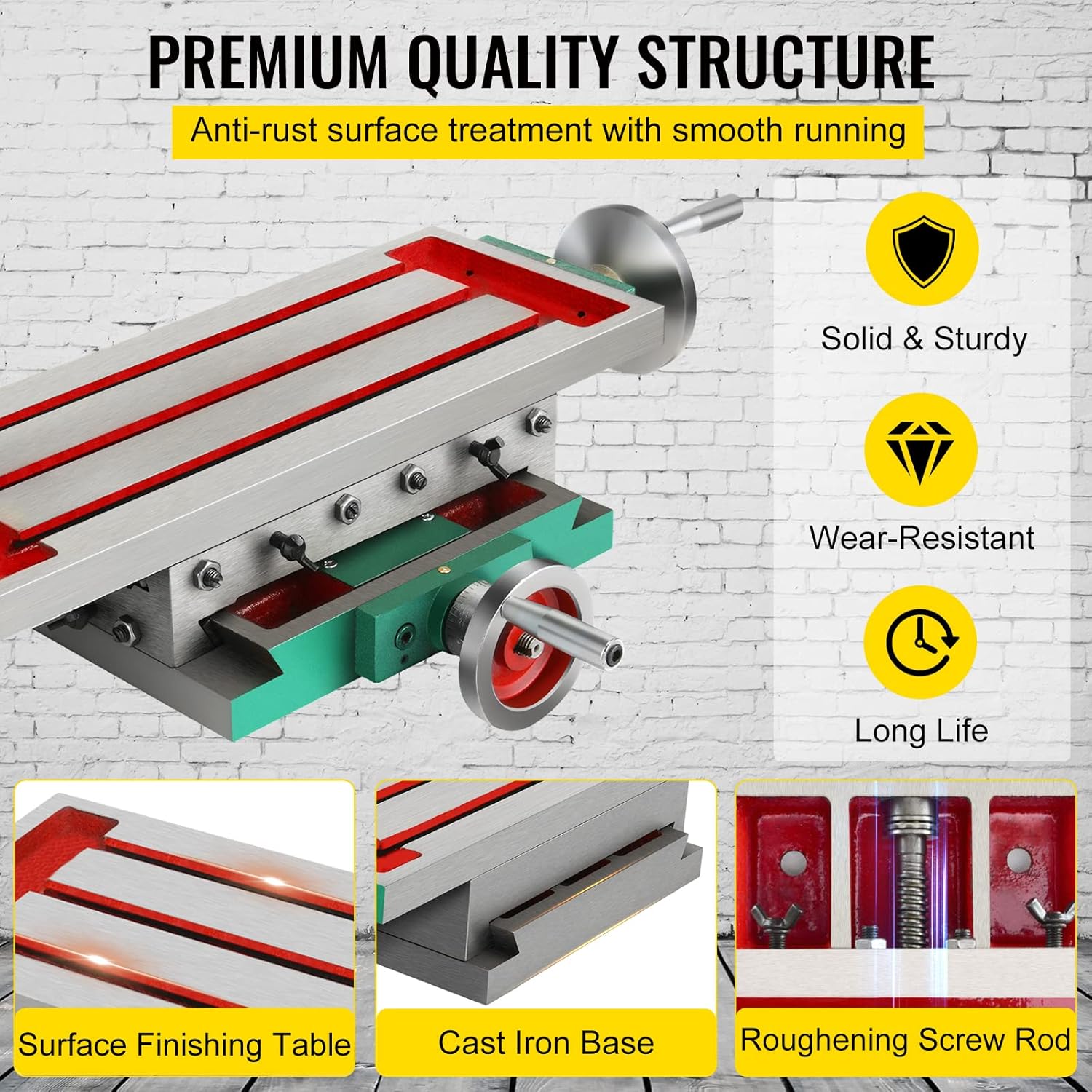

【PREMIUM QUALITY STRUCTURE】- Built by heavy-duty cast iron material, which is anti-corrosion and rust resistance, angle milling table can withstand the tough environment and designed for long service time.
【HIGHLY POLISHING & STIFFNESS】- The compound slide table, with great hardness and stiffness, is high ground and not easy deformation. Three precise T-slots can meet different force requirements.

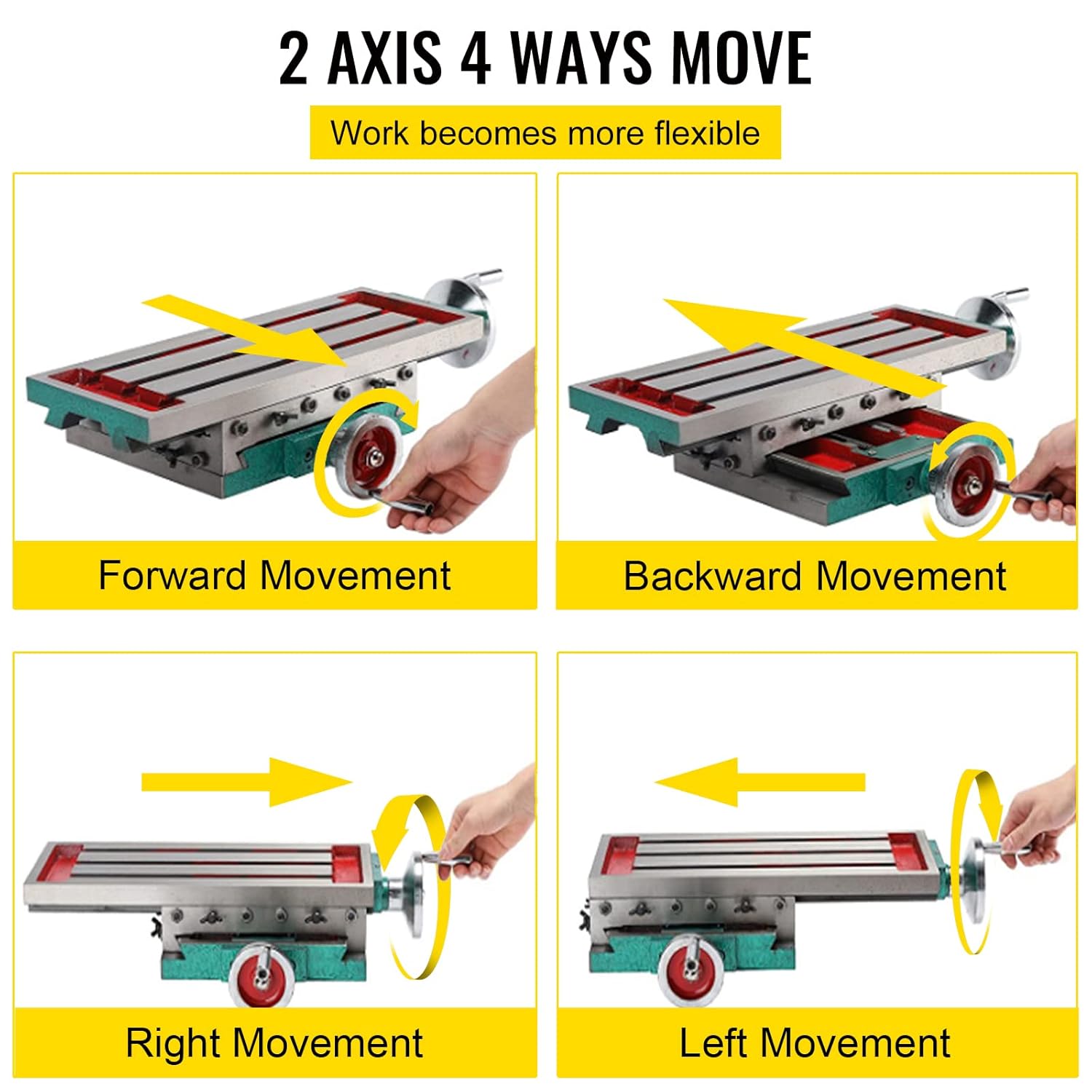

【2 AXIS 4 WAYS MOVE】- Handles with trapezoidal thread spindles is easy to adjust the directions. X-axis travel: 210 mm, Y-axis travel: 110 mm. With a precise scale on it, you can adjust the optimal working position as you need.

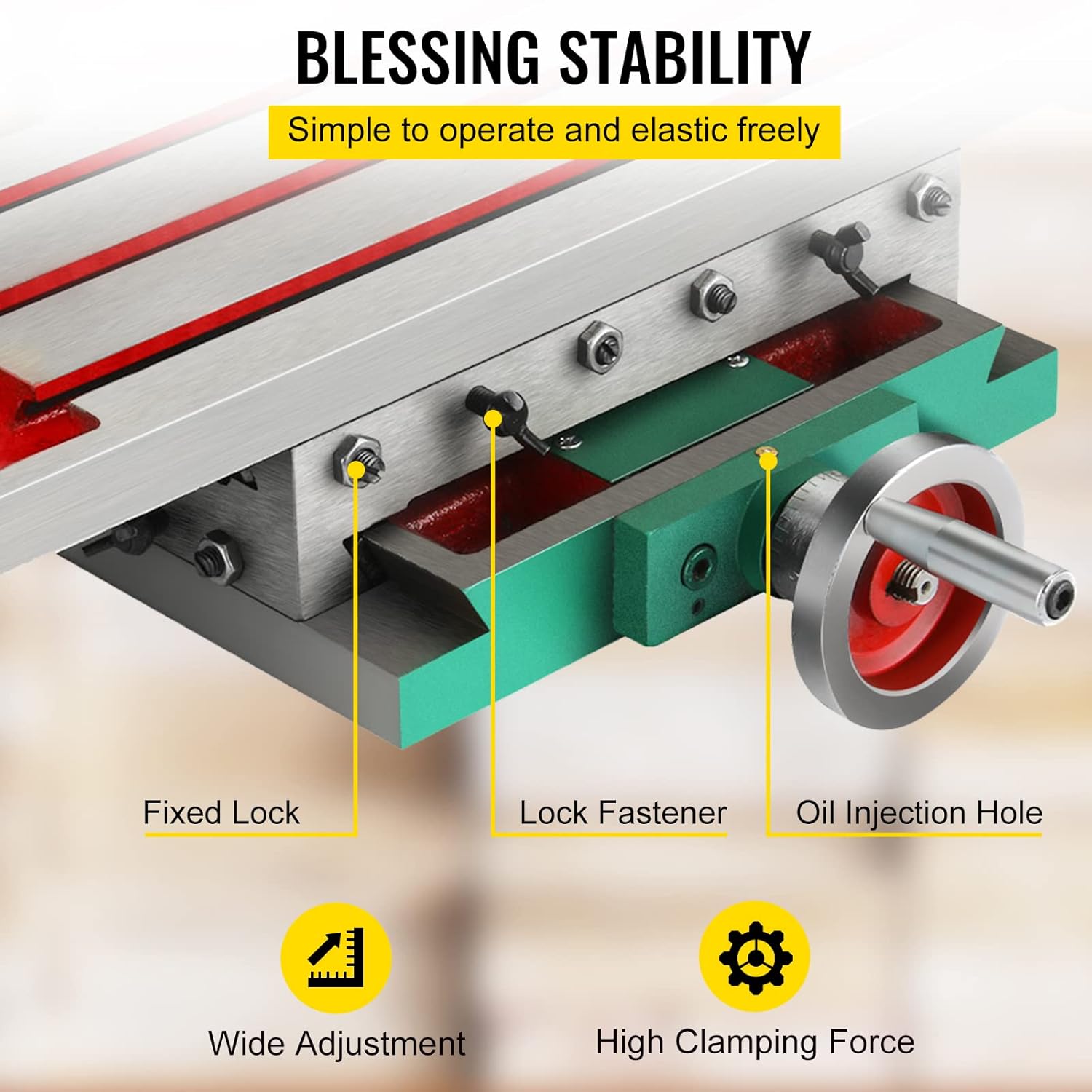

【TIGHTNESS ADJUSTMENT】- Equipped with several quality bolts and nuts, you can easily adjust the tightness of this cross slide table. Convenient for your use.
【WIDE APPLICATION AREA】- This milling working cross table machine is great for mounting on drilling machines for precise positioning. It can be used for most types of milling and drilling, ideal for all drill stands, drilling, and milling machines.
