Description
Price: $19.99 - $14.99
(as of Aug 02, 2024 01:55:15 UTC – Details)
Product Description
Digital Multimeter

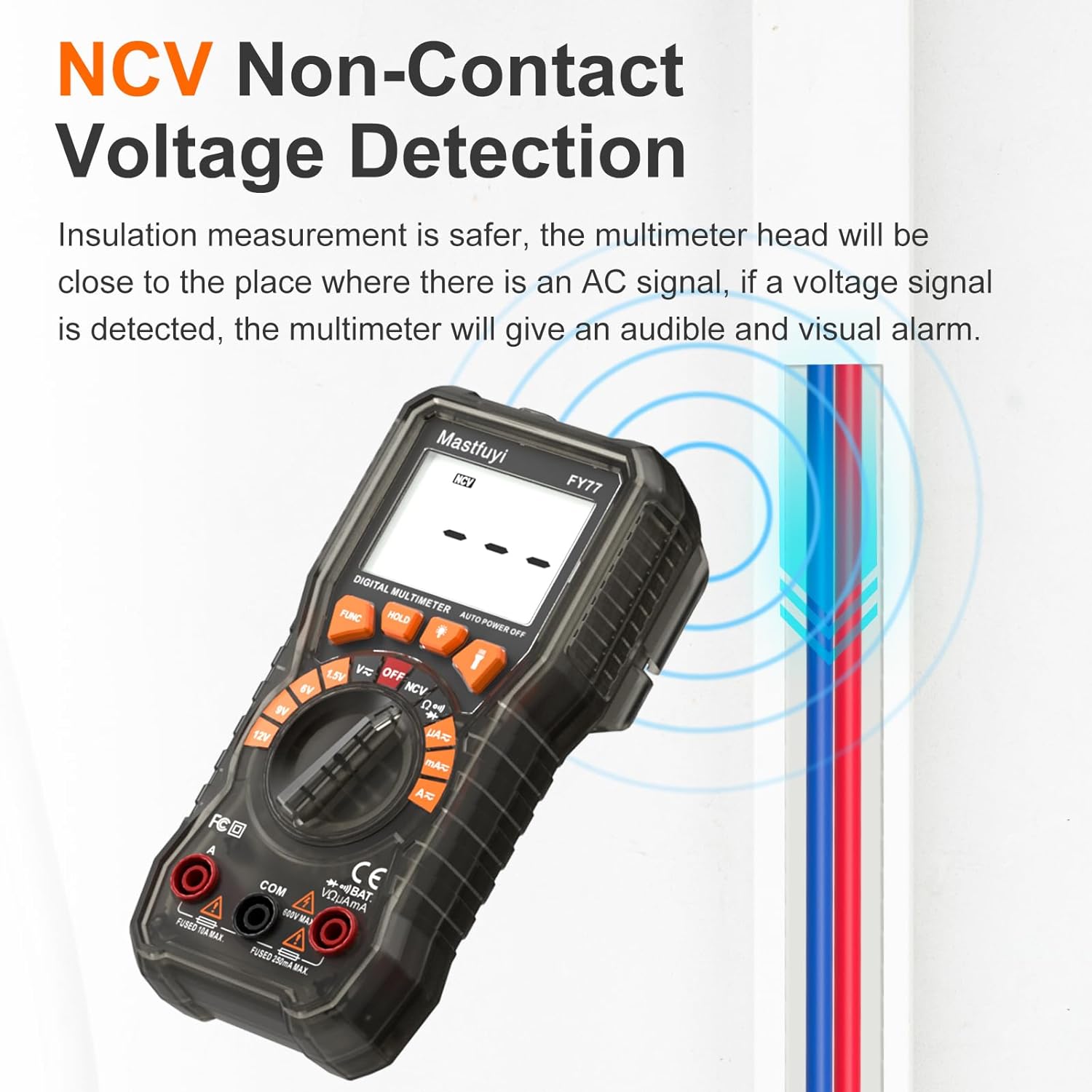

Full protection function, anti high voltage ignition circuit design, streamline design, special battery voltage test file 1.5v/6v/9v/12v, backlight display, automatic range, full view large screen, NCV measurement, low voltage display, flashlight lighting, data retention and other functions. Measurable diode: forward DC current is about 1mA, reverse DC voltage is about 3.2V. Continuity test: If the resistance is less than 100Ω, a buzzer will occur. Battery test: 1.5V resolution: 0.001V; 6V resolution: 0.01V; 9V resolution: 0.01V; 12V resolution: 0.01V Measurable NCV function, data retention, backlight, flashlight function.
Specifications
DC Voltage: 200mV/2V/20V/200V, 600V ± (0.8% rdg + 2dgt) AC Voltage: 2V/20V/200V ± (1.0% reading + 3 dgt), 600V ± (1.2% rdg + 3dgt) DC Current: 200uA/2000uA/20mA/200mA ± (1.5% reading + 3 dgt), 10A ± (2.0% reading + 5 dgt) AC Current: 200uA/2000uA/20mA/200mA ± (1.5% reading + 4 dgt), 10A ± (2.5% reading + 5 dgt) Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ ± (0.8% reading + 2 dgt), 20MΩ ± (1.0% reading + 2 dgt) Automatic range, full scale is 1999 counts. Hold: data holding function Power supply: 1.5V battery aaax3 Operating temperature and humidity: 0 ~ 40 ° C / 32 ~ 104 ° F, 45% – 80% RH Storage temperature and humidity: – 20 ~ 60 ° C / – 4 ~ 140 ° F, 45% – 80% RH Safety class: IEC61010-1, CAT Ⅱ 600V
LCD Display & Backlight
Press the backlight button for 2 seconds to turn on the backlight, which is convenient for reading in dark places. The backlight turns off automatically after 15 seconds.
Auto Sleep Function
When the Digital Multimeter is not operated for 15 minutes, it will automatically turn off to maintain the power and facilitate the next use.
Multifunction
With precision measurement of battery voltage, AC / DC voltage up to 600 V, AC / DC current up to 200 mA / 10 A, Resistance to 20 MΩ, Continuity, Resistance, Diode. It is a perfect device for solving electrical problems in a wide range of industrial and household devices such as electronic equipment, household appliances, power supplies and wiring systems
Add to Cart
Add to Cart
Customer Reviews
4.5 out of 5 stars
283
4.5 out of 5 stars
456
4.5 out of 5 stars
76
4.4 out of 5 stars
364
Price
— $19.99$19.99 $16.99$16.99
—
True RMS
2000 6000 4000 4000
DC Voltage
✓
✓
✓
✓
AC Voltage
✓
✓
✓
✓
DC Current
✓
✓
✓
✓
AC Current
✓
✓
✓
✓
Resistance
✓
✓
✓
✓
Capacitance
X
✓
X
✓
Frequency
X X
✓
✓
Continuity
✓
✓
✓
✓
Diode
✓
✓
X
✓
Package Dimensions : 6.93 x 4.41 x 2.13 inches; 13.12 ounces
Date First Available : January 1, 2024
Manufacturer : Mastfuyi
ASIN : B0CR7P4BFY
Country of Origin : China
▲【Battery Test】 : Multimeter can be used to test a 1.5 volt, 6 volt, 9 volt and 12 volt battery. Simple operation: turn the dial to your destination position (1.5 V, 6 V, 9 V or 12 V). You just have to connect the test leads to the two terminals of the battery in order to know the charge levels

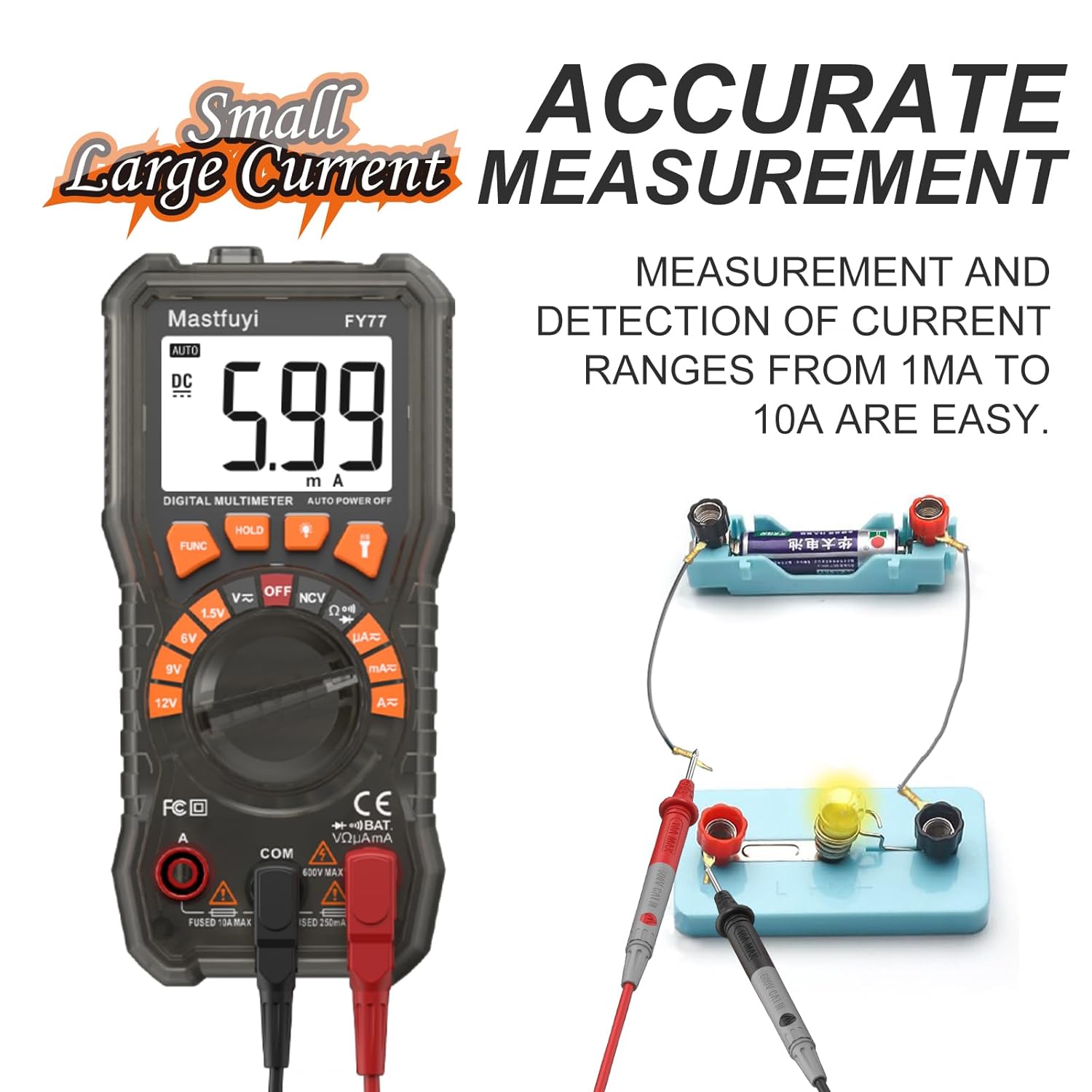

▲【Multi-Functional】 : With precision measurement of battery voltage, AC / DC voltage up to 600 V, AC / DC current up to 200 mA / 10 A, Resistance to 20 MΩ, Continuity, Resistance, Diode. It is a perfect device for solving electrical problems in a wide range of industrial and household devices such as electronic equipment, household appliances, power supplies and wiring systems

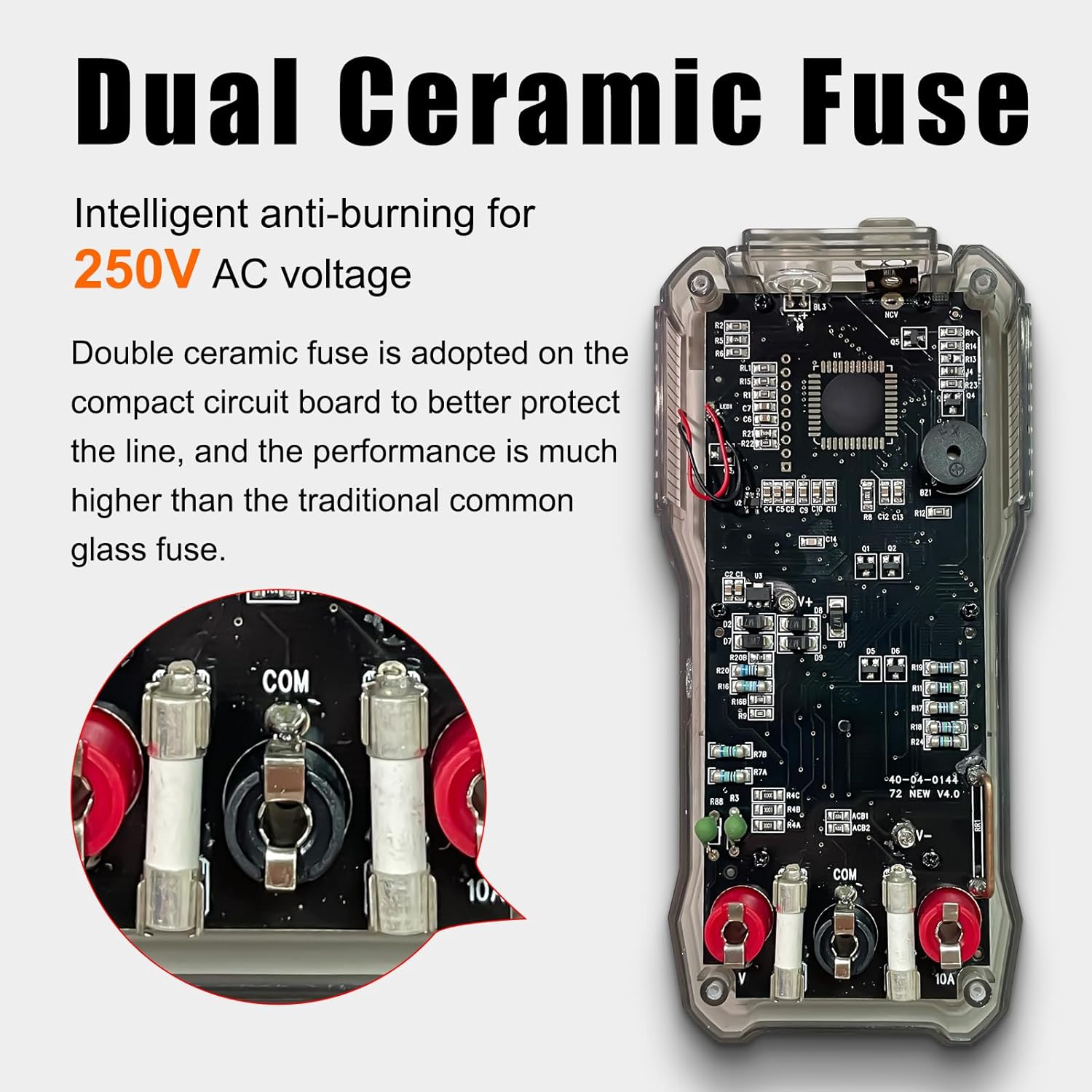

▲【Overload Protection】 : There are two fuses on the internal circuit board of the instrument,two PTC thermistor protection circuits to prevent circuit damage due to wrong measurement

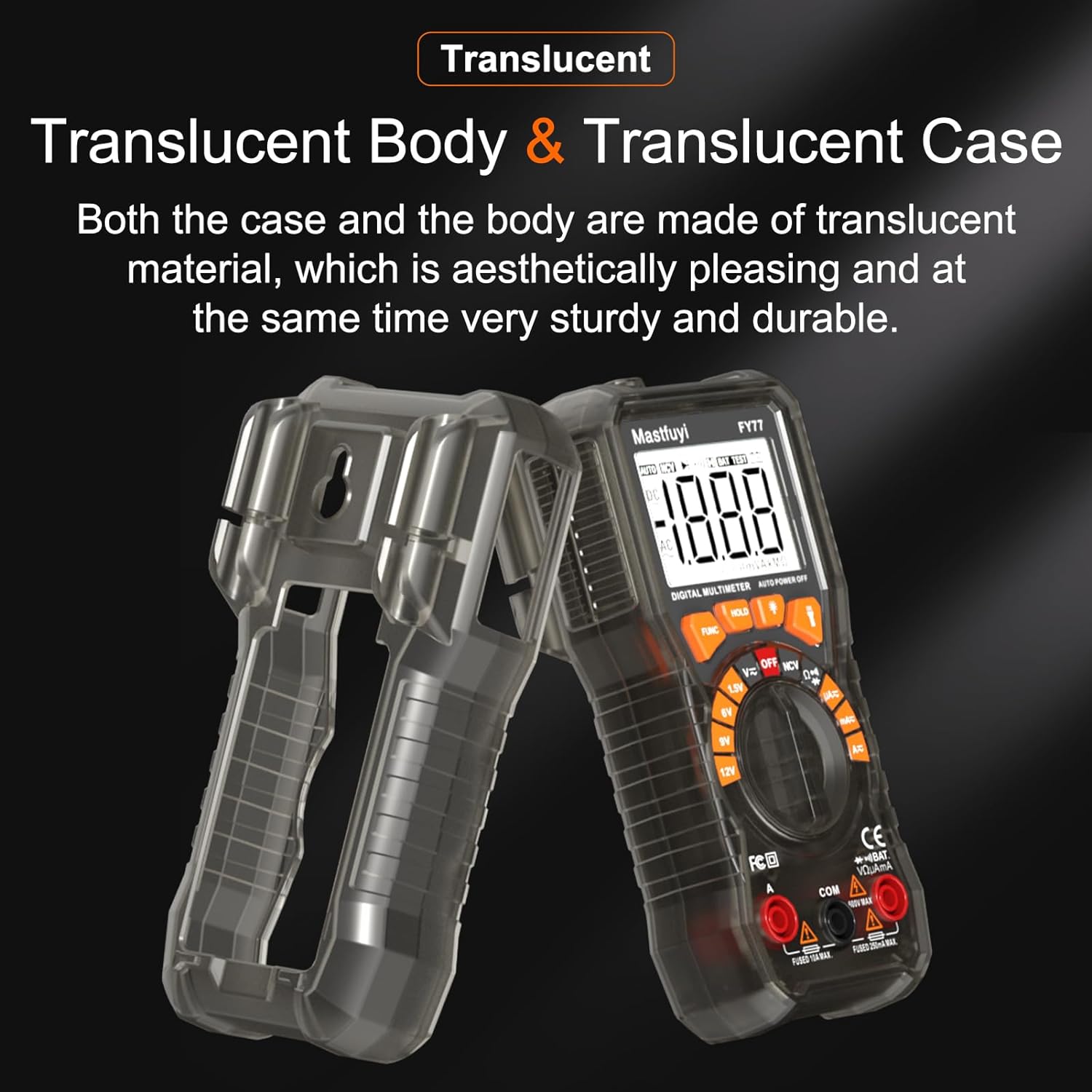

▲【Large Backlit Display】 : With 2.2 inch large backlight display and flashlight, convenient for you to work in dark places; Rubber cover (removable) protects multimeter from drops, wear-resistant, anti-static and non-slip. The screen backlight will automatically turn off 30 seconds after it is turned on
▲【Auto-Ranging Measures】 : Automatic range selection, 2/3 readings per second, True RMS 2000 Counts
▲【Automatic Sleep】 : The instrument will automatically sleep after 15 minutes of inactivity to extend battery life
▲【Low Battery Indicator】 : When the battery power is too low, the multimeter screen will display a low battery indicator icon, according to the prompts to replace the battery to avoid affecting the use
▲【Data Hold】 : When the measurement reading is unstable, press the HOLD button to fix the reading, and the data hold button is convenient for reading and recording
▲【48-Month Warranty】 : We provide 48 months unconditional warranty and lifetime after-sales service

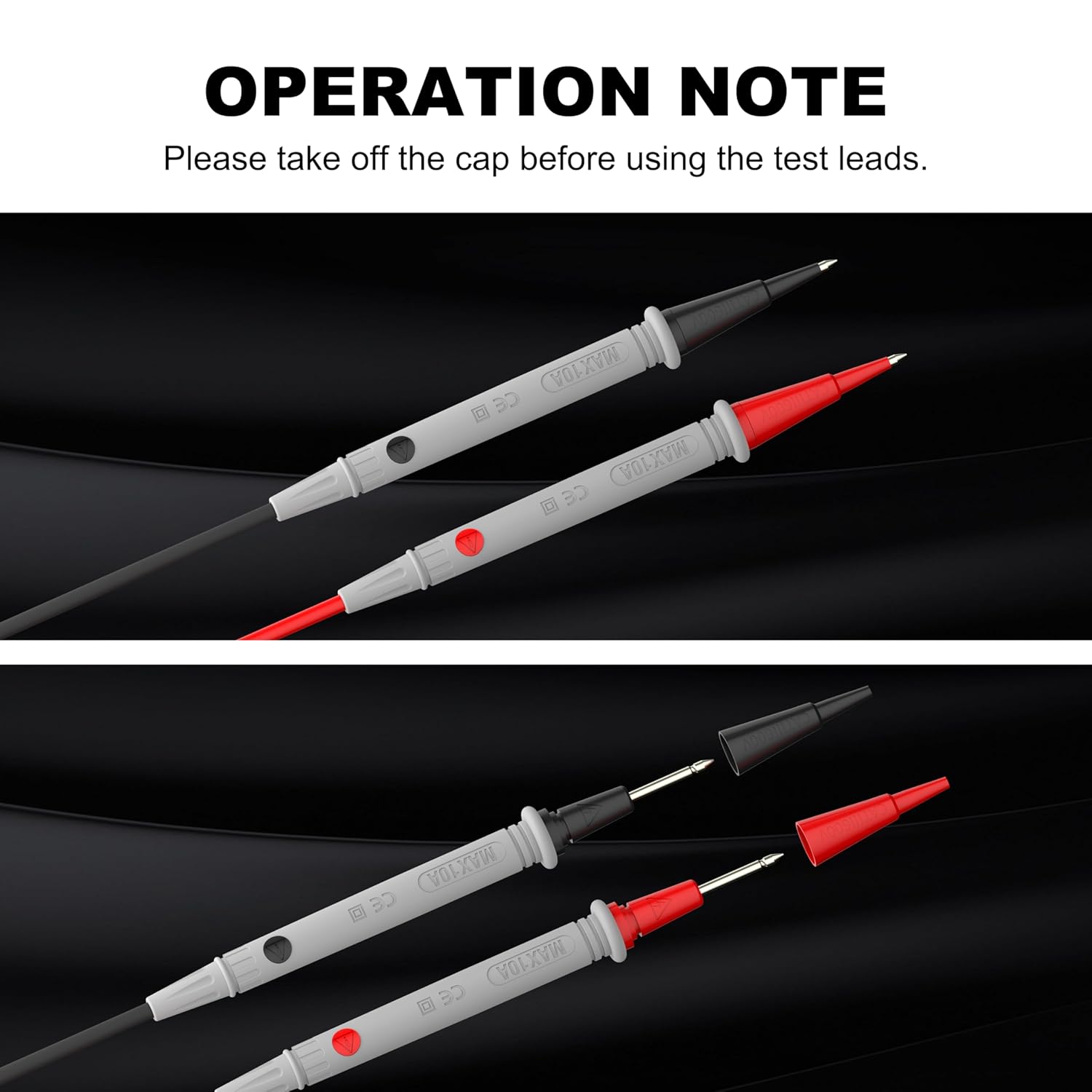

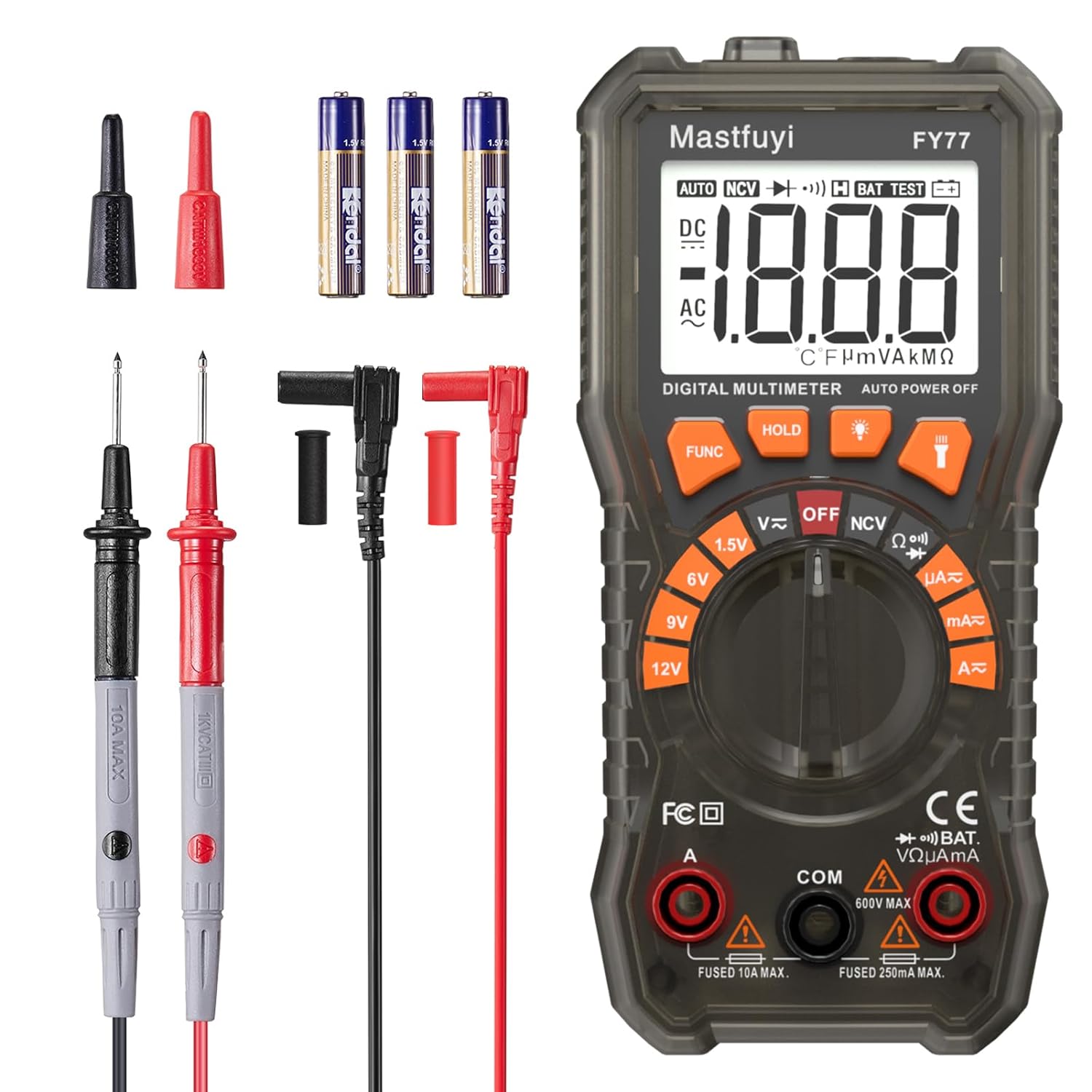

▲【Package Content】 : 1 x Digital Multimeter, 2 x Test Leads, 3 x AAA Batteries, 1 x User Manual
