Product description
Product Description:

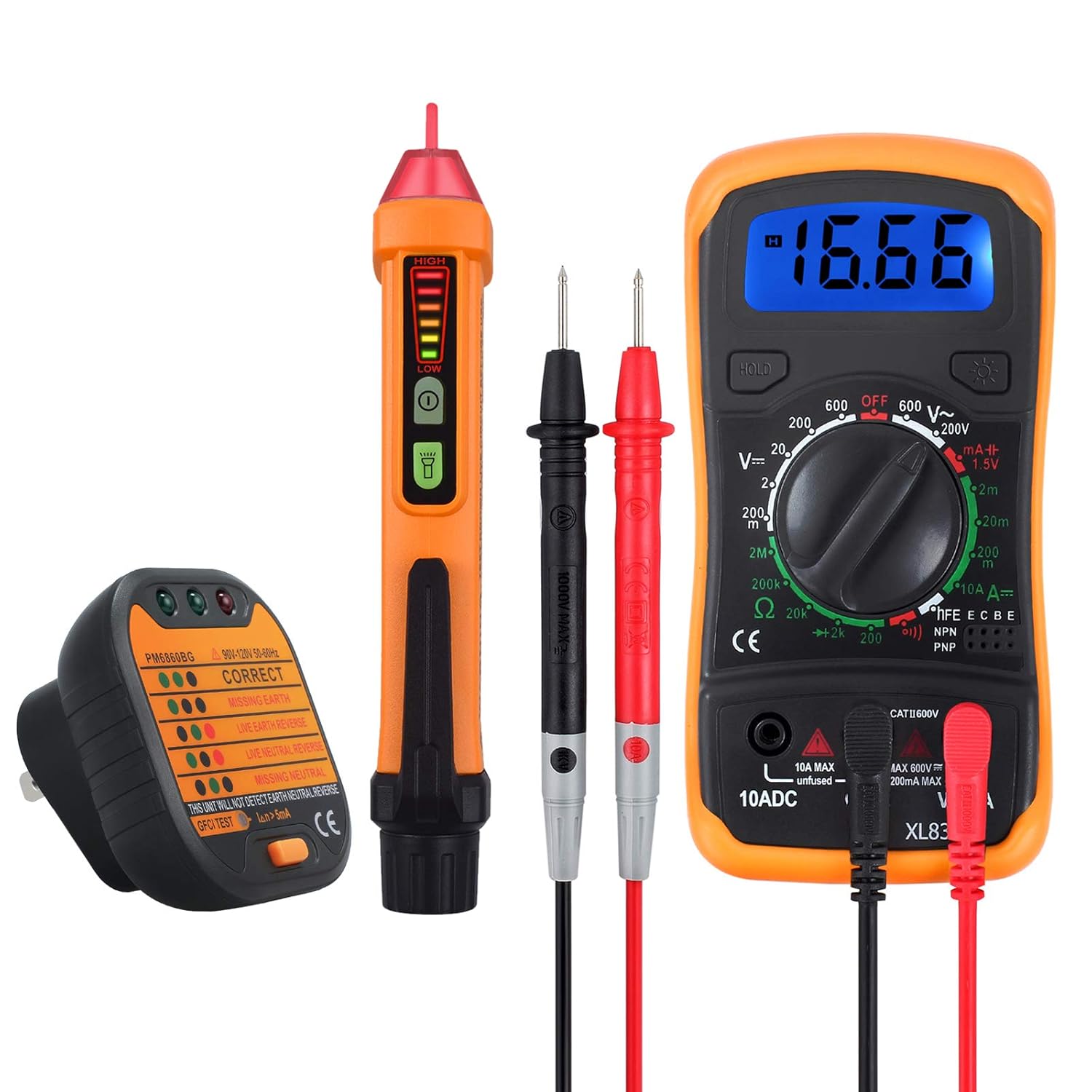

The Kit is an Electrical Test Kit which provides you with basic troubleshooting tools for common electrical problems. This electrical test kit comes with three powerful tools the Manual Ranging CAT II-600V Mini MultiMeter, the Non-Contact Voltage Detector and the Socket Tester.

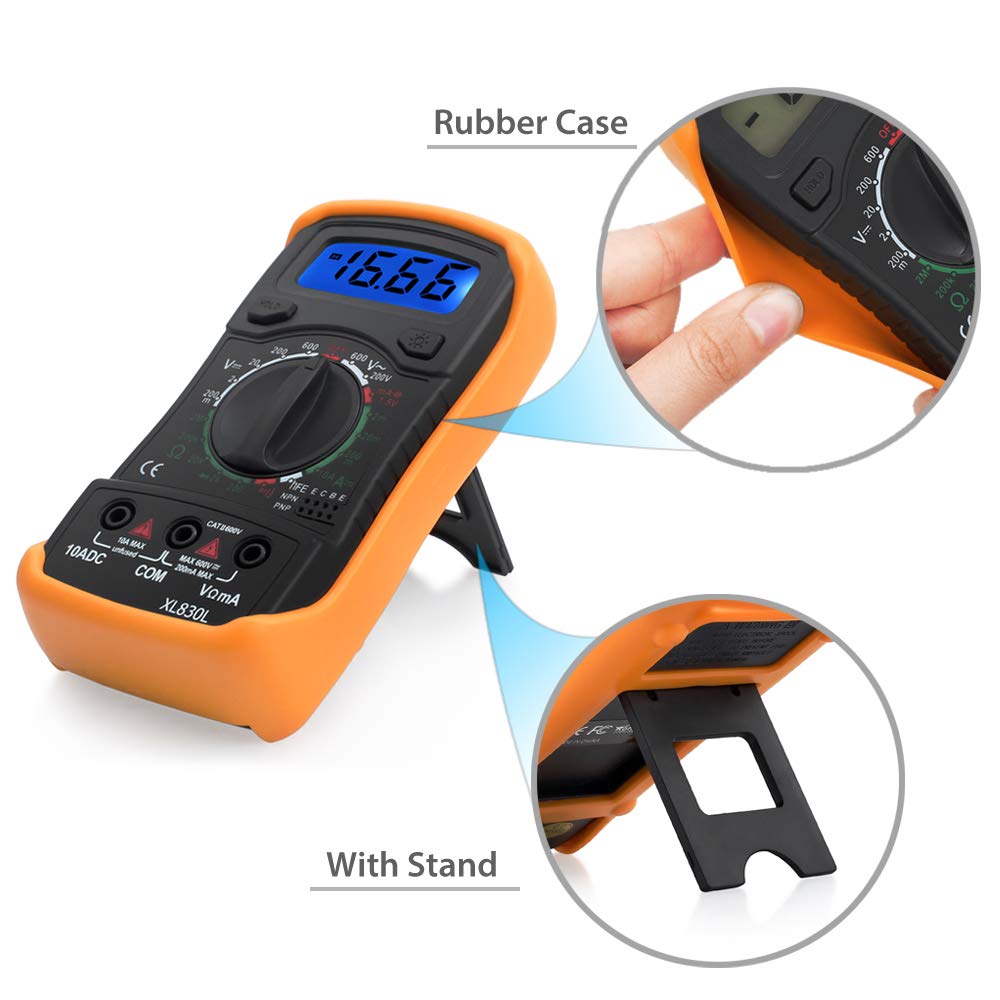

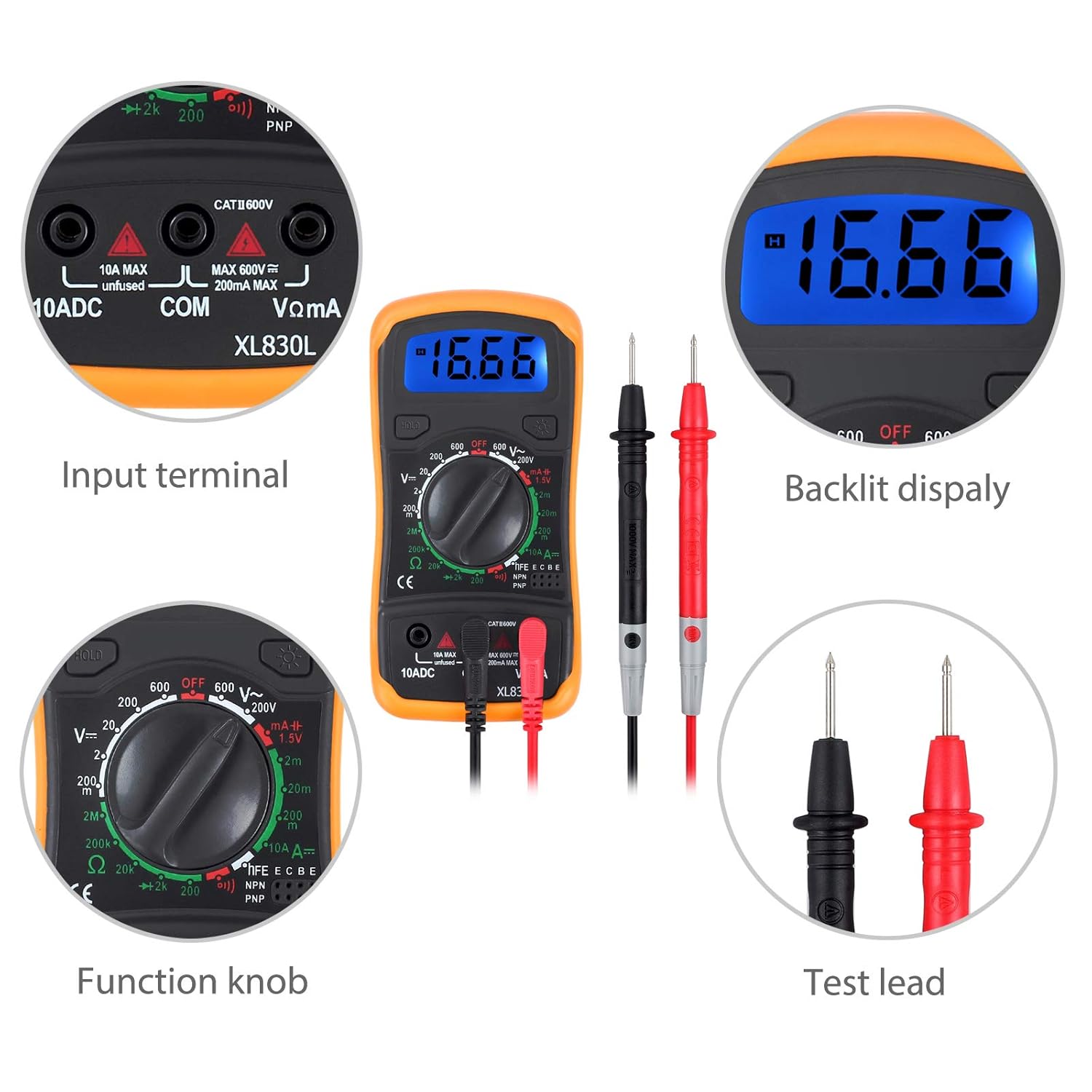

Multifunction Mini Multimeter
It measures AC/DC voltage to 600V, DC current to 10A, resistance and diode/continuity on a 2000 count LCD display. The multimeter takes interchangeable test leads and is housed in a durable casing.

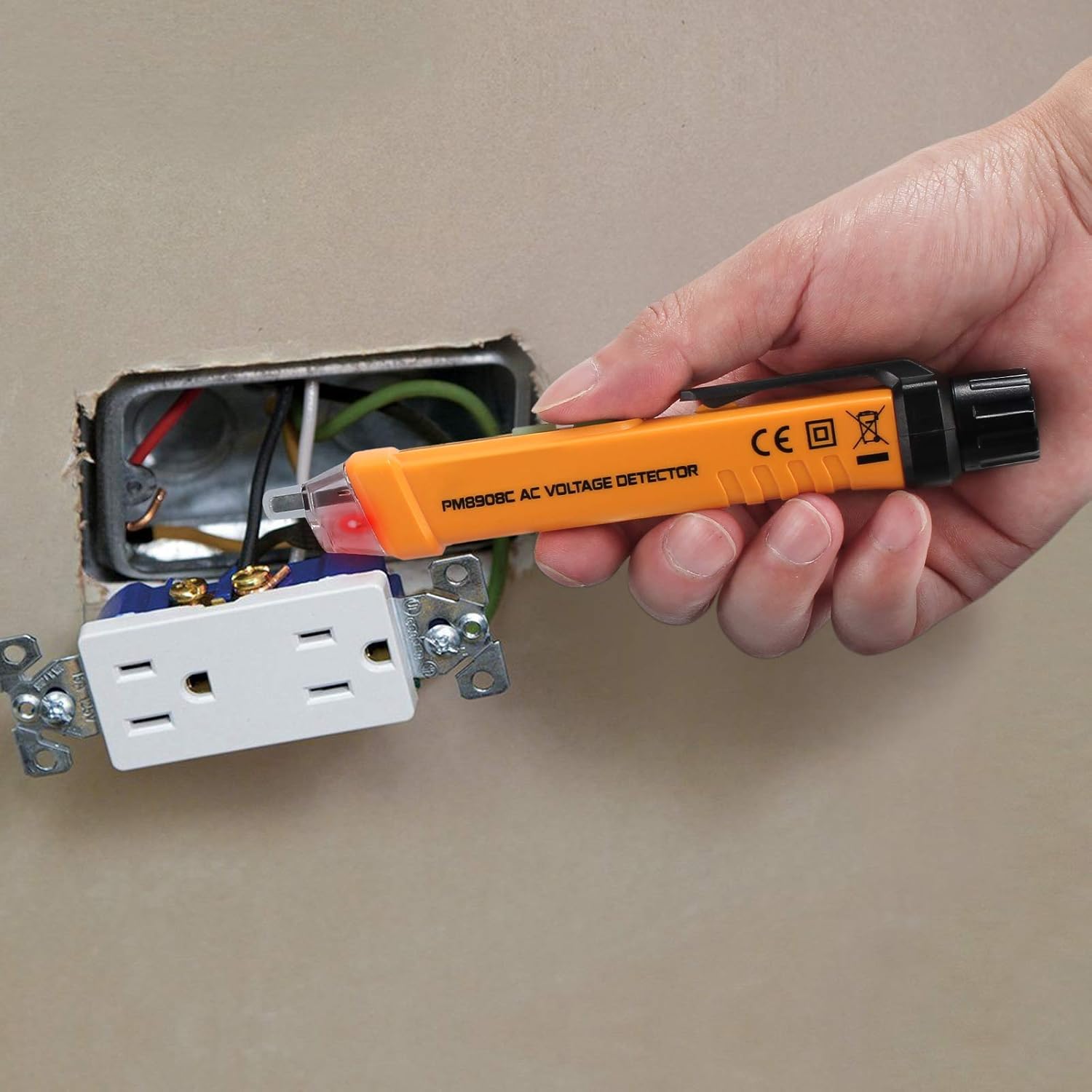

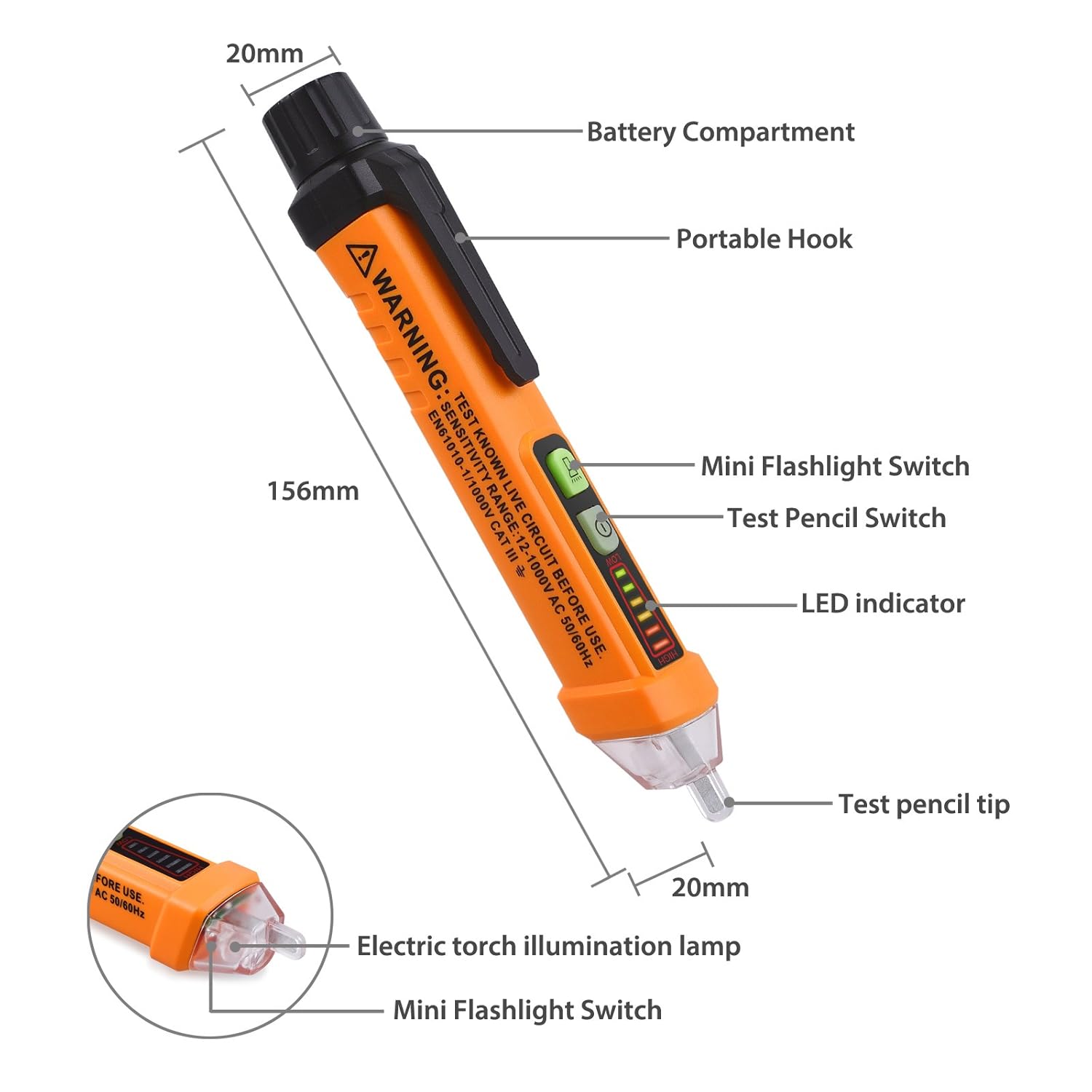

Non-Contact Voltage Detector
Tips: When it senses the voltage around, it start beeping, even though the tester pen hasn’t touched the item. As more closer, it beeps stronger.
This NCV detector is for use on 50/60Hz circuits and detects AC Voltage from 100VAC to 600VAC without the need to touch the source. Detection is indicated by flashing red LEDs. The Socket Tester is a receptacle tester used to detect faulting wiring in 3 wire receptacles for 5 wiring faults. The Socket Tester utilizes LED lights to indicate good or bad connections.
Application: Appliance repair, electrical installation, home inspection.

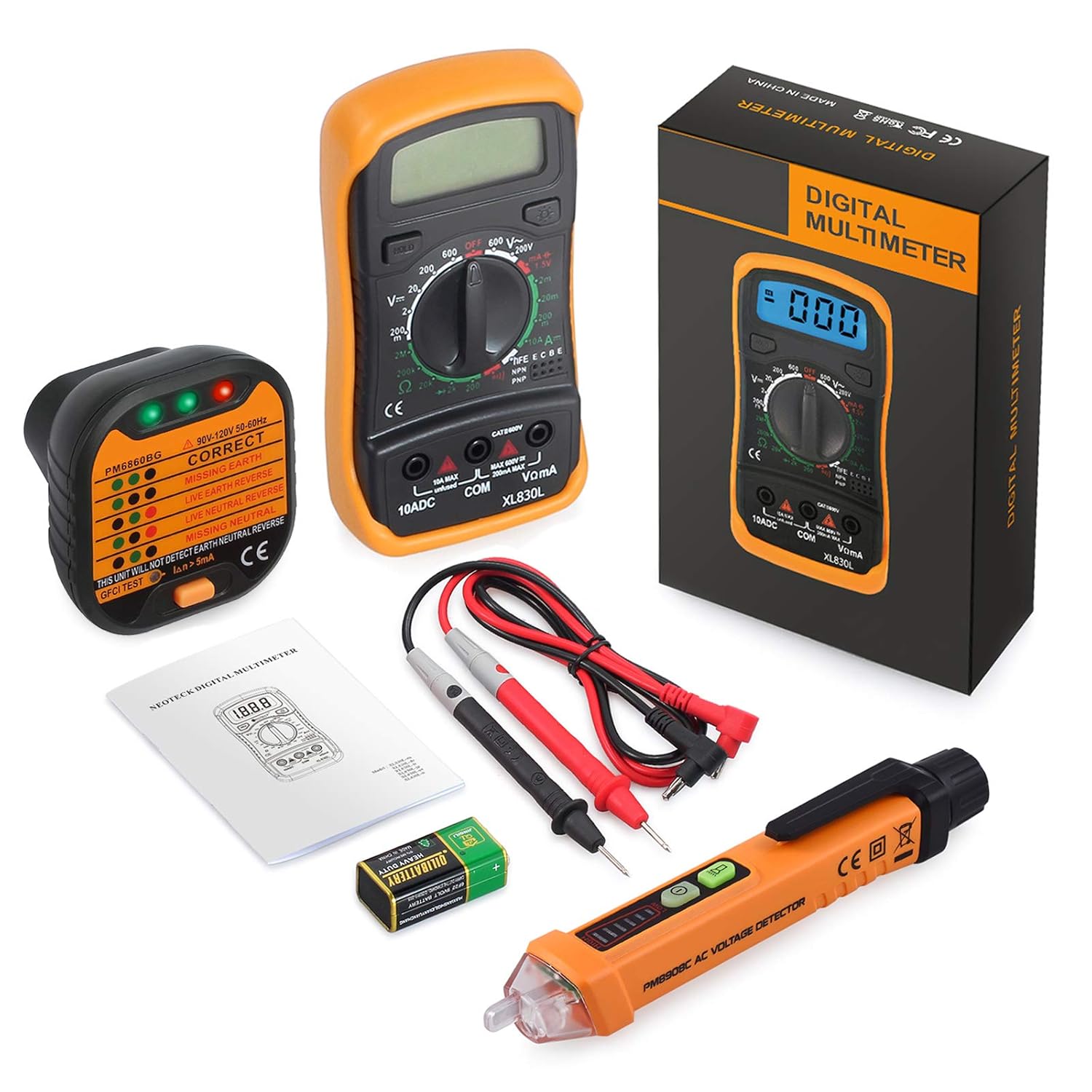

Package Content:
1 x Pocket Digital Multimeter
1 x Non-Contact Voltage Tester Pen
1 x US Receptacle Tester

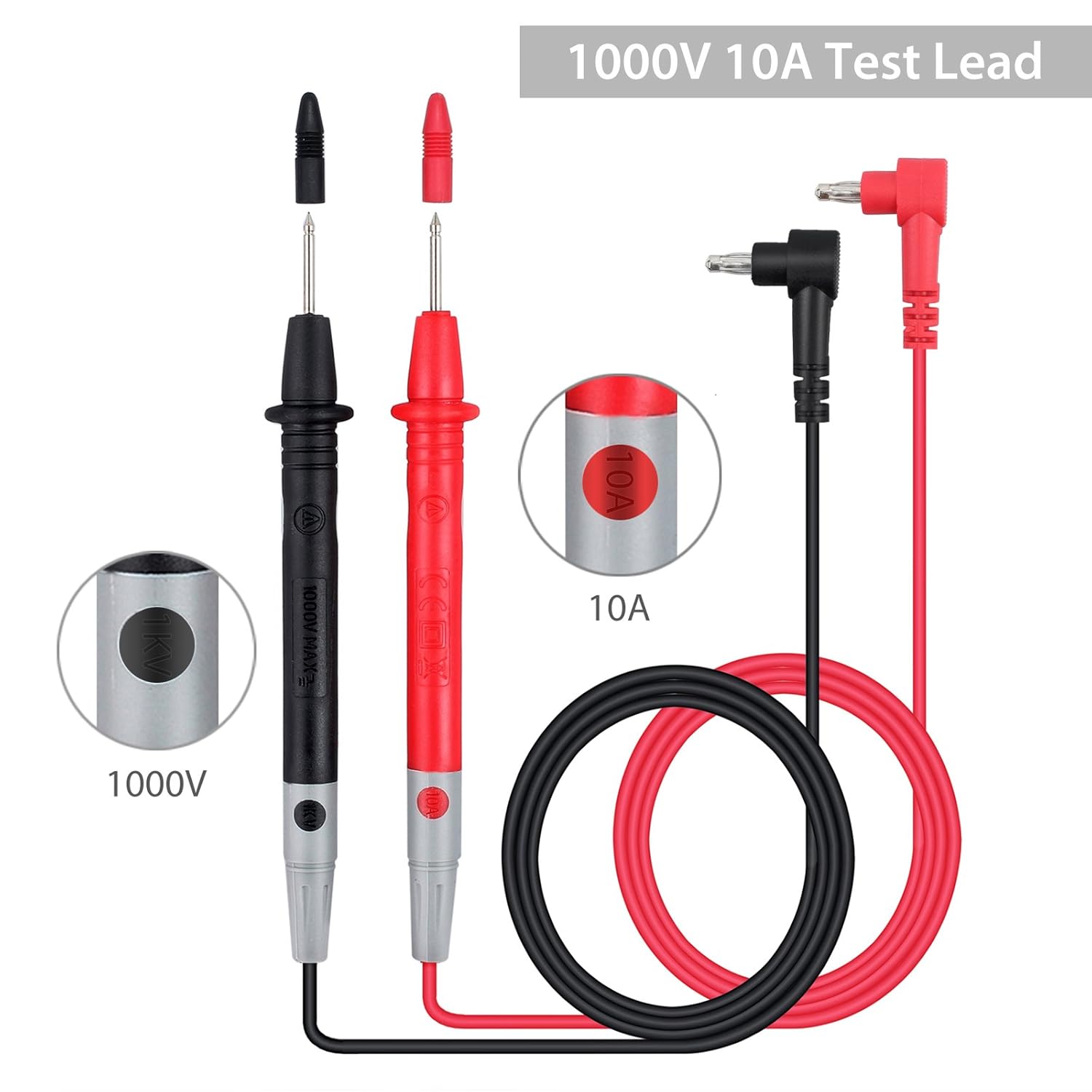

1 x Test Lead Probe(Pair)
Mini Digital Multimeter:
Max display: 1999, Auto polarity display.
DC Voltage: 200mV/2V/20V/200V ±0.5%, 600V ±0.8%.
AC Voltage: 200V/600V ±1.2%.
DC Current: 200μA/2mA/20mA ±1%, 200mA ±1.5%, 10A ±3%.
Resistance: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ±0.8%.
Fuse protection: F-200mA/250V.
Over Range Indication: Only figure “1” on the display.
Diode assembly test/Transistor P-N junction test/Transistor HFE test.

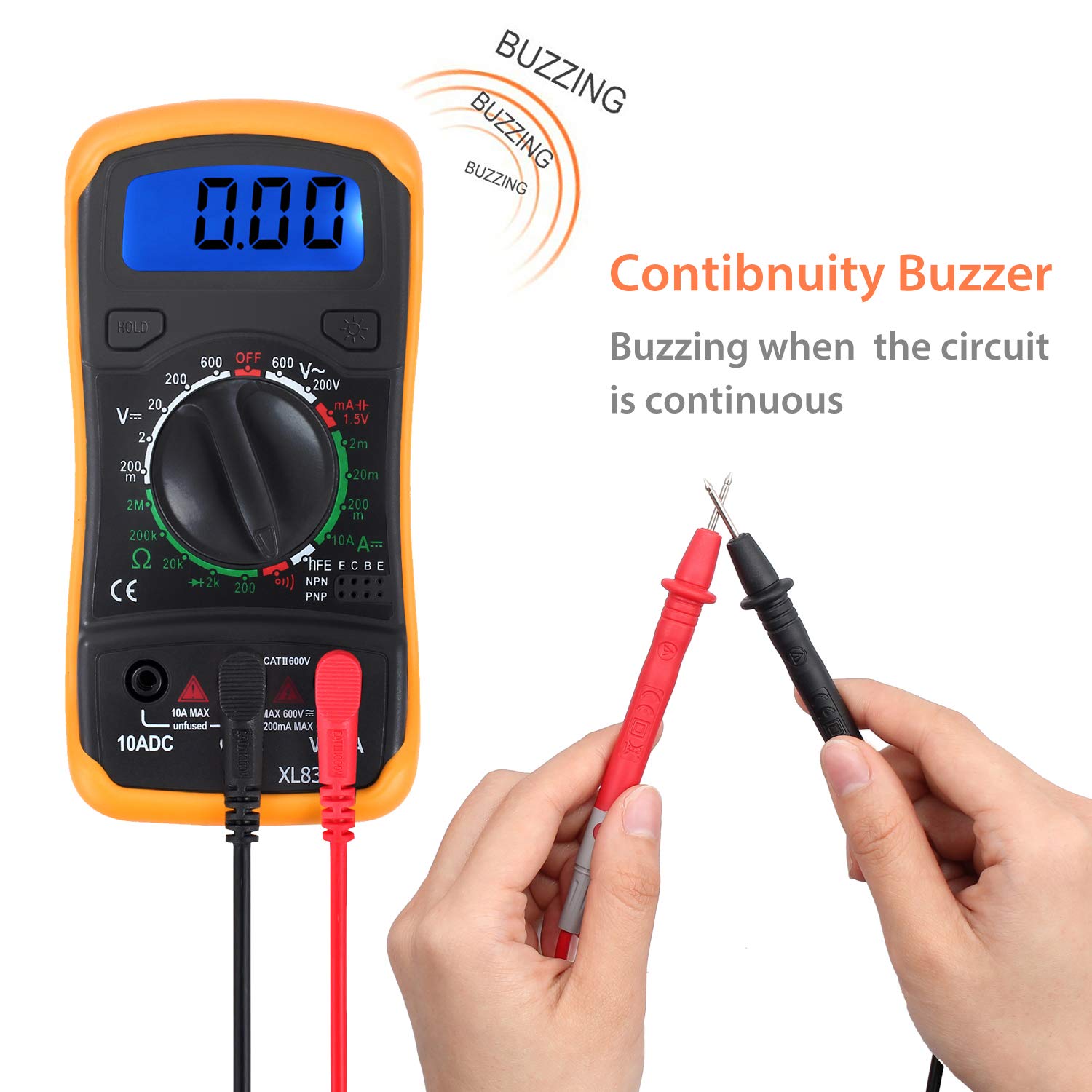

Continuity test with buzzer sound in circuit.
Low battery voltage indication.
15mm high LCD Display.
Operating Temperature: -0℃ to 40℃.
Polarity Indication: “-” displayed for negative polarity.
Low Battery Indication: – /+ display.
Battery: 9V (Battery include).
Dimension: Approx 138mm x 69mm x 31mm.
Live/Null Wire Distinguish: Automatically distinguish the Zero line and Fire line with sound (High, Medium,low) and LED light.
NCV Sensitivity: Automatic selection of 3 kinds of sensitivity ( High,Medium,low)
Voltage Sensitivity: 12V to 1000V AC
Frequency: 50-500Hz
Alarm Mode: Sound and light Flash
Auto Power Off, Low battery indication, Light: White
Operating Temperature: 32 to 122F (0 to 50degree)
Storage Temperature: -4 to 140F (-20 to 60degree)
Humidity: < 85%RH
Battery: 2 x 1.5V AA Batteries (batteries are included)

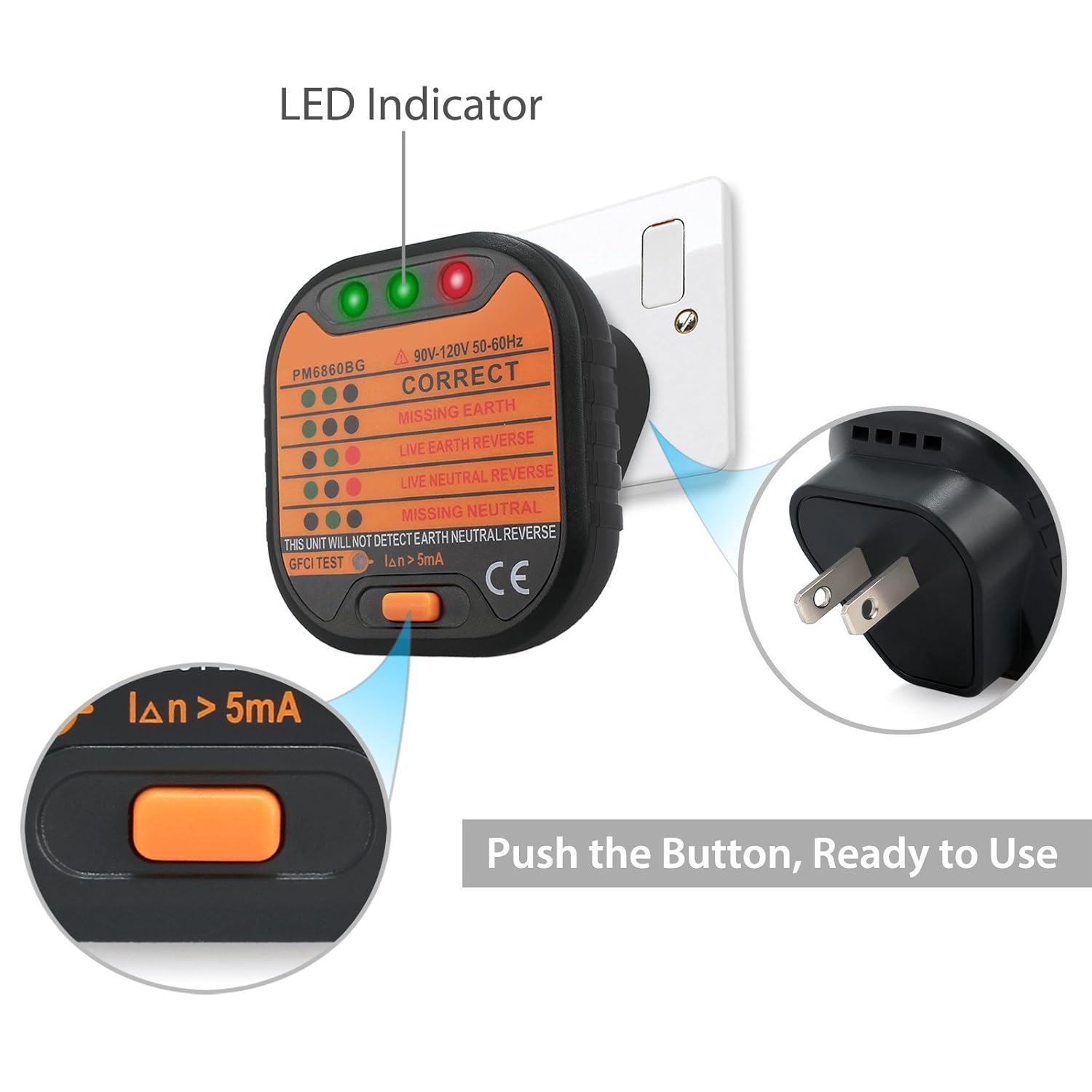

Socket Wall AC Power Outlet:
Voltage Ranger：110v
GFCI/RCD Test
Tripping Current:＞5mA
LED Indicate Condition of the Socket’s wiring: Correct connection,Missing Earth,Live-Earth Reverse,Live-Neutral Reverse,Missing Neutral
Safety Rating: CE CAT.II 600V RoHS
Add to Cart
Add to Cart
Customer Reviews
4.4 out of 5 stars 2,624
4.5 out of 5 stars 9,346
4.3 out of 5 stars 138
3.7 out of 5 stars 22
4.3 out of 5 stars 1,828
4.2 out of 5 stars 76
Price
$12.09$12.09 $9.59$9.59
— no data
— no data
— no data
— no data
NCV
✓
✓
✓
✓
✓
✓
【Electrical Test Kit】Comes with a Mini 1999 Count Digital Multimeter, Non-Contact 12-1000V AC Voltage Detector, and a Receptacle Tester to Meet Most Electronic Testing Needs, Ideal for Laboratory, Education, Factory, Workshop, Household Use
【Mini Multimeter】Multi-functional Tester with Backlit LCD Display, Also Comes with with Pair Test Lead, Accurately Measures AC/DC Voltage, DC Current, Resistance, and More, Recommended by Many Professionals Engineers, CE Rated for Over Load Protection, Includes 9V Batteries Under Load
【Non-Contact Voltage Detector】 This Non-Contact Voltage Tester Detects AC Voltage within 12-1000V AC, Distinguish the Live Wire and Null Wire through Different Frequency Alarm Sound and Flashing Led Levels
【Standard US Receptacle Tester】Featuring Lights that Indicate Circuit Condition, Tests Standard & GFCI Sockets/ Outlets/ Receptacles for Proper Wiring (110-125V AC), Detect Five Different Wiring Faults: Open Ground, Open Neutral, Open Hot, Hot/ Ground Reverse, and Hot/ Neutral Reverse
【Wide Application】A Set of Quick Fix Tool, Perfect for Weekend Warriors, DIY Homeowner and Anyone just Learning How to Do This Type of Work, Helping You Evaluate the Outlets and Identify the Hot Wires in the Basement Testing, Durable Quality for a Long Time Use with 18 Months US Base Warranty Back up
