Orange Pi Zero 2W 1GB with Expansion Board Allwinner H618 LPDDR4 Quad Core CPU 64 Bit Single Board Computer, 1.5GHz Frequency WiFi Bluetooth Support 4K Display (Zero 2W 1G+EB)

Description

Price: $28.99
(as of Sep 13, 2024 04:13:15 UTC – Details)

Buy On Amazon

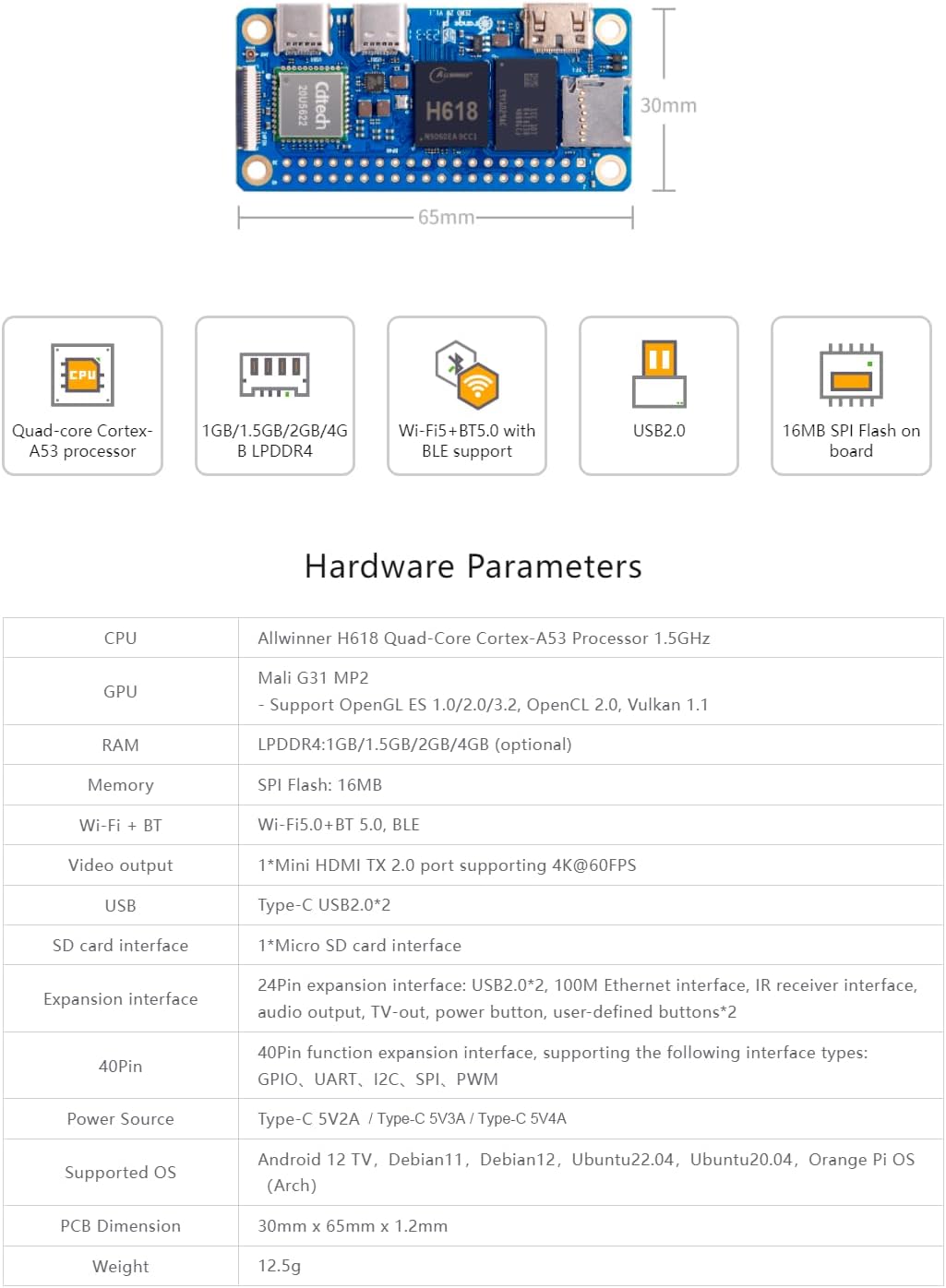

Hardware Specification Parameter
CPU: Allchi H618 high-performance quad-core Cortex-A53 processor 1.5GHz
GPU: Mali G31 MP2
Support OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Memory: LPDDR4:1GB/1.5GB/2GB/4GB (optional)
Storage: SPI Flash: 16MB
Wi-Fi+ Bluetooth: WiFi+ Bluetooth two-in-one module
Wi-fi 5.0+BT 5.0
The interface is 1x Mini HDMI TX 2.0, 4K@60FPS is supported
USB: Type-C USB2.0 x 2
SD card interface: 1x MicroSD card interface
Expansion interface: 24Pin expansion interface: USB2.0*2, 100M Ethernet interface, infrared receiving interface, audio output, video TV-OUT output, power button, user-defined button *2

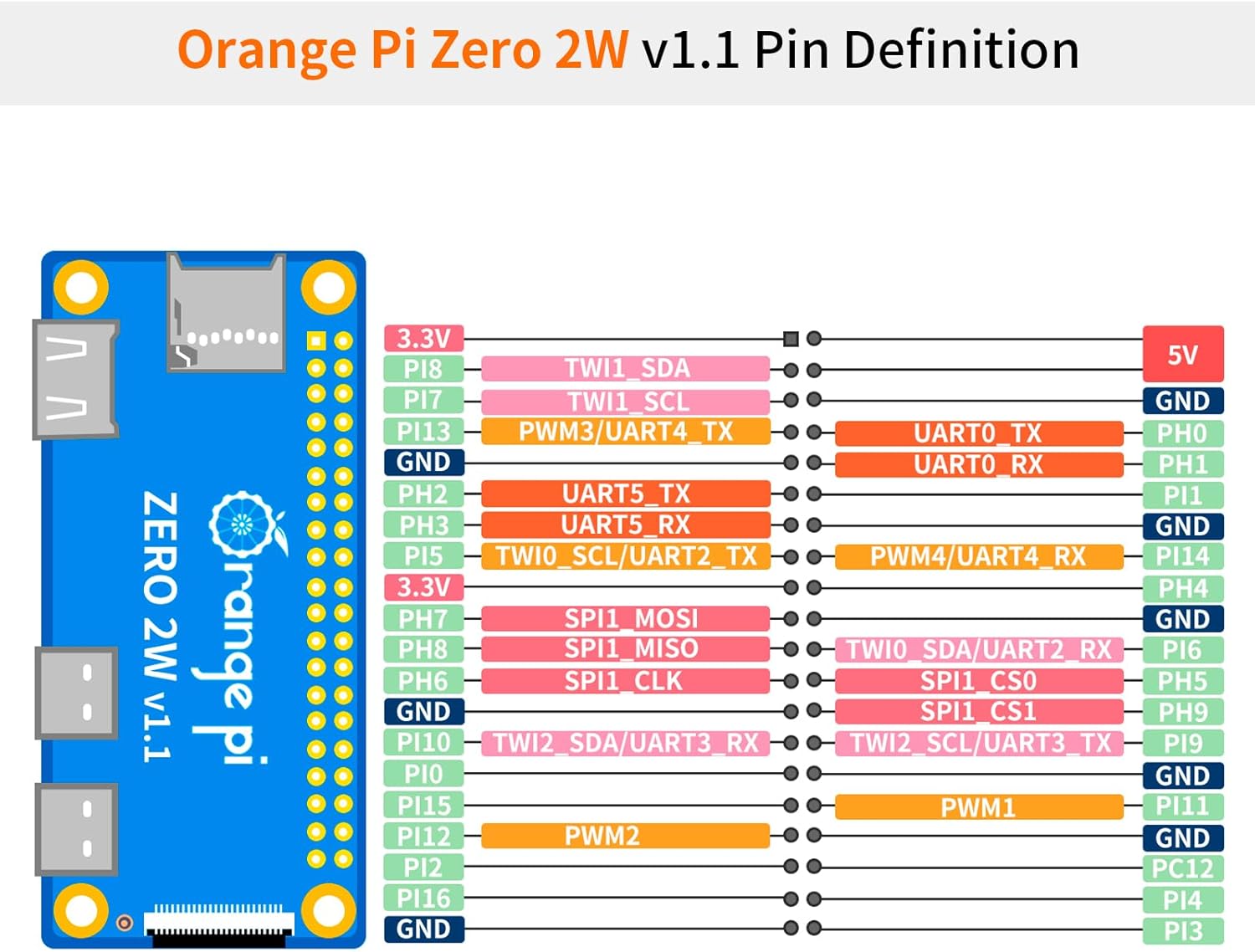

40Pin: The 40Pin function extension interface supports the following interface types:
GPIO, UART, I2C, SPI, PWM
Power supply: Type-C 5V3A
Supported OS: Android 12 TV, Debian11, Debian12, Ubuntu22.04, Ubuntu20.04, Orange Pi OS (Arch)
PCB size: 30mm x 65mm x 1.2mm
Weight: 12.5g

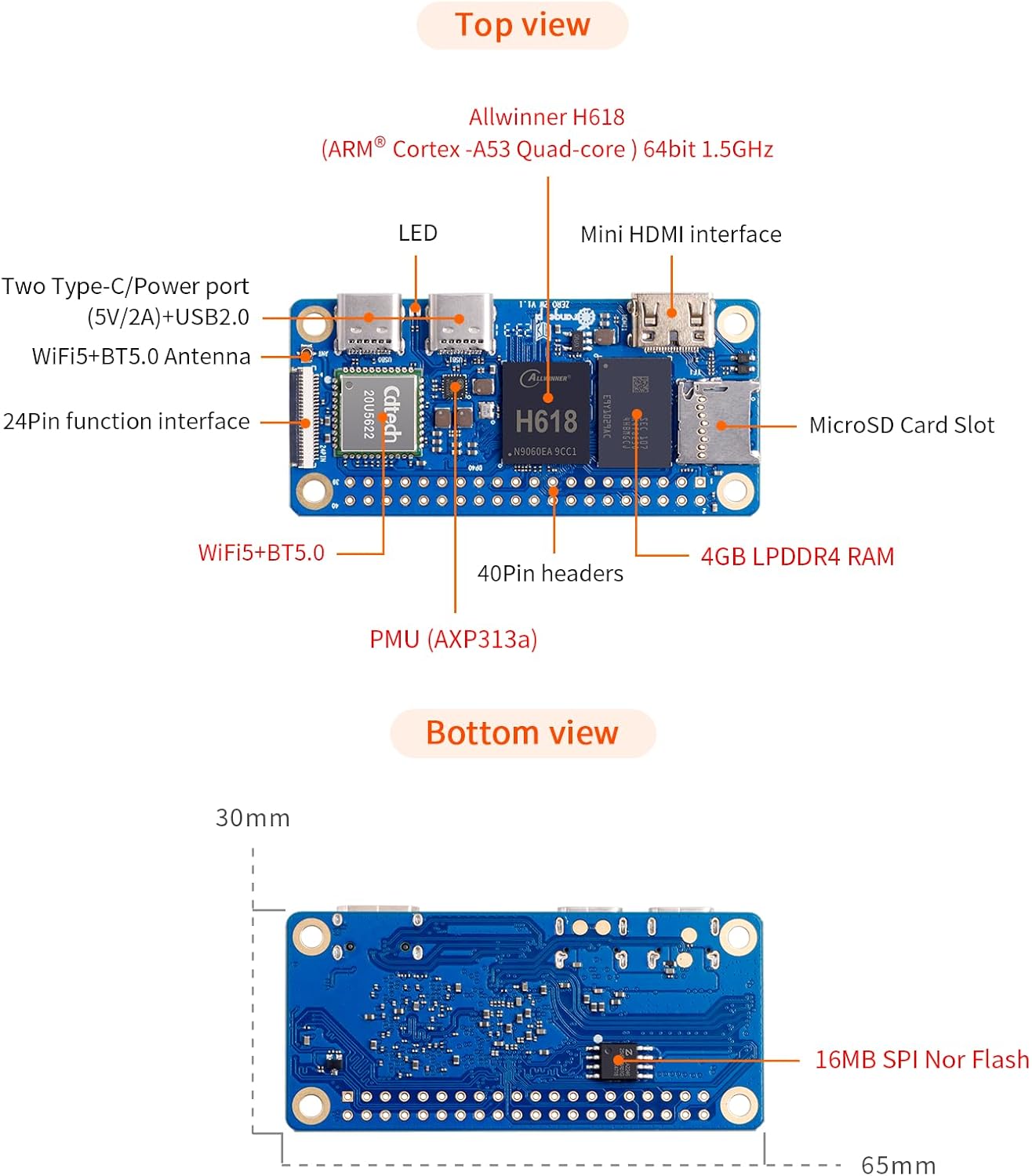

Orange Pi Zero 2W is powered by Allwinner H618 high-performance quad-core Cortex-A53 processor with up to 1.5GHz, integrated Mali G31 MP2 graphics processor, supporting OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1. It has 1GB /1.5GB / 2GB /4GB LPDDR4 memory specification options, supports 16MB SPI Flash. Outperform the Raspberry Pi Zero 2W.

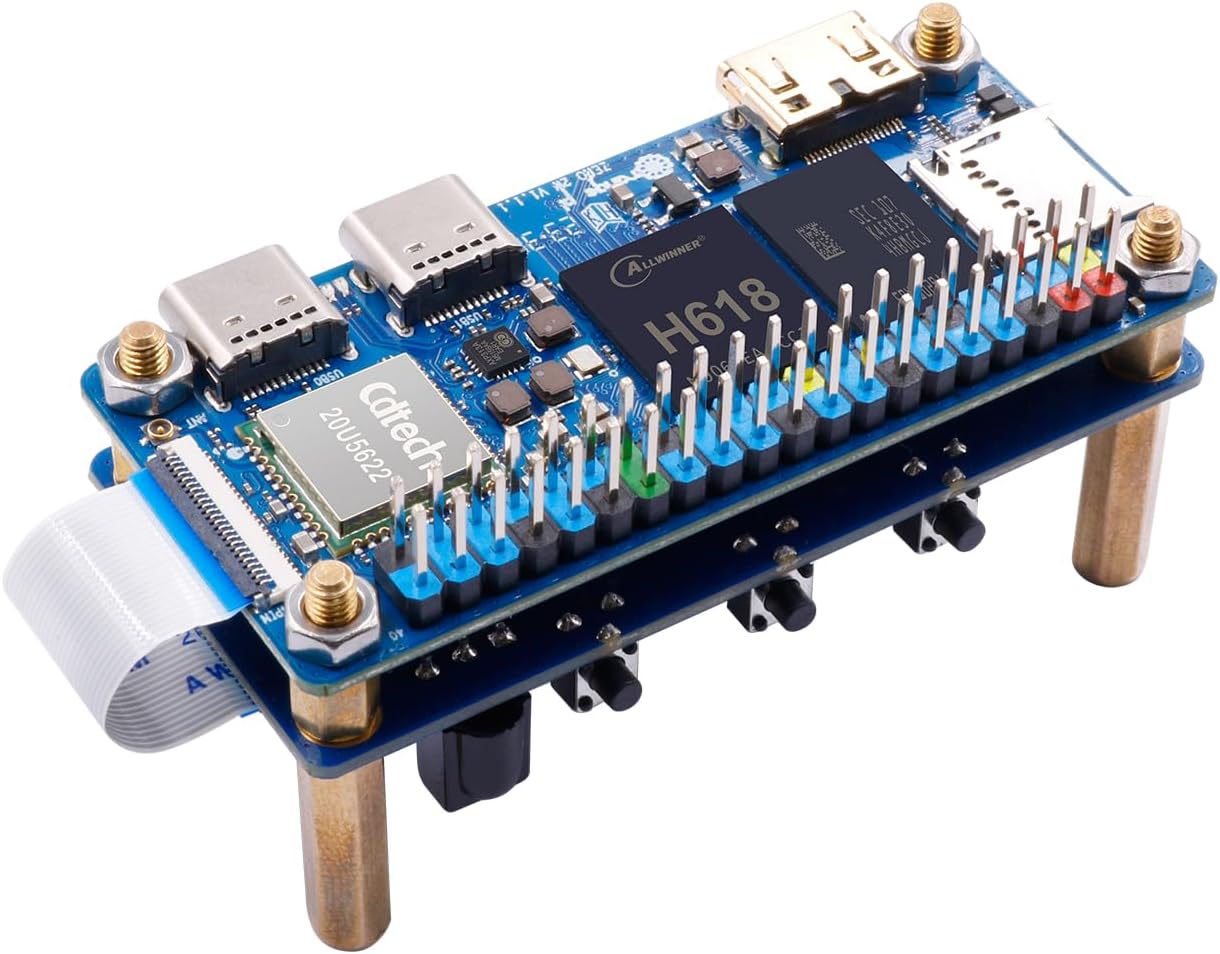

Orange Pi Zero 2W mini pc can be extended with USB2.0, 100M Ethernet, IR receiver, audio output, TV-out, power button, etc. via 24Pin connector with adapter board. In addition, the 40Pin expansion port on the board further enriches the motherboard’s functional interfaces and enhances the development potential.
Orange Pi Zero 2W adheres to the compact and exquisite design concept of the Zero series, with a PCB size of 30mm X 65mm X 1.2mm, and can be widely used in TV boxes, smart screen casting devices, smart home, smart gateway, IoT and other fields.
The Orange Pi Zero 2W 1g supports dual-band 2.4G/5G WiFi and Bluetooth 5.0, providing you with a faster and more stable network connection
Orange Pi Zero 2W 1gb supports Android 12 TV, Debian11, Debian12, Ubuntu22.04, Ubuntu20.04 ，Orange Pi OS（Arch）and other operating systems.

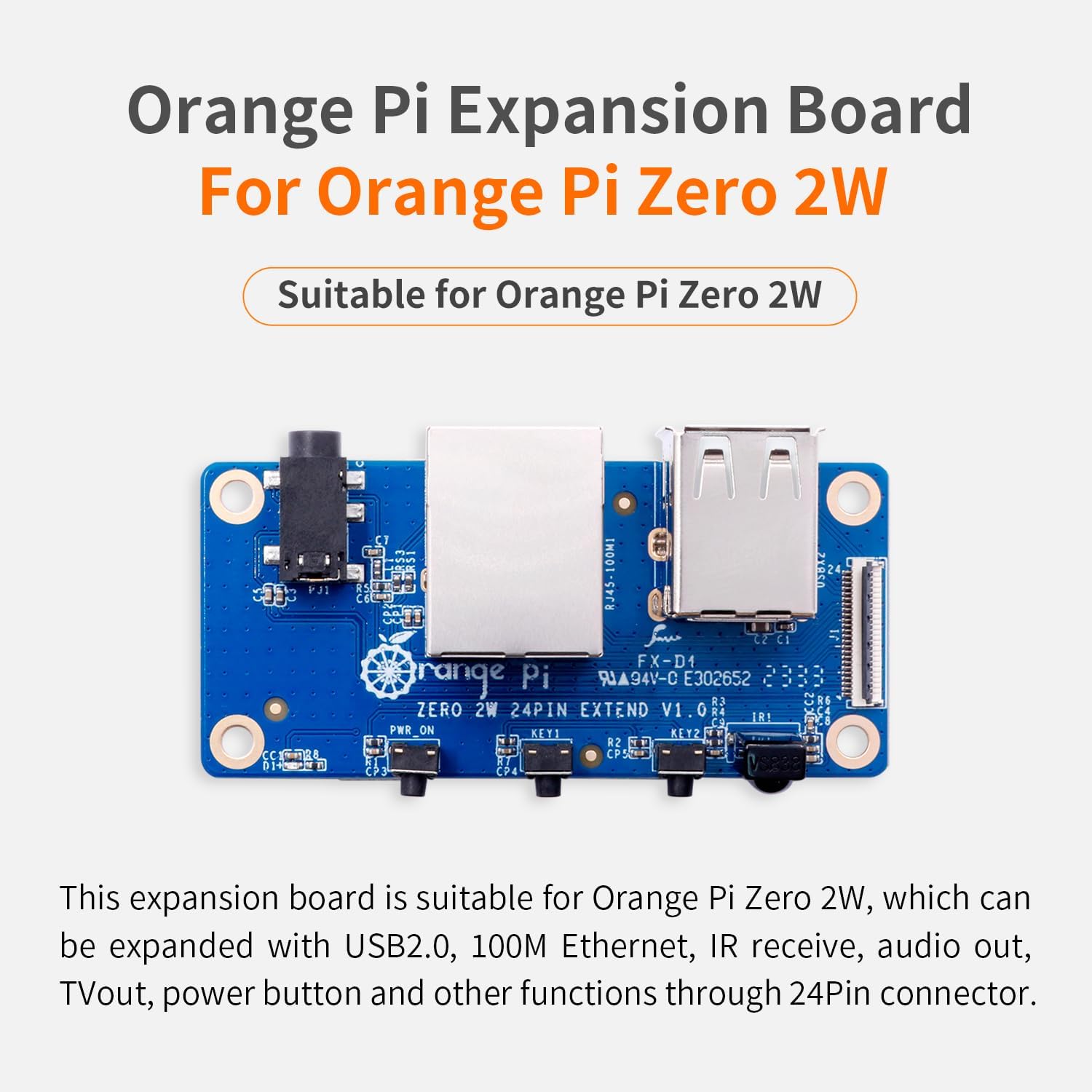

Expansion Board: This expansion board is suitable for Orange Pi Zero 2W, which canbe expanded with USB2.0,100M Ethernet,IR receive, audio outTVout,power button and other functions through 24Pin connector
Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch. Pretty much anything else, because Orange Pi is open source.
