Description
Price: $18.88
(as of Jul 19, 2024 02:55:13 UTC – Details)
Features:

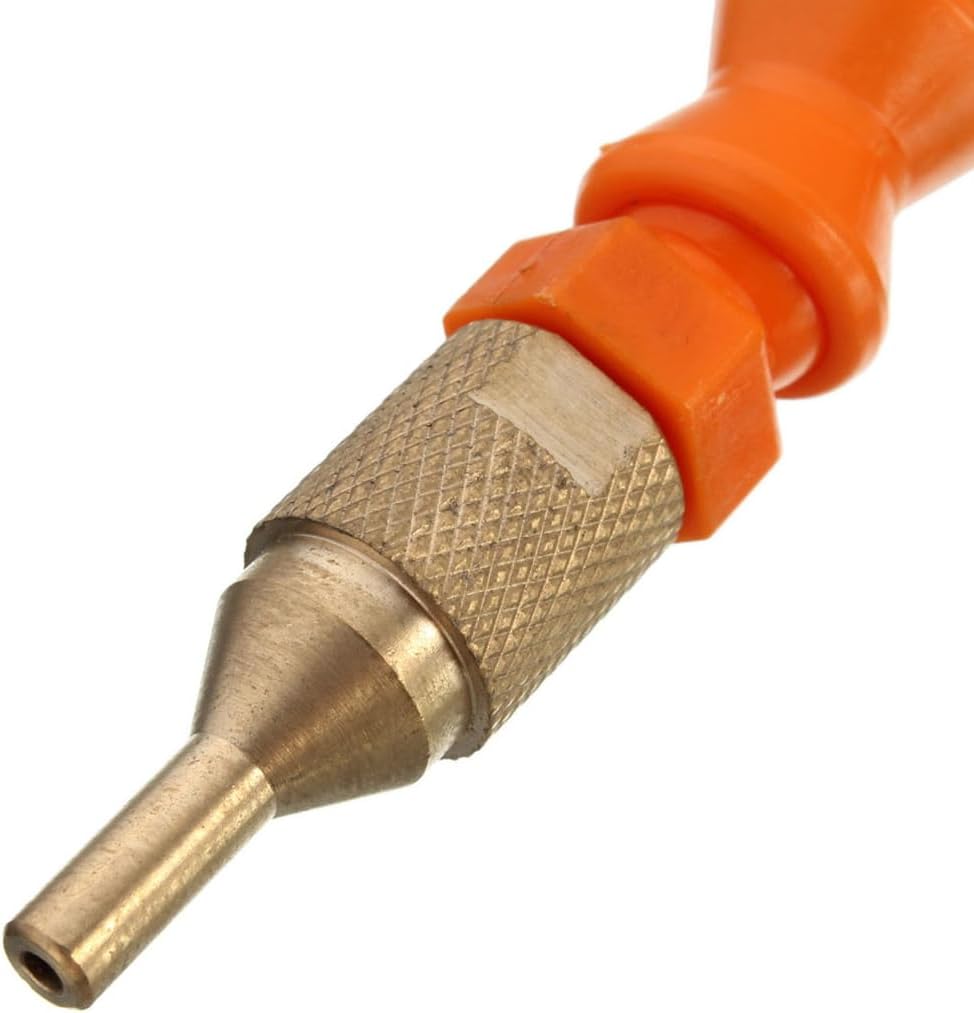

Cooling Pipe Length: 300 mm
PU Tube Length: 1.5 m
Oil Outlet Port Size: 4 mm
Air Inlet Port Size: 8 mm
Type: Coupling
Check Valve: Yes

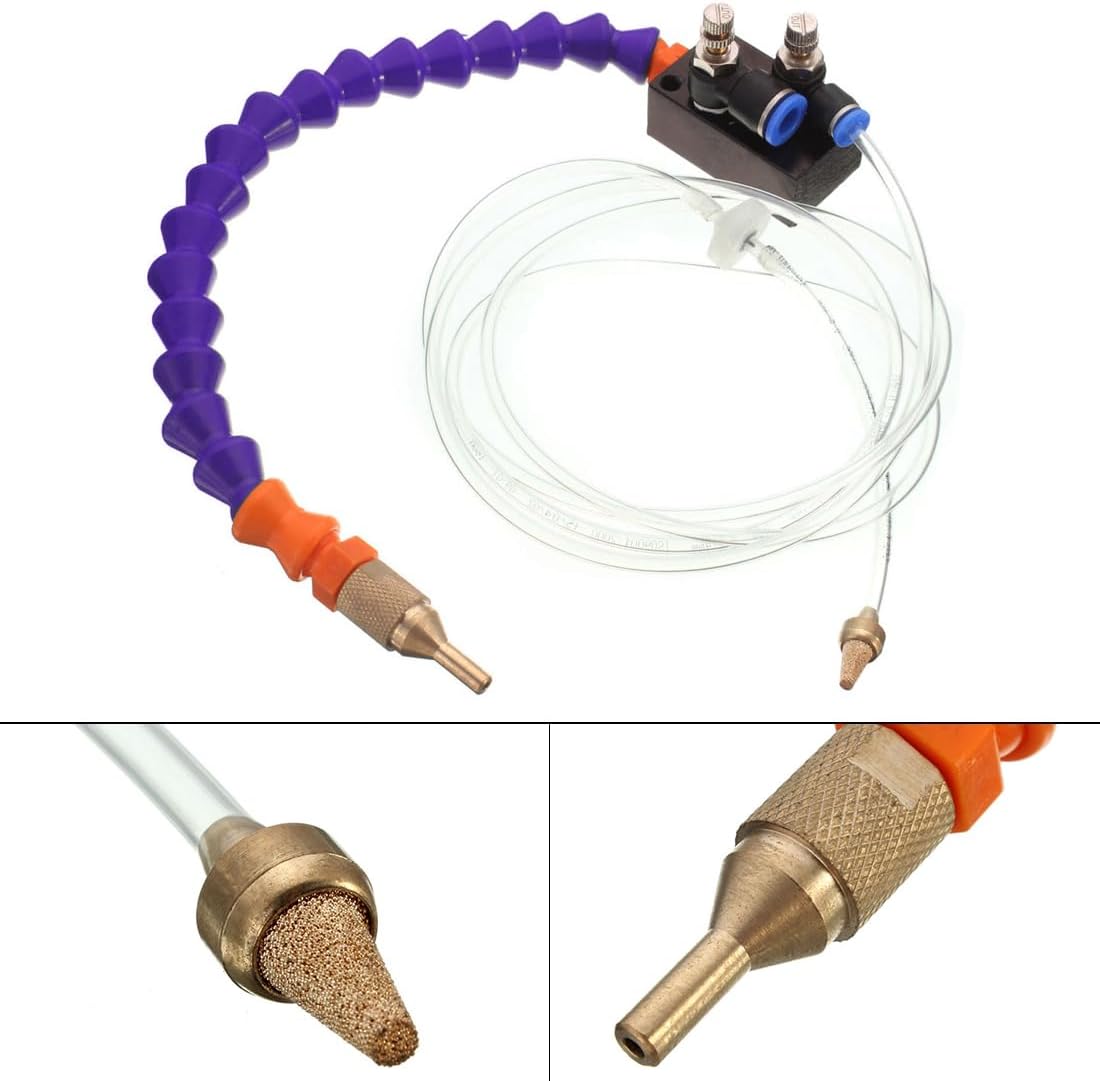

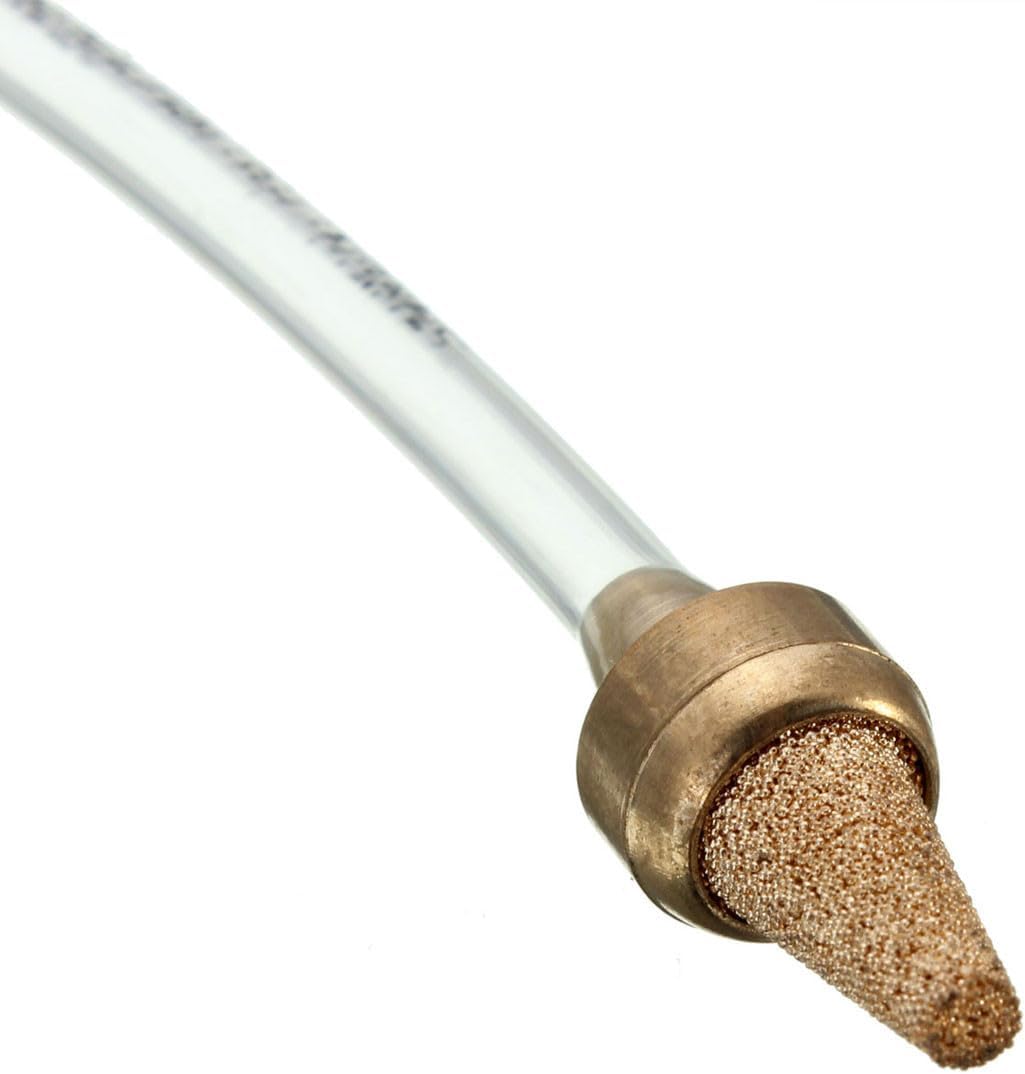

Filter: Yes

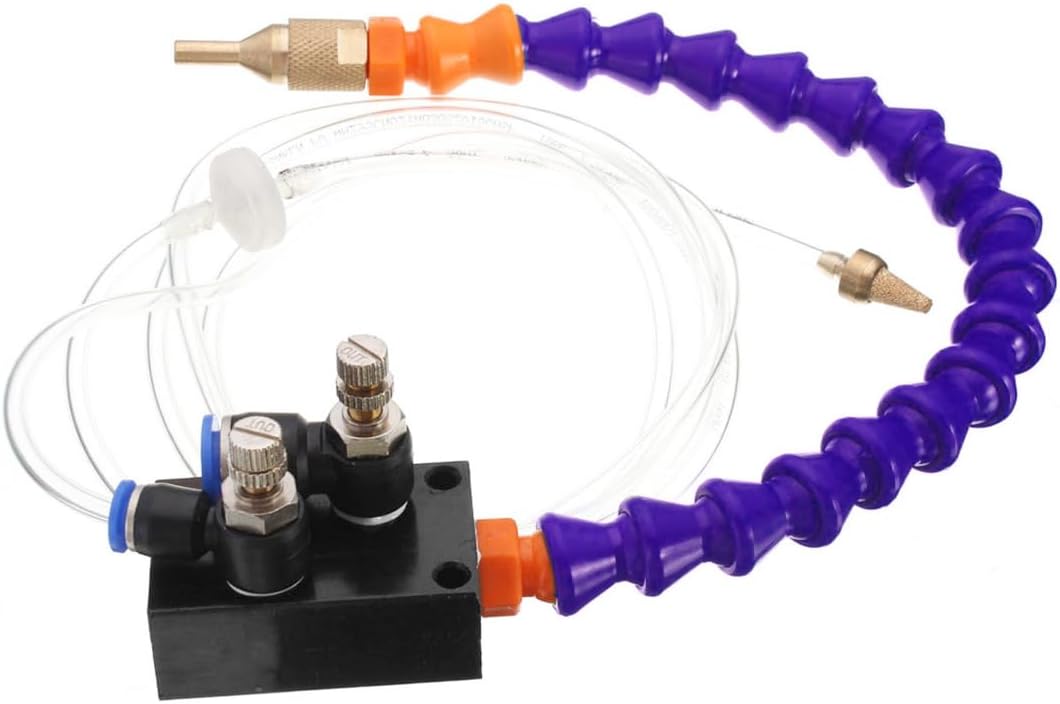

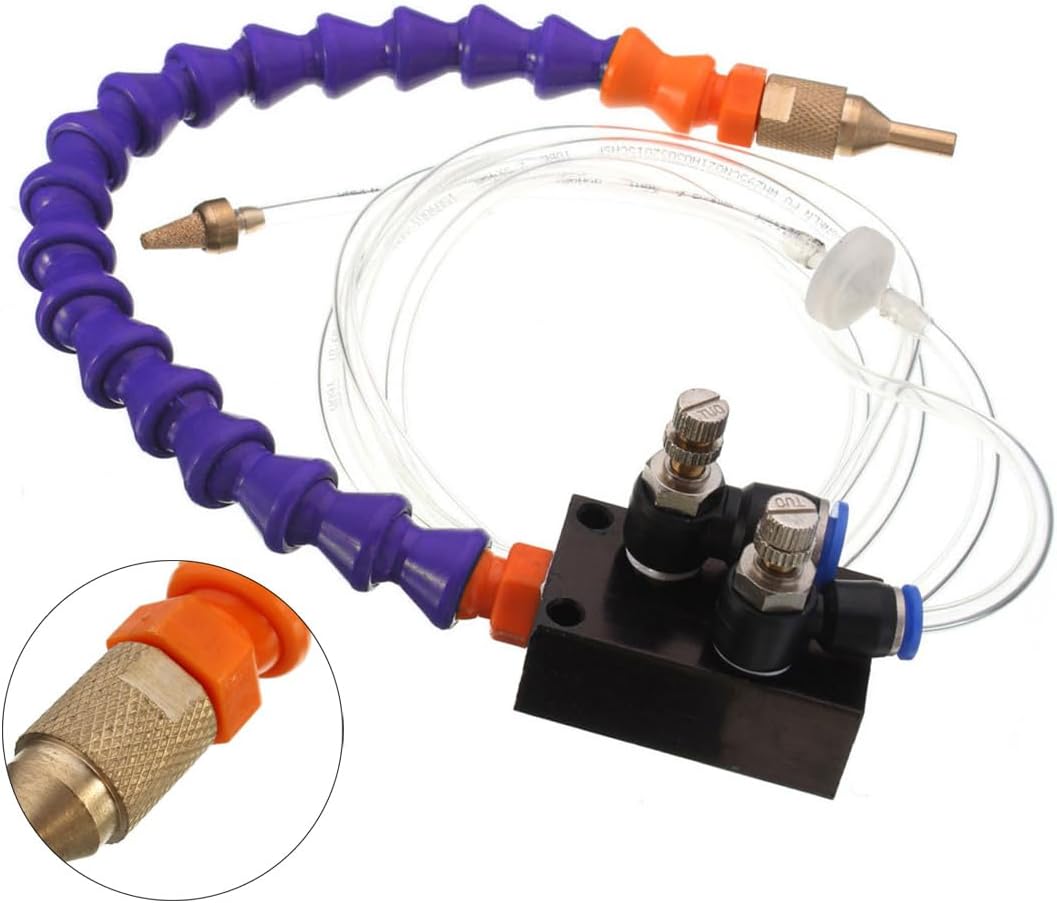

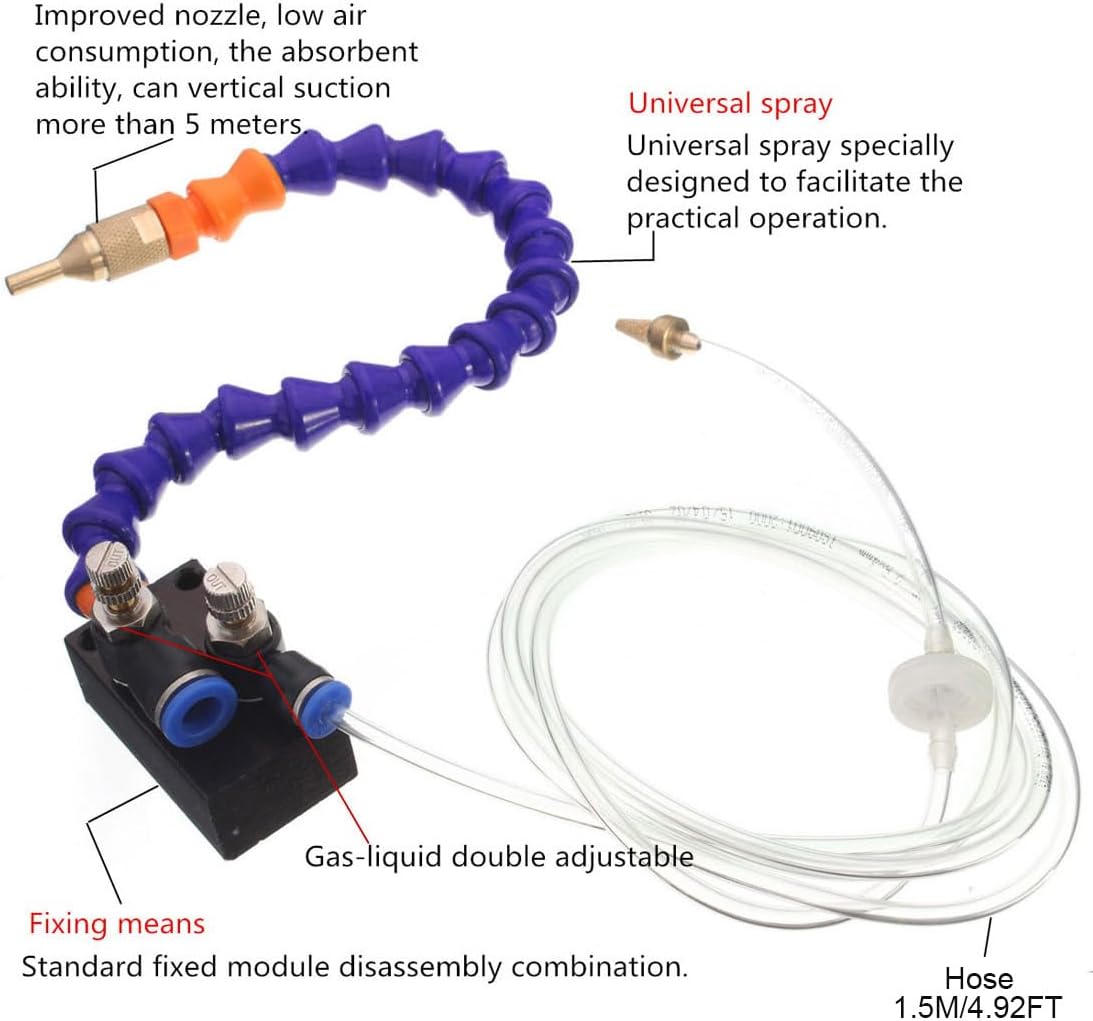

Product Name: 320mm Fully Sealed Mist Coolant Lubrication Spray System
Features:
– Fully sealed structure design. The air is directly sealed inside the pipe, and will not leak at the contact surface when bent at will, real realize no air leakage.
– No air leakage, stable air suction. Ensure that the machine will not restart frequently due to high gas consumption, save energy and long service life.

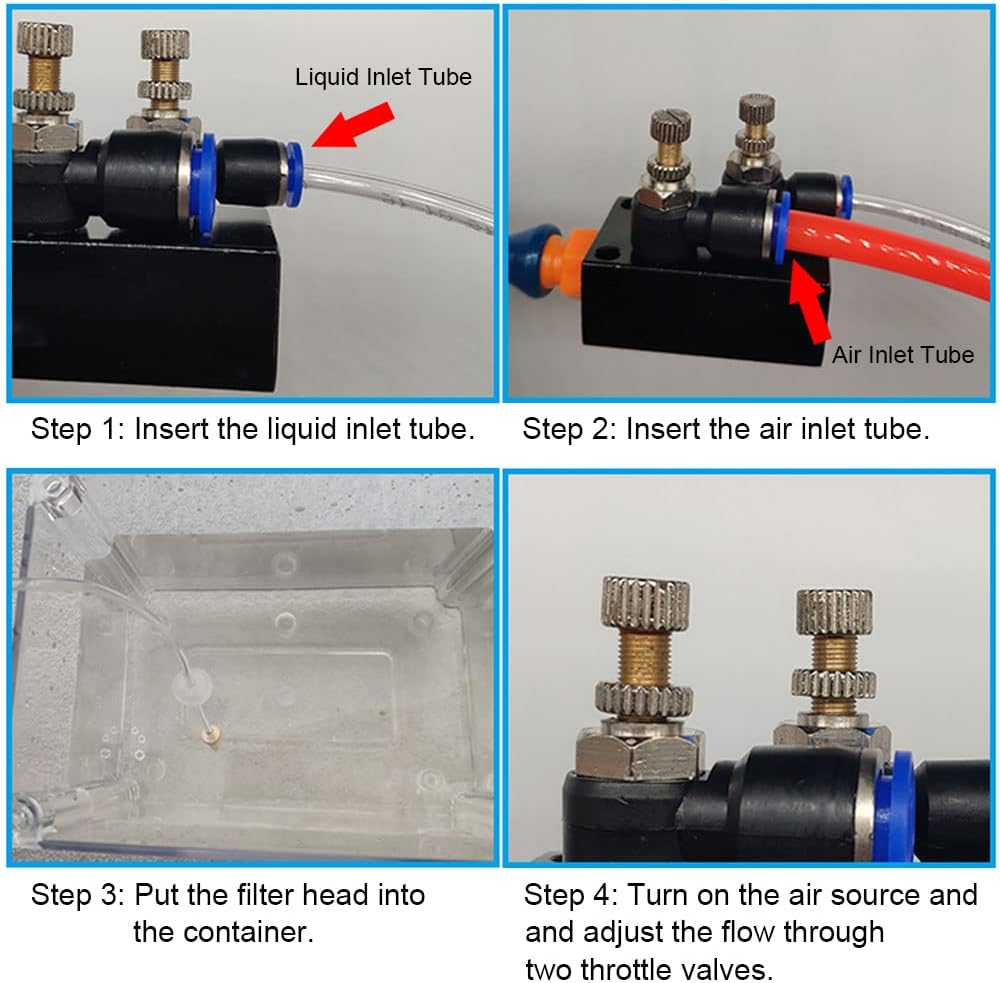

– Easy to use. Air flow and spray mist volume adjustable design, easier to use on different processing conditions.
– Can be used to blow away metal fragments, making your work safer; A lot of water problem solving tools, easier to clean up.
– Can be installed on CNC lathes and milling machines to improve processing capacity and cutting speed, Save time, reduce machining cost and tool wear.
– In the liquid without pressure output required to ensure that the air pressure in the range 5-7KGF / CM2 (atomization and gas, associated gas pressure).
– Application to: metal cutting engraving, cooling stone metal ceramic tile engraving machine, CNC lathe milling drill machine, 8mm air pipe.
Common Product Problems：
– Question 1: I find it produces a mist, not a fine spray.
Cause: Too much atomization.
Solution: Turn down your breath, you need to give some air pressure to the liquid at the same time as the gas supply.
– Question 2: Coolant doesn’t seem to be sprayed as much.
Cause: Need to pressurize the fluid.
Solution: Turn the gas down a bit, and give the liquid a certain amount of power. Maybe you need a pressure barrel.
– Question 3: The valve is not fully closed. There is some air and some liquid making the mess.
Cause: Water tank to prevent too high.
Solution: The liquid is left in the pipeline, so that it can start faster next time, otherwise it will take a while. You can lower the tank a little bit lower than the sprinkler.
Note:
– Be sure to use filtered clean air source and clean liquid spray to avoid clogging.
– Please predict the location of the sprayer hole first, so that the nozzle is too far away from the cutter.
Material: Aluminum + Copper +Plastic
Air Pressuer: 0.3-1.0 MPa
Liquid Viscosity: 0-88 cst
Input Tube: 150 cm
Output Tube: 30 cm
Product Weight : 180 G / 6.35 Ounces

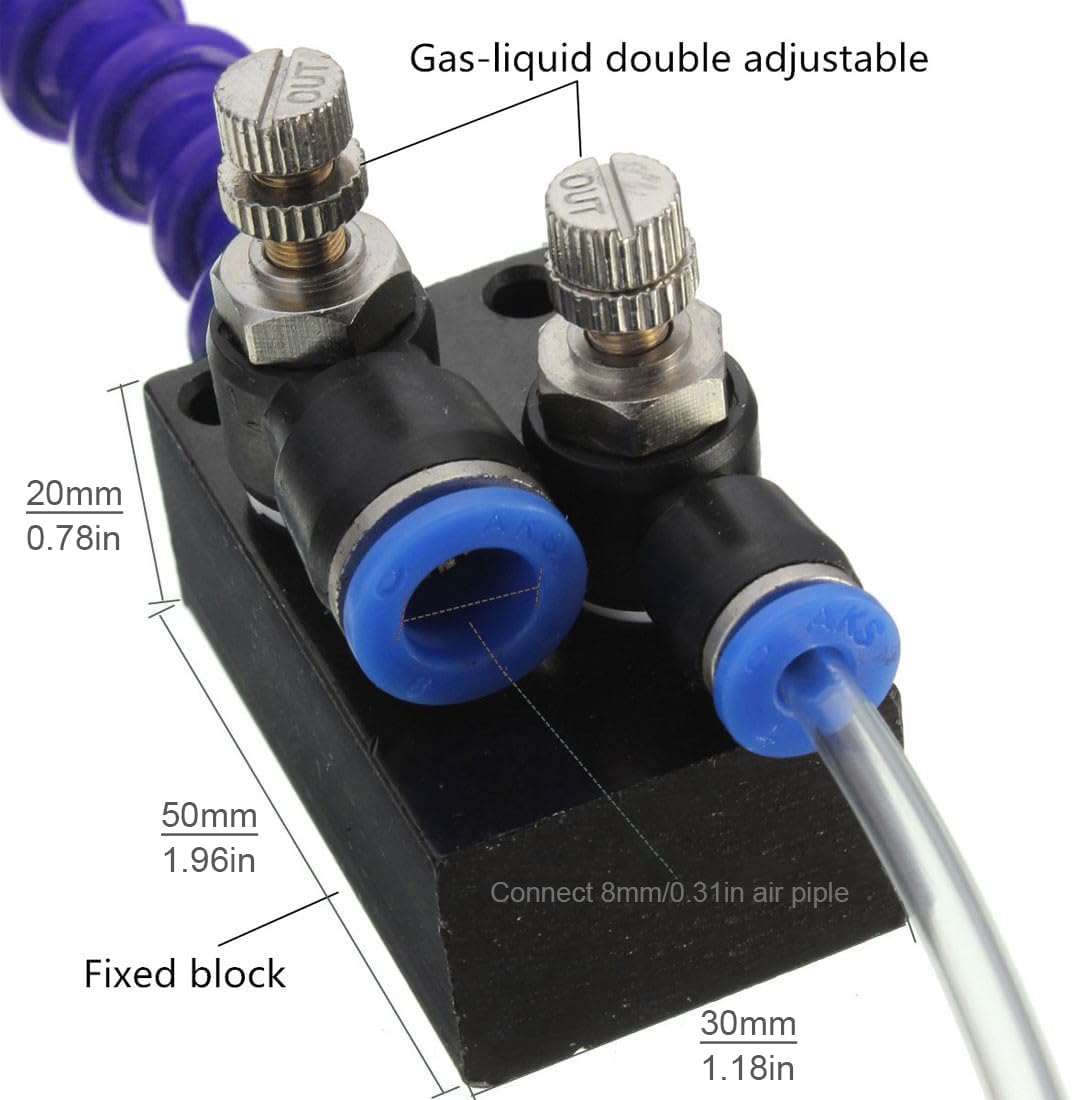

Product Dimensions (L*W*H) : 180*135*20 MM / 7.09*5.31*0.79 Inches
Package Include:
1 x Mist Coolant Spray System
√ Great Value – Processing the coolant can save more than 80%, the cooling effect is no less than the conventional water-cooled.
√ Working Safer – Gas processing chips are blown away, working safer; A lot of water problem solving tools, easier to clean up.
√ Save Time – Not only increases the machining cutting speed, save time and reduce processing costs and tool wear.
√ Easy To Use – Air flow and spray mist volume adjustable design, easier to use.
√ Widely Used – In the liquid without pressure output required to ensure that the air pressure in the range 5-7KGF / CM2.
