Description
Price: $94.00
(as of Aug 03, 2024 08:55:16 UTC – Details)
Product Description
Nema23 Stepper Motor
Step angle: 1.8 degreeMotor flange size: 57mmMotor length: 56mmHolding torque: 1.2N.mCurrent: 3AResistance: 0.8 ohmInductance: 2.4 mHRotor Inertia: 440g.cmLead wire: 4pcsWiring—- Red: A+ Green: A- Yellow: B+ Blue: B-
Aluminum Profile Base
The base is made of 2080 aluminum profiles, and the embedded mold design is used, which makes the sliding table more compact and compact.

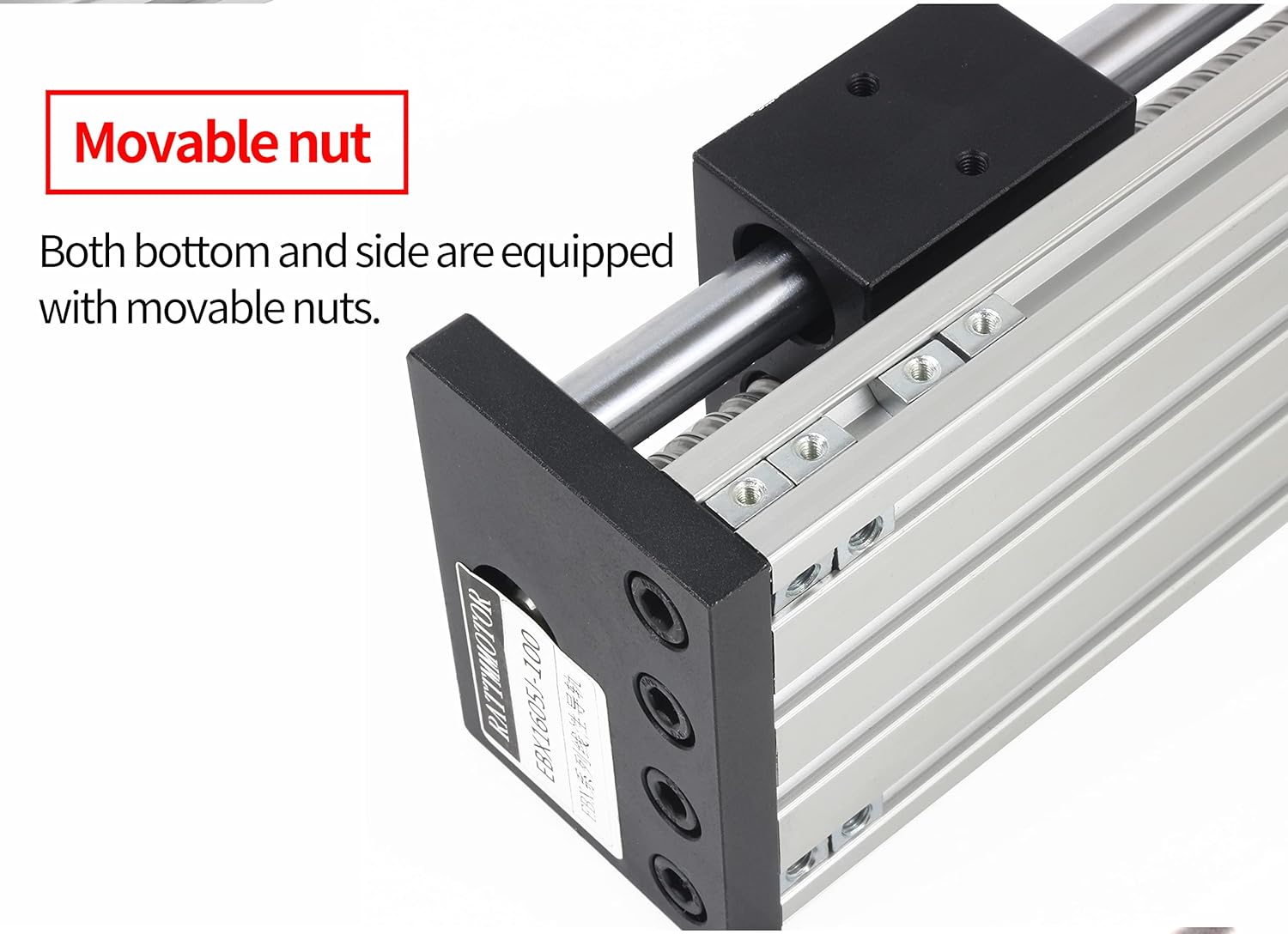

Movable Nuts
Movable nuts on the back and sides for easy fixing and installation of limit switches

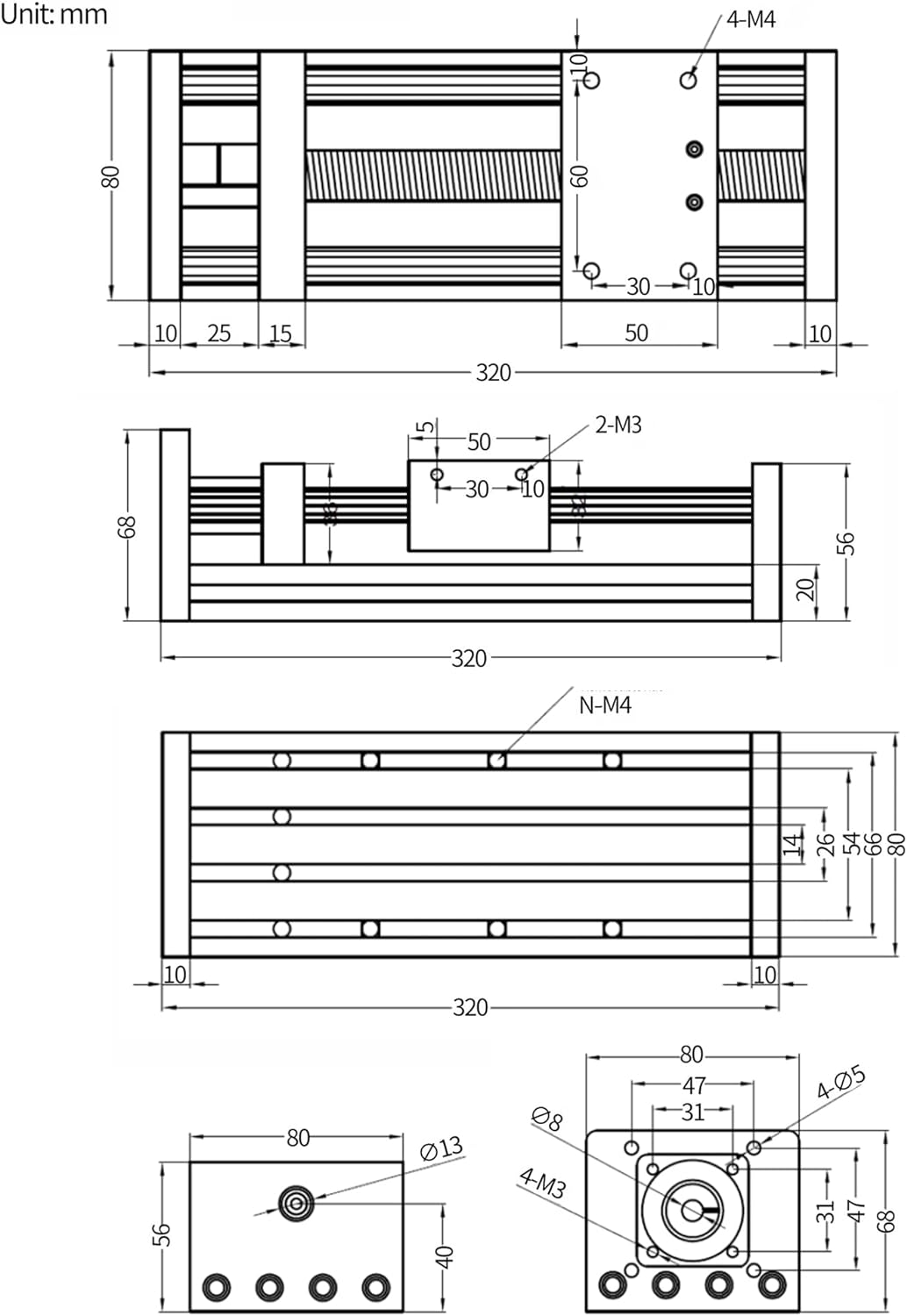

EBX1605-200mm Linear Stage Actuator
Effective stroke: 200mm / 7.87in
Total length: 377mm/ 14.84in
Width: 80mm / 3.15in
Bearing Seat
Reinforced bearing design and added stable bearing seat at the motor end can better maintain accuracy and improve running stability.
Load Force
Two 12mm double optical axis, with slicer and precision ball screw, horizontal load 50KG / 110.23Ib, vertical load 10KG / 22.05Ib. Linear guides are used as guides to ensure straight running and load capacity
1605 Ball Screw
High-precision 1605 type ball screw, with flange screw nut, the accuracy can reach 0.03mm, it can be used under high speed and large load, and the operation is very stable.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.0 out of 5 stars
42
4.0 out of 5 stars
42
4.0 out of 5 stars
42
4.0 out of 5 stars
42
4.0 out of 5 stars
42
5.0 out of 5 stars
1
Price
$67.03$67.03
— $78.47$78.47 $88.00$88.00 $98.78$98.78
—
Effective stroke
100mm / 3.94 inch 150mm / 5.90 inch 200mm / 7.87 inch 300mm / 11.81 inch 400mm / 15.74 inch 500mm/ 19.69 inch
Total length
170mm / 6.69 inch 319mm / 12.56 inch 368mm / 14.49 inch 469mm / 18.47 inch 566mm / 22.28 inch 670mm / 26.38 inch
Horizontal load
30kgs / 66.2lbs 30kgs / 66.2lbs 30kgs / 66.2lbs 30kgs / 66.2lbs 30kgs / 66.2lbs 30kgs / 66.2lbs
Vertical load
10Kgs / 22lbs 10Kgs / 22lbs 10Kgs / 22lbs 10Kgs / 22lbs 10Kgs / 22lbs 10Kgs / 22lbs
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.8 out of 5 stars
15
4.8 out of 5 stars
15
4.8 out of 5 stars
15
4.8 out of 5 stars
15
4.8 out of 5 stars
15
4.8 out of 5 stars
15
Price
$108.00$108.00 $125.00$125.00 $167.00$167.00 $175.13$175.13 $133.60$133.60 $145.04$145.04
Effective stroke
100mm / 3.94in 200mm / 7.87in 300mm / 11.81in 400mm / 15.75in 500mm / 19.69in 600mm / 23.62in
Total length
330mm / 12.99in 430mm / 16.93in 530mm / 20.87in 630mm / 24.80in 730mm / 28.74in 830mm / 32.68in
Width
80mm / 3.15in 80mm / 3.15in 80mm / 3.15in 80mm / 3.15in 80mm / 3.15in 80mm / 3.15in
Horizontal load
80KG / 176.37lb 80KG / 176.37lb 80KG / 176.37lb 80KG / 176.37lb 80KG / 176.37lb 80KG / 176.37lb
Vertical load
20KG / 44.09Ib 20KG / 44.09Ib 20KG / 44.09Ib 20KG / 44.09Ib 20KG / 44.09Ib 20KG / 44.09Ib

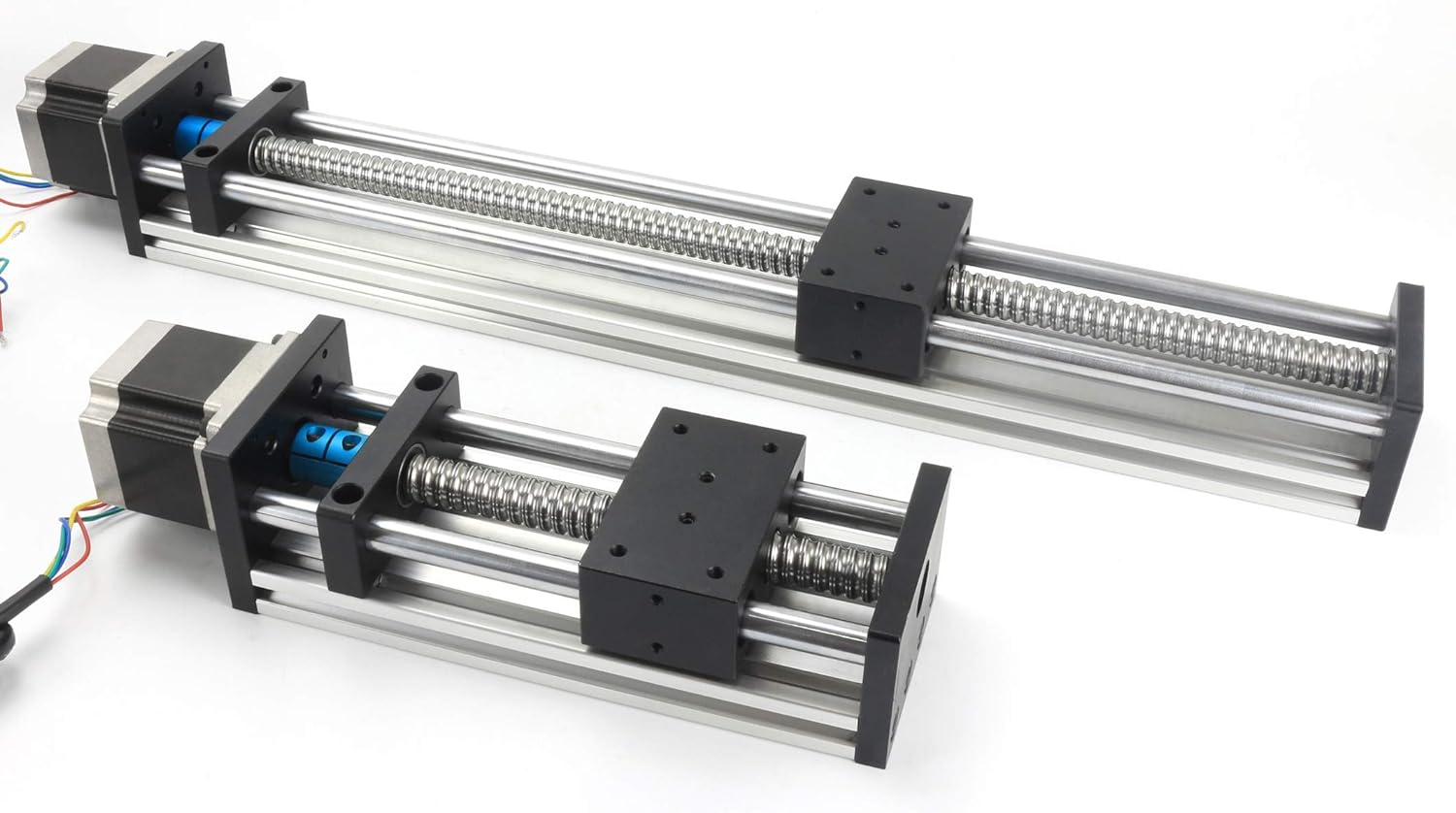

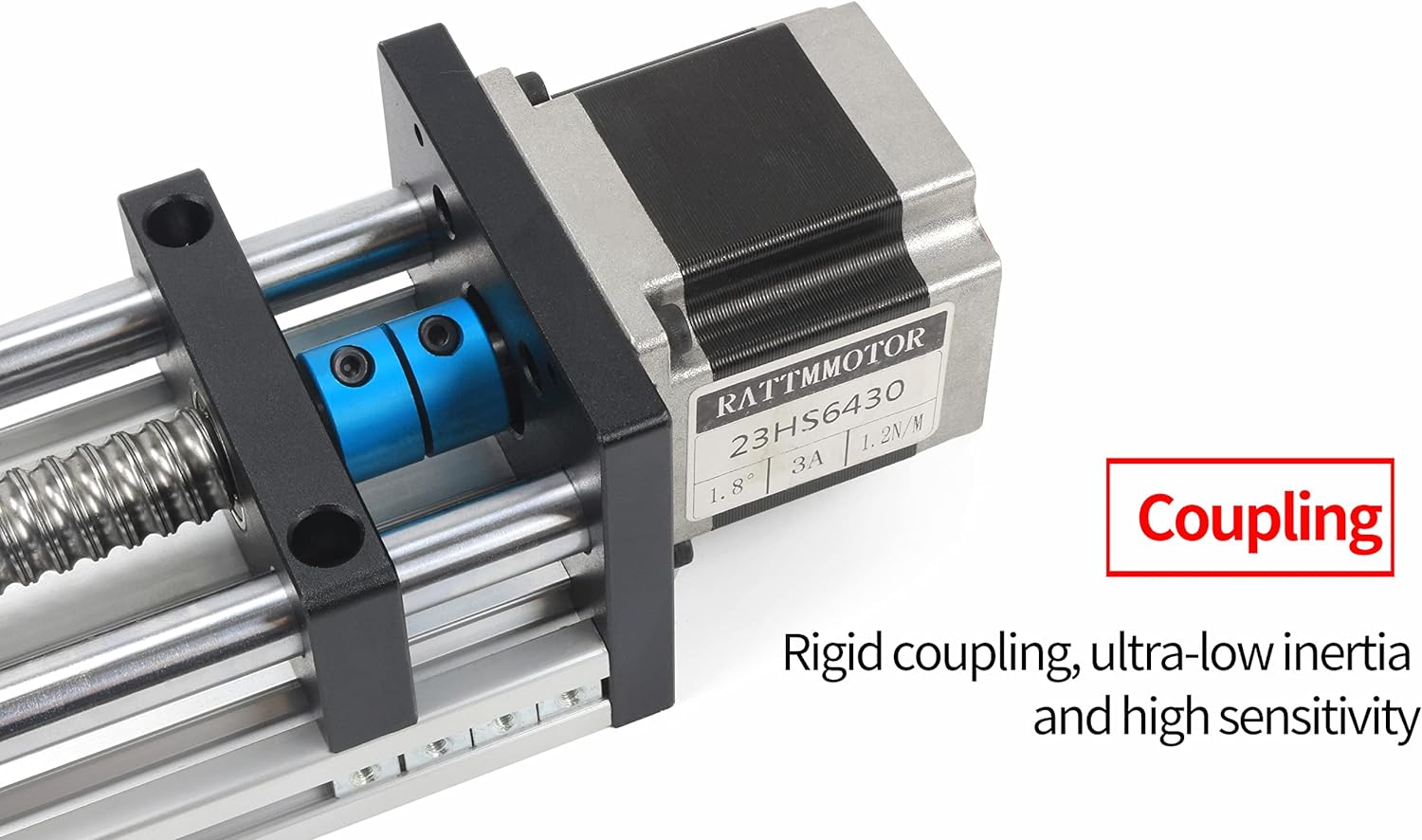

【Compact Structure】The base is 2080 profile, the tail end bearing piece, front end is equipped with Nema23 stepper motor and the flange piece connecting the motor, with the load-bearing slide table, the 1605 lead screw and the coupling, adding a stable bearing, and the double optical axis design. Working Length: 200mm/7.87inch.
【Flexible Installation】80mm aluminum profile base, M4 movable nut at the bottom, side mounting groove for easy fixing, M3 nut can be installed with limit, easy to install. This linear stage can be used in combination with multi-axis, horizontal cross, gantry type, three-axis type, four-axis type, etc.
【Stable Operation】 Stable bearings are added at the motor end to better maintain accuracy and improve operation stability. 80*50mm slider, embedded with linear bearing to ensure uniform axial force and ensure running positioning accuracy.
【High Precision】1605 ball screw, C7 grade screw accuracy, screw reciprocating accuracy of 0.01mm, repeat positioning accuracy of ±0.03mm, accurate positioning, good hardness, quiet operation, and long service life.
【Strong Load Capacity】Two 12mm optical shaft transmission, double shaft support load is larger, the horizontal load is 50KG/110.23Ib, and the vertical load is 10KG/22.05Ib. It is suitable for lathes, CNC machine tools, machining, mechanical equipment, automation devices and other industrial automation fields.
