RATTMMOTOR ZBX80 300mm Stroke CNC Linear Stage Motion Actuator X Y Z Axis Linear Slide Rail Aluminum Alloy Cross Sliding Table Linear Rail Guide SFU1605 Ballscrew+Nema23 57 Stepper Motor for CNC

Description

Price: $165.80 - $133.00
(as of Jun 19, 2024 05:24:52 UTC – Details)

Buy On Amazon

From the brand

About Us

RATTMMTOR was born for CNC machinery manufacturing. Linear motion acutators are our strengths. We have a wide variety of spindle motors. Our metal chucks have excellent quality. Through the mini cnc machine we have realized the freedom of engraving for DIY enthusiasts.

RATTMMOTOR’s survival purpose is not only to provide customers with a wide variety of high-quality products, but also to provide our customers with high-quality services.

NEW Heavy Duty Linear Actuator

General Linear Actuator

Linear Rail Accessories

New Type of Product

Mini CNC Machine

Mini CNC Machine

GRBL Accessories

0.8KW-1.5KW Air Cooled Spindle

2.2KW Air Cooled Spindle

2.2KW Air Cooled Spindle

2.2KW Water Cooled spindle

Water Cooled Spindle Kit

VFD Inverter

104W-800W Spindle Motor

CNC Spindle Motor Accessories

CNC Controller Kit

Metal Lathe Chuck

Package Dimensions ‏ : ‎ 21.3 x 6.5 x 3.6 inches; 8.3 Pounds
Item model number ‏ : ‎ ZXHT80-300
Date First Available ‏ : ‎ December 3, 2021
Manufacturer ‏ : ‎ RTM
ASIN ‏ : ‎ B09MY7XP9L
Country of Origin ‏ : ‎ China

Material: Aluminum Alloy; Effective Stroke: 300mm; Horizontally loadable: 80kg; Vertical carrying: 20kg; Width: 80mm.

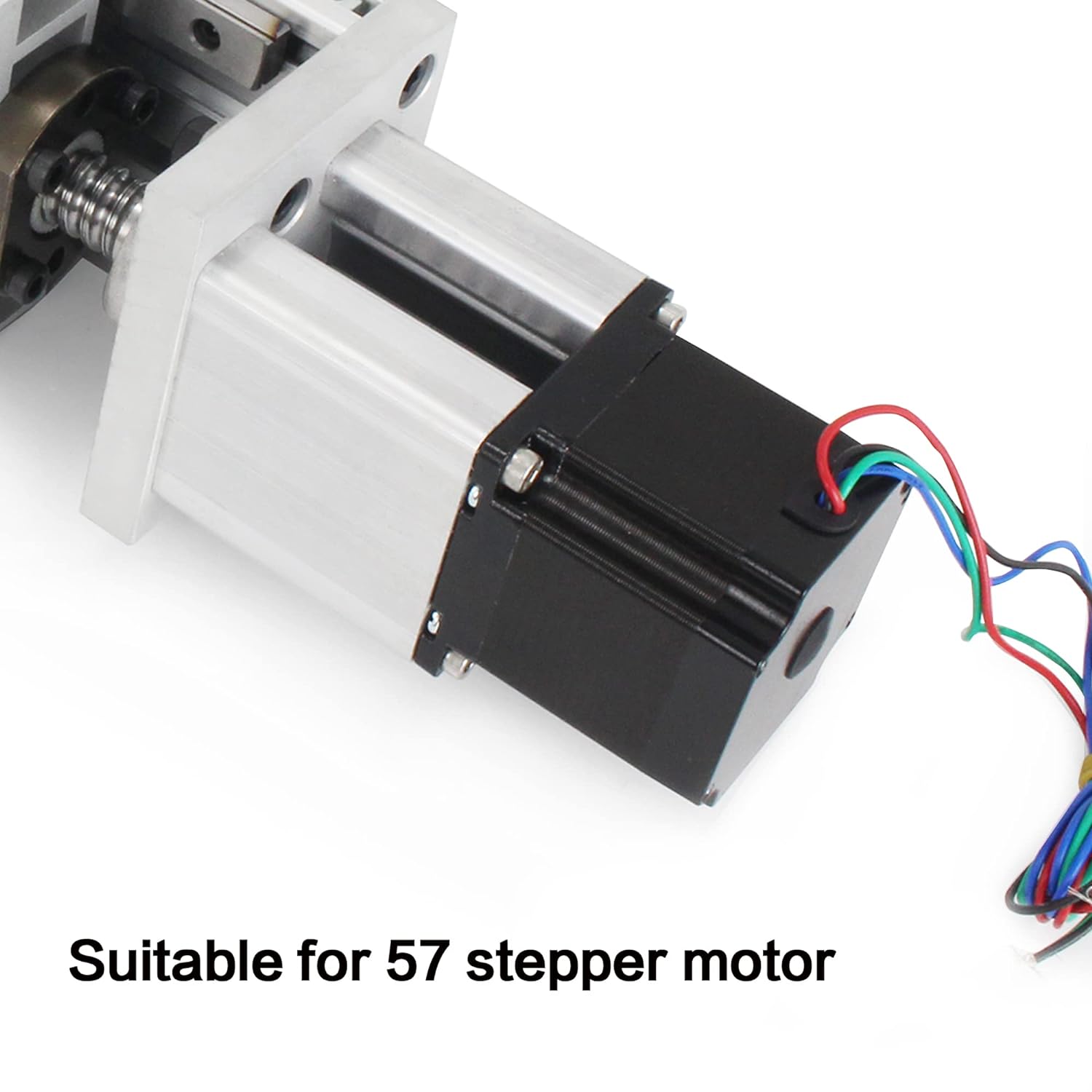

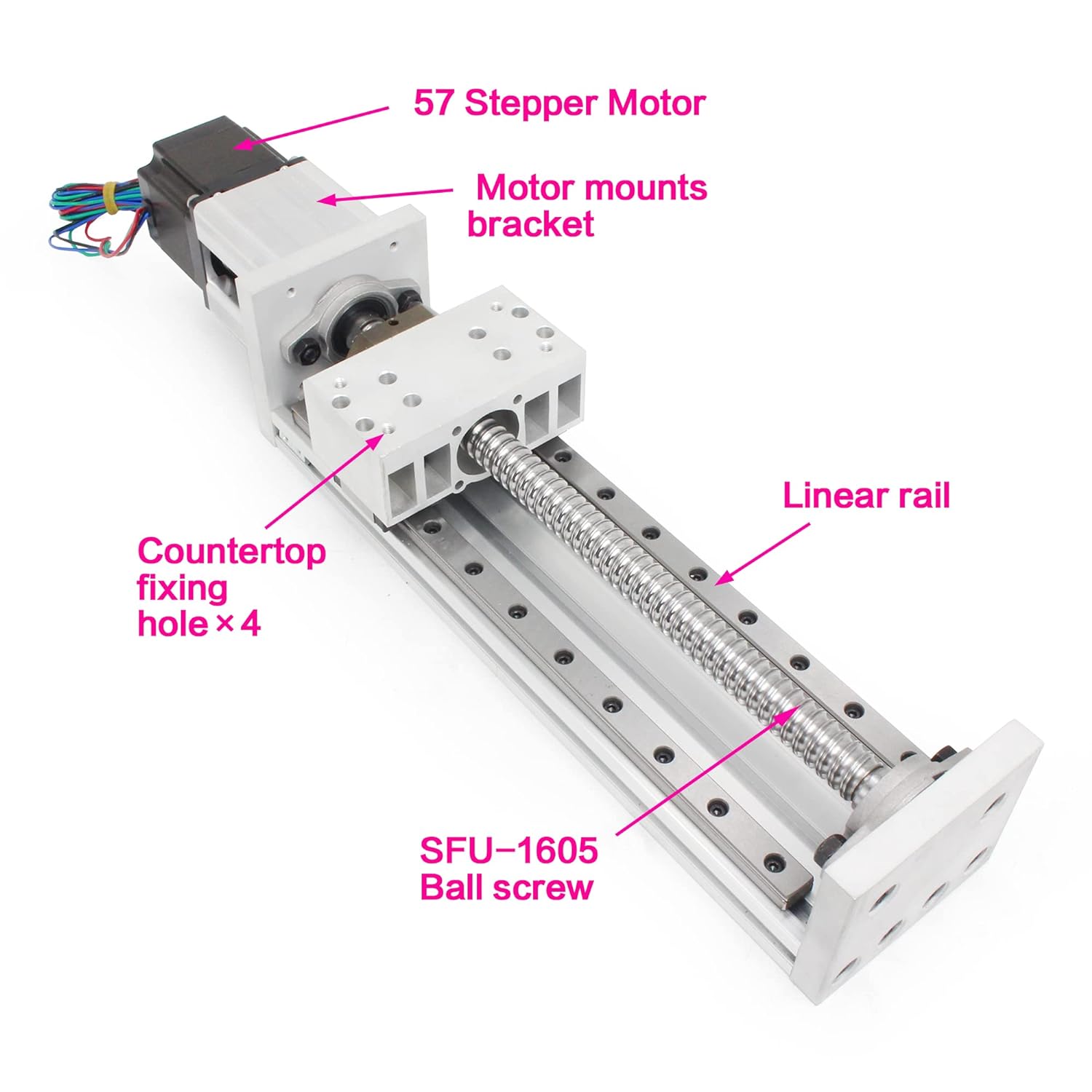

Standard motor: 57 stepper motor 1.8° 2.8A 1.26N.m; Screw: Ballscrew drive 1605-diameter 16 pitch 5mm.

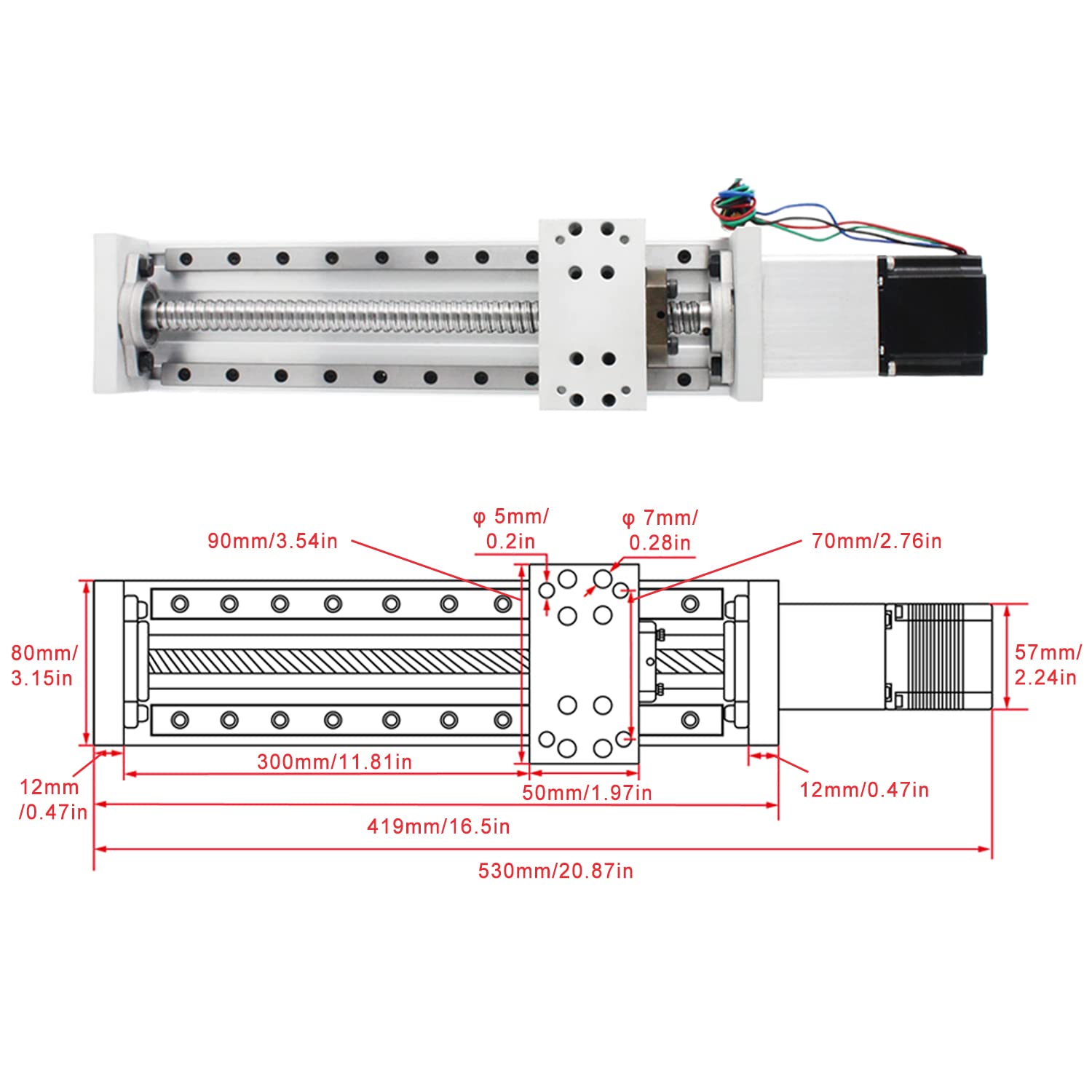

Total length of the linear Motion Actuator including the stepper motor : 530mm; Total length of the base plate without: 419mm.
Standard M5 mounting hole: M5 movable nuts are used on the sides and bottom to make the installation of the sliding table more flexible and changeable.
High speed slient, smooth running; SFU1605 ball screw, accuracy up to 0.03.
