STEPPERONLINE Nema 17 Stepper Motor 2A 55Ncm Bipolar 1.8 Degree 4-Lead for 3D Printer CNC Extruder,1 Pack

Description

Price: $11.99
(as of Aug 08, 2024 04:13:14 UTC – Details)

Buy On Amazon

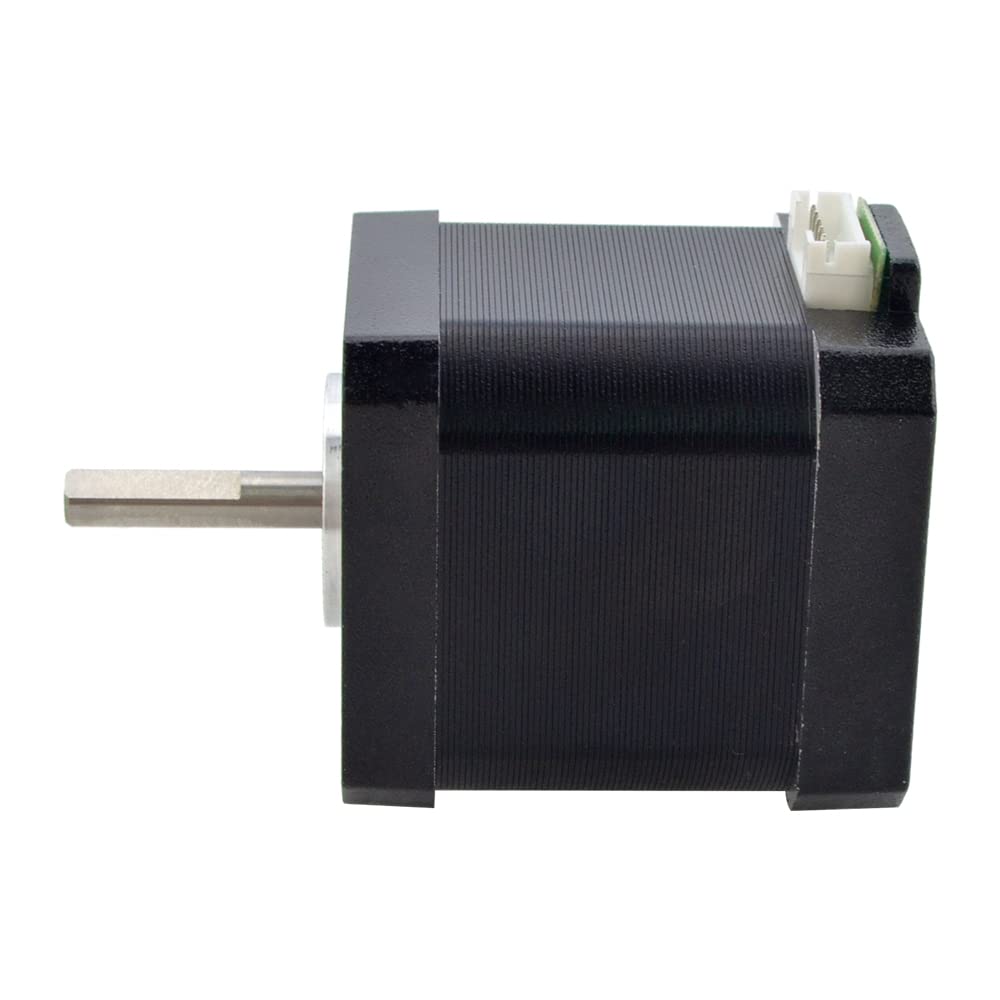

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x48mm. It has 4 wires, each phase draws current 2A, with holding torque 55Ncm.

Electrical Specification

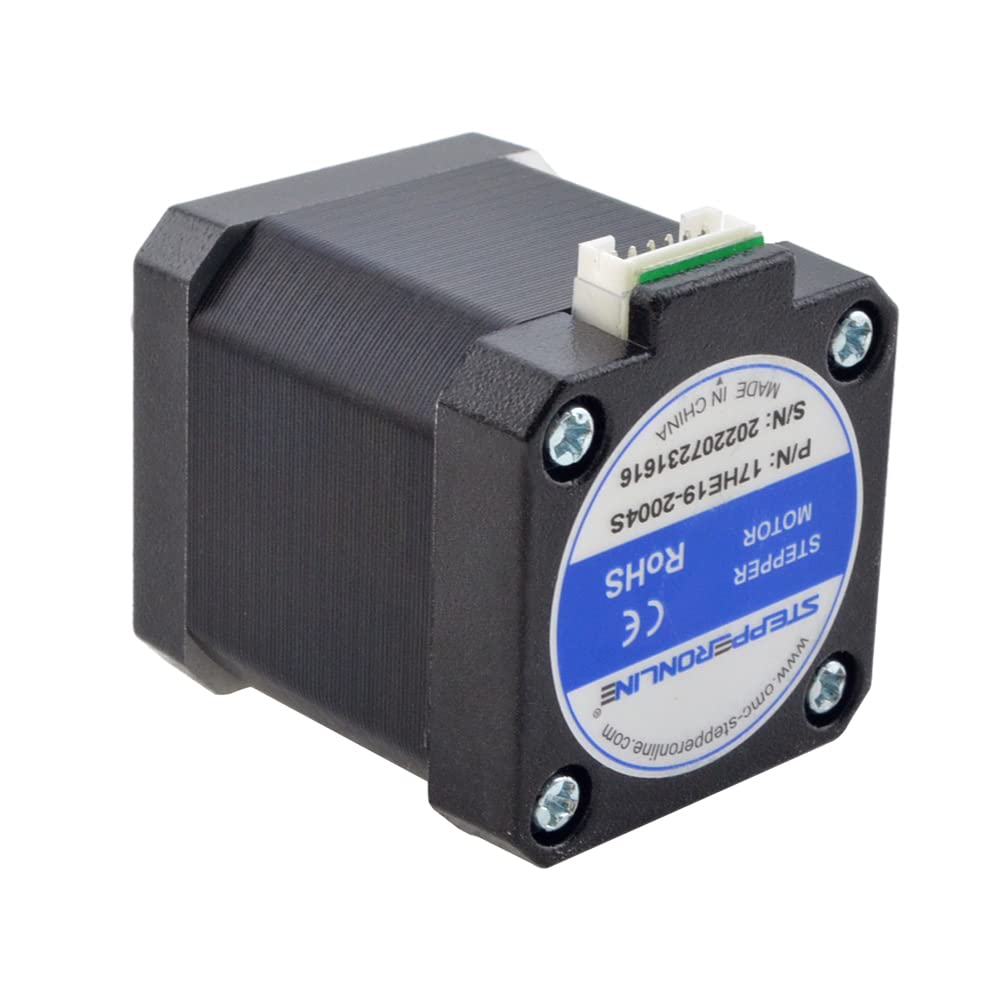

*Manufacturer Part Number: 17HE19-2004S
*Motor Type: Bipolar Stepper
*Step Angle: 1.8 deg
*Holding Torque: 55Ncm
*Rated Current/phase: 2A
*Phase Resistance: 1.3ohms
*Inductance: 2.4.00mH ± 20%(1KHz)

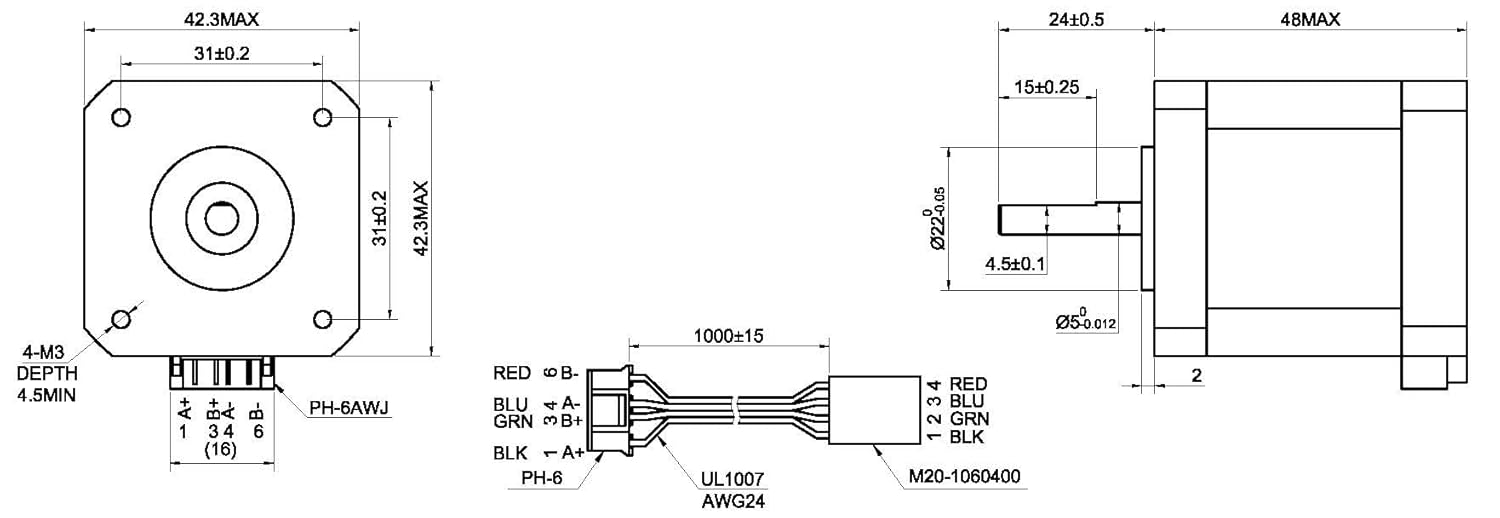

Physical Specification

*Frame Size: 42 x 42mm
*Body Length: 48mm
*Shaft Diameter: Φ5mm
*Shaft Length: 24mm
*D-cut Length: 15mm
*Number of Leads: 4
*Lead Length: 1000mm
*Weight: 400g

Connection

A+: Black, A-: Blue, B+: Green, B-: Red
Warning:

Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
Product Dimensions ‏ : ‎ 1.67 x 1.67 x 1.67 inches; 14.11 ounces
Item model number ‏ : ‎ 17HE19-2004S
Date First Available ‏ : ‎ August 9, 2022
Manufacturer ‏ : ‎ STEPPERONLINE
ASIN ‏ : ‎ B0B93HTR87
Country of Origin ‏ : ‎ China

Nema 17 Stepper Motor with 55Ncm holding troque
Bipolar stepper motor ,dimension 42*42*48mm, 2 phase, 4 leads
Step angle 1.8deg, 200 step/revolution
Rated Current/phase 2A & Phase Resistance 1.3ohms

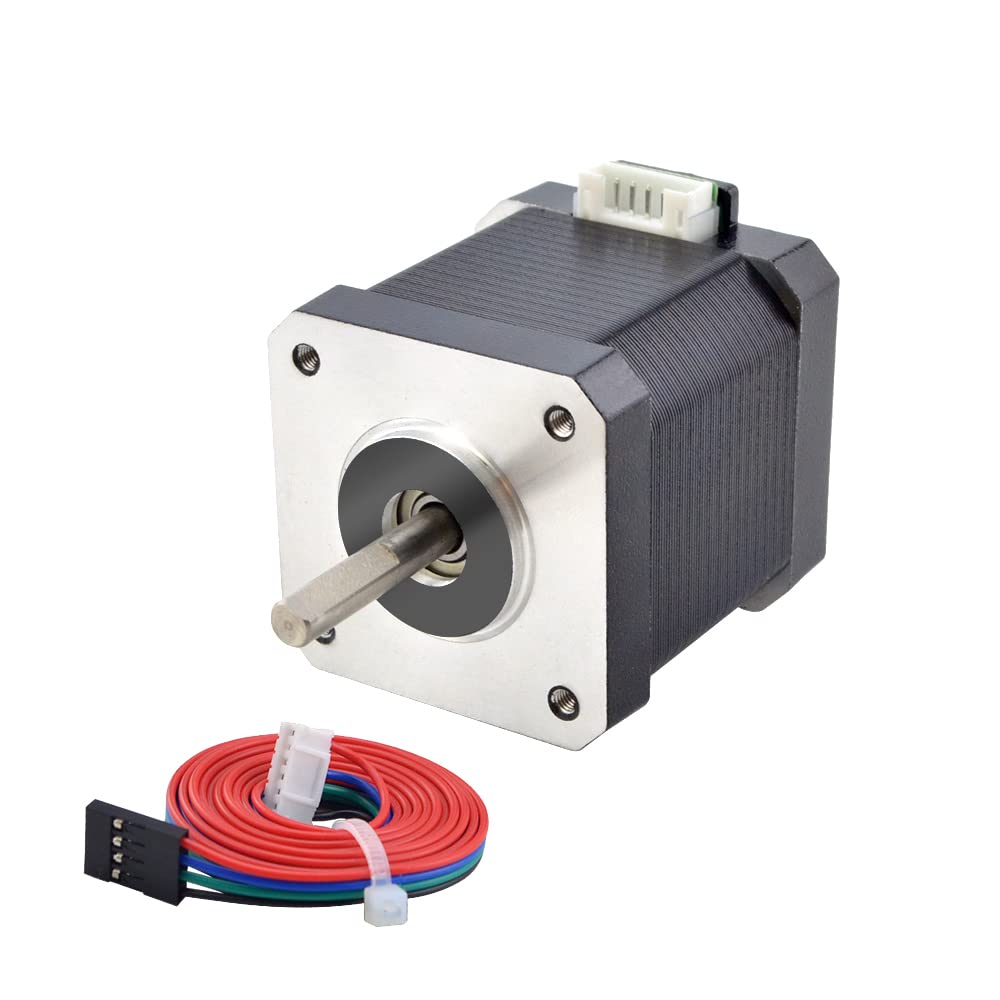

Low noise high troque 3d printer stepper motor, build with 1m Cable and Connector
