Product Description

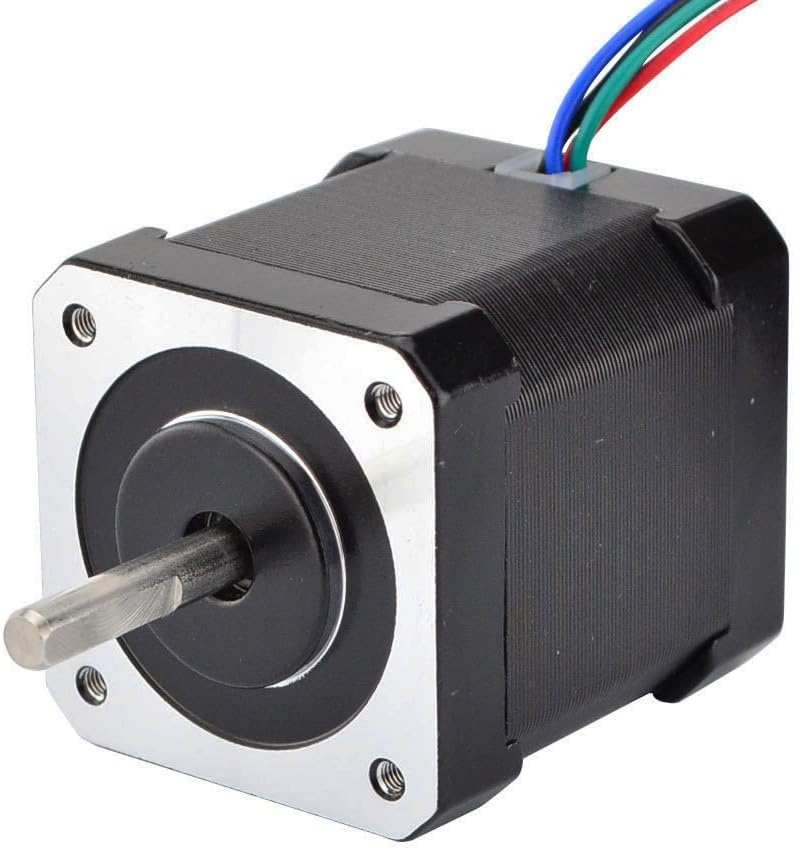

Nema 17 Stepper Motor 2A 59Ncm
Reliable and Stable Performance
STEPPERONLINE focus on the quality of stepper motors and minimizes the rate of defective ones, which ensure that customers can get the most reliable and stable stepper motors.
Low Noise
1.Use excellent materials; 2. Reasonable stepper motor design structure 3. High Precision motor assembly, which makes STEPPERONLINE’ stepper motors stand out by providing quieter and smoother operation
Safely Packaging
STEPPERONLINE specially designed Individual package to ensure your packages withstand the long trip and arrive safely and intactly. Besides, the package is made from recyclable materials, providing you with professional safety delivery.
Motor Dimension
Warning
Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.

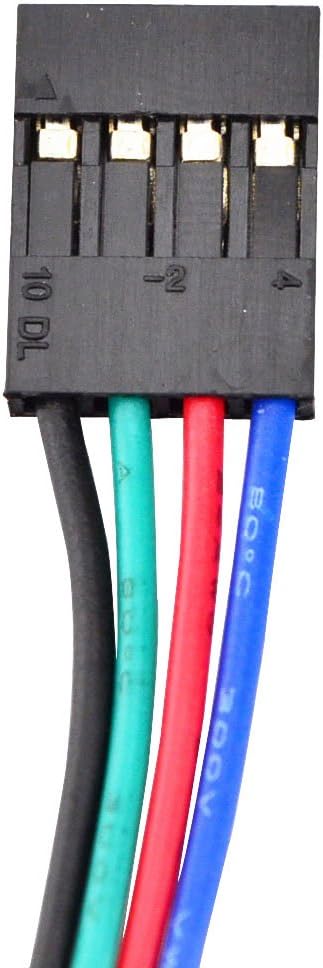

Connection:
A+: Black, A-: Green, B+: Red, B-: Blue
Electrical Specification
Manufacturer Part Number: 17HS19-2004S1 Motor Type Bipolar Stepper Step Angle 1.8 deg Holding Torque 59Ncm(84oz.in) Rated Current/phase 2.0A Phase Resistance 1.4ohms Inductance 3.0mH ± 20%(1KHz) Driving Voltage 12-24V(suggest 24V)
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.5 out of 5 stars
365
4.5 out of 5 stars
370
4.6 out of 5 stars
288
4.5 out of 5 stars
140
4.6 out of 5 stars
89
4.7 out of 5 stars
162
Price
$11.99$11.99
— $11.99$11.99 $12.50$12.50 $23.96$23.96 $22.59$22.59
Rated Current/phase
1.0A 1.5A 1.5A 0.4A 2.0A 2.1A
Holding Torque
18.4oz.in 59.49oz.in 63.74oz.in 36.8oz.in 65.1oz.in 92oz.in
Dimension
1.65″ x 1.65″ x 0.79″ 1.65″ x 1.65″ x 1.54″ 1.65″ x 1.65″ x 1.54″ 1.65″ x 1.65″ x 1.34″ 1.65″ x 1.65″ x 1.89″ 1.65″ x 1.65″ x 2.36″
STEPPERONLINE
High Quality with Global Standards
Flexible Customization
Expert Choice
3D printer motor with high torque
59Ncm(83.6oz.in) holding torque
NEMA 17 bipolar 1.65″x1.65″x1.89″ 4-wire
Build with 39.37″( 1m) Cable and 0.1″ pitch Connector
Rated current 2.0A & resistance 1.4ohms
