Product Description
Tough Equipment & Tools
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR’s products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
Premium Tough Quality Incredibly Low Prices Fast & Secure Delivery 30-Day Free Returns 24/7 Attentive Service

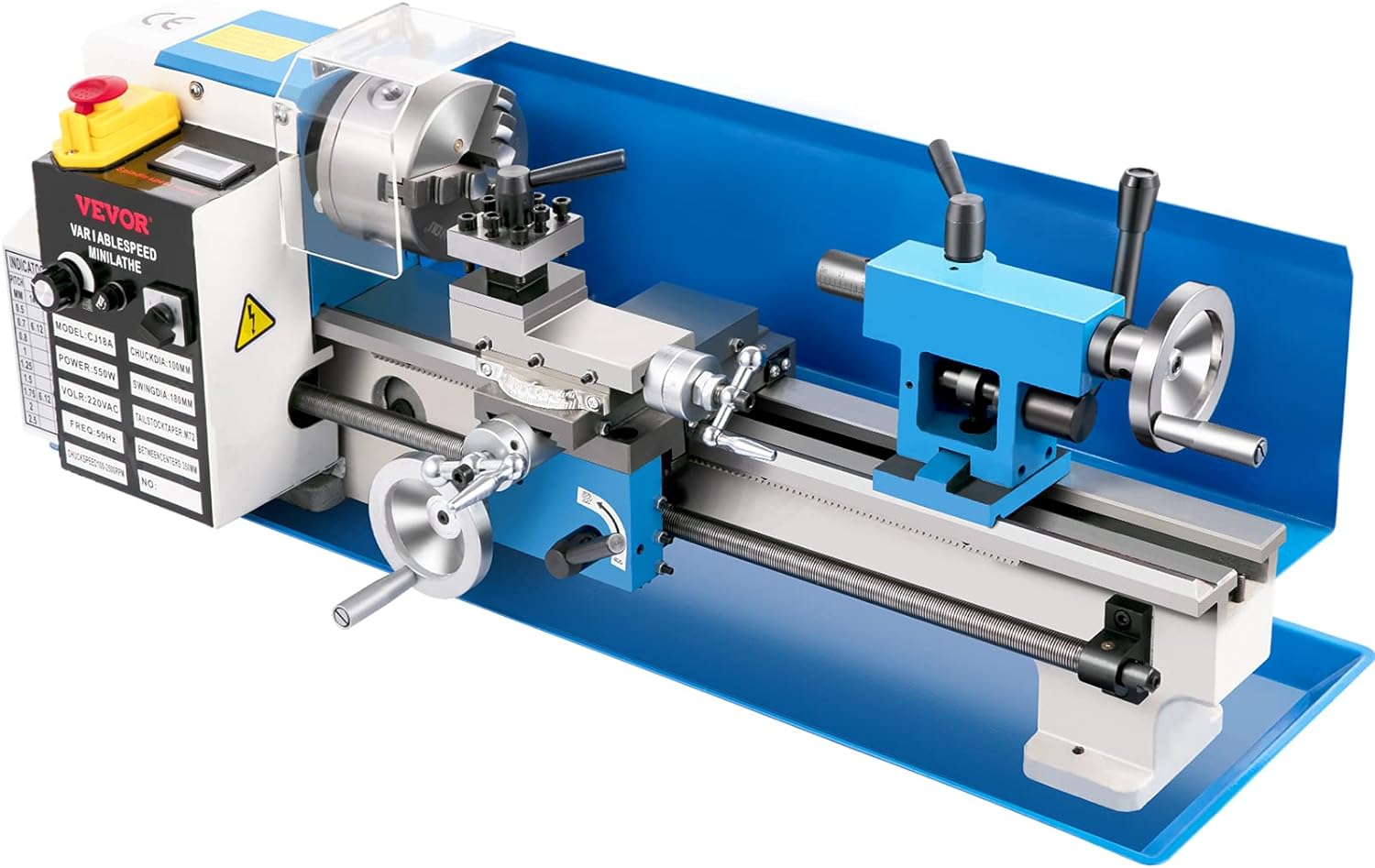

7″x14″ Benchtop Metal Lathe
50-2250RPM & 4-Way Tool Post & Variable Speed
The precision lathe mill machine features a powerful motor. Upgraded metal gear and hand wheel can prolong the service time. LED light helps you work on the dim surroundings. It’s designed for turning, drilling, and threading
Precise Engineering Large Working Capacity Upgrade Design Complete Control
550W Powerful Motor
The benchtop mini metal lathe is equipped with a 550W powerful motor, is excellent for handling small to medium projects.
User-friendly Design
The aluminum handwheel is more durable. A digital display screen is convenient for you to follow up the processing. LED light can help you finish the work in gloomy places.
Durable Metal Gears
This upgrade metal lathes use metal gear instead of nylon, which significantly increases service life.
Multiple Rotation Rate
The milling machine can adjust the speed from 0-2500rpm by the knob. Spindle adjustable rate for multiple workings
Professional Tool Rest
The 4-way tool post is contributed to providing greater control of your work. Open the lock and change the tool with a slight turn.
Adjustable Tailstock
You can move the tailstock forth and back by losing the fixed handle. The MT2 dead center can be adjusted by a loose quill lock and turn tailstock handwheel.
Package Content
1 x Mini Metal Lathe 1 x Working Light 3 x Chuck Jaw 7 x Turning Tool 1 x A Set of Accessories
Specifications
Power of Motor: 550W DC Single PhaseTailstock Taper: MT#2Spindle Speed: 50-2250 ± 10% RPMSpindle Accuracy: 0.01mmGear Material: MetalVoltage: 110V / 60HzSpindle Hole: 0.8“(φ 21mm)Swing Over Bed: 7.09″/180mmCenter Distance:13.78″/350mm
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
3.4 out of 5 stars
62
3.9 out of 5 stars
153
3.1 out of 5 stars
101
3.3 out of 5 stars
31
Price
$505.99$505.99 $499.99$499.99 $1,141.92$1,141.92 $1,216.21$1,216.21
Size
7×12 inch 7×14 inch 8 x 32 inch 8.7 x 29.5 Inch
Power of Motor
550W DC 550W DC 850W 750W
Spindle Speed
0-2250PRM 50-2250 ± 10% RPM 50-2500 RPM 50-2250±10% RPM
Swing Over Bed
7.09″ / 180 mm 7.09″ / 180 mm 8.3″ / 210 mm 8.7″ / 220 mm
Centers Distance
11.81″ / 300 mm 13.78″ / 350 mm 31.5″ / 800 mm 29.5″ / 750 mm
Chuck Diameter
3.15″ / 80 mm 3.15″ / 80 mm 4.9″ / 125 mm 4.9″ / 125 mm
Spindle Bore
0.83″ / 21 mm 0.83″ / 21 mm 1.5″ / 38 mm 1.5″ / 38 mm
Inch Thread
12-52 T.P.I 12-52 T.P.I 8-44 T.P.I 8-44 T.P.I
Tail Stock Taper
MT2 MT2 MT2 MT2
Spindle Taper
MT3 MT3 MT5 MT5
100% Nylon
Precise Engineering: Ideal for professionals, this power metal lathe’s high-precision 4-inch 3-jaw chuck handles both square and round objects with equal aplomb. It’s especially suitable for jobs requiring high accuracy, such as threading.

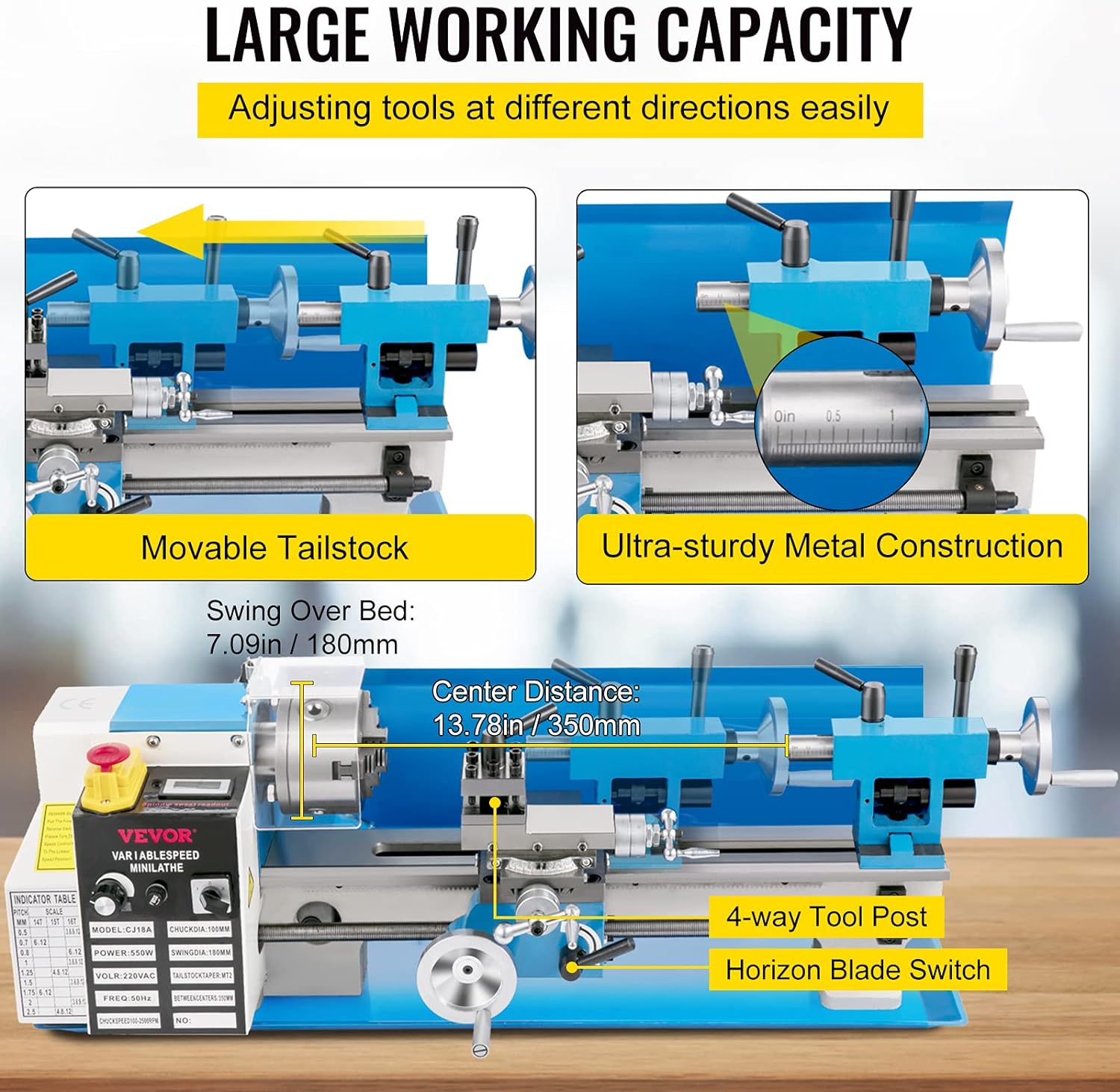

Large Working Capacity: This metal working lathe cranks out 550W and handles small to medium projects. It provides a 7.09″/180mm swing over bed and 13.78″/350mm center distance so that you can manage more extensive projects.
Upgrade Design: This small metal lathe uses metal gear instead of a nylon one. Aluminum handwheel can increase service life. Automatic power-off protection switch to make it safer. An extra LED lamp can help you finish processing in places with insufficient light.
Complete Control: The lathe’s rotational speed can be set from 50 to 2500rpm and monitored by the digital display; the well-crafted head and tailstocks, large through-hole, and 4-way tool post also contribute to providing greater control of your work.
Professional Construction: 4-way quick change tool post can install 4 standard turning tools at the same time. You can adjust tool post forwards/backward by turn blade adjustors with accurate scales clockwise/anticlockwise.
