WayPonDEV CM3588 Network Storage Module NAS Kit, 16GB LPDDR4 Single Board Computer, RK3588 2.4GHz CPU 6TOPs NPU Mali-G610 GPU, Support 4X NVMe SSD for Home Cloud Server, 8K Video Encoders (16+64GB)

Description

Price: $229.99
(as of Sep 05, 2024 14:13:14 UTC – Details)

Buy On Amazon

Product Description

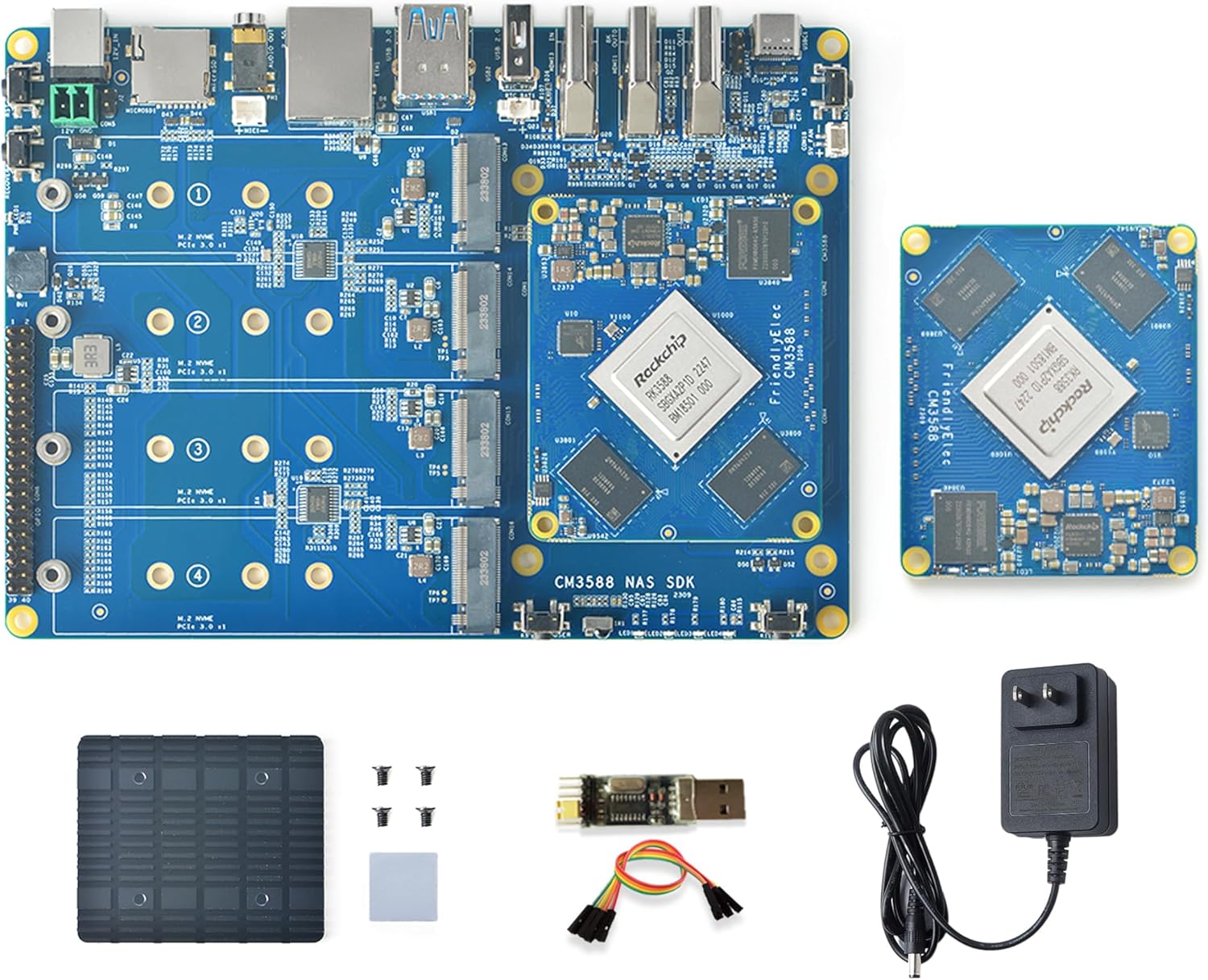

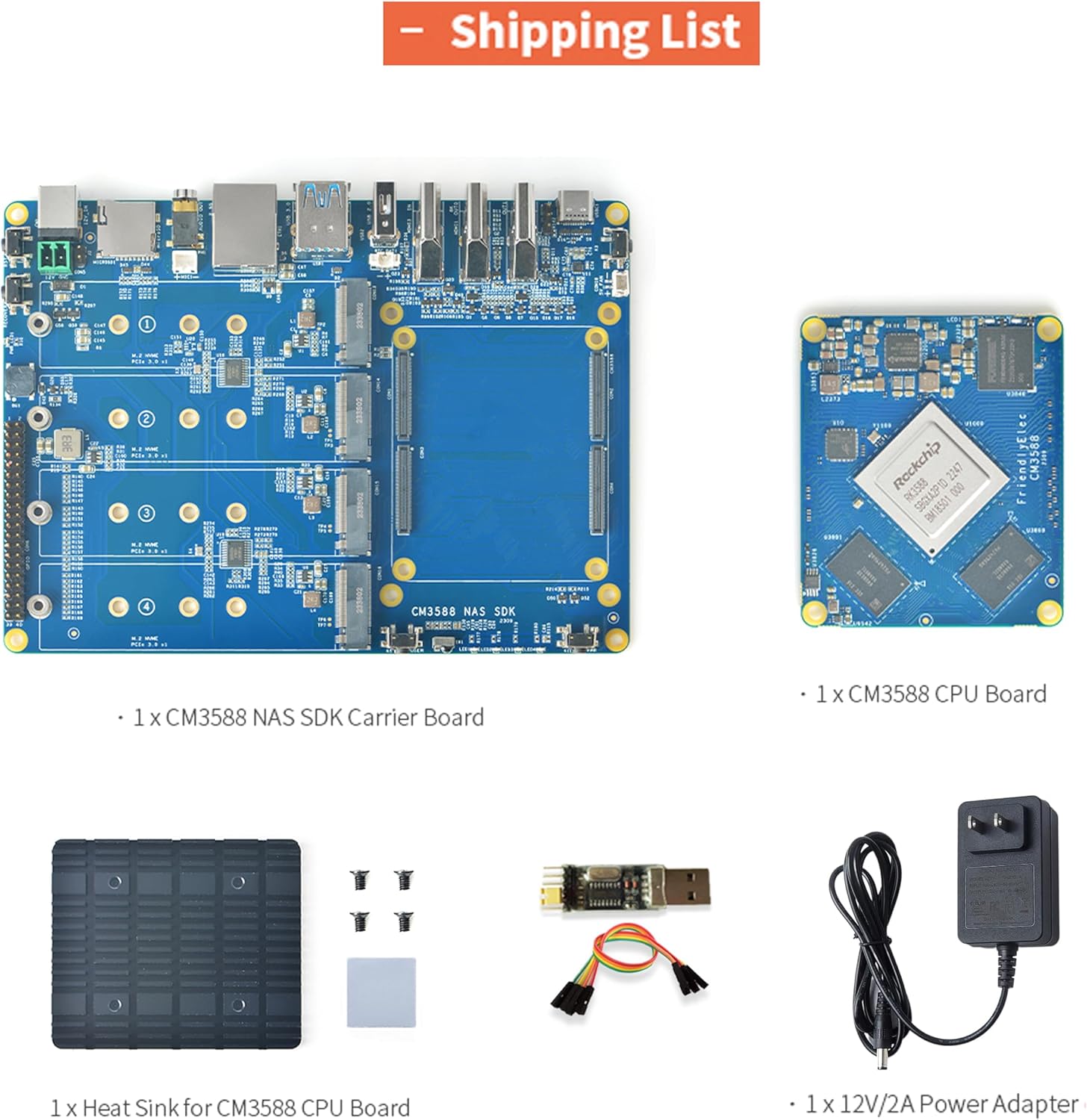

–Shipping List–

1x CM3588 NAS SDK Carrier Board1x CM3588/CM3588 Plus CPU Core Board1x Heat Sink for CM3588 CPU Board1x 12V 2A Power Adapter1x USB to TTL Adapter4x PCIe M.2 SSD Screw

[High Performance ARM Module Kit]

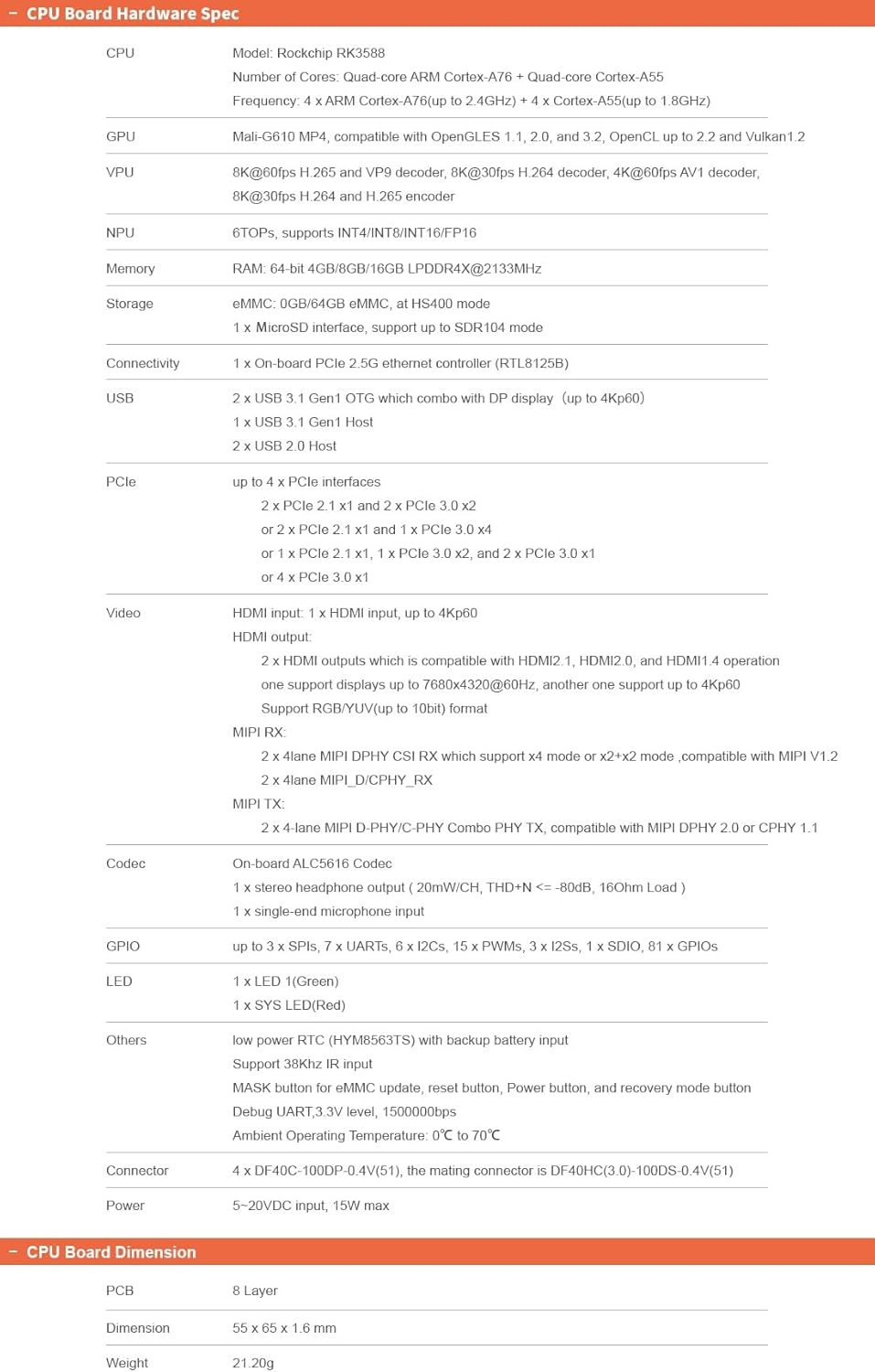

SoC: Rockchip RK3588CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoderNPU: 6TOPs, supports INT4/INT8/INT16/FP16RAM: 64-bit 4GB/8GB/16GB/32GB LPDDR4X/ LPDDR5 at 2133MHzFlash: 0GB/64GB/256GB eMMC, at HS400 mode

(1 x microSD interface, support up to SDR104 mode)

(1 x On-board PCIe 2.5G ethernet controller (RTL8125B)

[Multi-function Interface]

USB:

2 x USB 3.1 Gen1 OTG which combo with DP display（up to 4Kp60）

1 x USB 3.1 Gen1 Host, 2 x USB 2.0 Host

PCIe:

up to 4 x PCIe interfaces

2 x PCIe 2.1 x1 and 2 x PCIe 3.0 x2 or 2 x PCIe 2.1 x1 and 1 x PCIe 3.0 x4

or 1 x PCIe 2.1 x1, 1 x PCIe 3.0 x2, and 2 x PCIe 3.0 x1 or 4 x PCIe 3.0 x1HDMI

Output: 2 x HDMI outputs which is compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation

one support displays up to 7680×4320@60Hz, another one support up to 4Kp60

Support RGB/YUV(up to 10bit) formatHDMI input: 1 x HDMI input, up to 4Kp60

MIPI RX:

2 x 4lane MIPI DPHY CSI RX which support x4 mode or x2+x2 mode ,compatible with MIPI V1.2

2 x 4lane MIPI_D/CPHY_RXMIPI TX:

2 x 4-lane MIPI D-PHY/C-PHY Combo PHY TX, compatible with MIPI DPHY 2.0 or CPHY 1.1

Do you have the following questions about the CM3588 NAS Kit ?

Q：“Can i access files from this NAS to anywhere and any other network??”

A：Of course you can, just need the device to keep the network open, you can use it anywhere!

Q：”Do you sell the CM3588 board to add and if so, does it fit the form factor of raspberry pi CM4?”

A：We sell CM3588 base boards, but we have not tested the CM4 core board for Raspberry Pi yet, so we recommend using the CM3588 core board.

Q：Who is this product for? Where are there specific application scenarios?

A1：CM3588 NAS Kit has well established software support. It is a perfect platform for startups to develop applications and prototypes in facial detection, machine vision, VR, autonomous-driving, deep learning, AI and Network Storage Device.

A2：It is a good choice for enterprise users to develop projects with powerful performance and stable work, and it is also a recommended storage device for individual enthusiasts for deep learning as well as artificial intelligence development.

Q：Where can I get detailed wiki information? What system images are supported？

A: The CM3588 offers the OpenMediaVault NAS system and supports various operating systems including Android, Ubuntu, Debian, Buildroot, and OpenWrt. It has well established software support. Wiki Address：“wiki.friendlyelec.com/wiki/index.php/CM3588”.

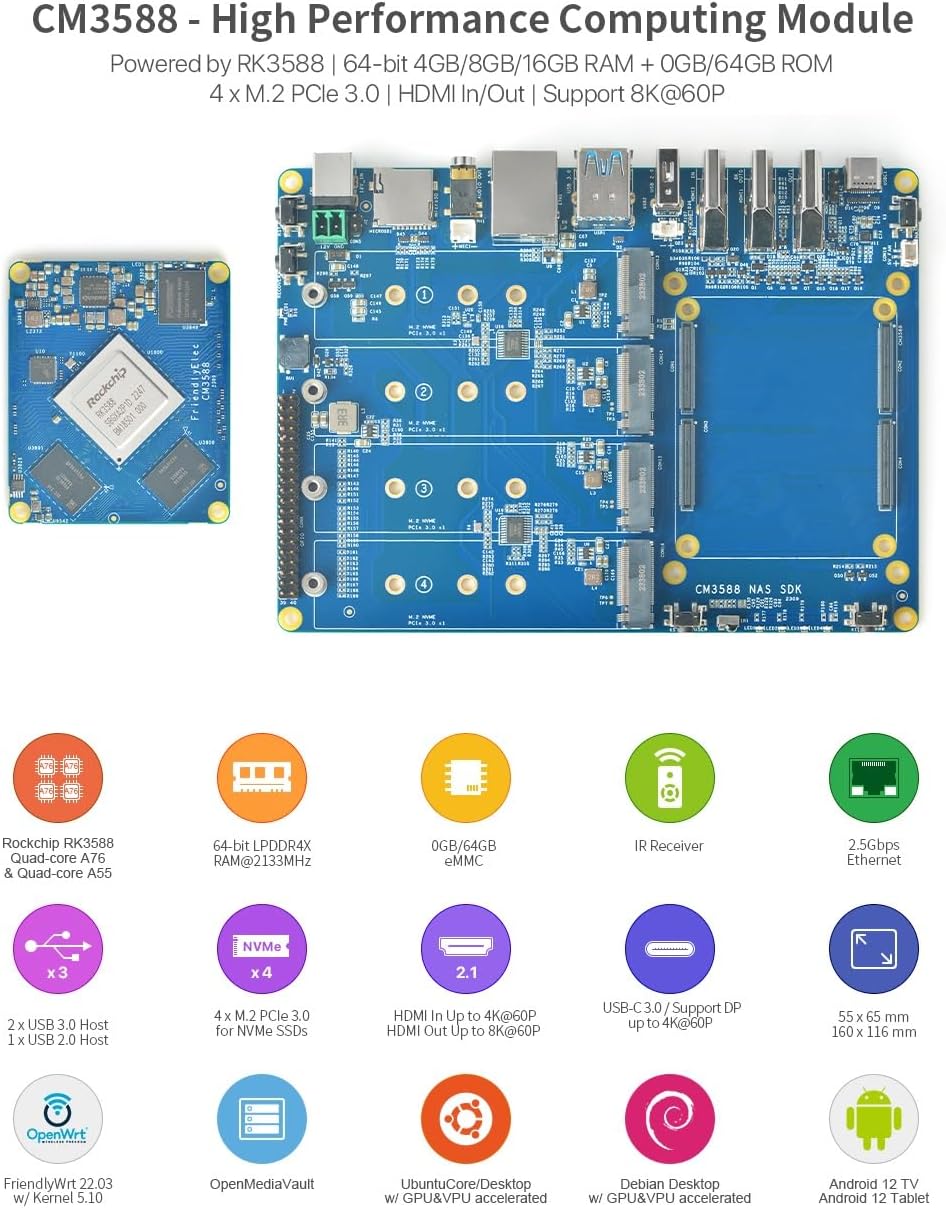

[Rockchip RK3588 SoC] The CM3588 NAS Kit is a high performance ARM Module Kit. It is based on Rockchip’s RK3588 SoC, onboard 6TOPs NPU, Mali-G610 MP4 GPU and VPU. It has 4/8/16GB LPDDR4X RAM, 64GB eMMC Flash, The CM3588 have four 100-pin connectors, exposing nearly all IO resources.

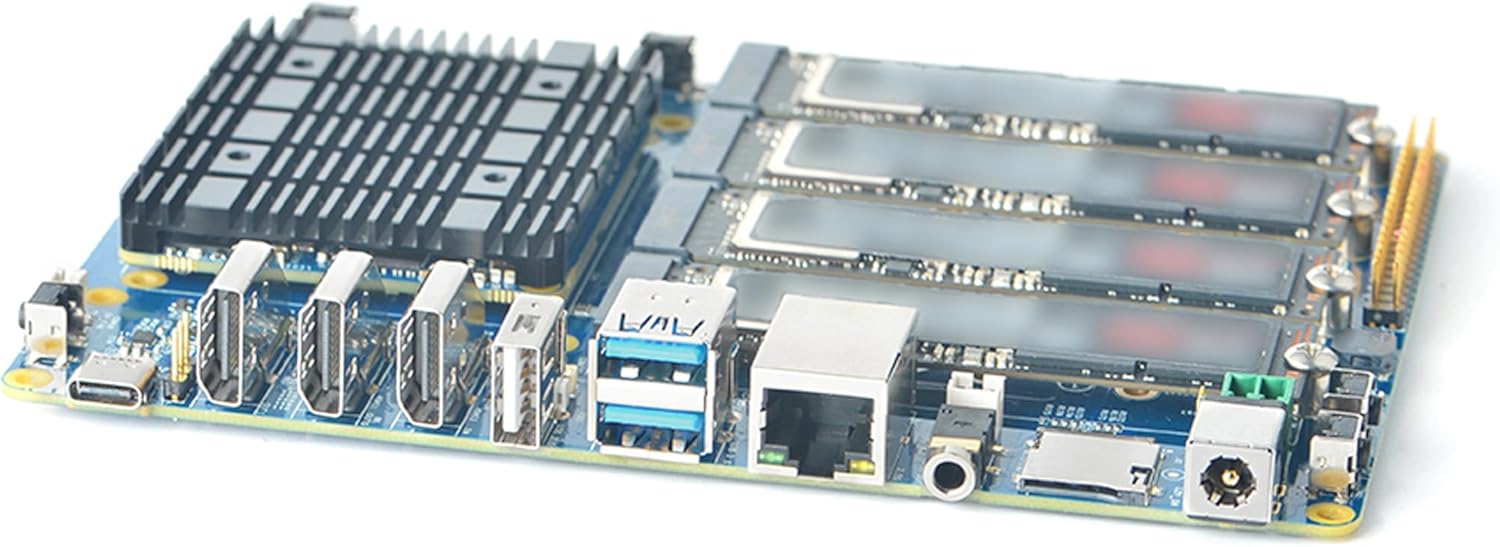

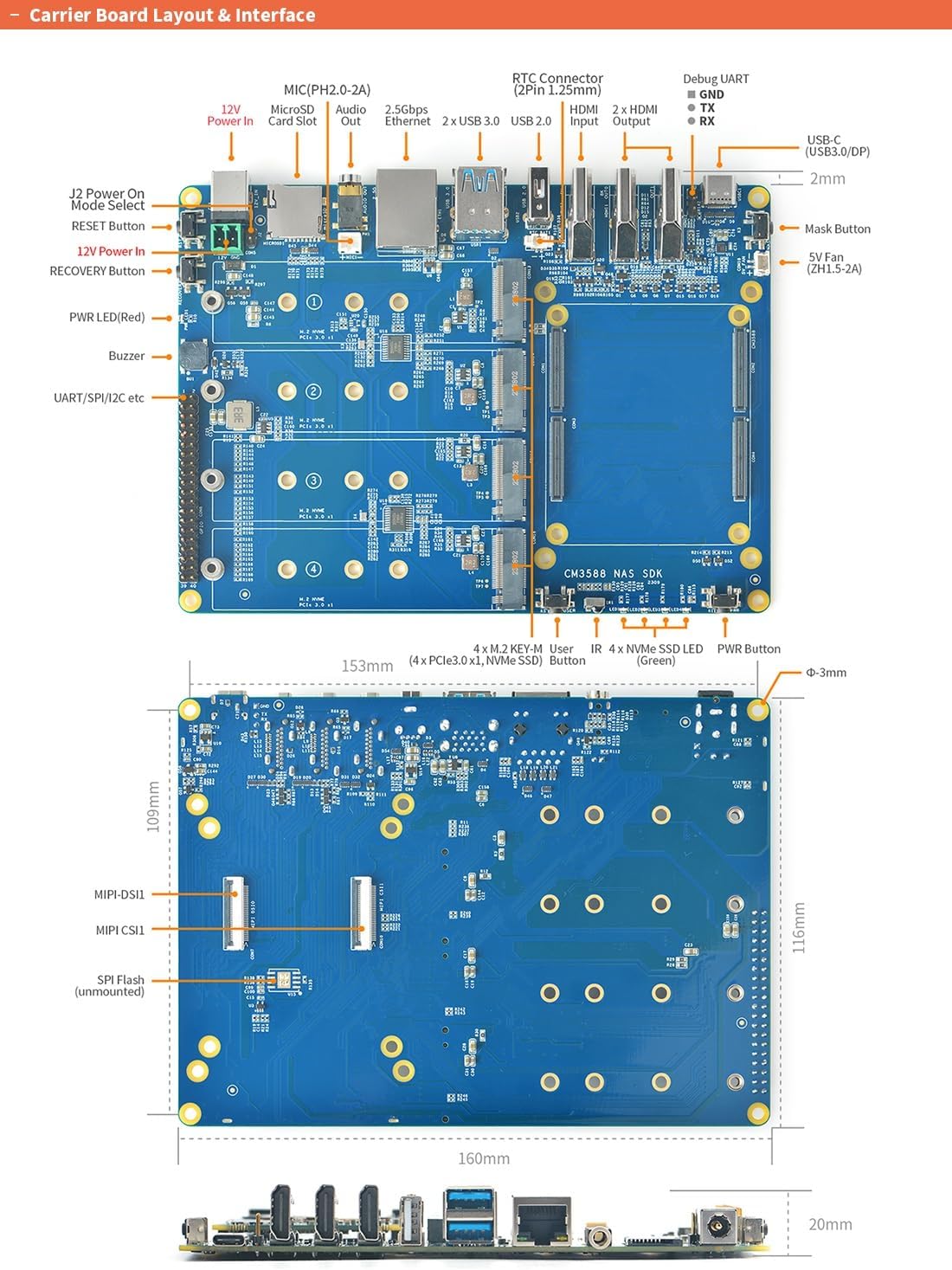

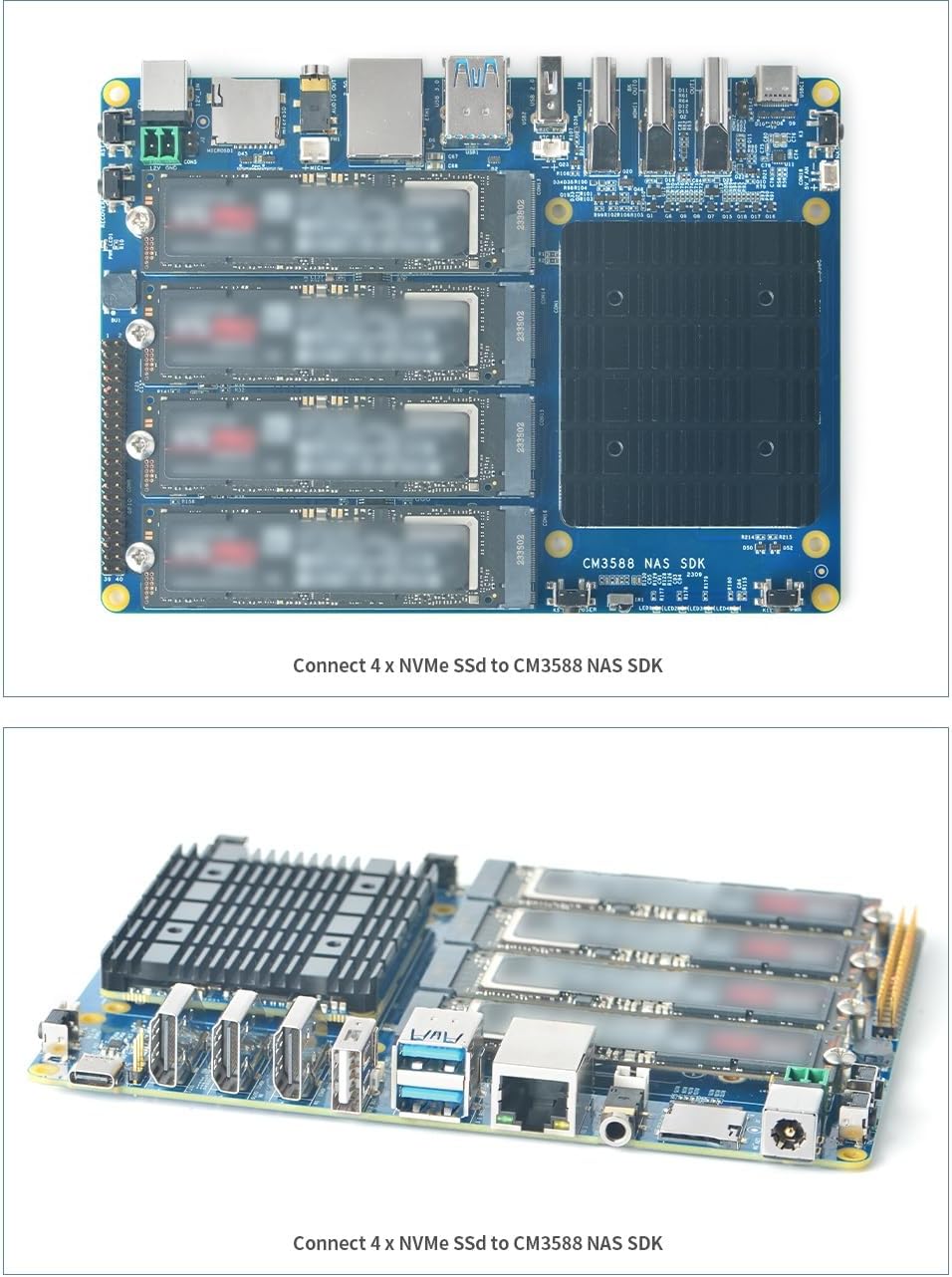

[Multi-function Interface] The CM3588 NAS computing module can connect to a carrier borad supporting 4 NVMe high-speed solid-state drives with read/write speeds of up to 1GB/s. Additionally, it includes dual HDMI-Out display interfaces, 1 HDMI-In interface, 2 USB3.0 ports, 1 USB2.0 port, a 2.5G Ethernet interface, and more.
[Supports 8K Video Encoders] CM3588 Single Board Computer NAS Kit have 2 HDMI output interfaces and 1 HDMI In interface can decode and play videos in formats such as up to 8K60p H.265/VP9 and 8K30p H.264, with the ability to record 4K60p H.265 videos.
[Multi-system Operation] CM3588 Single Board Computer NAS Kit offers the OpenMediaVault NAS system and supports various operating systems including Android, Ubuntu, Debian, Buildroot and OpenWrt. Satisfying developers with more optionality
[Perfect Software Support] CM3588 NAS Kit has well established software support. It is a perfect platform for startups to develop applications and prototypes in facial detection, machine vision, VR, autonomous-driving, deep learning, AI and Network Storage Device.
Wiki: Getting Start: “https://wiki.friendlyelec.com/wiki/index.php/CM3588”; Support Linux Ubuntu OS. All after-sales questions please click “WayPonDEV” store and ask the question. Or please leave the message to “wpd#youyeetoo&com (#—>@,&—>.)”.
