Description
Price: $84.98 - $65.99
(as of Jun 30, 2024 05:13:15 UTC – Details)
From the brand
History of ZT-702S
The project was initiated in 2019, and after four years of independent development,the company successfully completed all aspects, including the planning, design, and development of the structure, hardware, and software, as well as the experimentation, testing, and continuous improvement of the prototype. Finally, in April 2023, it entered mass production and was launched on the market.
When did our company start?
Our company was established in 1984. In the same year, we introduced the first domestic multimeter production line.
Who is the founder of our company?
Founder of the company: Mr. Li Hong, who dedicated his entire life to advancing and leading the development of domestic multimeters, and also pioneered and promoted the research and development of multimeter chips in the country.
Can you accept our original products?
You may not like every technological innovation, but this spirit cannot be missing. Do you agree with this?
How many products do we currently have?
After 39 years of persistence and effort, we now have over 100 products.
What is our philosophy?
Based on the principles of “seeking common ground while reserving differences and achieving common development,” with a foundation of “quality first, creating win-win situations,” and with the goal of “making measurements more effective,” it has been our continuous pursuit.
What are our desires?
We also yearn for the deep space of the universe, let’s bravely explore, venture, and accomplish it!
Product Dimensions : 10.23 x 5.19 x 2.55 inches; 1.59 Pounds
Item model number : 702S
Date First Available : April 24, 2023
Manufacturer : ZOTEK
ASIN : B0C3D1KVPB
Country of Origin : China

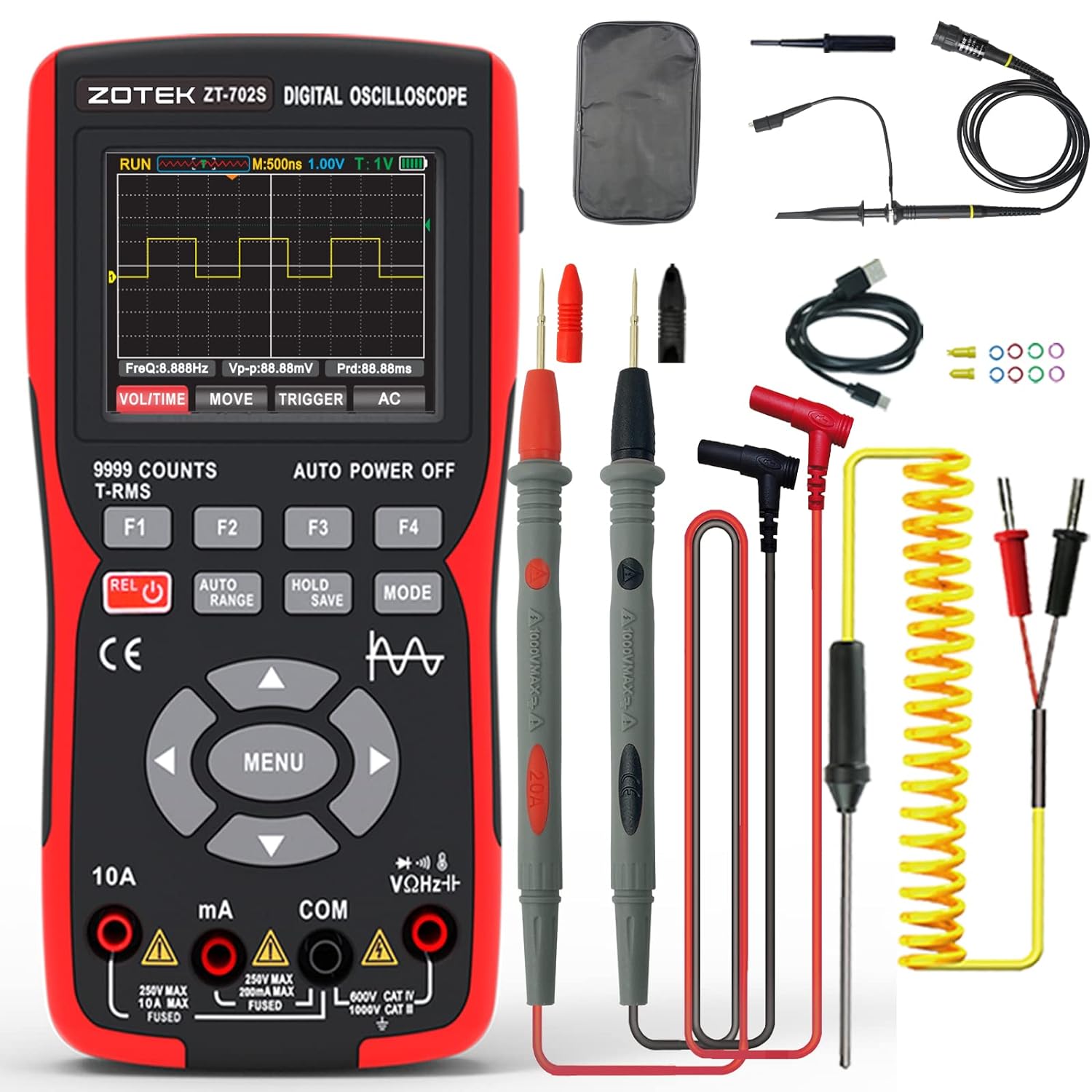

2.8-inch IPS full-view color screen oscilloscope multimeter:Trigger Function Auto/Nomal/Single, ±400V input, automatic measurement scan, 200mv/div-10v/div vertical sensitivity,8/50ns/div-20S/div horizontal scan range, 20ppm time base Accuracy digital oscilloscope
Dual mode design of oscilloscope and multimeter: one-button switch mode 、automatic obtain waveform, time base calibration, data storage, data export, language selection, shutdown time setting, backlight adjustable, data transmission port, 3V-1kHZ square wave output, memory and other functions, easy to operate, Improve work efficiency. digital oscilloscope multimeter widely used in automotive, industrial equipment, sensors, heavy electrical equipment, finishing and low voltage systems.
Multimeter Tester Mode: 9999 counts; AC voltage: 0-750V; DC voltage: 0-999.9V; DC/AC current: 0-9.999A; resistance: 0-99.99MΩ; capacitance: 0-9.999mF ; Frequency: 0-99.99kHZ; Temperature: -20°C-1000°C, diode, continuity measurement. It is suitable for voltage tester instrument of household, school, shopping mall, and laboratory circuit system, and can also be used for digital multimeter of socket, switch, lamp and low-voltage circuit.

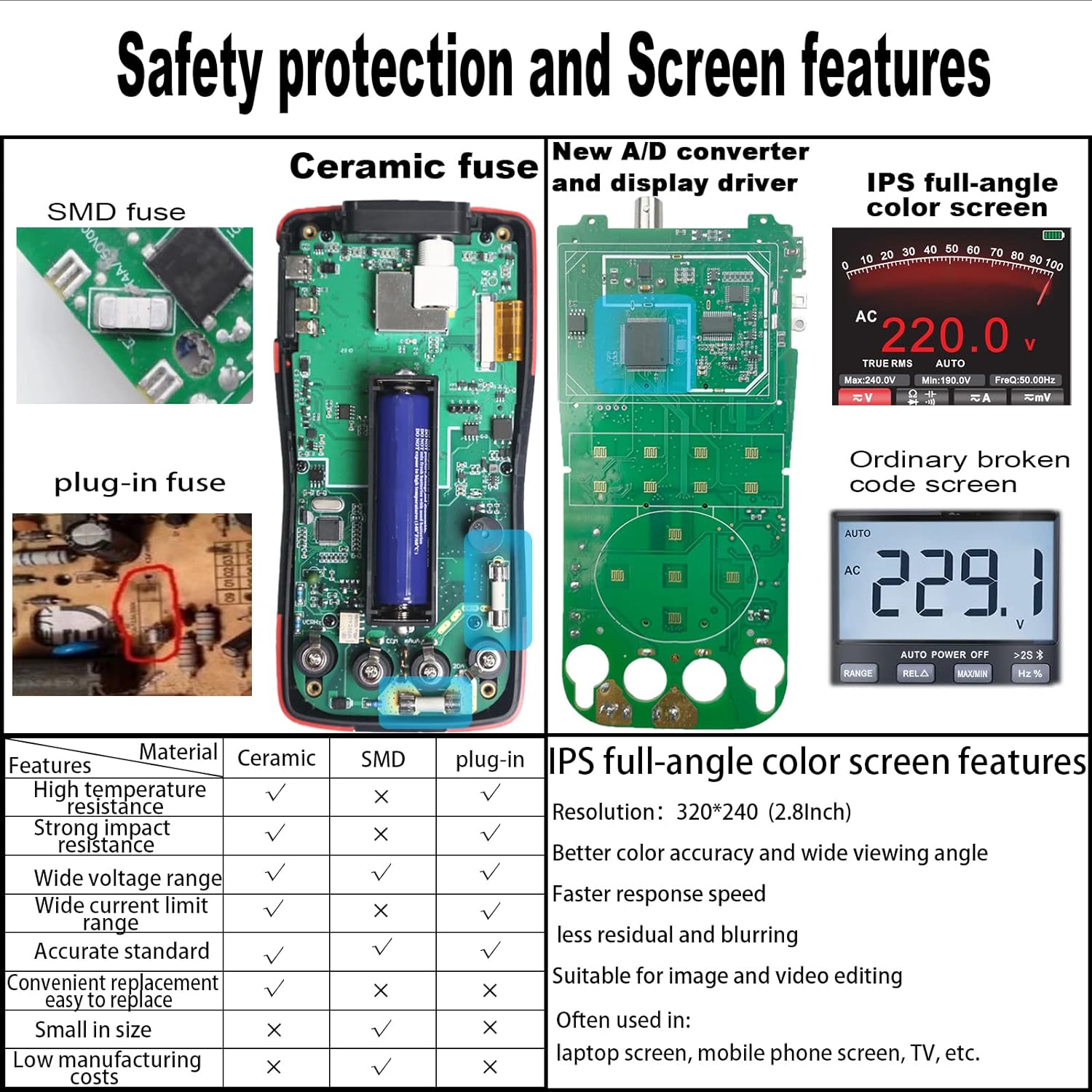

Safety overload protection:conforms to CTA III 1000V, CTA II 600V safety level, meets CE certification requirements, A/D high sampling conversion, 200mA-10A double ceramic fuse, ABS+TPE double injection molding process, strong Durable.
A multi-purpose Automotive oscilloscope multimeter equipped with a 1X2000mAh power supply and USB charging cable. The charging and data transmission channels share a TP-C interface, which can also be used during charging. Equipped with a 4V/1KHz square wave signal generator, product size: 6.97-3.51-1.57In.
Reviews
There are no reviews yet.
