10 Pcs SG90 9G Micro Servo Metal Geared Motor Kit for RC Robot Arm/Hand/Control with Cable, Mini Servos for Arduino Project (10)

Description

Price: $18.77
(as of Jun 30, 2024 21:55:14 UTC – Details)

Buy On Amazon

Product Description

Apply Environmental Condition:

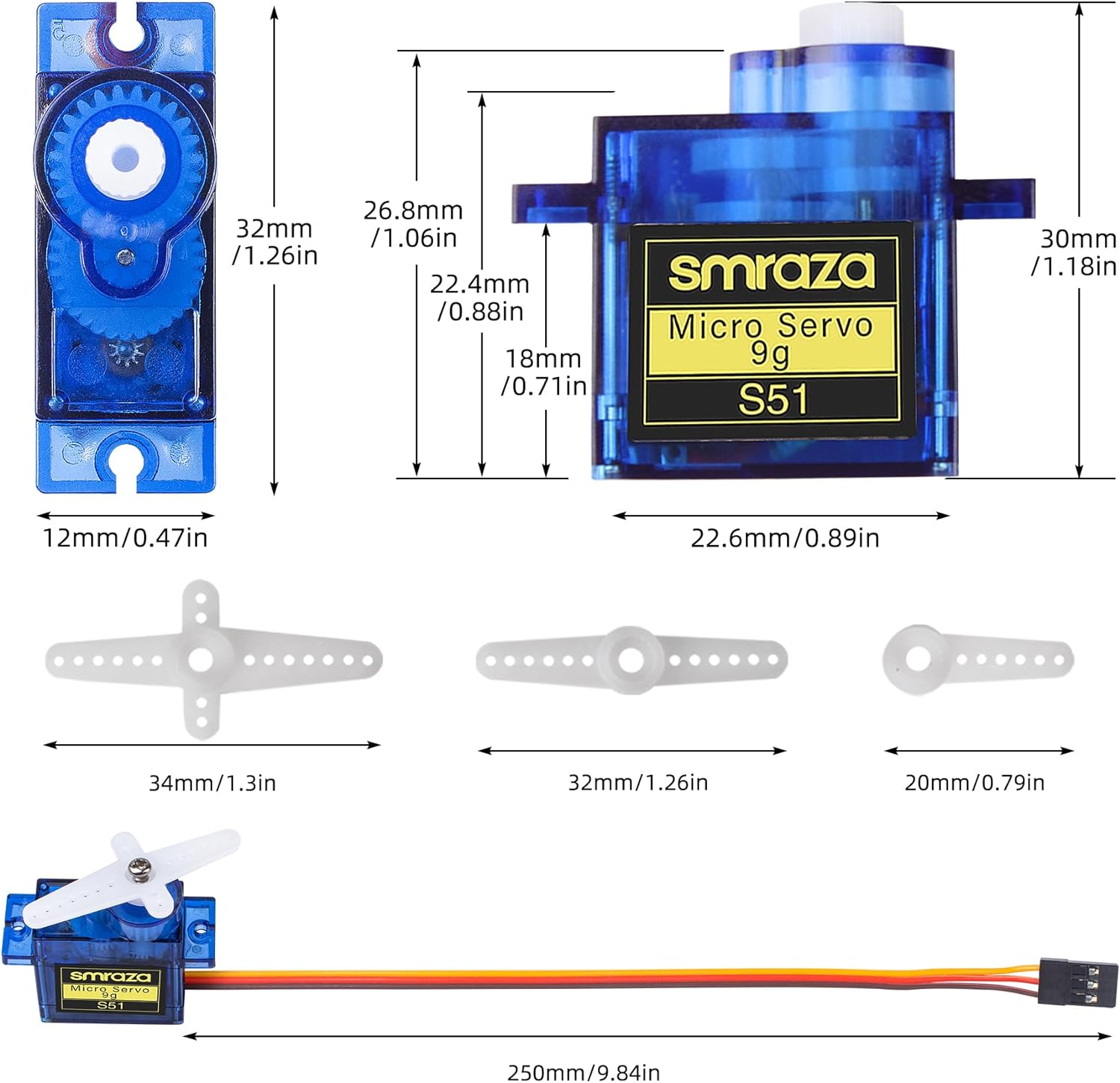

Operating Temperature Range: -25℃～70℃Operating Voltage Range: 4.8V～6.0VDimensions: 23mm*12.2mm*29mm(L*W*H)

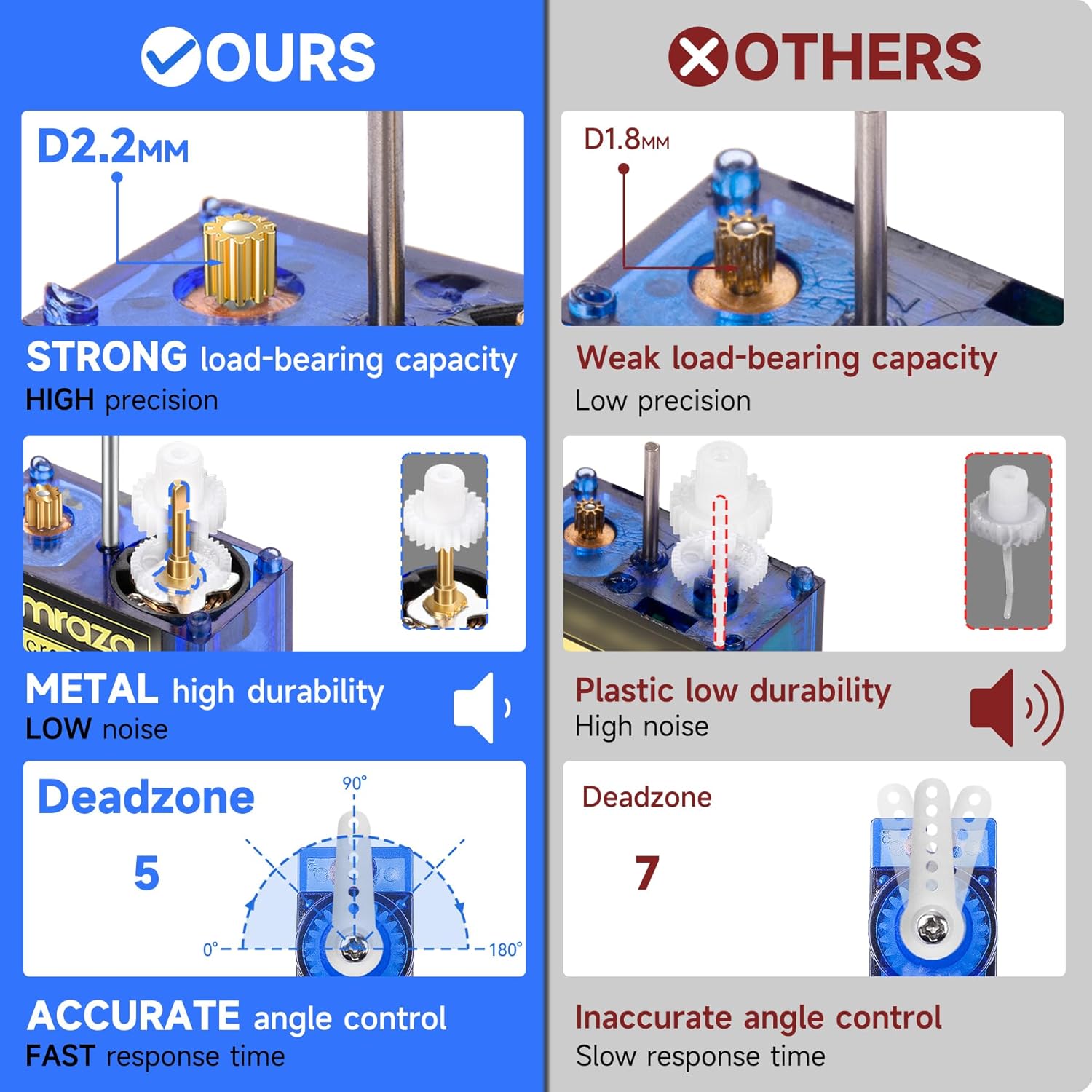

Product Comparing

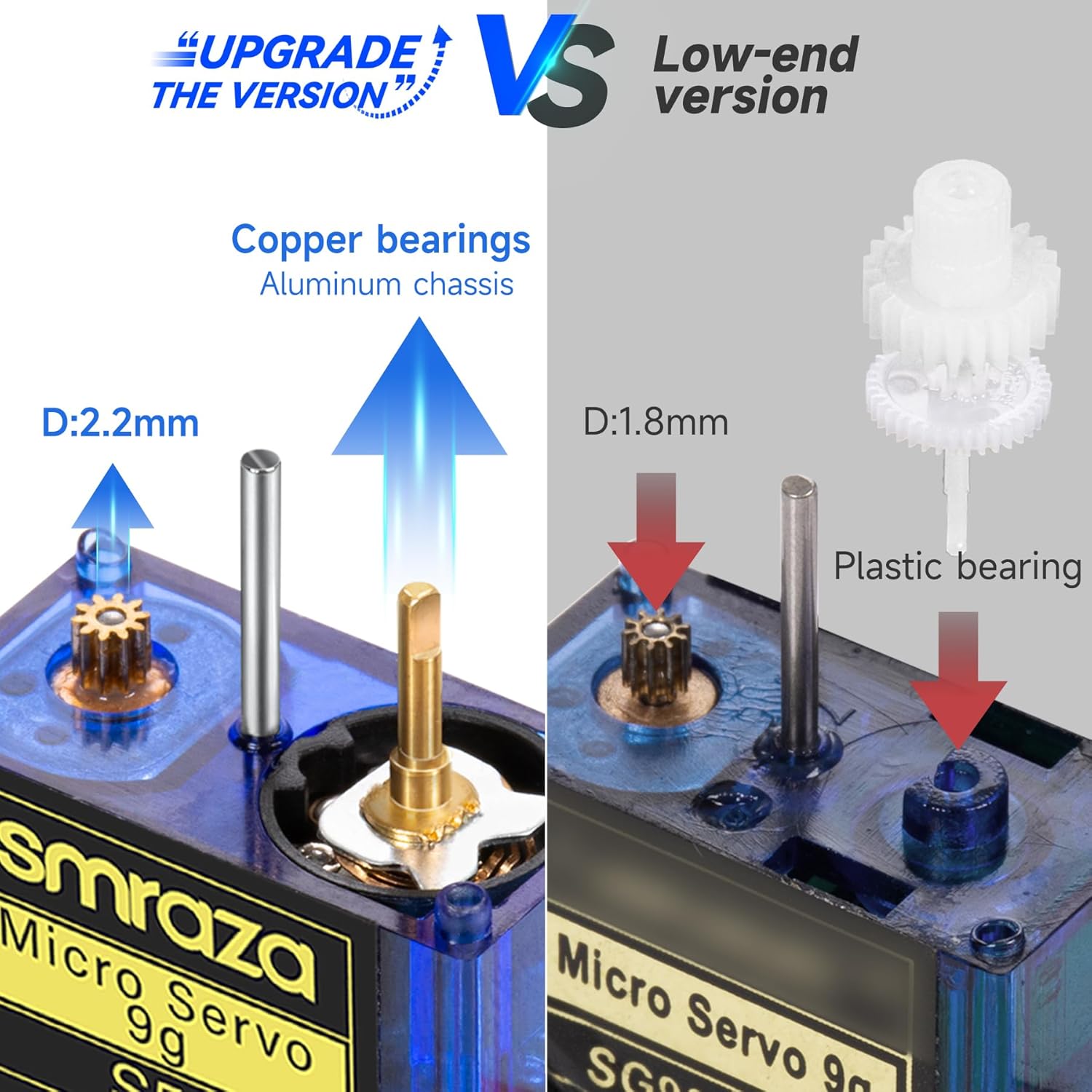

Performance increased by 30%，More Stable and Powerful

Control Specification:

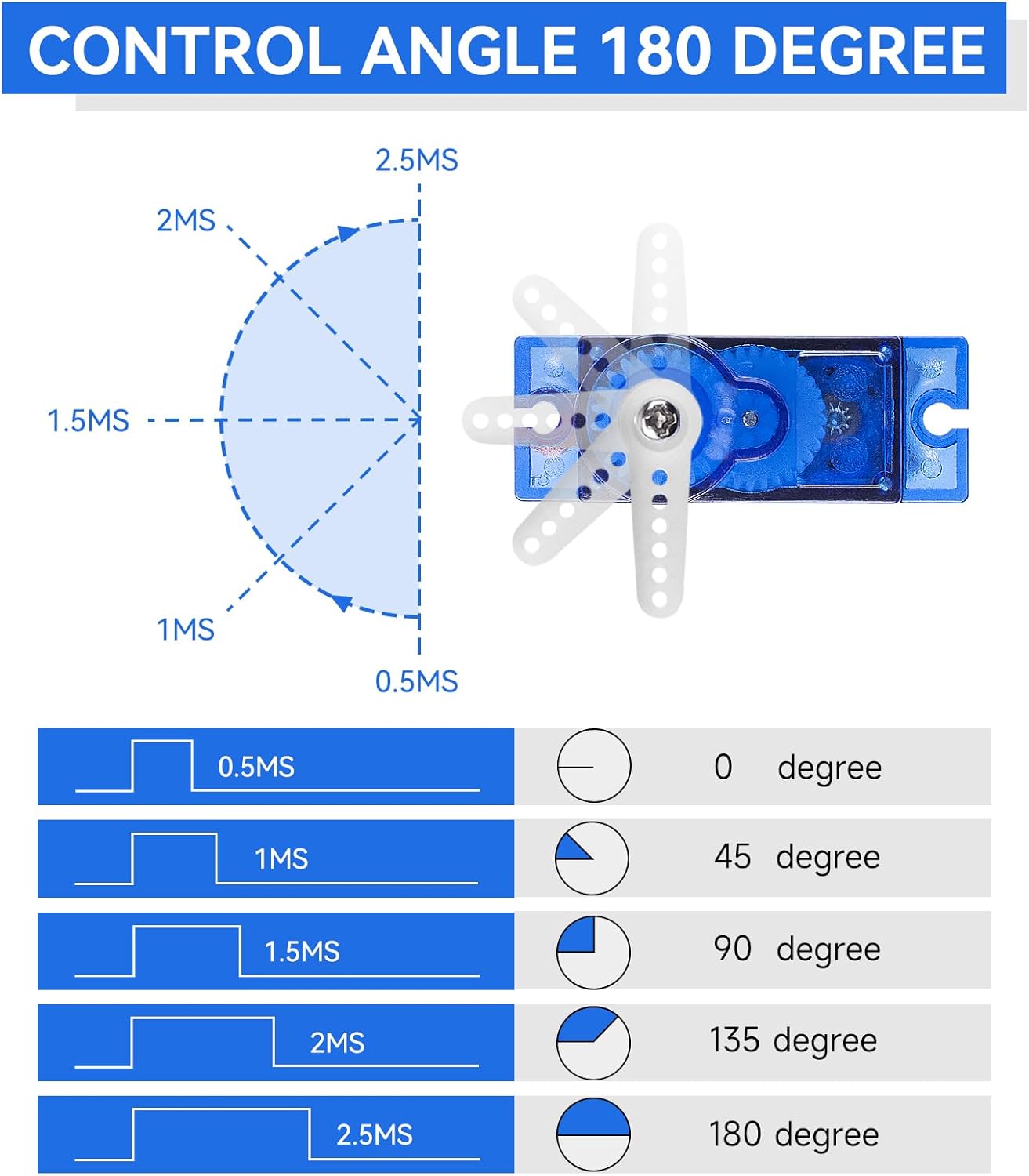

Control system: Change the pulse widthAmplifier type: Analog controllerOperating trave: 180°±1° (500→2500 μsec)Left&Right travelling Angle deviation: ≤ 6°Centering deviation: ≤ 1°Neutral position: 1500 μsecDead band width: 5 μsecRotating direction: Counter Clockwise (500→2500μsec)Pulse width range: 500→2500 μsecMaximum Physical Angle: About 200° (Manual control)

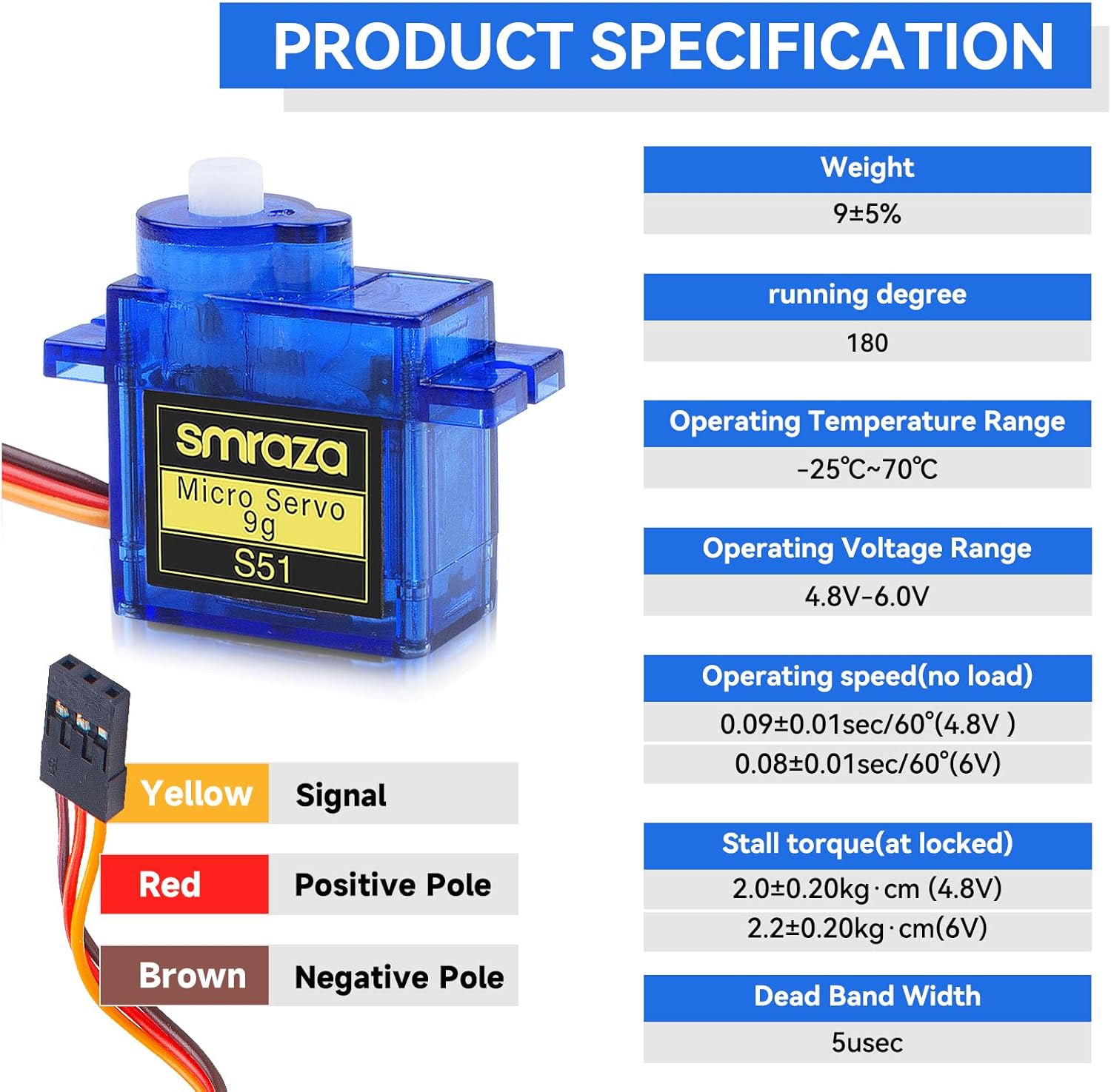

Wire Layout:

Electrical Specification (Function of the Performance): Operating speed (at no load): 0.09±0.01 sec/60°(4.8V ) 0.08±0.01 sec/60°(6V)Running current (at no load): 400±30mA (4.8V ) 500±30mA(6V)Stall torque (at locked): 2.0±0.20kg·cm (4.8V ) 2.2±0.20kg·cm(6V)Stall current (at locked): 1300±40mA (4.8V ) 1600±50mA(6v)Idle current (at stopped): 6±1mA (4.8V ) 6±1mA(6v)Running life(at no load): >350000 Turns(4.8V ) >320000 Turns(4.8V )

Mechanical Specification:

Limit angle: 180°± 1°Weight: 9 ± 5%Connector wire gauge: ＃28 PVCConnector wire length: 250 ± 5 mmSpline: 21THorn type: Cross,star and bar-typeExcessive play: ≤0.5°

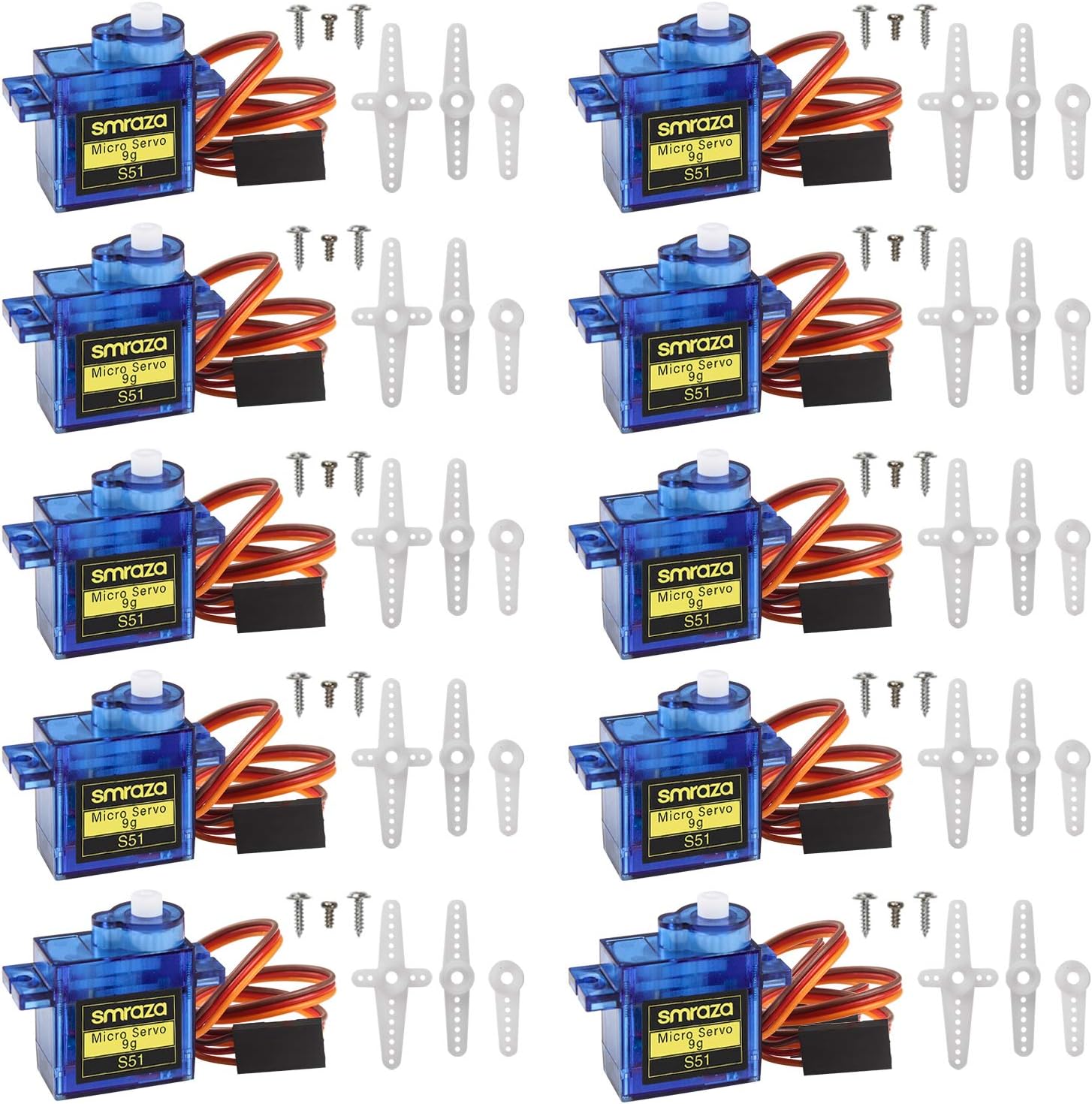

Package Included: 10 × SG90 9G micro servo motor

Smraza 10 Pcs 9G Micro Servo Motor

Learning and Programing For Arduino Programs

We are a leading manufacturer of electronic components for Arduino and Raspberry Pi. We have a professional engineering team dedicated to providing tutorials and support to help you get started.

If you have any technical questions, please feel free to reaching our support staff via Amazon.

Smraza 10 Pcs 9G Micro Servo Motor for RC Robot Arm Helicopter Airplane Car Boat Remote Controls and compatible with Arduino Experiments.

SG90 9G micro servo motor for remote control helicopters, micro robot, robot arm and boats. Fit for ALL kinds of R/C Toys and also make electronics DIY compatible with Arduino, Raspberry Pi
Interface Type: Compatible with JR & FUTABA interface. Running Speed (at no load): 0.09 ± 0.01 sec/60°(4.8V ) 0.08 ± 0.01 sec/60°(6V). Running angle: 180 degree
Stall Torque (4.8V): 17.5oz /in (1kg/cm). Dead band setting: 5 ms
Amplifier Type: Analog controller. Operating Voltage: 4.8V～6.0V
Please Note: The starting current of the motor should be greater than 1A. Comes with 1 year warranty and lifetime technical Support
