8020, 1515, 15 Series 1.5 Inch x 1.5 Inch T-Slotted Aluminum Extrusion DIY Extruded Linear Slot Bar Rail 80/20 (Lite, Clear Anodize, 36″ Long)

Description

Price: $25.83
(as of Sep 11, 2024 16:55:16 UTC – Details)

Buy On Amazon

Product Description

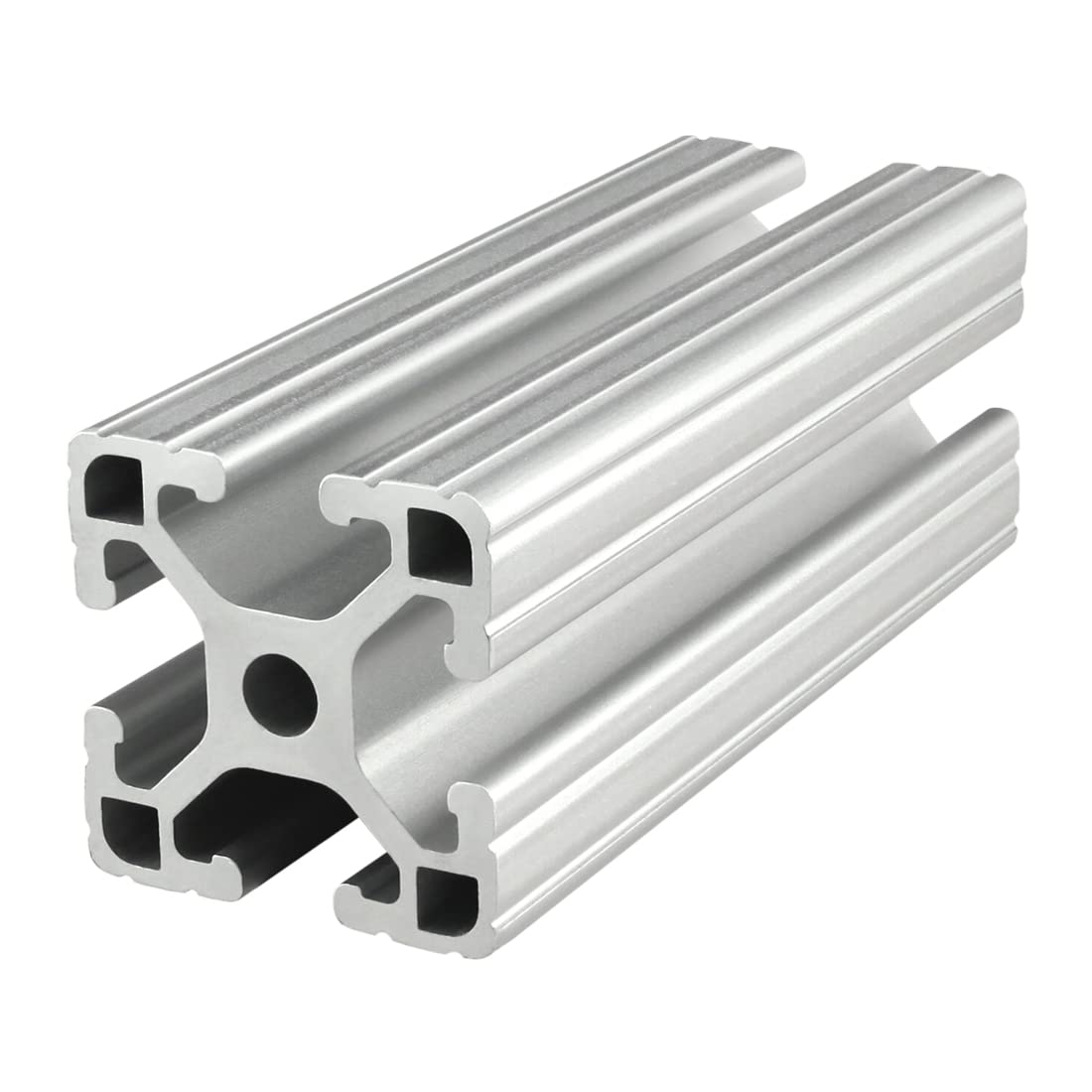

1515-Lite 1.5 Inch x 1.5 Inch T-Slotted Aluminum Extrusion

Lighter than our mainstay profile, this extrusion comes with hollowed out corners and thinner webbing, offering strength while reducing weight. Comes with one open t-slot on each 1.5″ face.

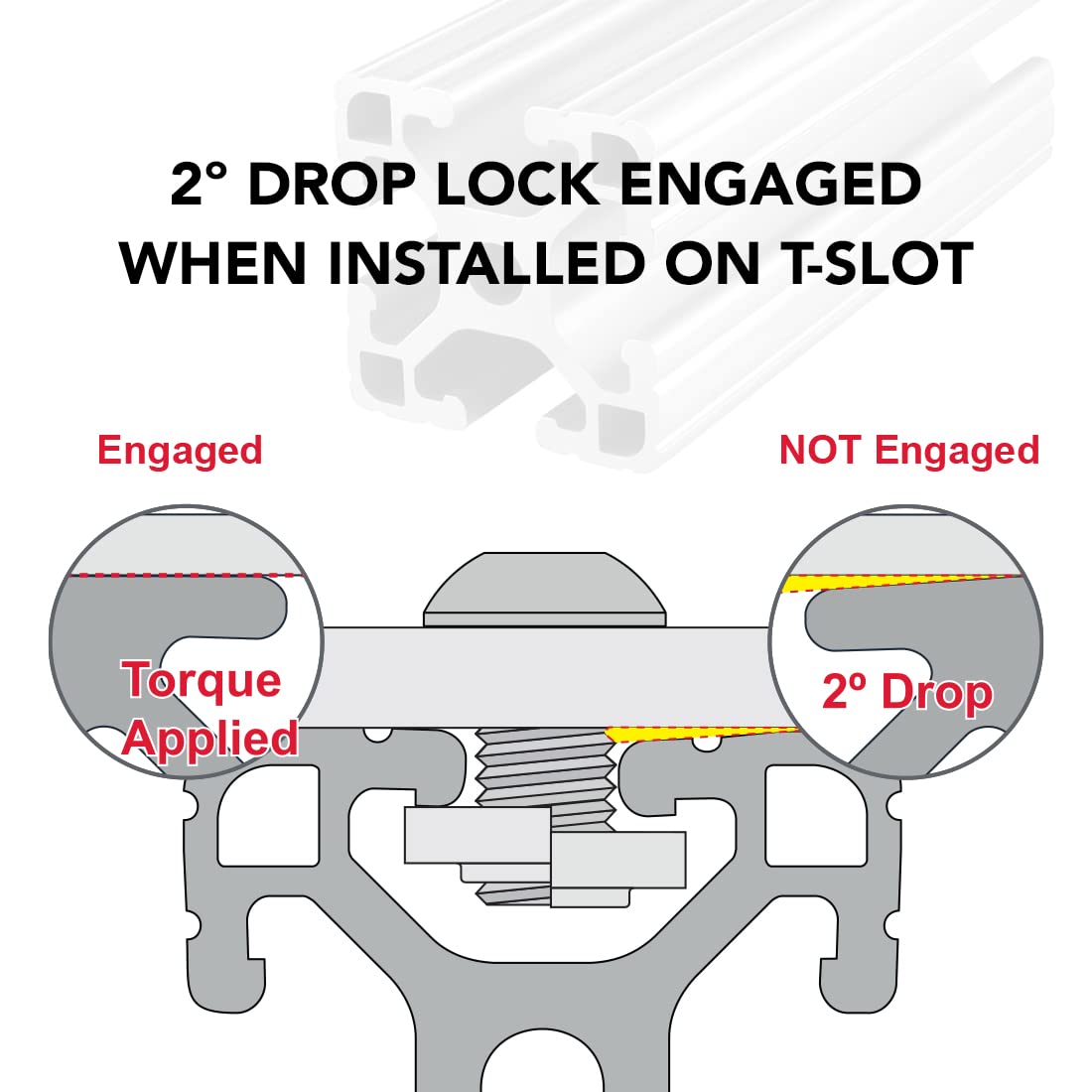

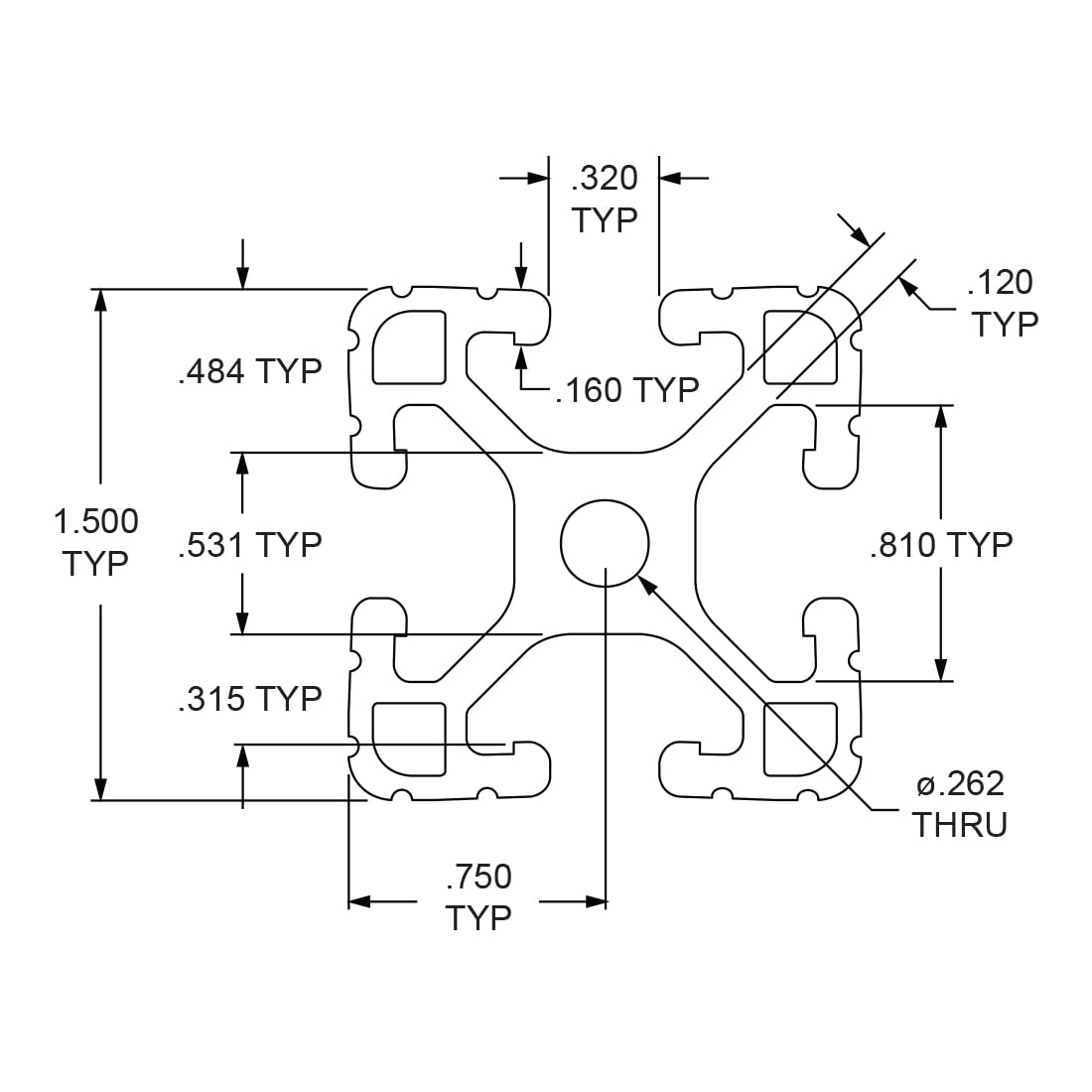

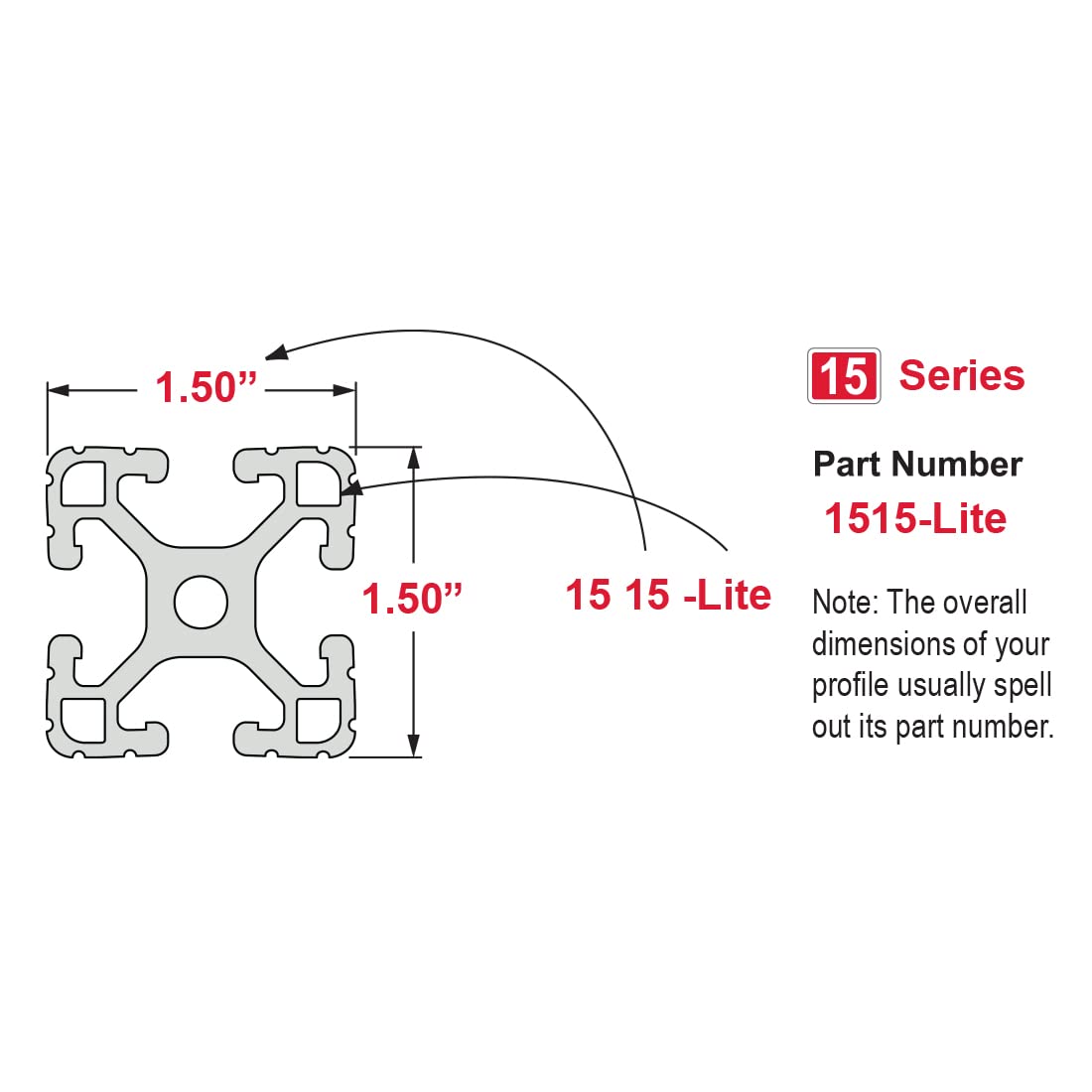

1515-Lite is a 1.50” x 1.50” lite fractional 15 series square T-slot profile with four open T-slots, one on each 1.50” face. The profile has align-a-grooves to assist in alignment when connecting profiles. The 1515-Lite profile is compatible with all 15 series fasteners. This profile lends itself to machine guards, enclosures or work benches. The four open T-slots enable access from any direction and are useful for mounting accessories.

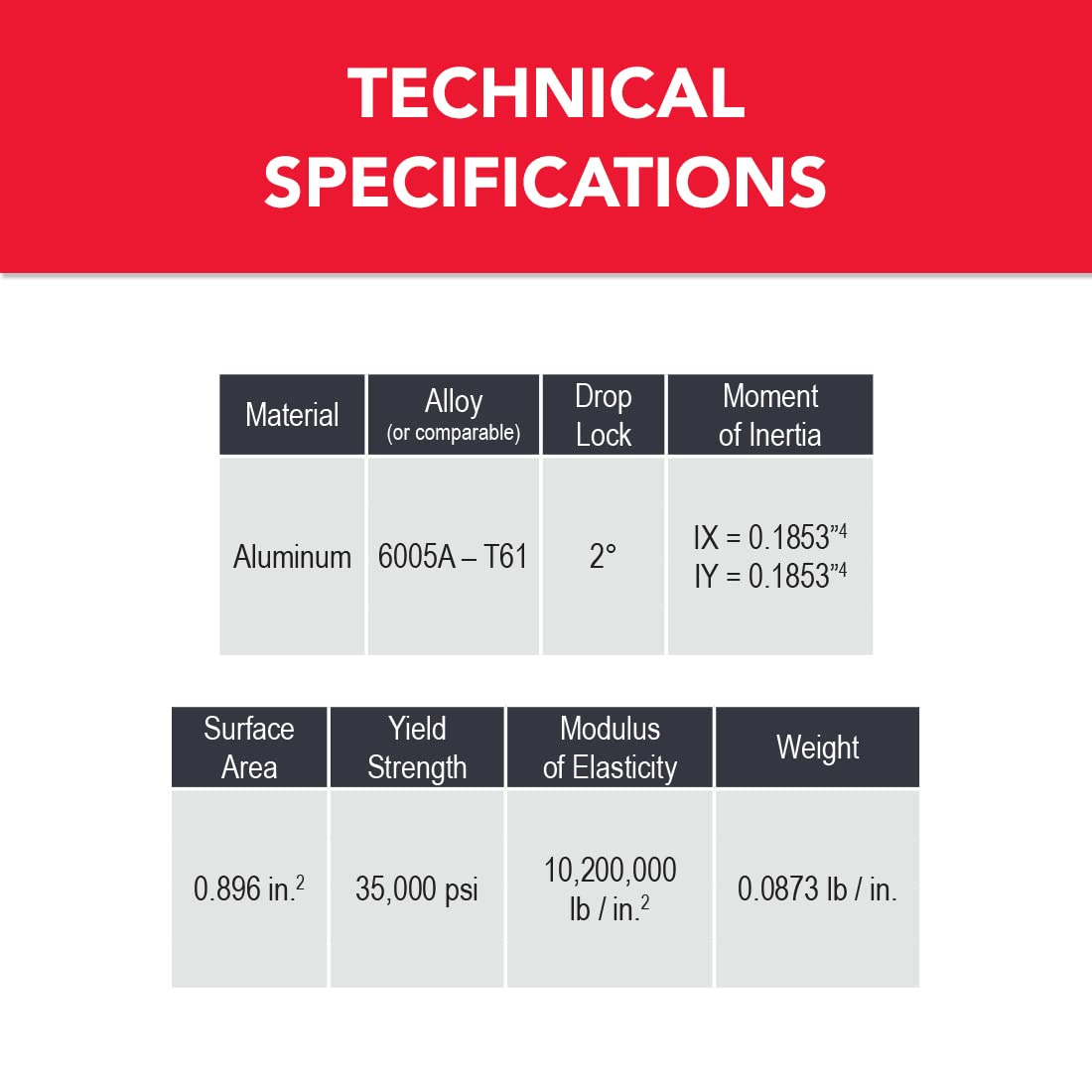

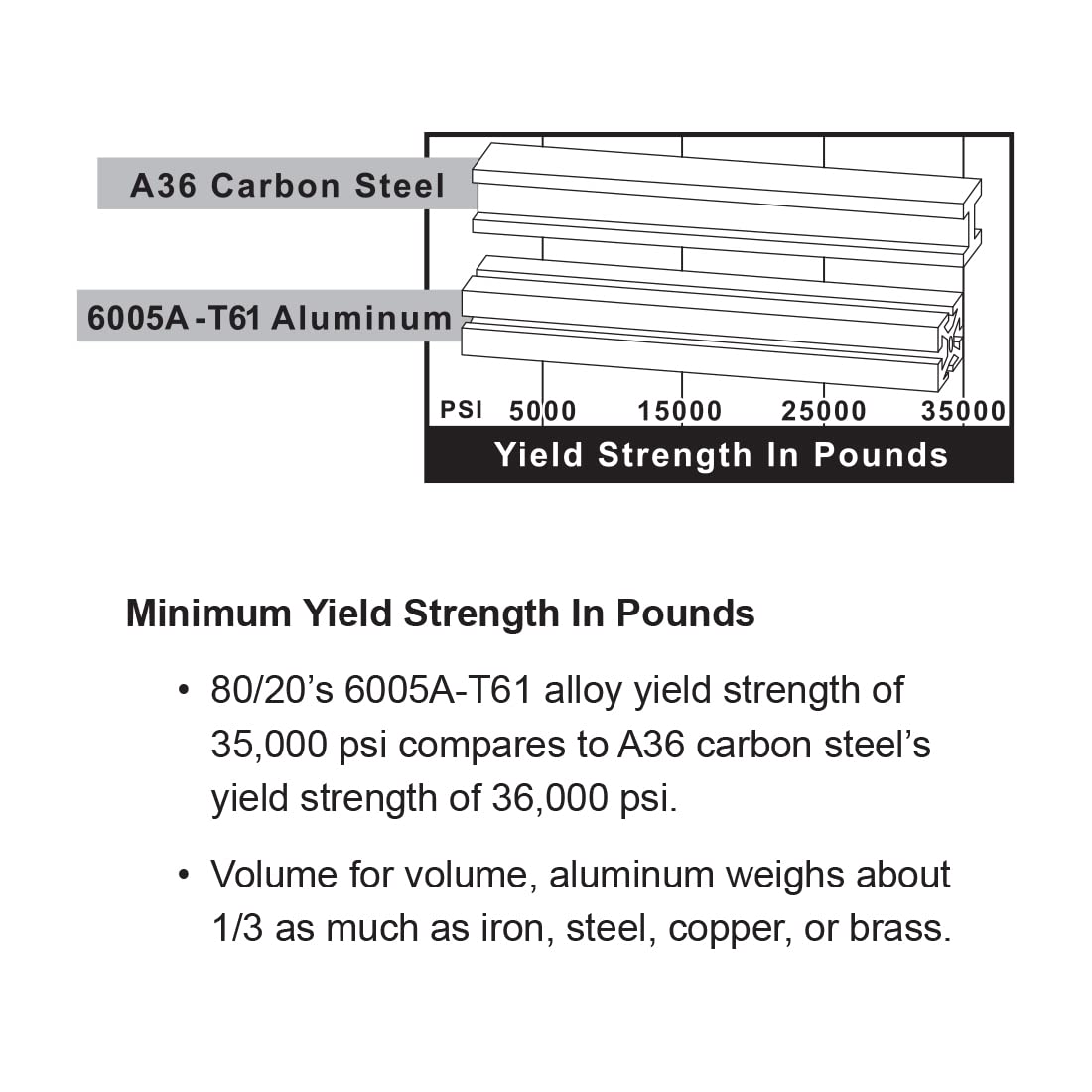

Series 15 Series Material Aluminum Grade 6105-T5 or equivalent Finish Clear Anodize Moment of Inertia – IX 0.1853″⁴ Moment of Inertia – IY 0.1853″⁴ Surface Area 0.896 Sq. In. Yield Strength 35,000 psi. Modulus of Elasticity 10,200,000 Lbs / Sq. In.

Product Dimensions ‏ : ‎ 36 x 1.5 x 1.5 inches; 5 Pounds
Date First Available ‏ : ‎ June 25, 2019
Manufacturer ‏ : ‎ 80/20
ASIN ‏ : ‎ B07TJYLT74
Country of Origin ‏ : ‎ USA

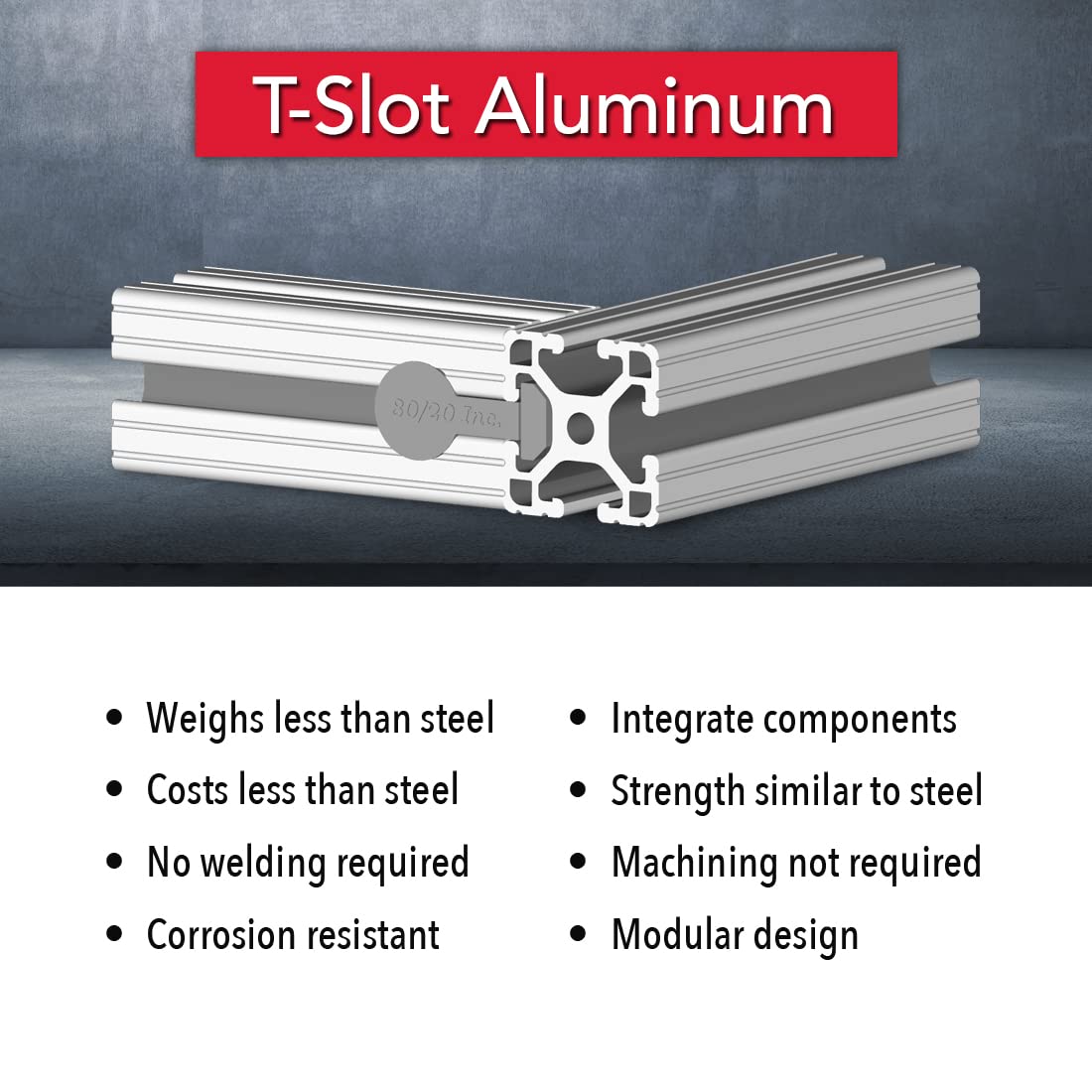

15 Series 8020 Modular Extrusion with four open t-slots to accommodate 1.5 inch x 1.5 inch based joining plates, brackets, and accessories.
High strength 6005A – T61 or equivalent aluminum with an anodized finish offers great flexibility and strength for your linear rail, track saw guide, linear motion guide, and many more applications.
With superior quality control, you know you are getting the best t slot aluminum extrusions when you order 8020 aluminum extrusion. Deburred ends, clean cuts, and tight cut tolerances are guaranteed.
80/20 aluminum extrusion profile is a good linear motion material and allows adjustable placement of all components.

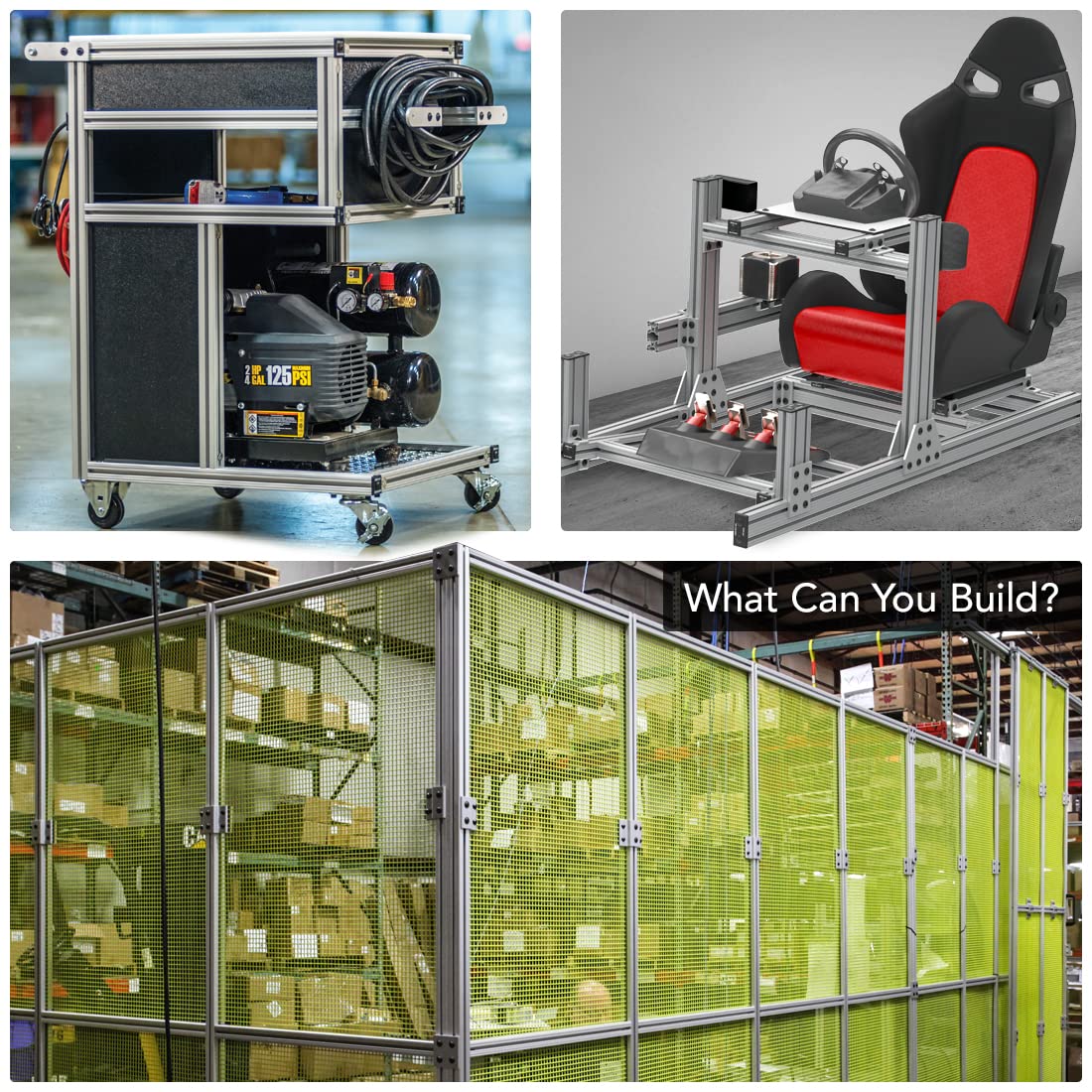

Applications include automation equipment, professional 3D printer, workbenches, lasers, stands, furniture, machinery, fitness equipment, precision printers, guarding, woodworking and t tracks.
