Autel PowerScan Automotive Circuit Tester, 12V 24V Power Circuit Probe Kit, Digital Multimeter/Relay & Diode Resistance Tool, for Frequency/Duty Cycle/Voltage Test, Activating Component, w/ 20ft Cable

Description

Price: $89.99
(as of Jul 02, 2024 09:55:16 UTC – Details)

Buy On Amazon

From the brand

Autel Core Industry

Automotive Electronic Products, Automotive Testing, Automotive Diagnosis , Auto Parts, Industrial Automation Instrumentation, etc.

Autel, Founded in 2004, has developed leading R&D Team based on the principle of “Product Supreme”. Autel has applied for more than 100 intellectual property rights and truly achieve the core of products to conquer global customers.As a distributor in cooperation with Autel, our philosophy is: Provide consumers with the best shopping experience on the premise of ensuring product quality.

2024 Newest

Advanced Diagnostic Scanner

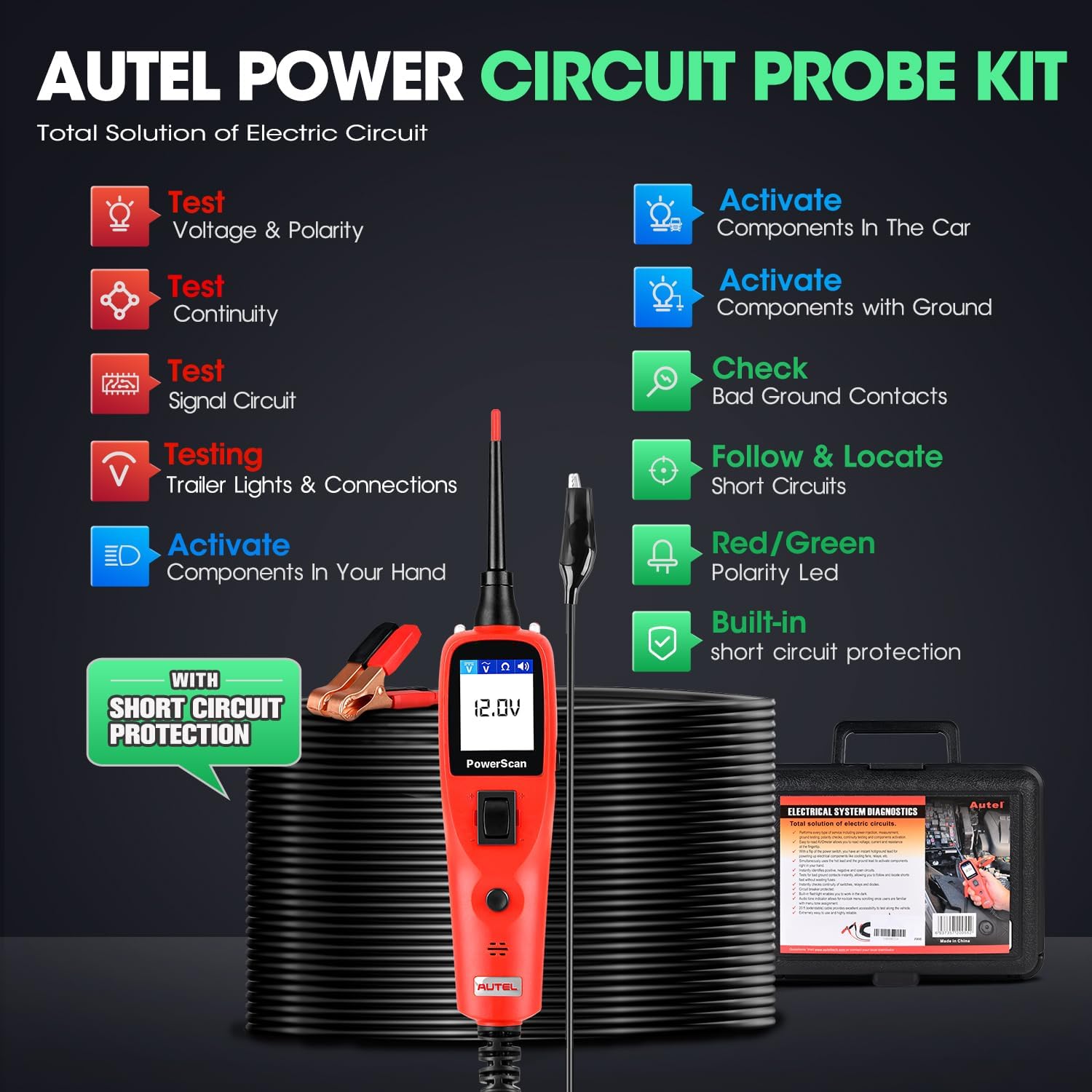

🥇【2024 ALL-IN-ONE POWER CIRCUIT TESTER KIT—ACCURATELY】Autel PowerScan Circuit Tester is most accurate power circuit probe tester yet, with 160×128 TFT display test all 6-30 volt vehicle electrical systems. It supports ✅Voltage&Polarity Test✅Continuity Test✅Signal Circuit Test✅Components Activate✅Check Bad Grounding✅Locate Short Circuits✅Circuit Breaker Protection, etc. Besides, Autel PS100 has extra long Cables (itself with 20ft, and extra with 20ft cable), also comes with a cigarett.e lighter plug. Intuitive interface with ergonomic design makes it be best gif.t for all novice drivers or pro circuit repairers.

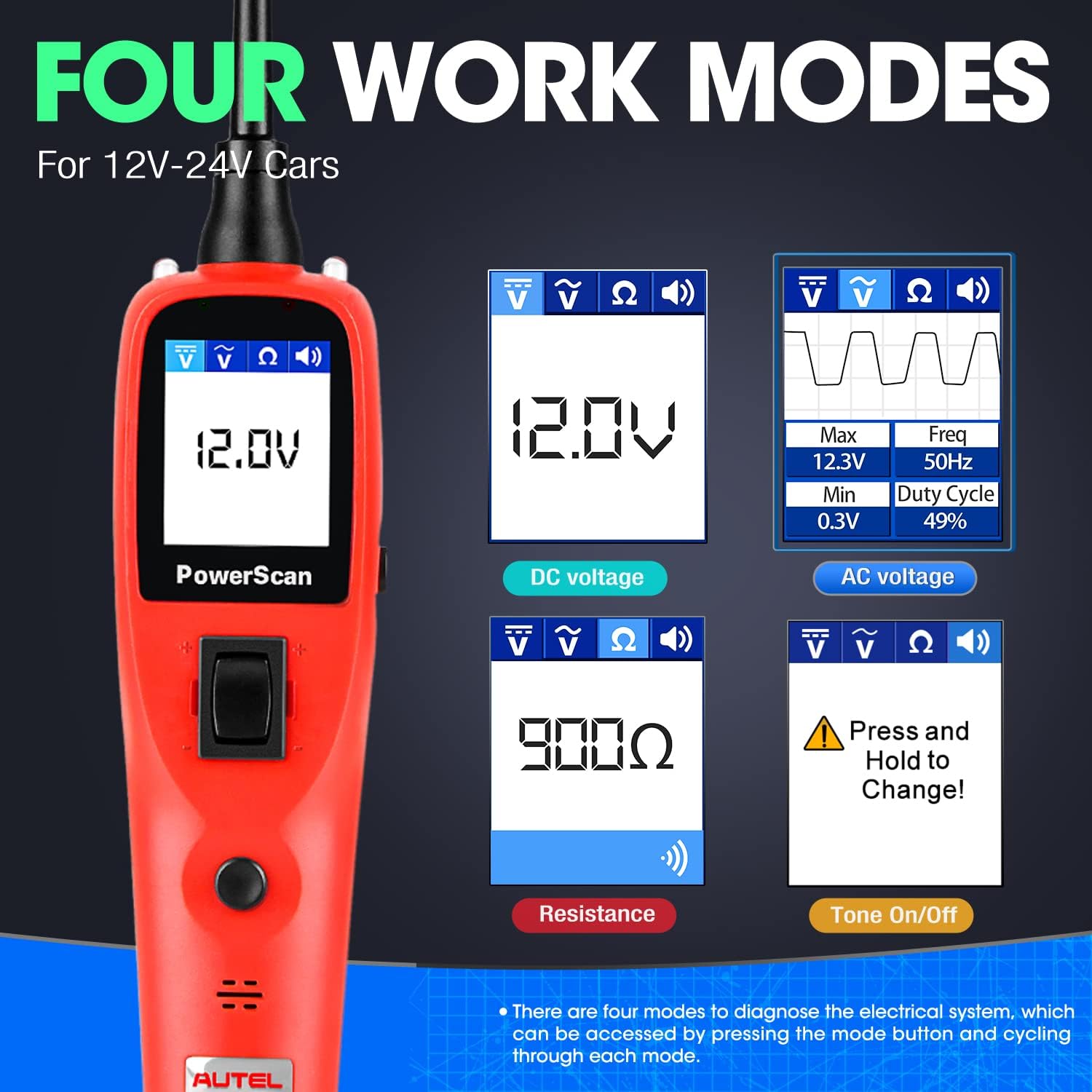

🥇【FOUR WORKING MODE—INTUITIVE&EASY】Four working modes make circuit detection more simple:DC Voltage, AC Voltage, Resistance, Tone On/ Off. DC Voltage mode can read DC voltage with 0.1V resolution; AC Voltage can read Max & Min voltage, frequency and duty cycle quickly; Resistance mode can read resistance between tip and auxiliary ground wire. Unique Tone On/Off Design is really useful when working in bright areas, it can judge the circuit voltage according to the volume of the sound.
🥇【COMPONENT ACTIVATION】The component activation feature is specially designed to troubleshoot on/off-board electrical equipment. By activating the signal generated by the component, you can accurately judged whether the component is intact, such as blower motor, power window motor, windshield wiper, rear window defroster, lights, radiator fans, fuel injectors, etc. Autel circuit tester automotive tool can activate component in your hand/ in the vehicle/ with ground etc.

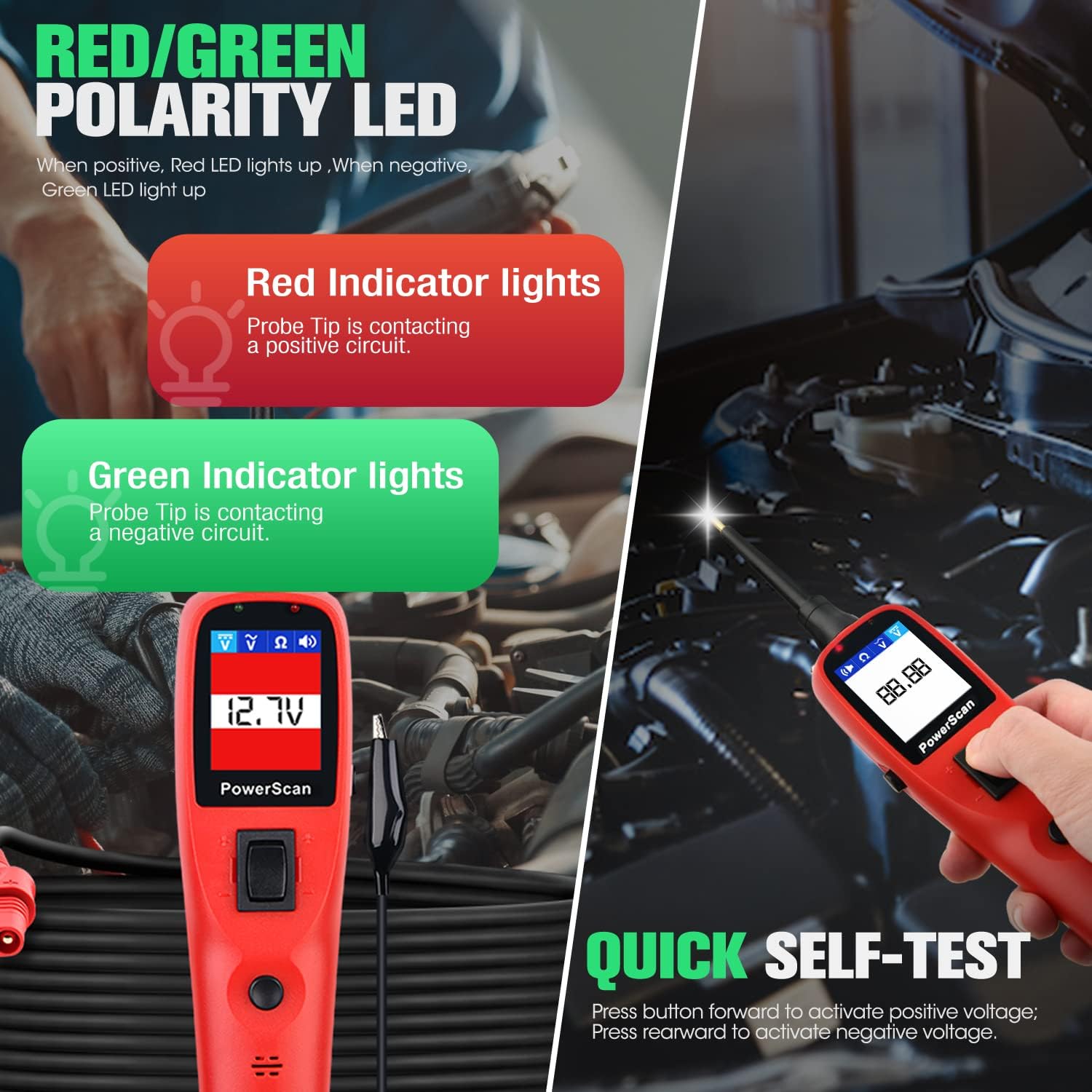

🥇【INSTANT IDENTIFY POLARITY】Autel Automotive Circuit Tester instantly checks component continuity and quick identifies positive, negative and open circuits. When the positive terminal is connected, red LED lights up with beep sounds. When the negative terminal is connected, green LED light up with a low tone. If an open circuit, neither of LED light will not light. The indicator light is a considerate working guide to facilitate the smooth operation of detection.

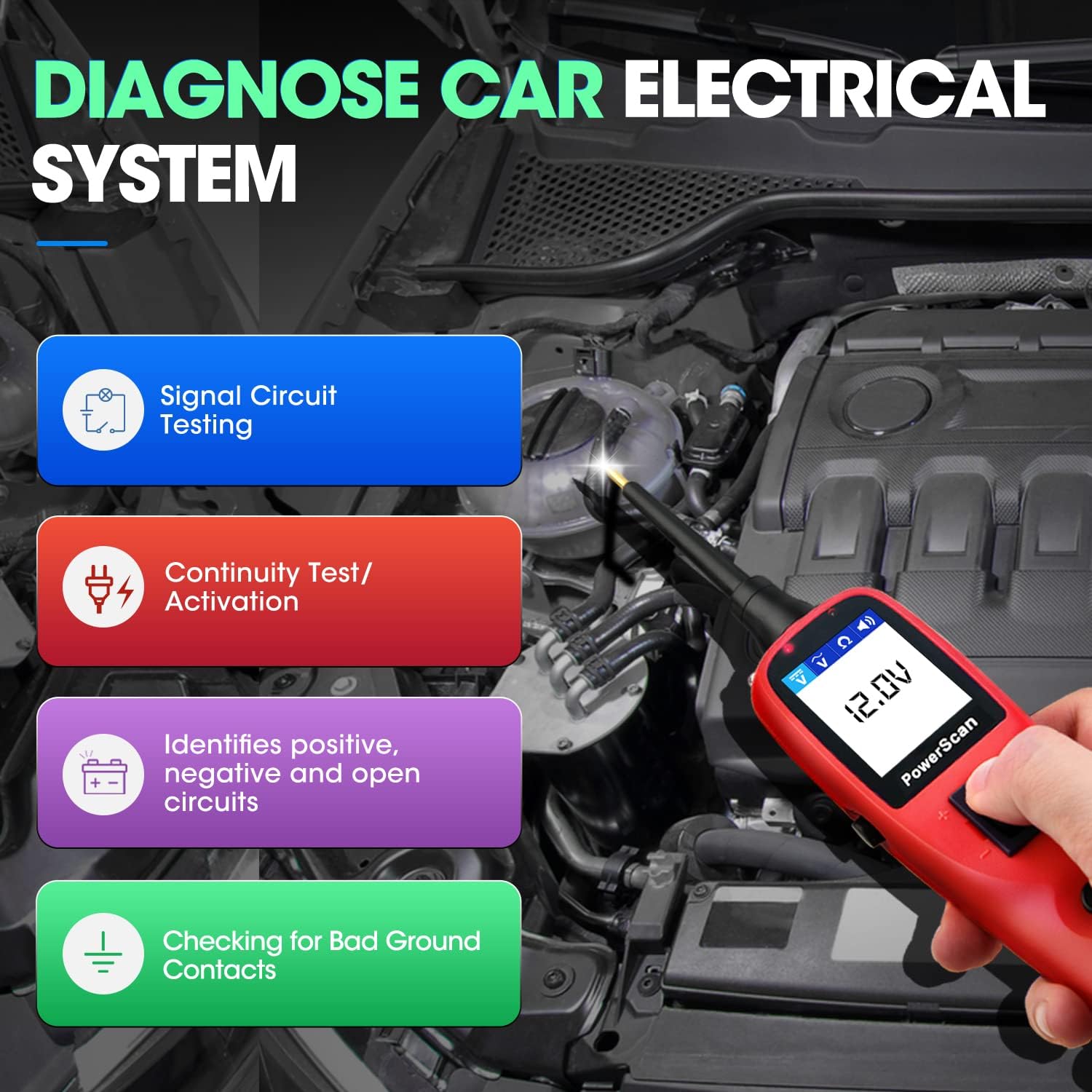

🥇【CONTINUITY TEST, SIGNAL CIRCUIT TEST】Autel Electrical System Tester can test the state of sensors, quickly and accurately judge the connectivity of circuit via transmitted signal, performing continuity test. Two ways to test continuity: ✅1: In resistance mode, if the resistance is 0.0Ω and the LED lights up, it means continuity. ✅2: Power up the connection using the power switch, if the circuit brea-ker tr-ips, that means the resistance is low and there is continuity.
🥇【OVERLOAD PROTECTION, QUICK SELF-TEST】This Electrical System Probe Tester has a built-in short circuit protection. When overloaded, built-in internal short circuit will automatically trip to ensure the safety of users and prolong the service life of the tester. In order to protect your components, the car circuit tester can also perform a quick self-test. After flipping the switch forward or backward, the LED light and tone will respond to quickly check its actual operating status.
🥇【20FT EXTENSION CABLE, BUILT-IN FLASHLIGHT】Autel PowerScan circuit tester comes with extra 20ft extension cable in addition to its own 20ft cable, allowing you to access any position of the vehicle and test it. Ideal for trailer wiring, it can be tested along the vehicle without having to find a suitable ground point. The built-in flashlight is convenient for detection, even in the dark or dim environment, it can provide the best view for who need to work in night.
🥇【NO.1 RECOMMENDED BY ELECTRICAL MASTER MECHANIC, 1-YEAR WARRANTY】Autel Car circuit tester is a great addition to toolbox and recommended by millions of automotive electrical specialist. It does everything P.P.3/P.P.4 does at half the cost, even better than sna.p-on tool. Autel Car circuit tester provides 1-year warranty, and supports 30 days no reason to return. If you have any question, you can contact us via ✅autelsupply @outlook. com✅ asap.
