Description
Price:
(as of – Details)
Specification:
Condition: Brand New

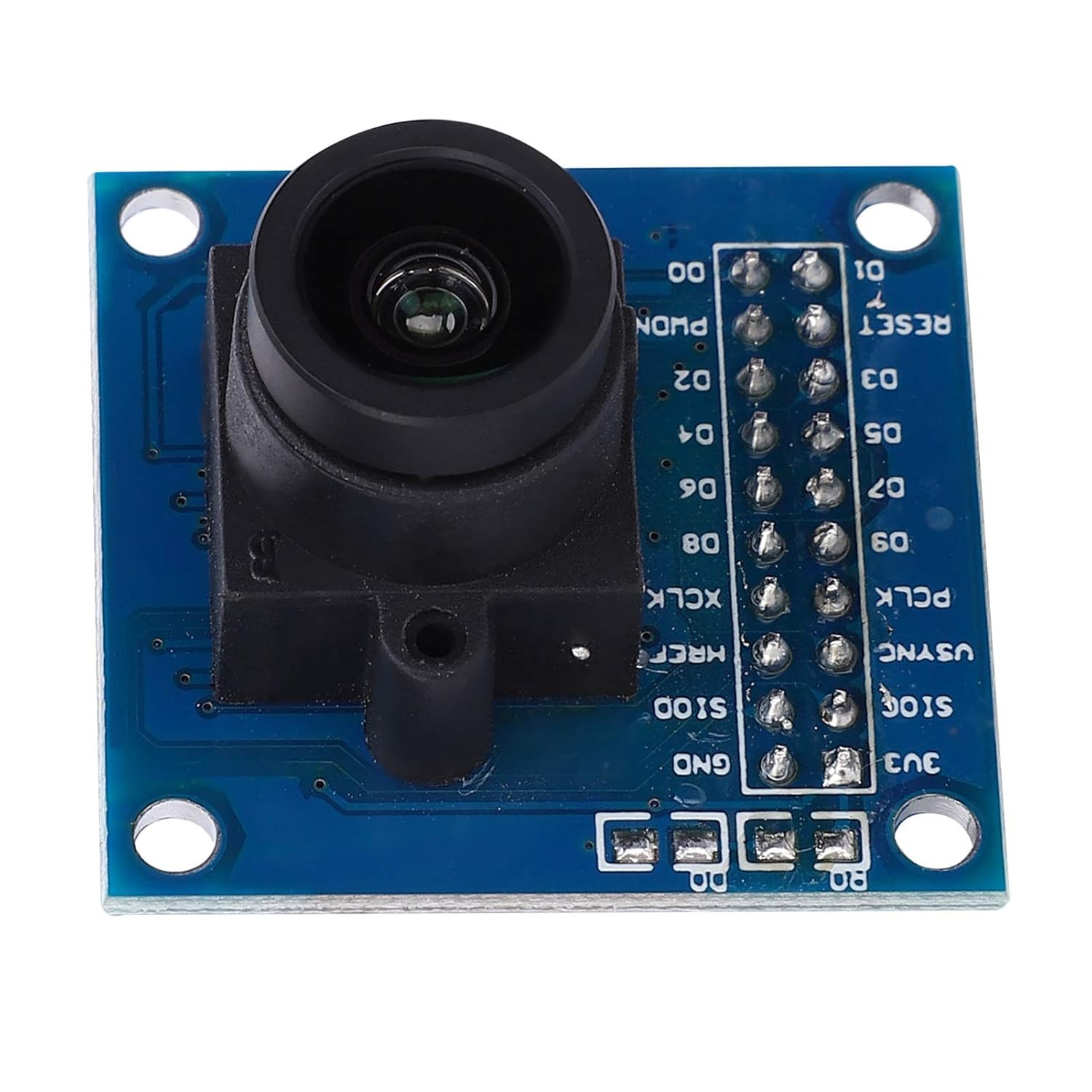

Item Type: Camera Module
Material: PCB
Purpose: Image acquisition, color photography, simple image recognition, car tracking, automatic tracking, automatic control
Photosensitive Array: 640X480
IO Voltage: 1.7-3.0V (internal LDO supplies 1.8V to the core)
Power Consumption: 120mH/65fpsVGA, YUV conditions
Dormancy: <20uA
Temperature : -20~70
Stable : 0~50
Output Format (10 or 8 bits)YUV/ McBcr4:2:2 RCGB565/555/444CGRB4:2:2 RGB Data
Optical Size: 1/4in
Field of View: 25°
Maximum Virginity Rate: 60fpsVGA sensitivity 3V/ (- SEC)
to Noise Ratio: 50dB
Dynamic Range: 60B
Browse Mode: Line by line
Electronic Exposure: Lines 1 to 510
Area: 6.0μm x 6.0μm
Dark Current: 40mV/s at 60
Package List:
1 x Camera Module
Package Dimensions : 1.57 x 1.18 x 1.18 inches
Item model number : Marhynchushz2c1iusmr
Date First Available : December 23, 2023
Manufacturer : Marhynchus
ASIN : B0CJ69SLLW
Country of Origin : China
Invincible configuration: All image processing processes including gamma curve, white balance, saturation, chroma, etc. can be programmed through the SCCB interface; High sensitivity for low illumination applications and low voltage for embedded applications.
【VGA】 Provides all the functions of a single VGA camera and image processor. VGA image, up to 60 frames per second, 30W high-definition camera module.
Practical: The camera module with small size, low working voltage, provide a single VGA camera and image processor all functions.
Advanced technology: Through SCCB bus control, it can output the whole frame, subsampling, and other ways of various resolutions of 10bit data; VGA image up to 60 frames per second, 30W high definition camera module.
[High saturation]: This camera module has high sensitivity and is suitable for low illumination applications, and low voltage is suitable for embedded applications.
