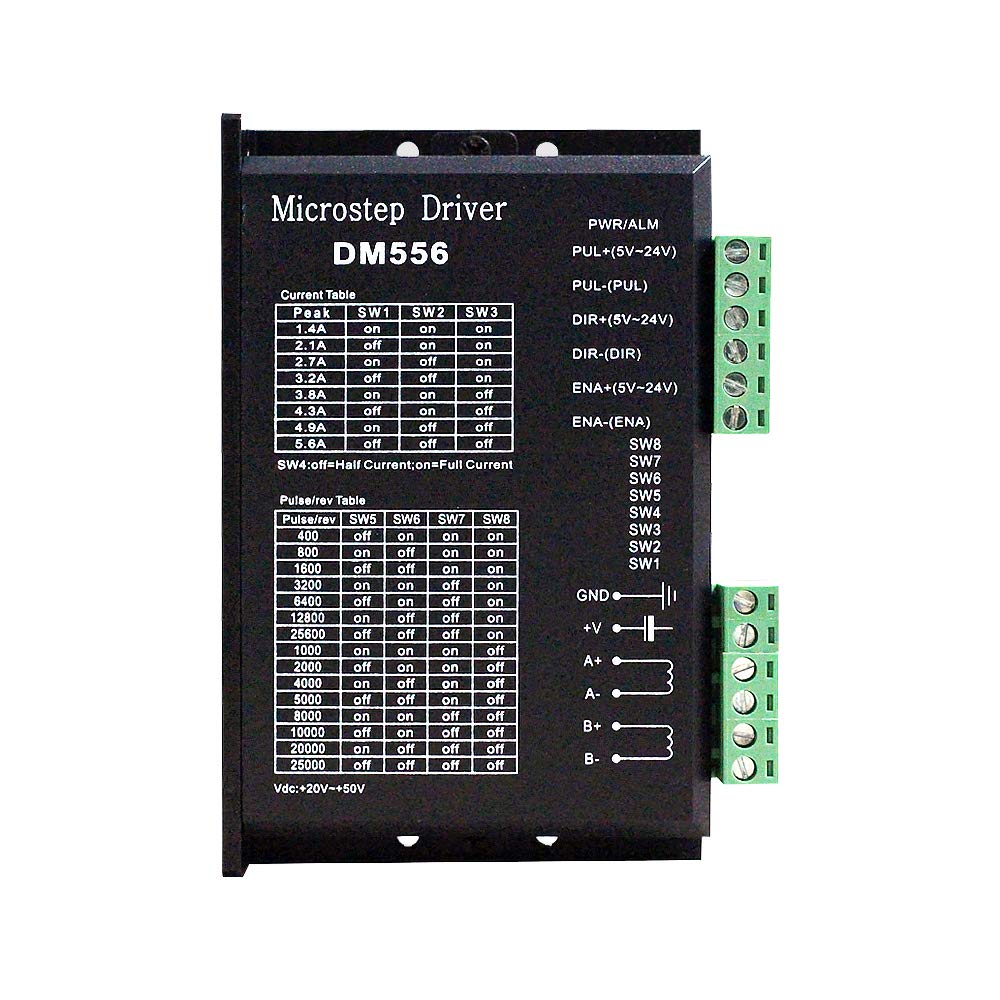

CNC Digital Stepper Driver DM556 Stepper Motor Controller 2-phase Stepper Motor Driver 20-50V DC Max 5.6A 128 subdivision For Nema 23, 24 and Nema 34 stepper motor

Description

Price: $22.99
(as of Sep 23, 2024 00:55:13 UTC – Details)

Buy On Amazon

Specification:
5-24 V universal to control signal, without series resistance;
TTL compatible and optically isolated inputs to 5.6A;
Input voltage 20-50VDC;
Up to 128 subdivision, 16 selectable micro-step resolutions of 400-25,600 via DIP switches;
8 selectable output current settings of 1.4A to 5.6A via DIP switches;
Pulse input frequency up to 200 KHz;
Protections for over-voltage and over-current.
Electrical Specifications:
* Output Peak Current: 1.4~5.6A
* Input Voltage: +20~50VDC (Typical 24-48VDC)
* Logic Signal Current: 7~16mA (Typical 10mA)
* Pulse Input Frequency: 0~200kHz
* Isolation Resistance: 500MΩ
* Vibration: 10-55Hz/0.15mm
* Weight: Approx.260g
Product Dimensions ‏ : ‎ 4.41 x 2.97 x 1.34 inches; 8.78 ounces
Date First Available ‏ : ‎ September 15, 2020
Manufacturer ‏ : ‎ HONGCHENWEI
ASIN ‏ : ‎ B08J3NFF9V

Suitable for Nema 23 ,Nema 24 and Nema34 Stepper Motor，2-phase hybrid stepper motors (Outer diameter: 57, 60,86mm).
This high subdivision driver is suitable for high subdivision motor. Suitable for stepper motor: 57,60,86 type 2-phase (4-wire, 6-wire, 8-wire)
Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
Package: 1piece DM556 driver
