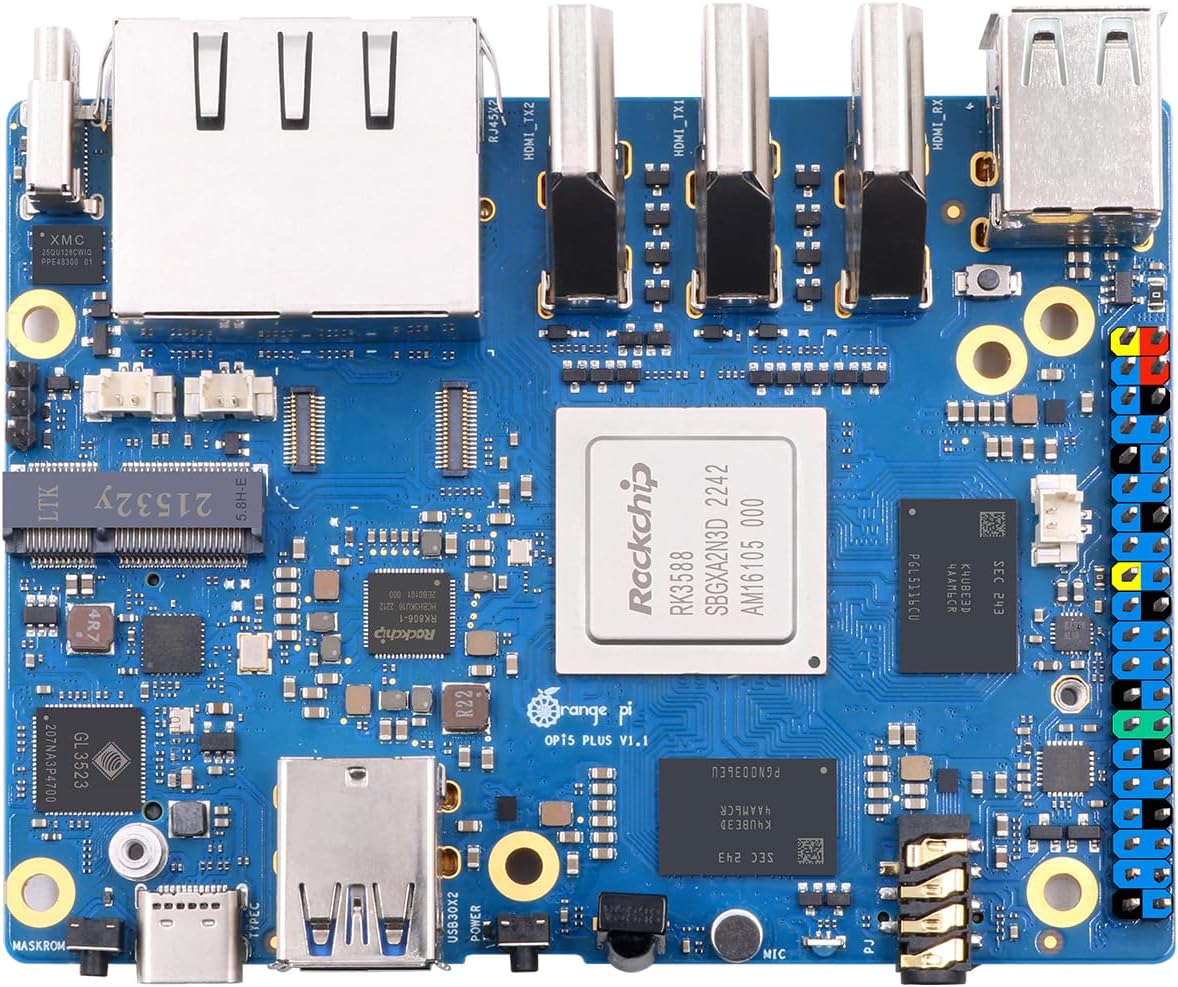

Orange Pi 5 Plus 8GB LPDDR4/4x Rockchip RK3588 8-Core 64-Bit Single Board Computer with eMMC Socket, Development Board Run Orange Pi/Linux/Ubuntu/Debian/Android OS (8GB)

Description

Price: $127.99
(as of Sep 17, 2024 10:55:14 UTC – Details)

Buy On Amazon

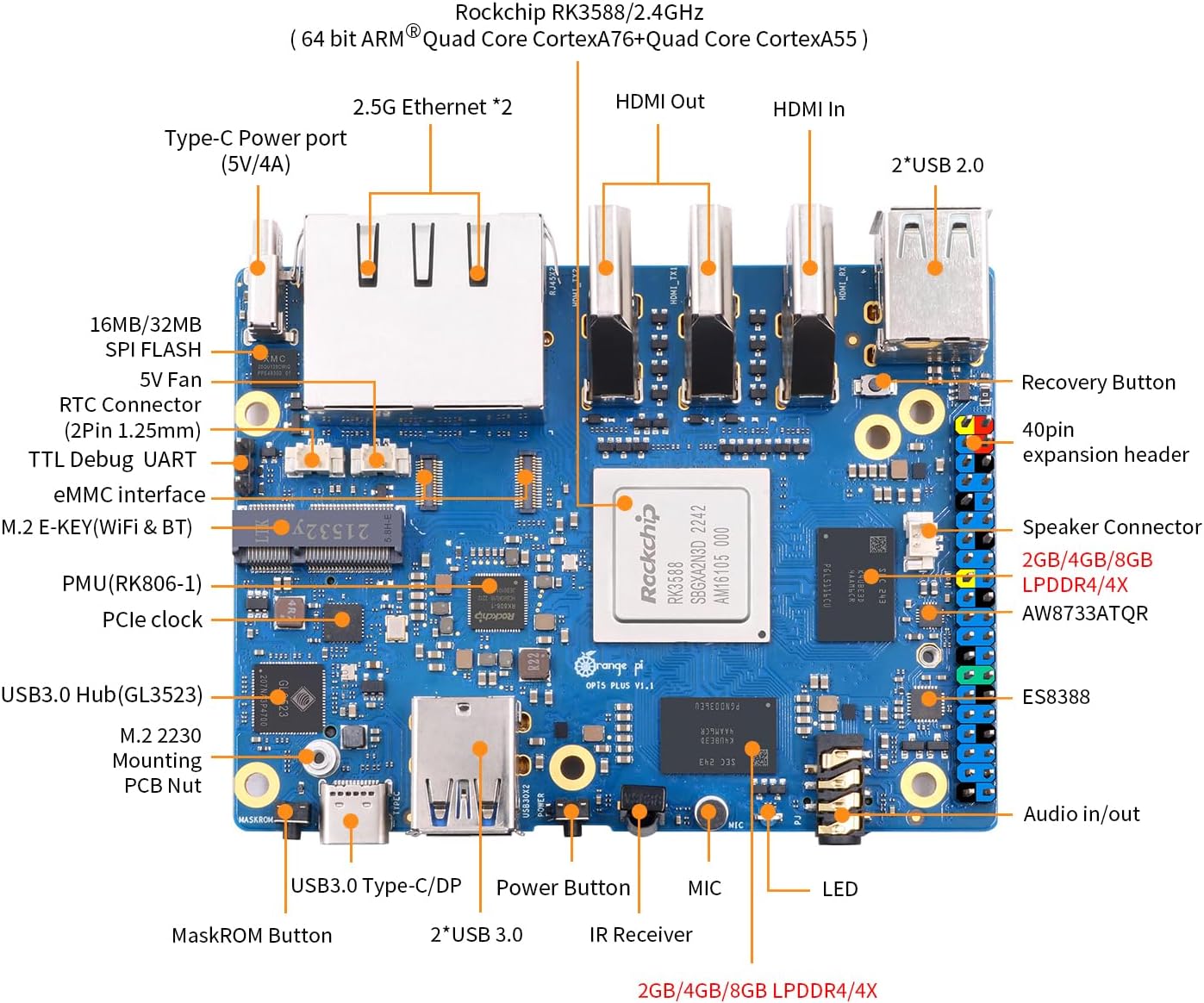

Hardware Parameters

• SoC: Rockchip RK3588 (8nm LP process)
• CPU: 8-core 64-bit processor 4 x Cortex-A76(2.4GHz), 4 x Cortex-A55(1.8GHz) and separate NEON co-processors
• GPU: Arm Mali-G610 Built-in 3D GPU Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
• NPU: Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6Tops computing power
• PMU: RK806-1
• RAM: 4GB/8GB/16GB （LPDDR4/4X）
• Memory: QSPI Nor FLASH: 16MB/32MB MicroSD card slot: up to 128GB eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached M.2 2280 slot for NVMe SSDs (PCIe 3.0 x4) up to 2,000 MB/s
• USB: USB3.0 × 2USB2.0 × 2Type-C ×1
• Video: 2x HDMI 2.1 out up to 8k@60FPS 1x Type-C with DP TX 1.4A，up to 8K@30FPS 1x HDMI in with up to 4K@60FPS 1 x MIPI DSI TX 4 Lane，up to 4K @60Hz
• TP interface1x 6Pin FPC socket
• Camera: 1XMIPI CSI 4 Lane
• AudioCODEC: ES8388 1xAudio 3.5mm jack with mic 1xMIC In 1xHDMI 2.1 eARC 1xSPK
• Ethernet: 2xPCIe 2.5G LAN（RTL8125BG)
• Expansion Port: 40 Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO

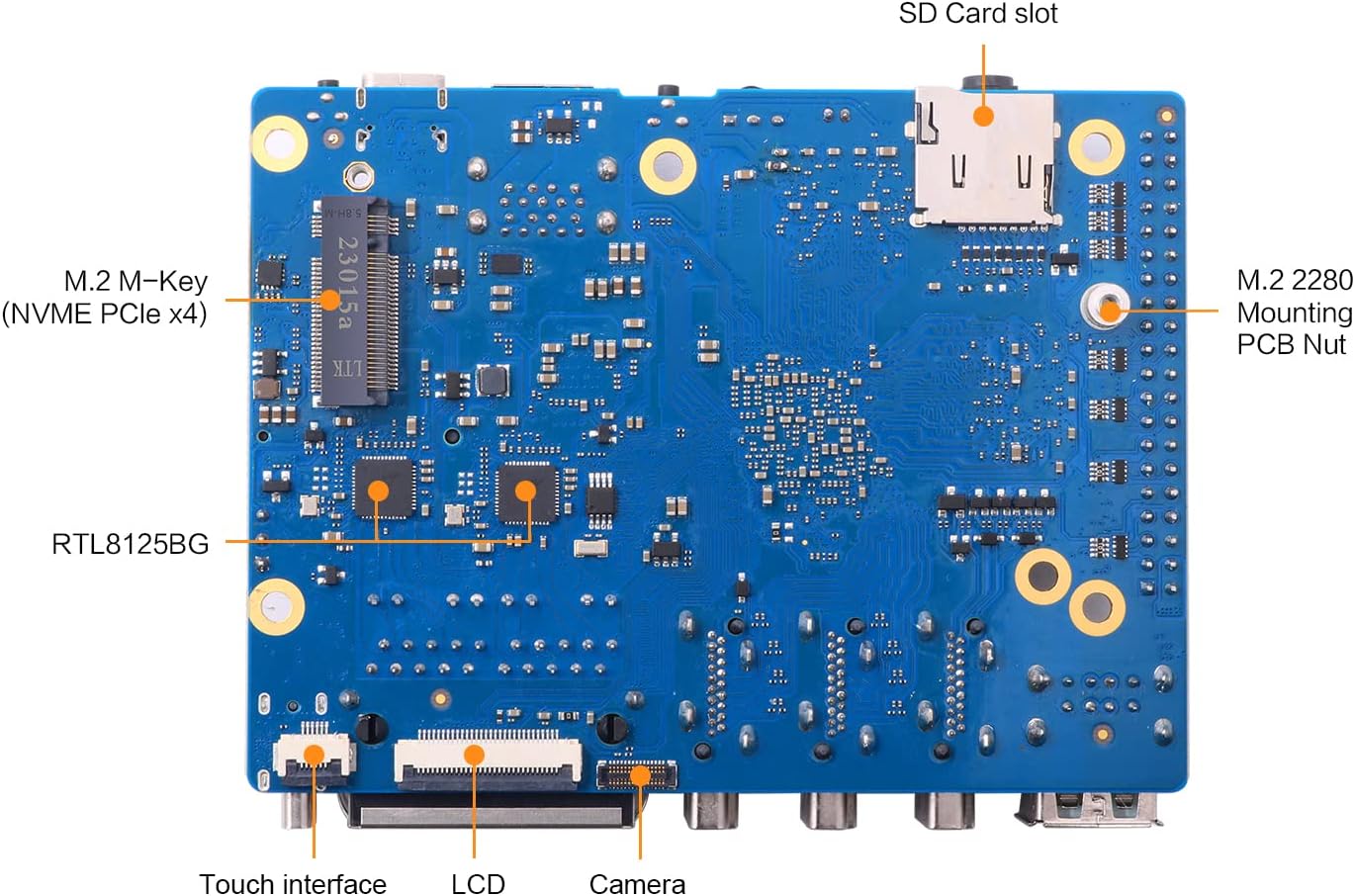

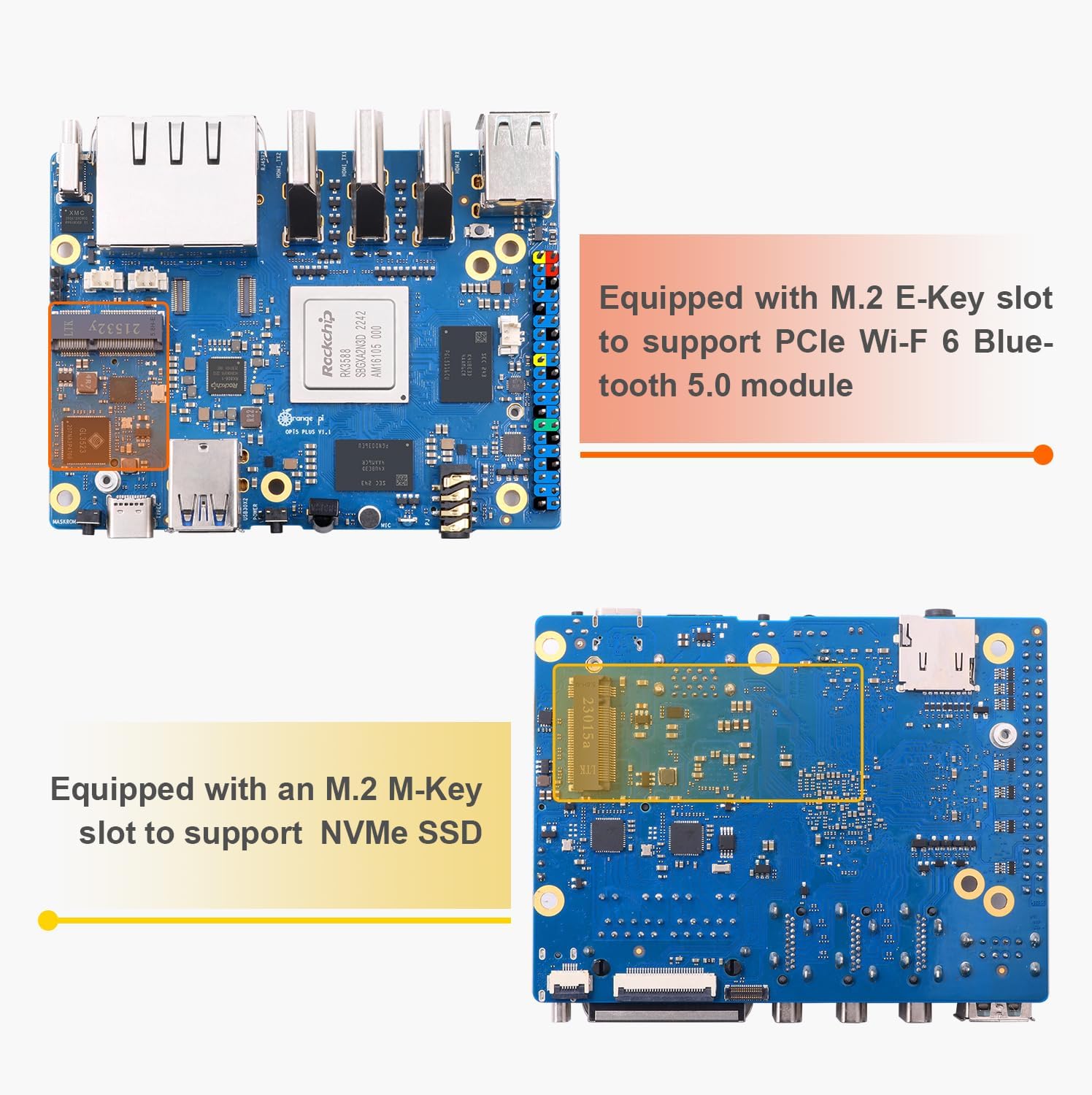

• PCIe M.2 M-KEY Socket: M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSD
• PCIe M.2 E-KEY Socket: M.2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB2.0,2230 Wi-Fi6 /BT supported
• Button: 1×MaskROM key1xRecovery1×on/off key
• Power Source: Support Type-C power supply, 5V@4A
• IR receiver: 1x IR receiver tube
• LED: RGB LED side light
• FAN: 5V FAN
• RTC2Pin: RTC backup battery
• Debugging: 3Pin debug serial port (UART)
• Supported OS: Orangepi OS(Droid), Orangepi OS(Arch), Ubuntu22.04, Debian11, Android12

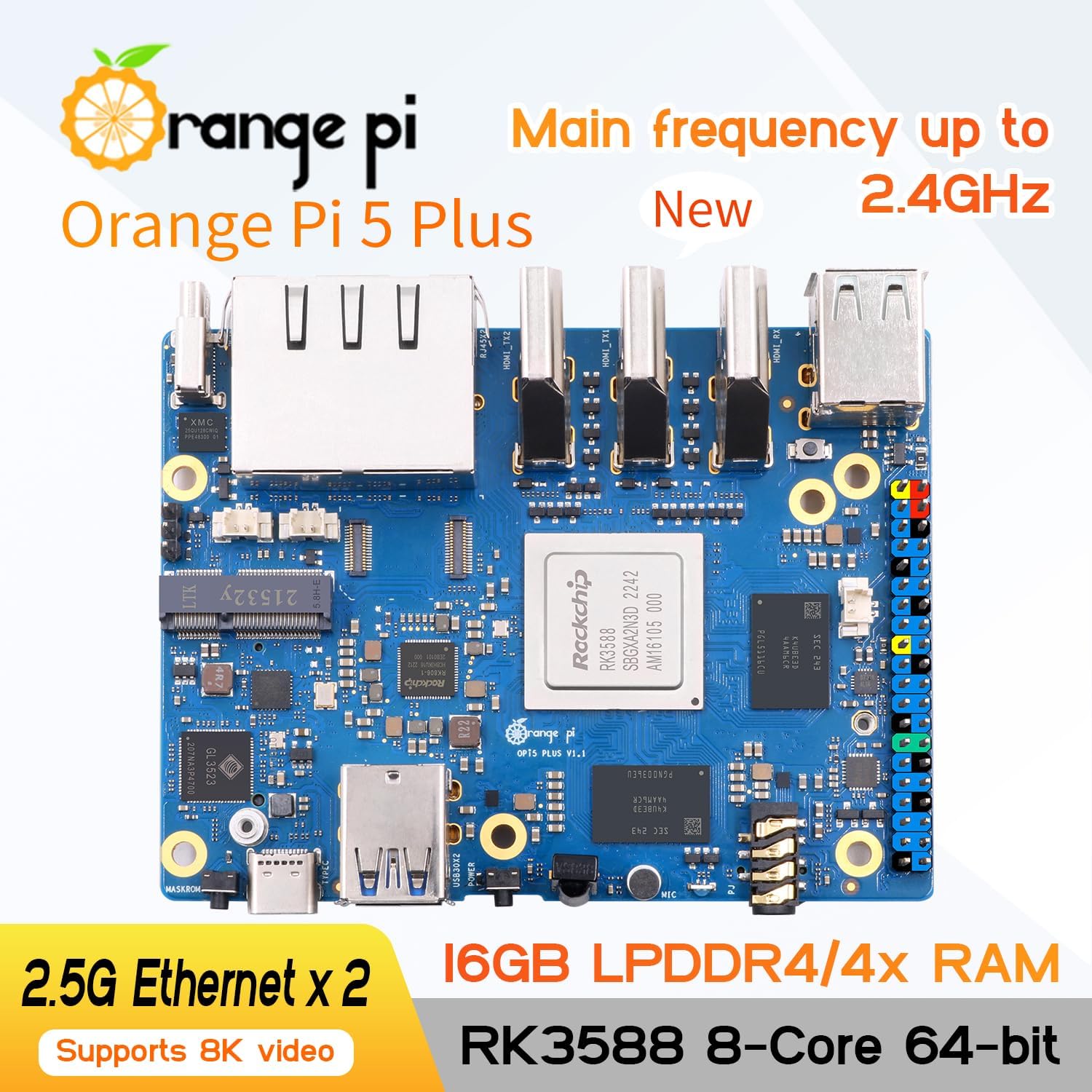

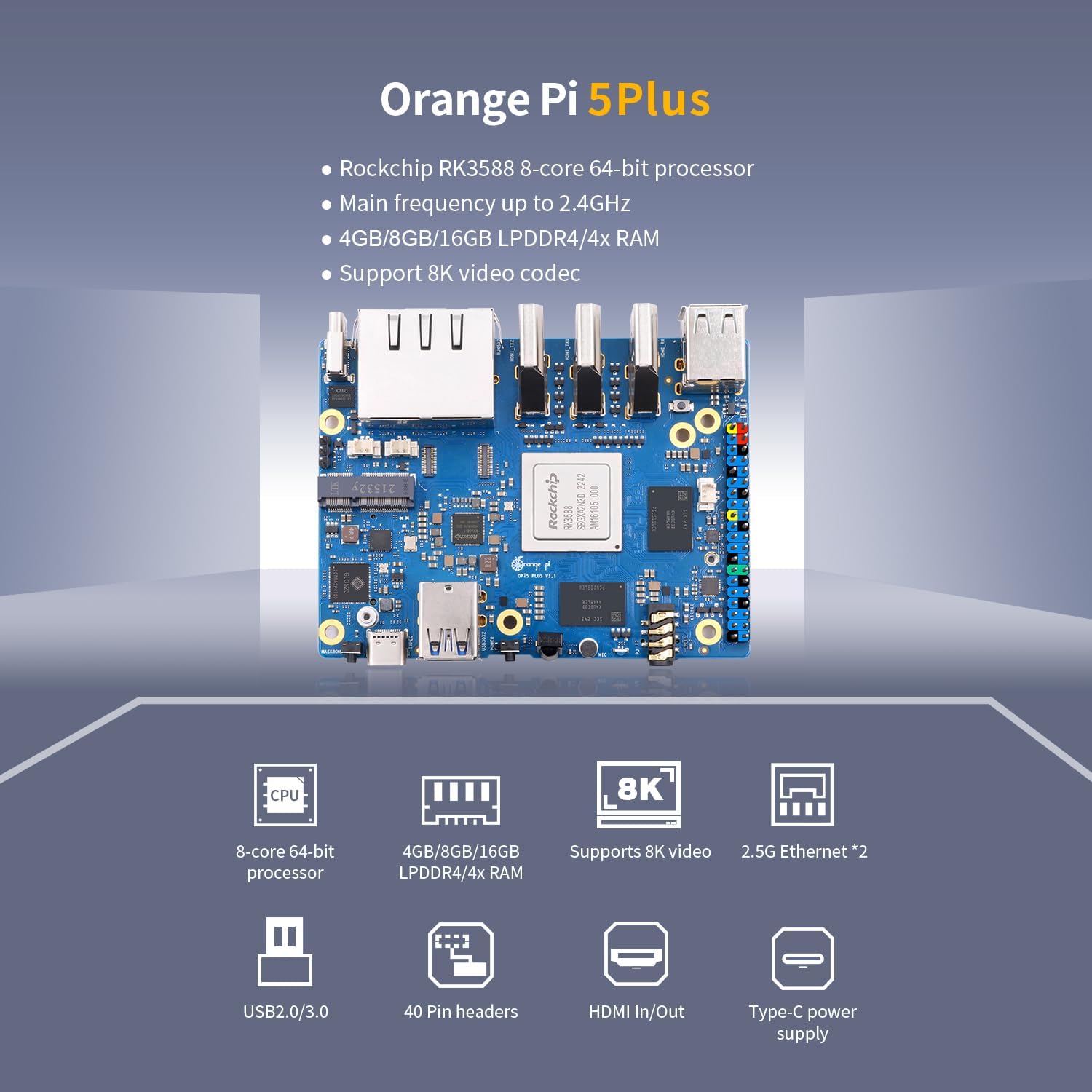

🍊[High Performance]: Orange Pi 5 Plus signal board computer uses Rockchip RK3588 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design. 4GB/8GB/16GB LPDDR4/4x RAM memory and support eMMC socket which can be connected with 16GB/32GB/64GB/128GB/256GB eMMC module(NO Include). Main frequency up to 2.4GHz and up to 8K display processing capability.
🍊[Abuandent Interfaces]: Orange Pi 5 Plus development board provides abundant interfaces, including 2*HDMl output ports, 1*HDMl input port , 2*PCIe extended 2.5G Ethernet ports, 1*M.2 M-Key slot (supports installation of NVMe SSDs), and 1*M.2 E-Key slot (supports Wi-Fi 6 and Bluetooth modules). In addition, Orange Pi 5 Plus has 2*USB 3.0, 2*USB 2.0, and 2*Type-C (one of which is a power connector).
🍊[8K Video Codes Support]: Orange Pi 5 Plus up to supports 8-core CPU and 8K@60Hz video decoding , the powerful video codec allows for clearer images and more detailed picture quality which greatly improves the user gaming experience.
🍊[Support Open Source]: Orange Pi 5 Plus single board computer can build computer, wireless server, games, music sounds, video and speaker. Orange Pi 5 Plus development board can run Orange Pi OS(Droid)/Ubuntu/Debian/Armbian/Linux/Android 12 OS.
🍊[Genuine Guarantee and Official Authorized]: 👉Original guaranteed: Our products are all genuine , guaranteeing the highest quality.👉Quality guaranteed: Our all products that have undergone rigorous quality checks.👉Satisfaction guaranteed: Please contact us if you have any concerns about the product, we will do our best to offer satisfaction for all our customers.
