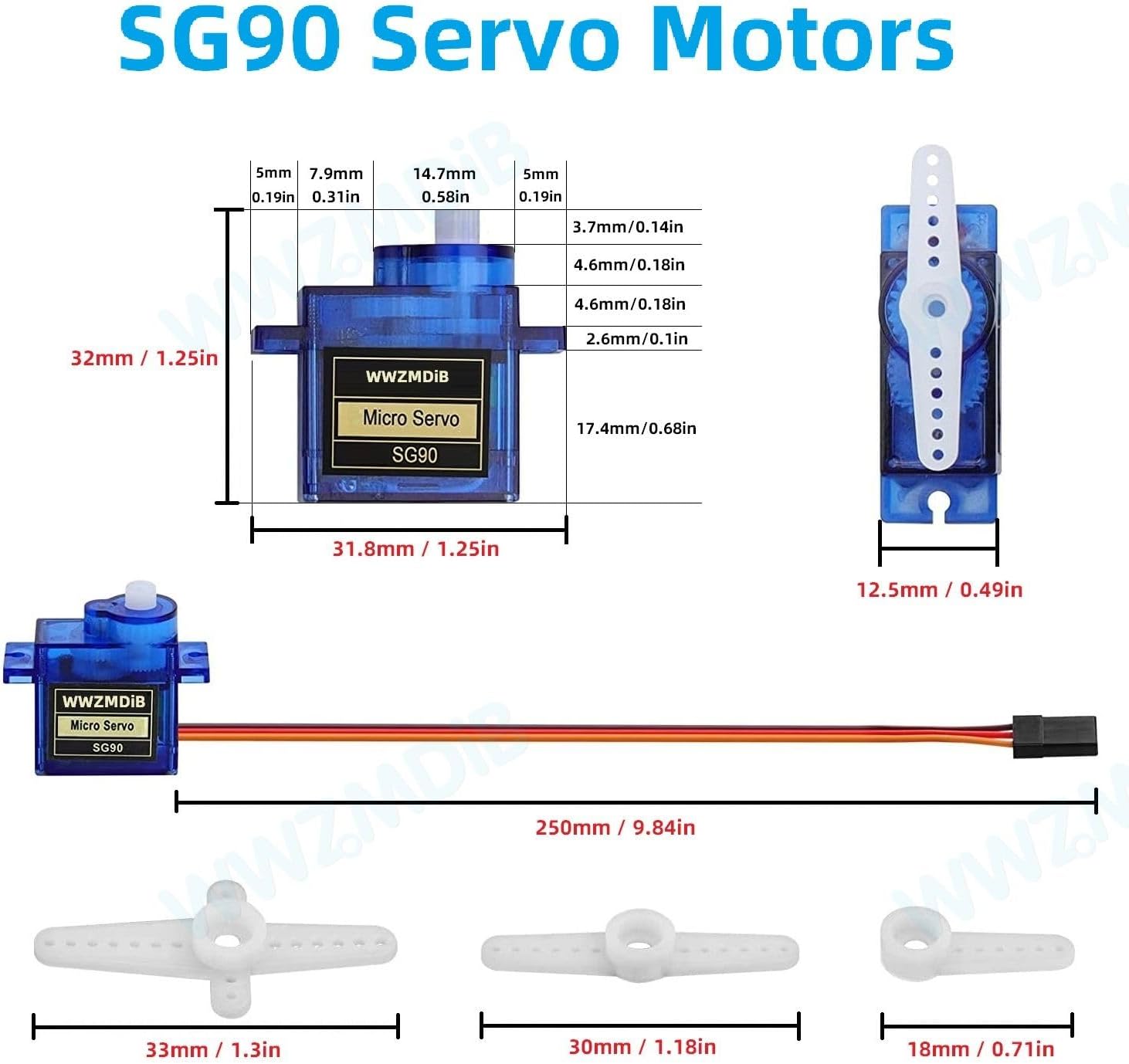

SG90 Micro Servo Motor for Arduino Raspberry Pi DIY (3 Pcs)

Description

Price: $6.99
(as of Jul 07, 2024 08:13:14 UTC – Details)

Buy On Amazon

WWZMDiB 3Pcs SG90 Micro Servo Motor Mini Servo SG90 9g Servo Kit for RC Robot Arm/Hand/Control with Cable, Mini Servos Arduino

💎【Mini Servo SG90 9g Servo Kit】: SG90 9G micro servo motor for remote control helicopters, micro robot, robot arm and boats. Fit for ALL kinds of R/C Toys and also make electronics DIY compatible with Arduino, Raspberry Pi
⚡【Voltage】：4.8V～6.0V
📐【Running angle】: 180°±1° (500→2500 μsec)
📐【Rotating direction】: Counter Clockwise (500→2500μsec)
🥇【The SG90 has 3 wire interfaces】:Red wire-5V, Brown Wire-Ground, Yellow wire-digital pin 9.

Control system: Change the pulse width
Amplifier type: Analog controller
Operating trave: 180°±1° (500→2500 μsec)
Left&Right travelling Angle deviation: ≤ 6°
Centering deviation: ≤ 1°
Neutral position: 1500 μsec
Dead band width: 7 μsec
Rotating direction: Counter Clockwise (500→2500μsec)
Pulse width range: 500→2500 μsec
Maximum Physical Angle: About 200° (Manual control)

Merchandise included：
3Pcs Mini Servo SG90 9g Servo Kit
1Pcs screwdriver
💎【SG90 Servo Motors Kit】: for Arduino Raspberry Pi DIY
⚡【Voltage】：4.8V～6.0V
📐【Running angle】: 180°±1° (500→2500 μsec)
📐【Rotating direction】: Counter Clockwise (500→2500μsec)
🥇【The SG90 has 3 wire interfaces】:Red wire-5V, Brown Wire-Ground, Yellow wire-digital pin 9.
