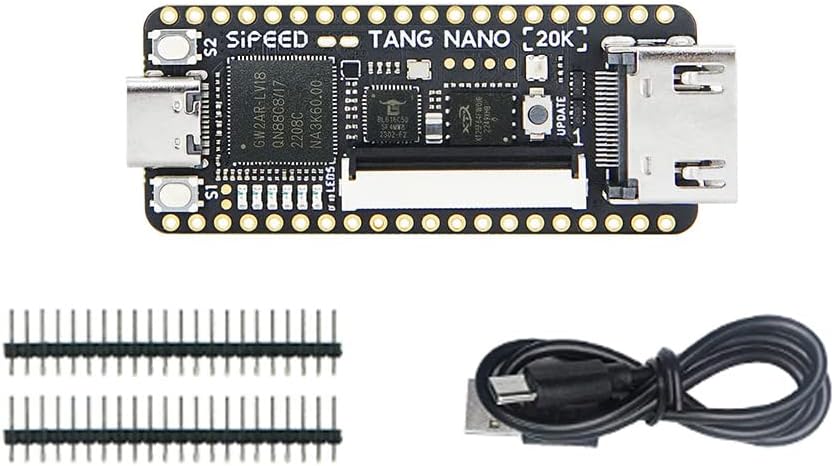

Sipeed Tang Nano 20K GW2AR-18 QN88 FPGA Development Board with 64Mbits SDRAM 828K Block SRAM Linux RISCV Single Board Computer for Retro Game Console Support microSD RGB LCD JTAG Port

Description

Price: $29.99
(as of Aug 28, 2024 00:55:10 UTC – Details)

Buy On Amazon

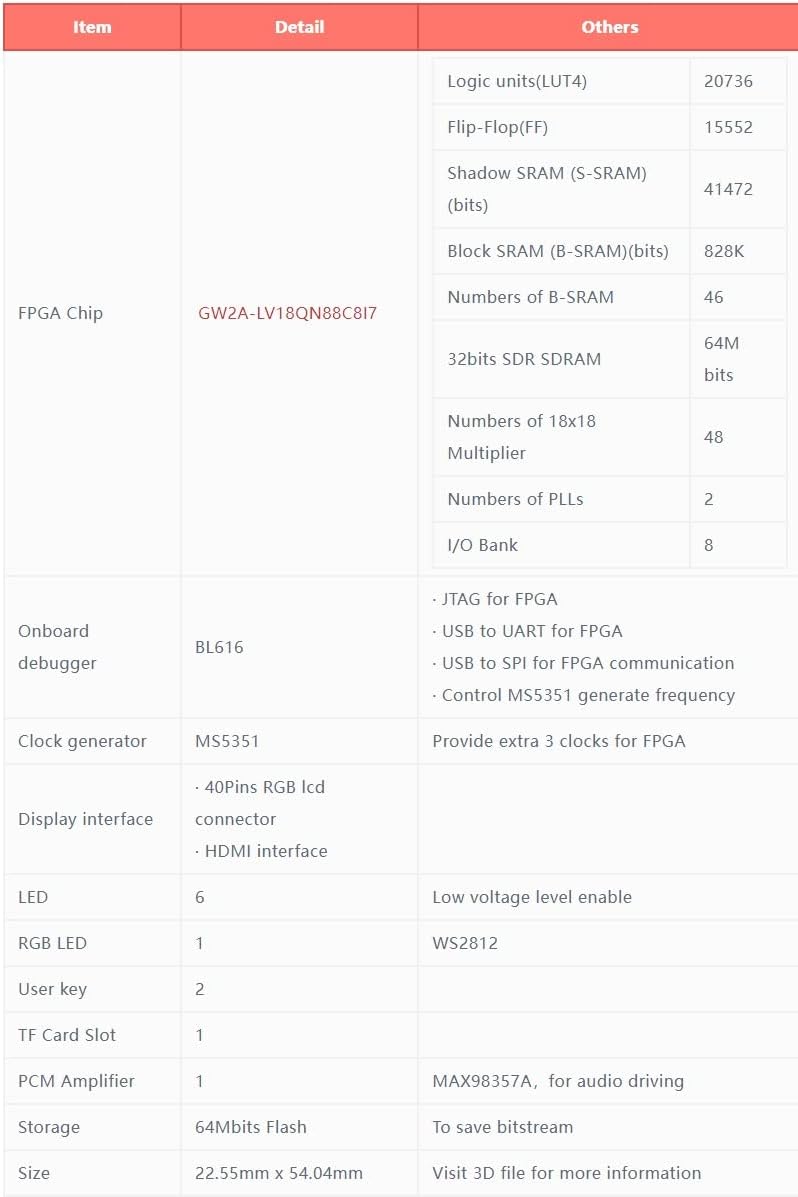

-Specification-
FPGA Chip: GW2A-LV18QN88C8I7
Logic units(LUT4): 20736
Flip-Flop(FF): 15552
Shadow SRAM (S-SRAM)(bits): 41472
Block SRAM (B-SRAM)(bits): 828K
Numbers of 18×18 Multiplier: 48
Onboard debugger: BL616
Clock generator: MS5351,provide extra 3 clocks for FPGA
Display interface: 40Pins RGB lcd connector/ HDMI interface
LED:6,Low voltage level enable
RGB LED:1,WS2812
User key: 2
TF Card Slot: 1
PCM Amplifier: 1,MAX98357A，for audio driving
Storage: 64Mbits Flash,To save bitstream
Size: 22.55mm x 54.04mm x 5mm
-Technical Support-
Please click “WayPonDEV” and ask a question.
Please leave the message monica#smartfire.cn (f——>@) skype: monica_9122.
Please leave the message in our forum by forum.youyeetoo.com/.
[FPGA Chip] GW2AR-18 QN88 FPGA Chip containing 20736 LUT4 logic cells and 15552 Filp-Flops.There are 2 PLL in this FPGA chip, and many DSP units supporting 18 bit x 18 bit multiplication
[Onboard Debugger ] Sipeed Tang Nano 20K Development Board support JTAG for FPGA, USB to UART for FPGA,USB to SPI for FPGA communication, Control MS5351 generate frequency
[USB2.0 HS interface] The 27MHz crystal generates the clock for HDMI display, onboard MS5351 clock generating chip also provides mutiple clocks.Support Serial communication, high-speed SPI reception.
[Application scenarios] Tang Nano 20K Open source Development Board supports game console emulators, drives RGB screens, multiple display outputs, 20K LUT4, RISC-V soft-core experiments.
[Wiki] “https://dl.sipeed.com/shareURL/TANG/Nano_20K/1_Datasheet”;Any after-Sales Privems, Please Contact us by click “Waypondev” store and ask a question or leave the message in our forum by “forum.youyeetoo .com/”.
