Product Description
YIHUA 982 Precision Soldering Station (C245-Compatible)
The YIHUA 982 Precision Soldering Station is now upgraded with a high-power handpiece that is compatible to C245 soldering iron tip cartridges.

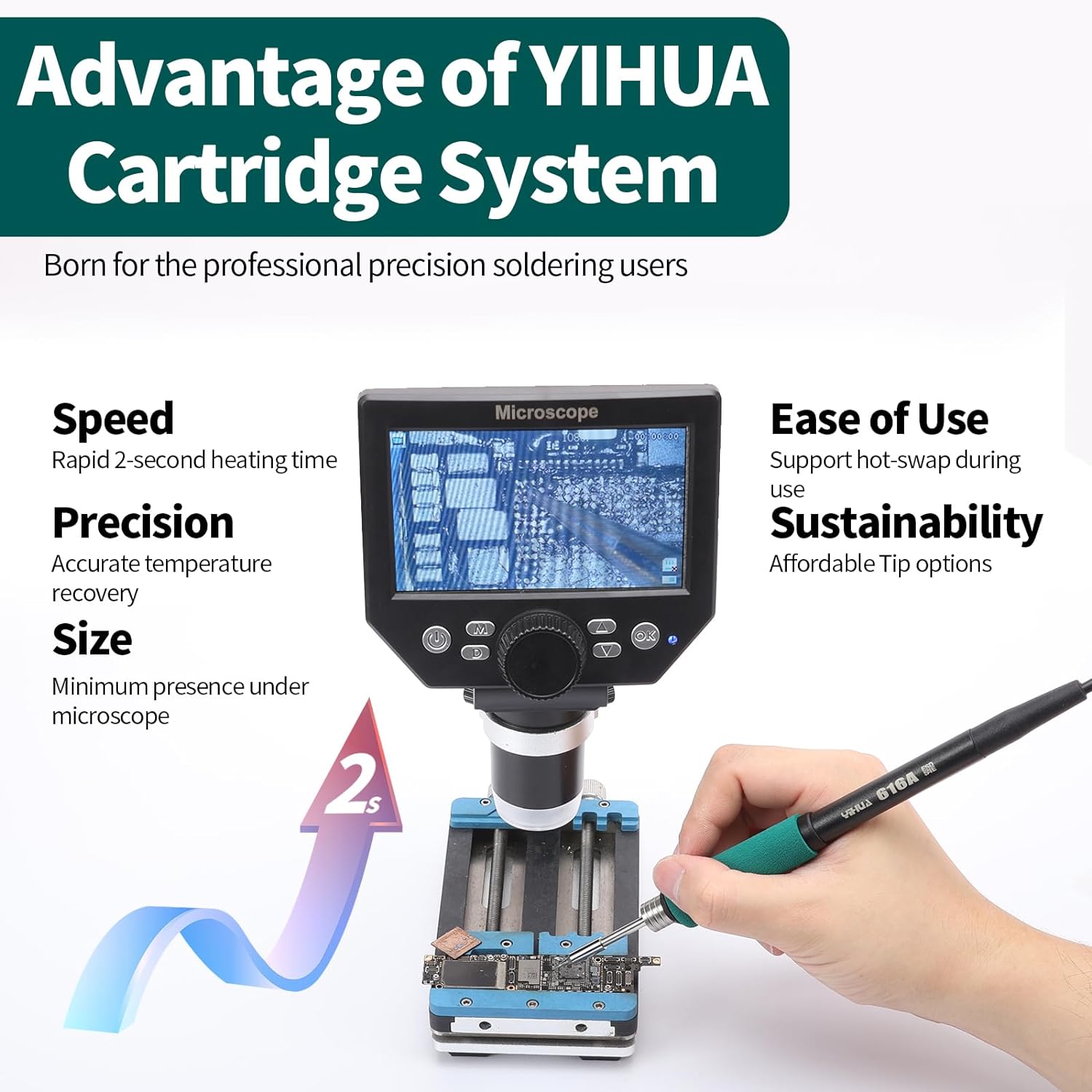

Born for Precision
Ultra-fast heating (Ready for use in 2 seconds)Accurate temperature recovery (Detection at the tip)Slim under the microscope (Tip diameter: 4.3mm)Supports hot-swapping

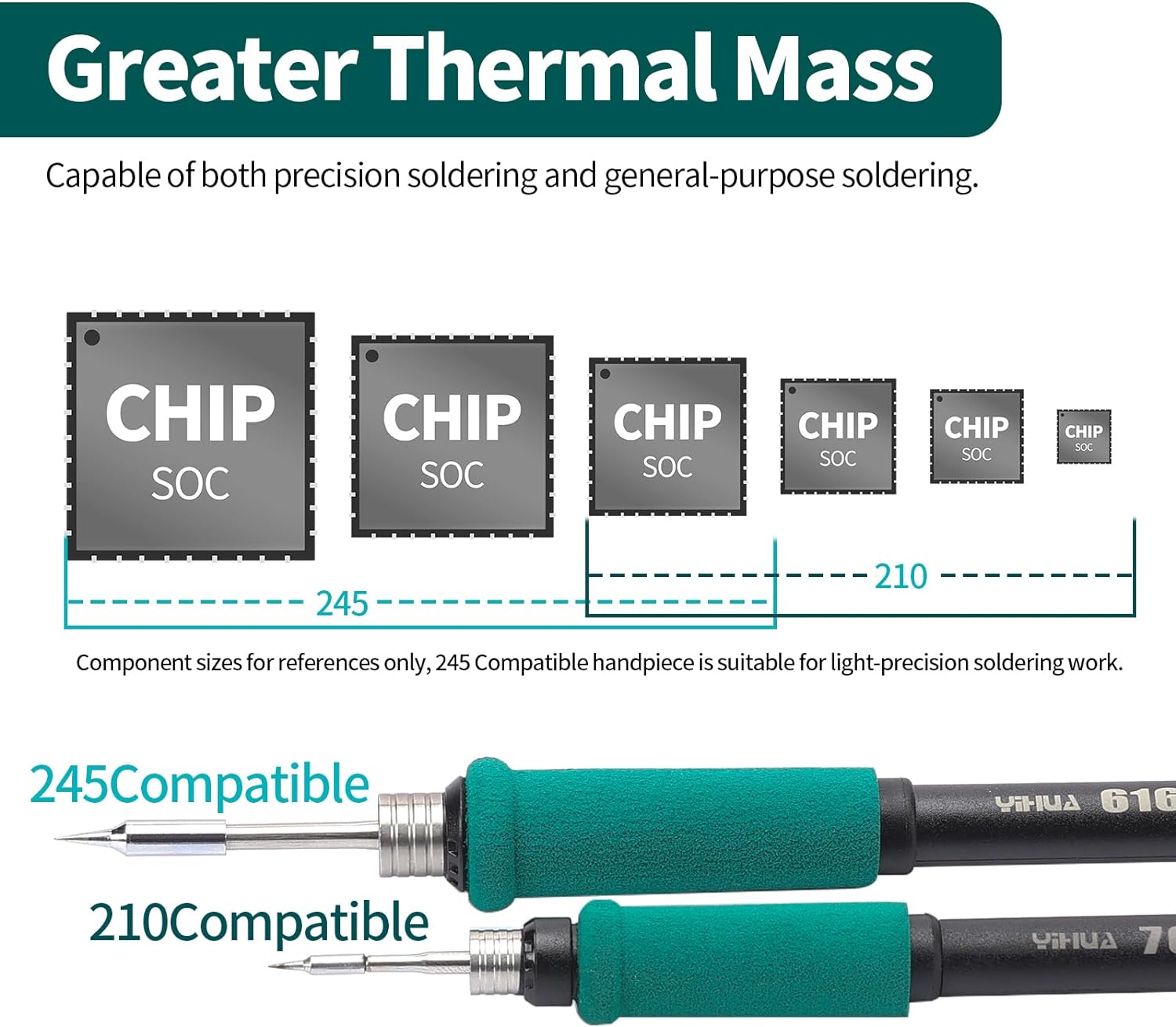

Performance Upgrade

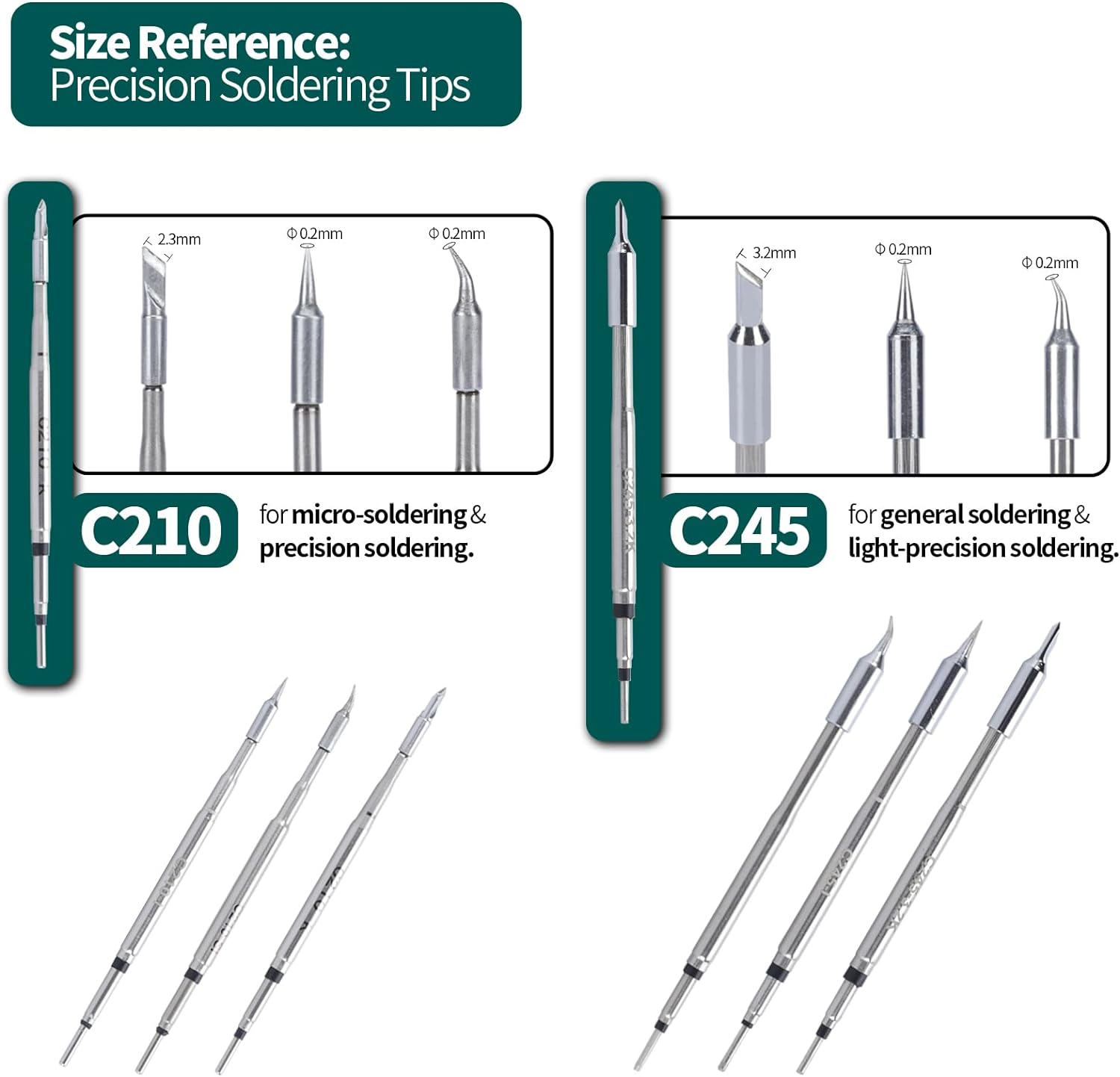

Larger as compared to the C210More suitable for general solderingRetaining its precision soldering capabilities

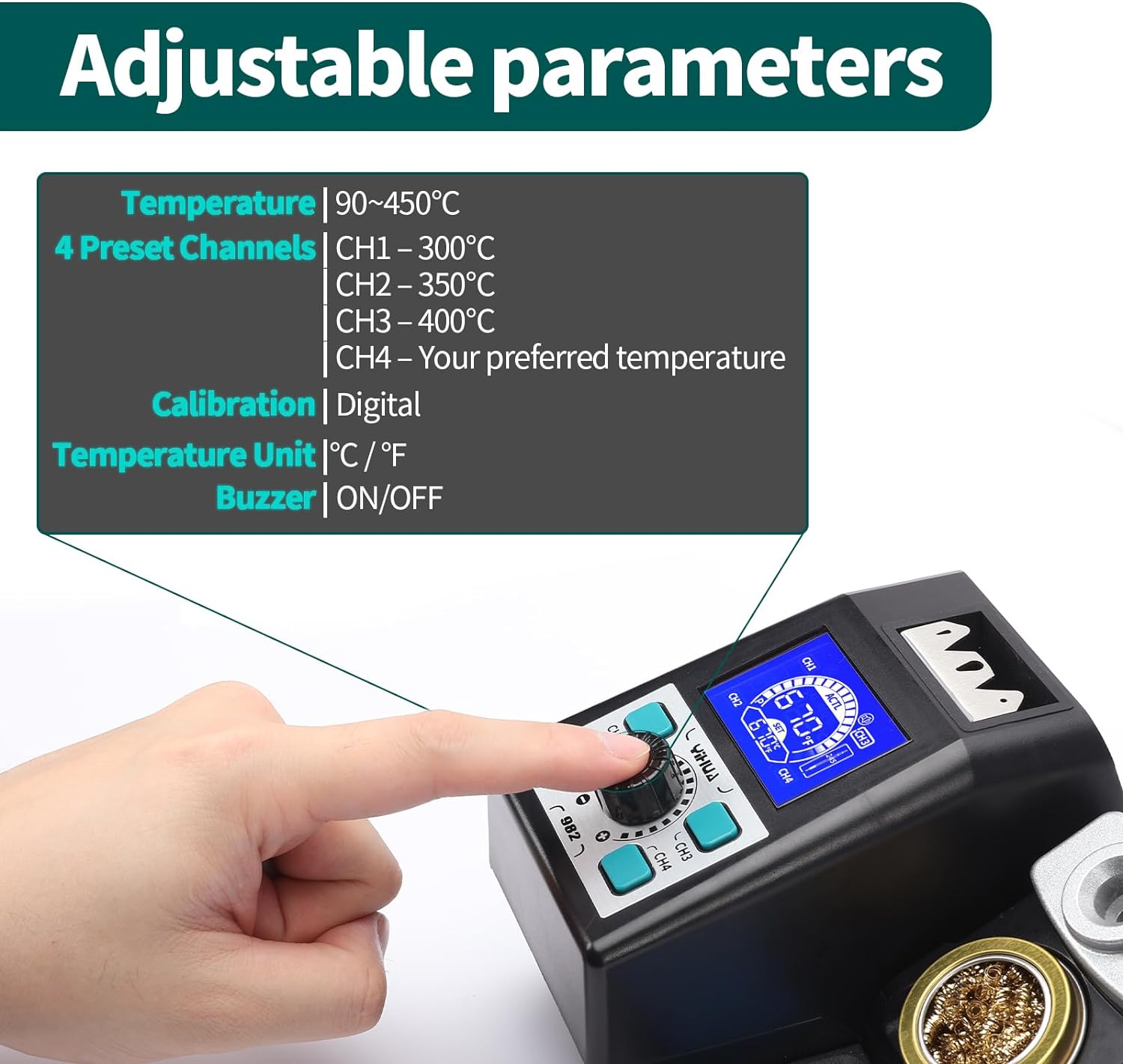

Adjustable Parameters
Temperature: 90~450°C / 194°F~842°FTemp. Memory Channels: 4 in total°C / °F Conversion: ✔Temperature Calibration: ✔Buzzer Feedback: ON/OFF

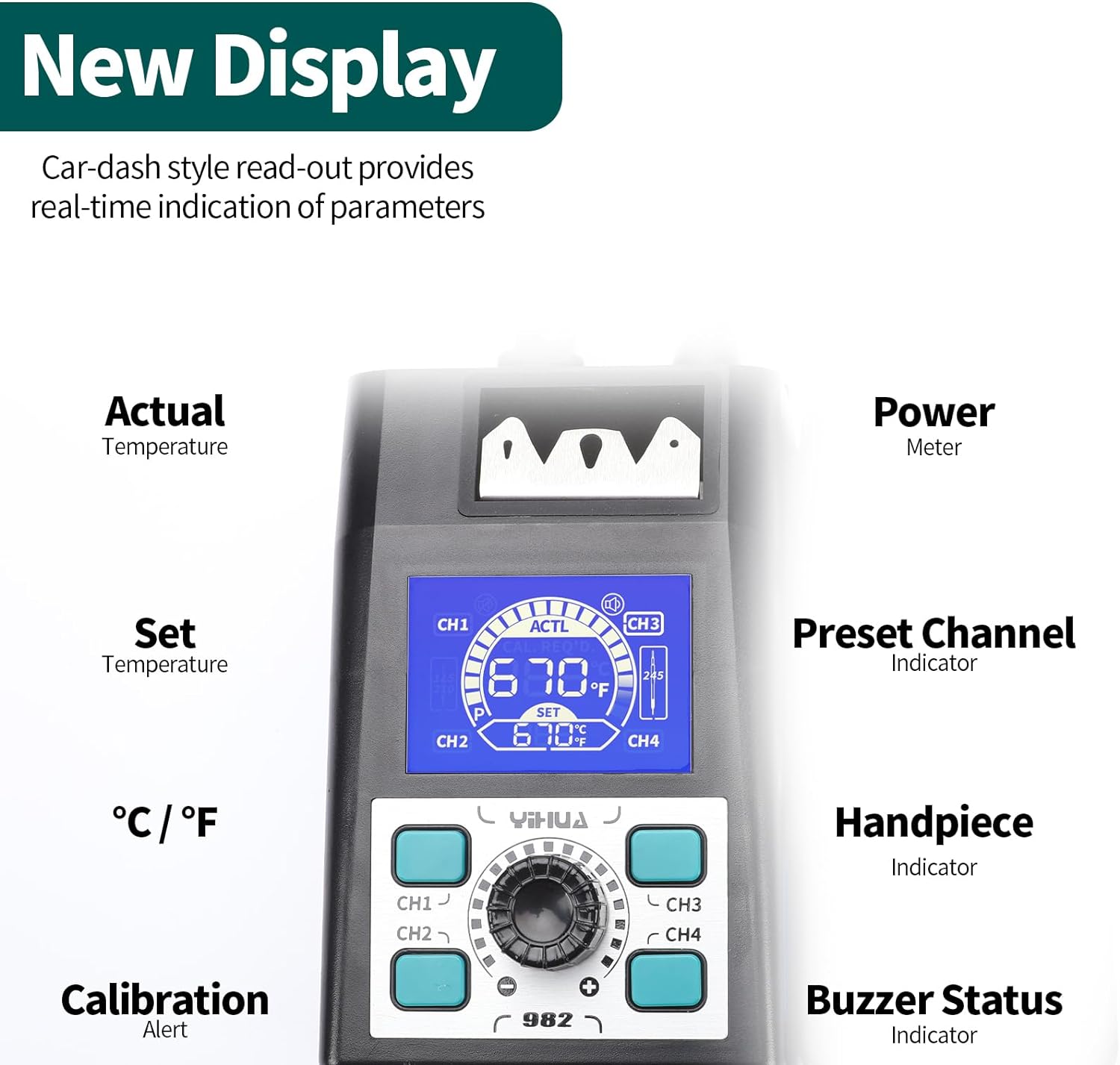

Intuitive Display
Actual TemperatureSet Temperature°C / °F UnitReal-Time Power MeterPreset Channel IndicatorHandpiece IndicatorBuzzer Indicator

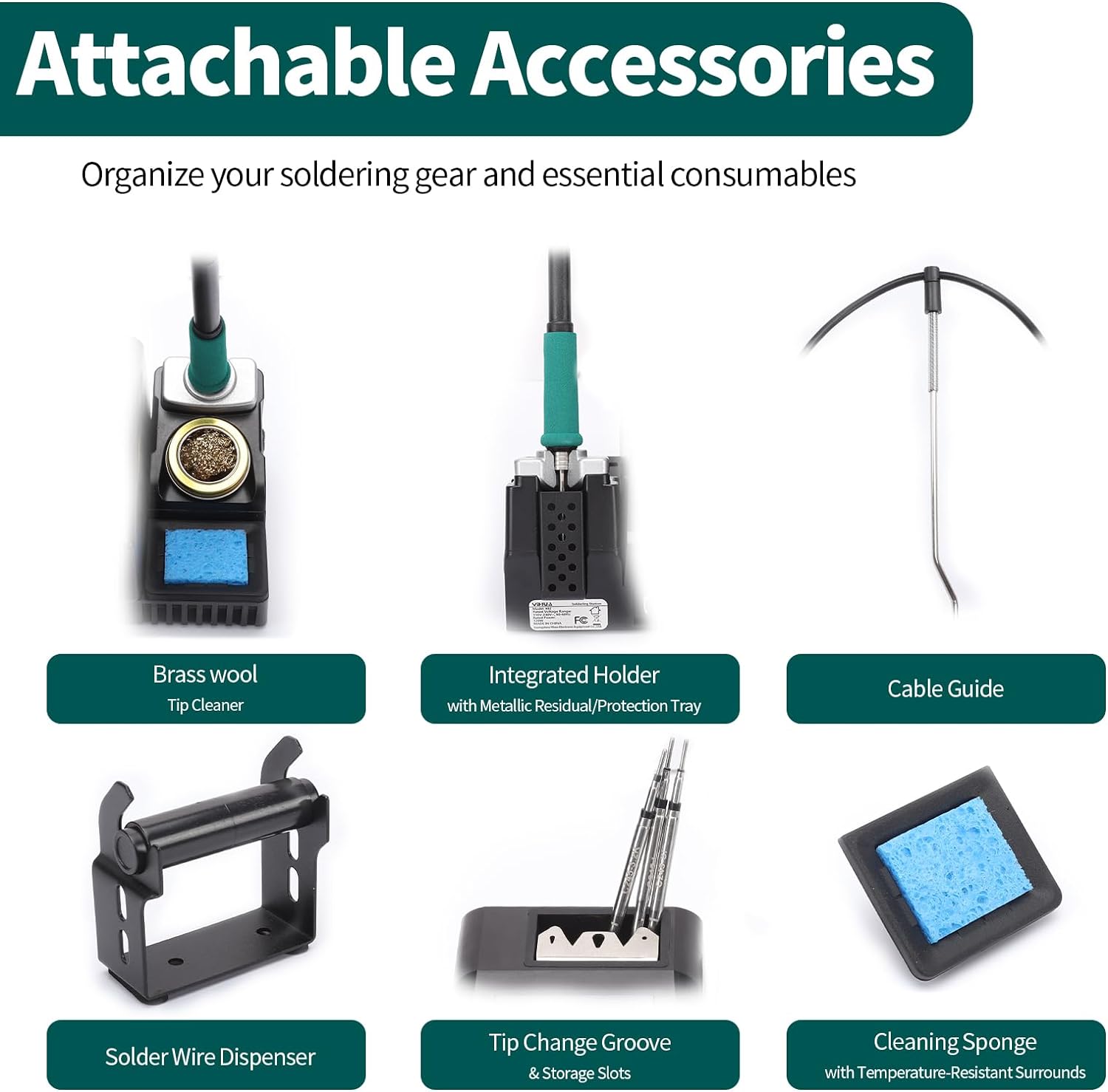

Accessory Integration
Solder Wire DispenserTip Storage Slots / Tip Change GrooveCable GuideBrass Wool Tip CleanerCleaning Sponge (with Silicone Surround)Soldering Iron Holder (with Metallic Protection)
The YIHUA 982 Precision Soldering Station Includes：
3 x YIHUA 245 Cartridges (Type SI, I, 3.2K)
1 x YIHUA 982 Main Unit
1 x YIHUA 616A Soldering Handpiece (C245 Compatible)
1 x Power Cord
1 x Cable Guide
1 x Solder Wire Dispenser
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
5.0 out of 5 stars
1
5.0 out of 5 stars
2
5.0 out of 5 stars
1
5.0 out of 5 stars
4
4.4 out of 5 stars
66
Price
$10.99$10.99 $10.99$10.99 $10.99$10.99 $16.99$16.99 $119.99$119.99
Category
C245-Compatible Cartridge C245-Compatible Cartridge C245-Compatible Cartridge Replacement Handpiece Precision Soldering Station
Rated Power
40W (210 Handpiece)
Temperature Range
194°F~842°F
Display
LCD Nixie
Display Feature
°C/°F Display, Real-Time Temperature Display
Preset Channels
4
PID Temperature Stabilization
✓
Temperature Calibration
✓
Sleep Mode
✓
Specifications
Model YIHUA 982 Black Voltage 110~240V~ 50~60Hz Rated Power 120W (245 Handpiece) Weight 0.89kg. ±10% Size L147*W143*H106mm ±5mm Temperature Range 194~842°F / 90~450°C Temperature Display LCD Nixie Tip to Ground Resistance ＜2 ohms

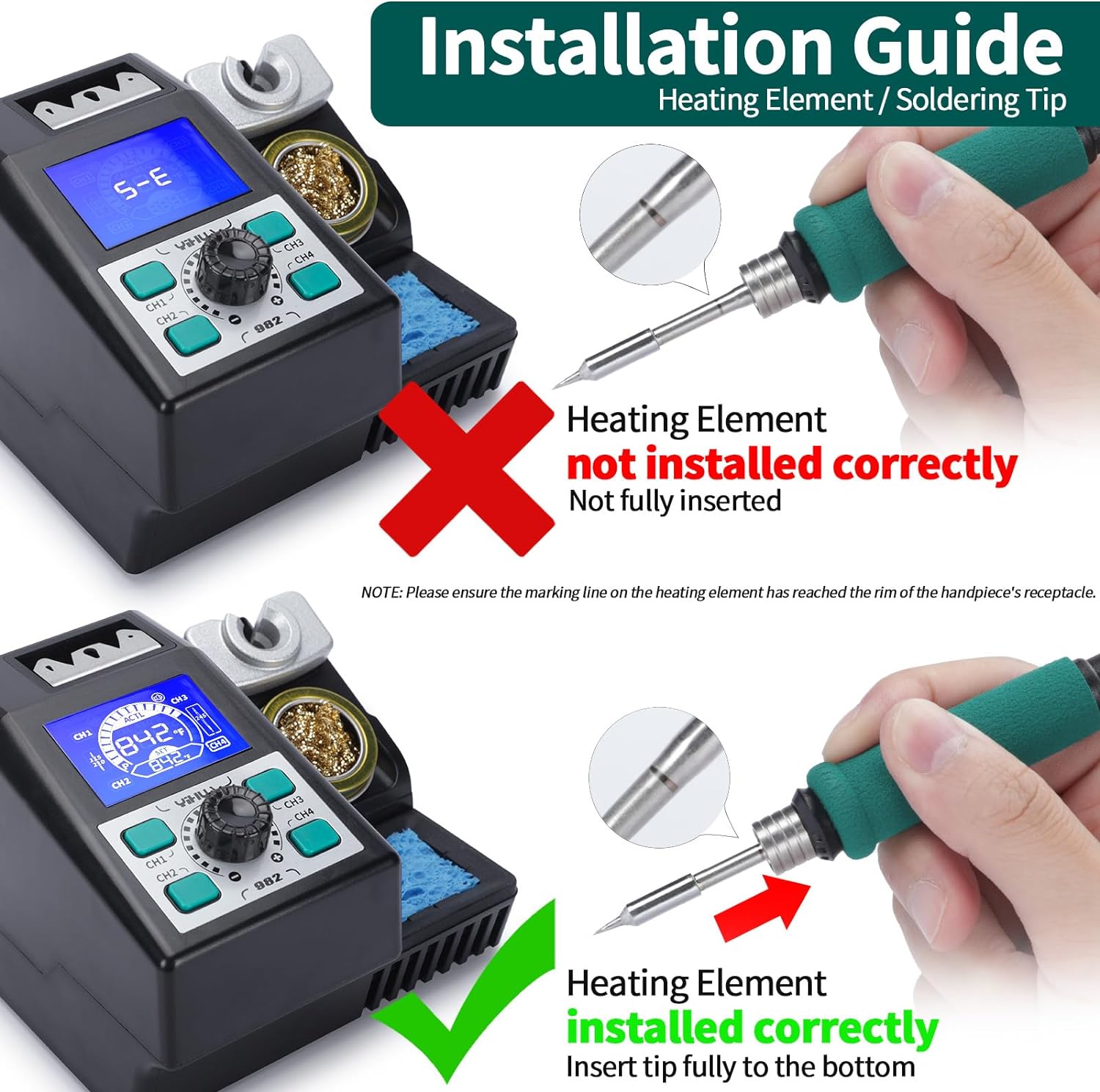

The soldering iron handpiece uses the cartridge type precision soldering iron tip (C245 compatible) that seamlessly integrates the heating element, thermocouple, and soldering iron tip itself. The tip can get from room temperature to soldering temperature within 2 seconds thanks to the cartridge type tip design.
The digital LCD displays real-time information including the actual temperature, set temperature, power meter, preset channel, handpiece, buzzer feedback indicator. The power meter indicates the real-time power output, and you can monitor the soldering iron’s status easily.
This professional soldering station keeps the tip temperature steady at the set temperature via its PID temperature stabilization function and you can set the soldering station’s temperature from 194°F~842°F. This solder station includes more functions such as 4 preset channels, digital temperature calibration, sleep mode, auto-shutdown and C/F conversion.
This station has a built-in metallic rack for easy cartridge change and storage. The elevated cable guide makes the precision soldering handpiece easier to move around and hold on to. You can store solder wire on the dispenser and clean soldering tip with the integrated cleaning kit. The holder comes with a metallic protective mesh for better safety.
Choose Yihua with confidence- this product includes quality accessories and tools to provide an optimal experience for your work. 12-Month USA Warranty (Exclusive). Plus, our team is providing professional assistance 24/7 right on Amazon. Questions and Suggestions are welcome. NOTE: Spare parts are readily available in this store. This model works on 110-240V with its USA plug.
